Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

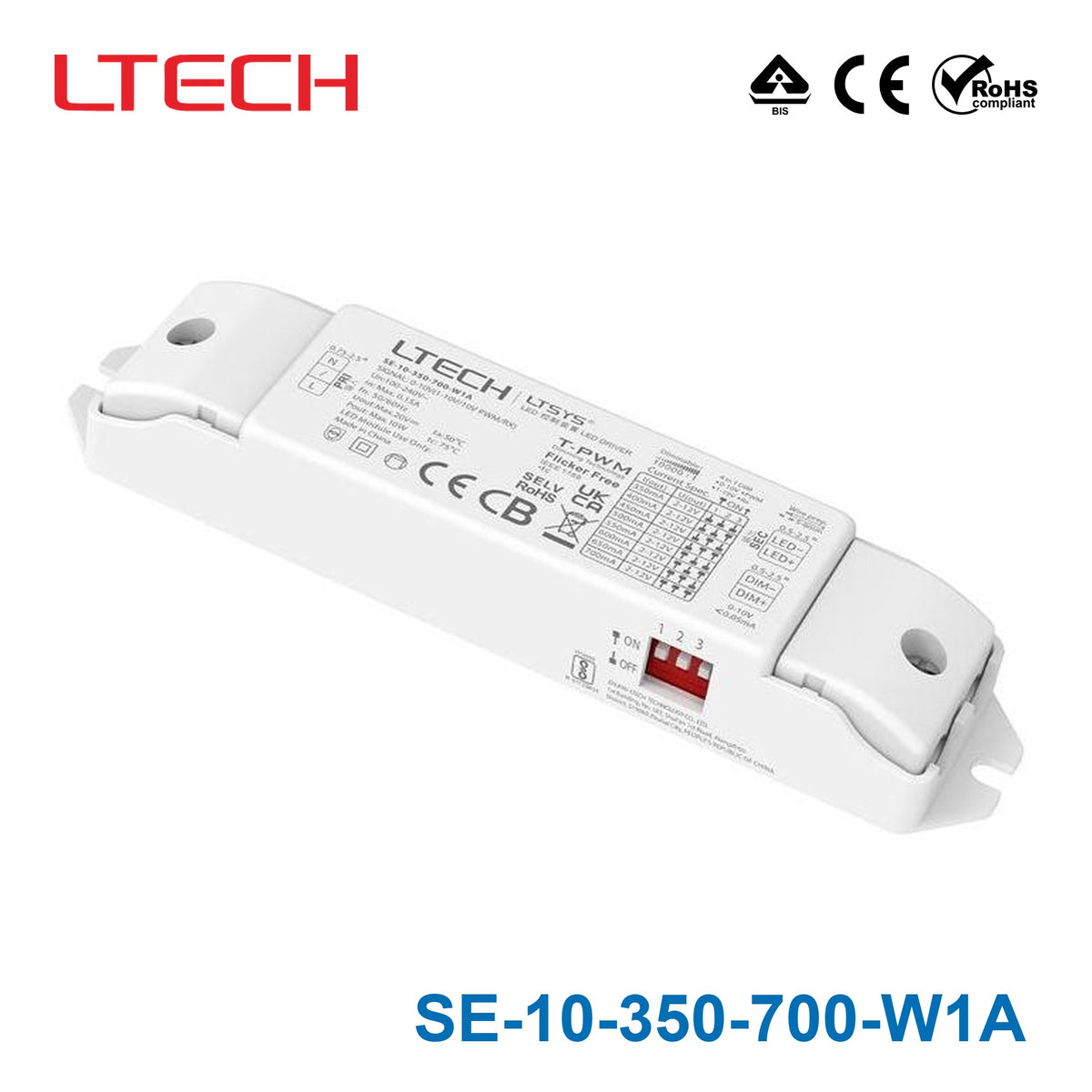

LTECH SE-10-350-700-W1A 10W 350mA~700mA CC 0-10V LED Driver

SKU SE-10-350-700-W1A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The LTECH SE-10-350-700-W1A is a 10W constant-current LED driver with 0-10V dimming control. It is designed for applications that need adjustable output current within the 350mA to 700mA range.

Input 100~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 100~240VAC
✓Dimming: 0-10V
✓Output voltage: 24V
✓Output current: 350~700mA, selectable by DIP switch
✓Rated power: 10W
✓Operating temperature: -20~+50°C
✓Certifications: BIS, CE, ROHS
✓Dimensions: 135 x 30 x 20mm
✓5 year warranty

Frequently Asked Questions

What type of LED driver is the LTECH SE-10-350-700-W1A?

The LTECH SE-10-350-700-W1A is a 10W constant-current LED driver with 0-10V dimming control. It is designed for applications that need adjustable output current within the 350mA to 700mA range.

What dimming performance does this model offer?

This model supports 0-10V dimming from 0% to 100%, with dimming depth down to 0.01%. It also includes soft-on and fade-in dimming behavior for smoother visual transitions and improved comfort.

Is the SE-10-350-700-W1A suitable for flicker-sensitive lighting applications?

Yes, this driver uses T-PWM dimming technology intended to deliver continuous, flicker-free images under high-speed shooting conditions. That makes it a strong option for applications where lighting stability matters on camera or in visually sensitive environments.

What operating environment is this LED driver rated for?

The SE-10-350-700-W1A is rated for ambient temperatures from -20°C to 50°C. This range makes it suitable for many indoor and controlled-environment commercial lighting applications, provided the installation stays within those limits.

What protection features are included in this driver?

This model includes over-voltage, overload, and short-circuit protection with automatic recovery. These built-in protections help support reliability in demanding LED power applications.

What makes this model different from a fixed-current LED driver?

Unlike a fixed-current driver, the SE-10-350-700-W1A supports multiple current levels between 350mA and 700mA. That gives buyers more flexibility when matching one driver model to different constant-current LED load requirements within its rated range.

What are the physical and durability highlights of this LED driver?

The housing uses V0 flame-resistant polycarbonate from SAMSUNG/COVESTRO and is designed to be compact and lightweight. The unit weighs 0.08 kg and is backed by a 5-year warranty.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SE-10-350-700-W1AS 8.4W CC 0-10V Dimmable LED Driver 350-700mA	—	—	—	IP20	View
