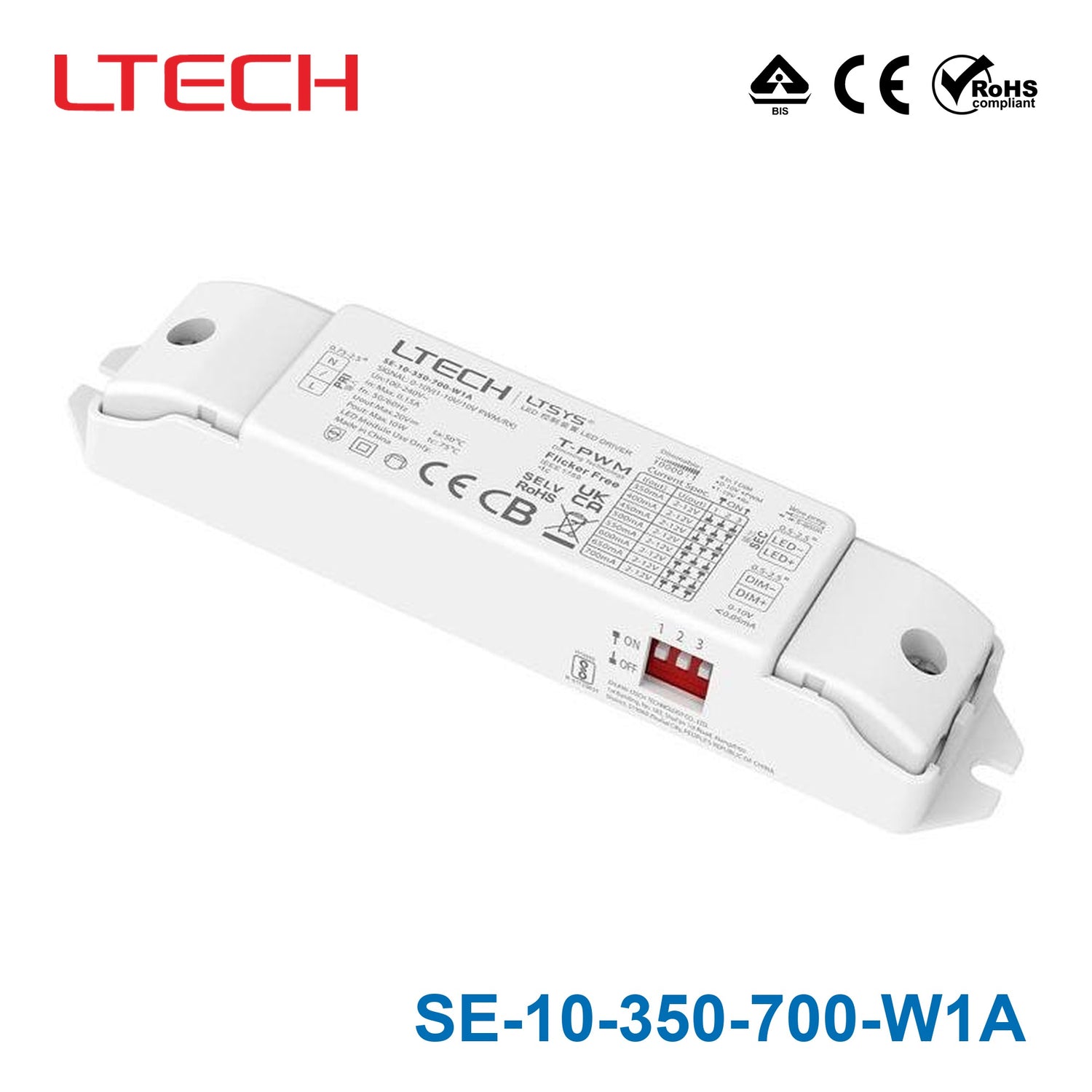

LTECH SE-10-350-700-W1A 10W 350mA~700mA CC 0-10V LED Driver
Log in to see priceOverview
SE-10-350-700-W1A is the 2-12Vdc output model of this series: typical efficiency 75%.
Features
- Dimming interface: 0-10V (1-10V/10VPWM/RX).
- T-PWM™ digital dimming.
- Built-in SCM, automatic recognition of 0-10V, 1-10V input signal.
- Dimming range: 0~100%, LED start at 0.01% possible.
- 0-100% flicker-free (IEEE 1789 standard).
- Innovative thermal management technology, intelligent power life protection.
- Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
- 5 years warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output Voltage
- 2-12Vdc
- Max Output Voltage
- 20Vdc
- Output Current
- 350-700mA
- Output Power Range
- 0.7W~8.4W
- Strobe Level
- Almost flicker-free / High frequency exemption assessment level.
- Dimming Range
- 0~100%, 0.01% dimming depth.
- LF current ripple(<120Hz)
- <2%
- Current Accuracy
- ±5%
- Ripple & Noise
- ≤2V
- PWM Dimming Frequency
- ≤3600Hz
INPUT
- Dimming Interface
- 0-10V (1-10V/10VPWM/RX)
- Input Voltage
- 100-240Vac
- Frequency
- 50/60Hz
- Input Current
- 0.15A@115Vac, 0.1A@230Vac
- Power Factor
- PF>0.95/115Vac , PF>0.8/230Vac, at full load
- Efficiency
- 75%
- Inrush Current(typ.)
- Cold start 5A at 230Vac
- Anti Surge
- L-N: 1kV
- Leakage Current
- <0.35mA/230Vac
ENVIRONMENT
- Working Temperature
- ta: -30°C ~ 50°C tc: 75°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temp., Humidity
- -40°C ~ 80°C, 10~95%RH
- Temp. Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION
- Over-heat Protection
- Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
- Over Load Protection
- Shut down the output when current load≥102%, auto recovers.
- Short Circuit Protection
- Shut down automatically if short circuit occurs, auto recovers.
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
- IEC/EN61347-1, IEC/EN61347-2-13
- EMC Emission
- EN55015, EN61000-3-2 Class C, IEC61000-3-3
- EMC Immunity
- EN61000-4-2,3,4,5,6,8,11 EN61547
- Strobe Test Standard
- IEEE 1789
OTHERS

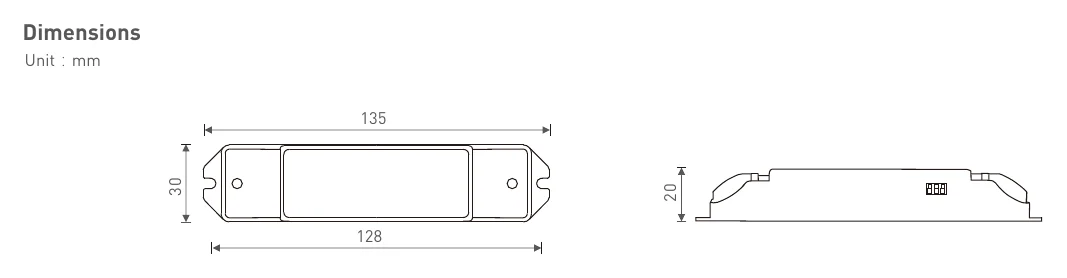

- Dimension
- 135×30×20mm(L×W×H)
- Packing
- 140×34×23mm(L×W×H)
- Weight(G.W.)
- 80g±10g
- TUV
- Certificate No. B 001119 0007 Rev. 00
- CB
- Certificate No. SG PSB-LE-01925
- RCM
- Certificate No. RCMP19279 001
- CE
- EMC Certificate No. BSTXD190412501201EC
- CCC
- Certificate No. 2019011002209509
Certifications & ratings
- T-PWM
- Super depth dimming technology
- Marked features
- 5 years warranty

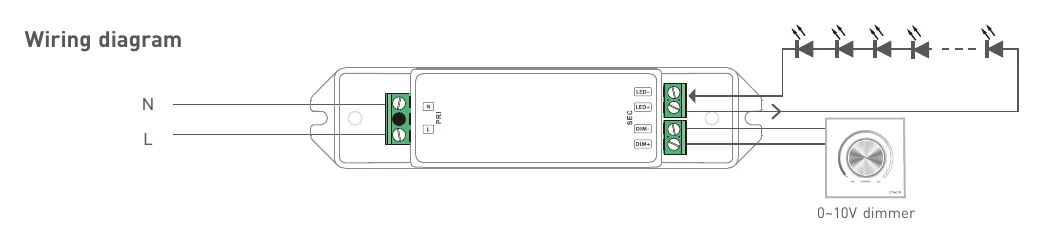

Technical drawings
Downloads
Datasheet1
FAQ
What type of LED driver is the LTECH SE-10-350-700-W1A?
The LTECH SE-10-350-700-W1A is a 10W constant-current LED driver with 0-10V dimming control. It is designed for applications that need adjustable output current within the 350mA to 700mA range.
What dimming performance does this model offer?
This model supports 0-10V dimming from 0% to 100%, with dimming depth down to 0.01%. It utilizes T-PWM technology for smooth control.
Is the SE-10-350-700-W1A suitable for flicker-sensitive lighting applications?
Yes, this driver uses T-PWM dimming technology intended to deliver continuous, flicker-free images under high-speed shooting conditions. That makes it a strong option for applications where lighting stability matters on camera or in visually sensitive environments.
What operating environment is this LED driver rated for?
The SE-10-350-700-W1A is rated for ambient temperatures from -30°C to 50°C. This range makes it suitable for many indoor and controlled-environment commercial lighting applications, provided the installation stays within those limits.
What protection features are included in this driver?
This model includes over-heat, overload, and short-circuit protection with automatic recovery. These built-in protections help support reliability in demanding LED power applications.
What makes this model different from a fixed-current LED driver?

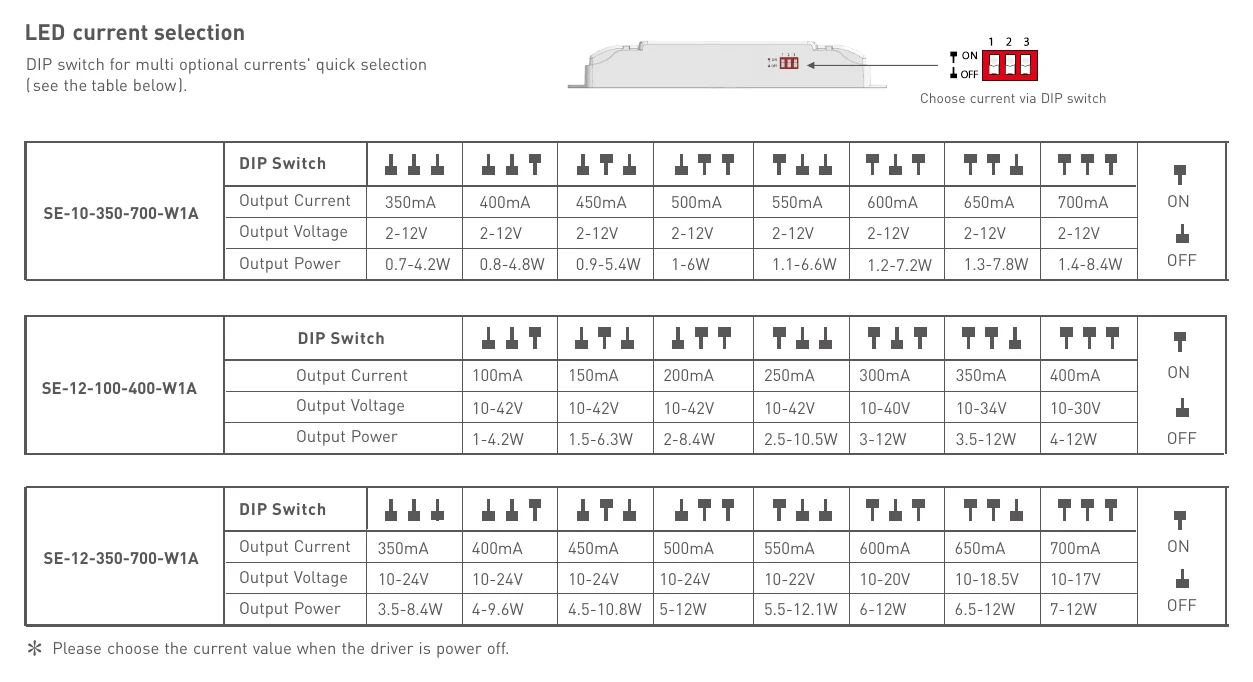

Unlike a fixed-current driver, the SE-10-350-700-W1A supports multiple current levels between 350mA and 700mA. That gives buyers more flexibility when matching one driver model to different constant-current LED load requirements within its rated range.
What are the physical and durability highlights of this LED driver?
The housing is designed to be compact and lightweight. The unit weighs 80g±10g and is backed by a 5-year warranty.
