Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

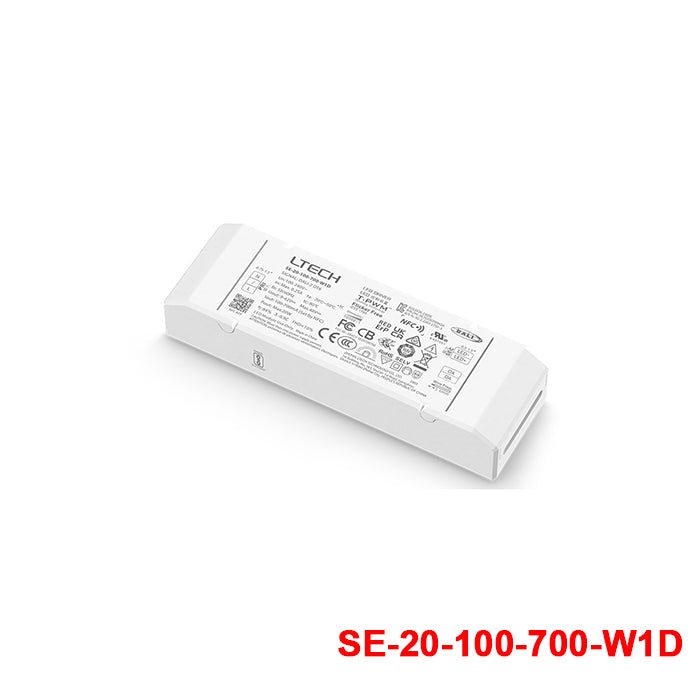

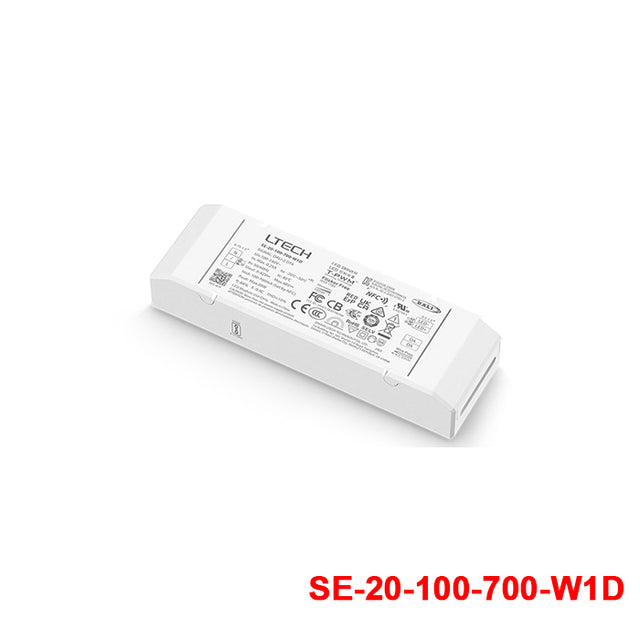

Ltech SE-20-100-700-W1D 20W 100-700mA LED Driver - NFC, DALI2 Dimmable

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-20-100-700-W1D

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The Ltech SE-20-100-700-W1D is a 20W constant-current LED driver designed for LED lighting applications. the SE-20-100-700-W1D supports DALI2 dimming and includes NFC-based configuration features.

Input 100~240VAC. Operating temperature -20~+50°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 100~240VAC (120~300VDC)
✓Dimming: DALI
✓Output voltage: 48V
✓Output current: 100~700mA, NFC-programmable via app in 1mA steps
✓Rated power: 20W
✓Ingress protection: IP20
✓Operating temperature: -20~+50°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 127 x 23 x 40mm
✓5 year warranty

Frequently Asked Questions

What type of product is the Ltech SE-20-100-700-W1D?

The Ltech SE-20-100-700-W1D is a 20W constant-current LED driver designed for LED lighting applications. This model supports DALI2 dimming and includes NFC-based configuration features.

What output range does this LED driver support?

This model is identified as a 100-700mA LED driver and has a maximum output voltage of 48V. It is intended for applications that need a constant-current driver within that stated range.

Is this driver suitable for DALI lighting control systems?

Yes, this driver is a DALI-dimmable model and references DALI bus standards IEC62386-101, 102, and 207. It is built for projects that require DALI2-compatible dimming performance.

What makes this model a good choice for premium dimming applications?

This driver includes soft-on and fade-in dimming for smoother visual transitions. It also uses T-PWM dimming technology and describes the dimming process as flicker-free with a high frequency exemption level.

Can this LED driver be used in compact fixtures or space-limited designs?

Yes, this model is described as ultra small, thin, and lightweight, with a screwless end cap design. Those features make it well suited to fixtures where space efficiency matters.

What environmental conditions is this driver rated for?

The specified operating temperature range is -20°C to 50°C. Buyers should confirm that the planned environment stays within that range for normal operation.

Does this model include any safety-focused construction features?

Yes, it is described as a Class 2 LED driver with Safety Extra Low Voltage (SELV). The housing is also made from V0 flame-retardant PC materials from Samsung/Covestro.

What warranty comes with the Ltech SE-20-100-700-W1D?

This model includes a 5-year warranty period. That makes it a stronger fit for commercial and professional projects where longer service coverage is important.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Ltech SE-20-100-700-W2D 20W 100-700mA LED Driver - NFC, DALI2, Tunable White	20W	48V	0.1A	IP20	View
Ltech SE-20-50-100-W5D 21W 9-42VDC CC DALI-2 LED Driver 0.05-0.1A	—	—	—	IP20	View
