Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

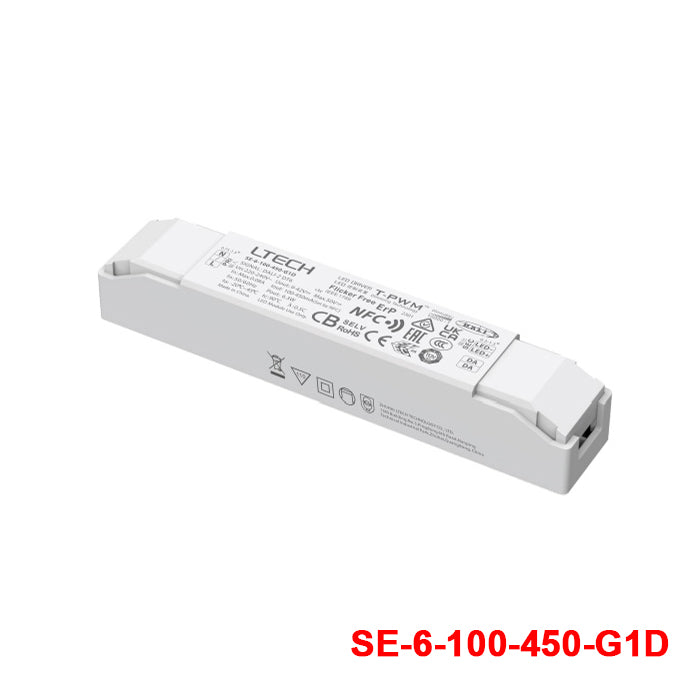

Ltech SE-6-100-450-G1D 6W 100-450mA LED Driver - NFC, DALI2 Dimmable

0.01% dimming depthoutput current adjustable with 1mA stepsuitable for class I/II/III indoor light fixtures

SKU SE-6-100-450-G1D

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by SE-8-100-450-G1D

Notify me when it's back in stock

The SE-6-100-450-G1D is designed for constant-current LED applications that need a compact, low-power driver with DALI2 dimming. Its 6.3 W rating and slim, lightweight form factor make it a strong fit for space-constrained commercial or architectural lighting products.

Input 220~240VAC. Operating temperature -20~+45°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 220~240VAC
✓Dimming: DALI
✓Output voltage: 50V
✓Output current: 100~450mA, NFC-programmable via app in 1mA steps
✓Rated power: 6.3W
✓Ingress protection: IP20
✓Operating temperature: -20~+45°C
✓Certifications: CB, CCC, CE, EAC, ENEC, KC, SELV, TUV
✓Dimensions: 119 x 20 x 22mm
✓5 year warranty

Frequently Asked Questions

What applications is the Ltech SE-6-100-450-G1D best suited for?

This model is designed for constant-current LED applications that need a compact, low-power driver with DALI2 dimming. Its 6.3 W rating and slim, lightweight form factor make it a strong fit for space-constrained commercial or architectural lighting products.

Does this LED driver support DALI2 dimming and NFC configuration?

Yes. The SE-6-100-450-G1D is a DALI2 dimmable LED driver and also supports NFC-based parameter adjustment. According to the product description, output current, DALI address, and other parameters can be changed through an NFC programmer or app.

What are the main electrical specifications of this model?

This driver is rated at 6.3 W with an output voltage listed at 50 V. The model designation identifies it as a 100-450 mA LED driver, making it suitable for low-power constant-current LED loads within that product range.

How does this model compare with larger LED drivers?

The SE-6-100-450-G1D is built for lower-power applications where compact size and control flexibility matter more than higher wattage capacity. Compared with larger drivers, its differentiation is the combination of ultra-small size, DALI2 dimming, and NFC-based parameter setup.

Is this driver appropriate for tight-space product designs?

Yes. Ltech describes this unit as ultra small, thin, and lightweight, and the listed weight is only 0.005 kg. That makes it well suited to fixtures or enclosures where available space and component weight are limited.

What operating environment is this LED driver rated for?

The specified operating temperature range is -20 °C to 45 °C. The description also notes a V0 flame-retardant PC housing, and the product carries a 5-year warranty period.

Is this model compatible with standard DALI systems?

It is intended for DALI environments that follow IEC62386-101, IEC62386-102, and IEC62386-207, as stated in the description. That standards-based support is useful for buyers looking for a DALI2 dimmable driver for professional lighting control projects.
