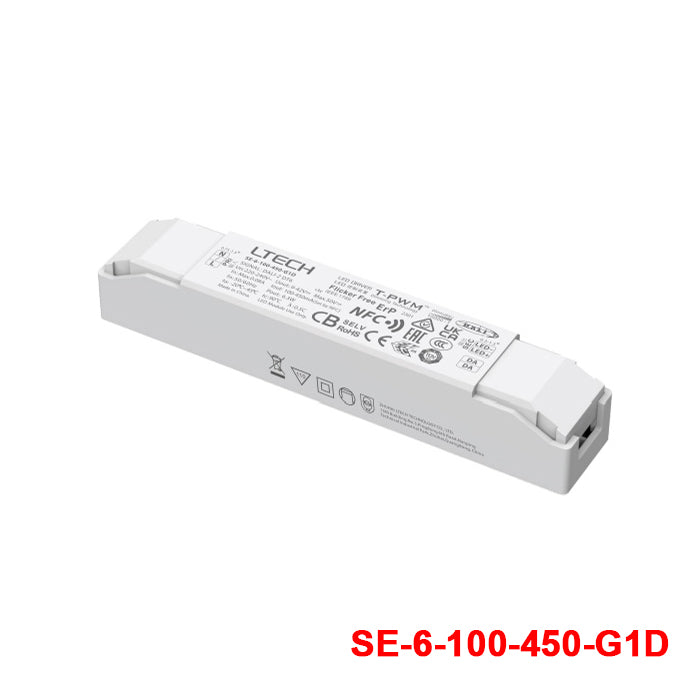

Ltech SE-6-100-450-G1D 6W 100-450mA LED Driver - NFC, DALI2 Dimmable
Please Login for Pricing
Description
Description
Features:
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Ultra small, thin and lightweight, screwless end cap
- Change the output current, DALI address and other parameters on the NFC programmer or via the App, and sync the parameters to the driver.
- Set the DALI group, scene in the advanced DALI template.
- Set the output current down to 1mA.
- DALI bus standard IEC62386-101, 102, 207.
- Class 2 LED driver, Safety Extra Low Voltage (SELV).
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM™ dimming technology allows quality and high-end lighting.
- The whole dimming process is flicker-free with high frequency
- exemption level.
- Comply with the EU’s ErP Directive, networked standby<0.5W.
- Multiple current levels, wide voltage range, suitable for LEDs with different power
- When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
General Specification
AC input voltage range
220-240Vac
AC inrush current (max.)
Cold start 15A(Test twidth=300us tested under 50% Ipeak)/230Vac
Over-heat Protection
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Over Load Protection
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Short Circuit Protection
Enter hiccup mode if short circuit occurs, and recover automatically
Over voltage protection
Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Withstand voltage
I/P-O/P: 3750Vac
Working temperature
ta:-20~45°C tc:90°C
Safety standards
CCC - China - GB19510.1，GB19510.14
TUV - Germany - EN61347-1，EN61347-2-13，EN62493
CE - European Union - EN61347-1，EN61347-2-13，EN62384
KC - Korea - KC61347-1，KC61347-2-13
RCM - Australia - AS61347-1，AS61347-2-13
ENEC - Europe - EN61347-1，EN61347-2-13，EN62384
CB - CB member states - IEC61347-1，IEC61347-2-13
EAC - Russia - IEC61347-1，IEC61347-2-13
UKCA - Britain - BS EN 61347-2-13:2014+A1:2017，BS EN 61347-1:2015+A1:2021
Dimension (LxWxH)
119×22×20mm
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating6.3 Watt
-
Output Voltage50 Volt
-
Rated Current0.1 Ampere
-
Input Voltage220V~240V
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,SELV,TUV
-
Operation ModeConstant Current
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length11.9 cm
-
Width2 cm
-
Height2.2 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Ltech SE-6-100-450-G1D best suited for?
This model is designed for constant-current LED applications that need a compact, low-power driver with DALI2 dimming. Its 6.3 W rating and slim, lightweight form factor make it a strong fit for space-constrained commercial or architectural lighting products.
Does this LED driver support DALI2 dimming and NFC configuration?
Yes. The SE-6-100-450-G1D is a DALI2 dimmable LED driver and also supports NFC-based parameter adjustment. According to the product description, output current, DALI address, and other parameters can be changed through an NFC programmer or app.
What are the main electrical specifications of this model?
This driver is rated at 6.3 W with an output voltage listed at 50 V. The model designation identifies it as a 100-450 mA LED driver, making it suitable for low-power constant-current LED loads within that product range.
How does this model compare with larger LED drivers?
The SE-6-100-450-G1D is built for lower-power applications where compact size and control flexibility matter more than higher wattage capacity. Compared with larger drivers, its differentiation is the combination of ultra-small size, DALI2 dimming, and NFC-based parameter setup.
Is this driver appropriate for tight-space product designs?
Yes. Ltech describes this unit as ultra small, thin, and lightweight, and the listed weight is only 0.005 kg. That makes it well suited to fixtures or enclosures where available space and component weight are limited.
What operating environment is this LED driver rated for?
The specified operating temperature range is -20 °C to 45 °C. The description also notes a V0 flame-retardant PC housing, and the product carries a 5-year warranty period.
Is this model compatible with standard DALI systems?
It is intended for DALI environments that follow IEC62386-101, IEC62386-102, and IEC62386-207, as stated in the description. That standards-based support is useful for buyers looking for a DALI2 dimmable driver for professional lighting control projects.
Other SE-6 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Ltech SE-6-350-700-G1D 6W 350-700mA LED Driver - NFC, DALI2 Dimmable | 6.3W | 30V | 0.3A | IP20 | View |
