Mean Well

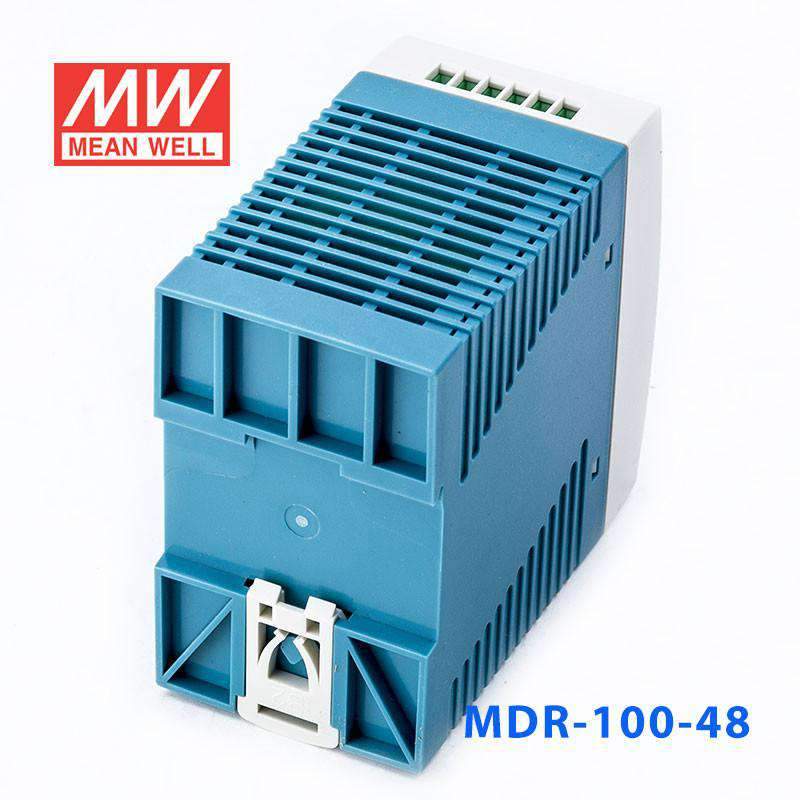

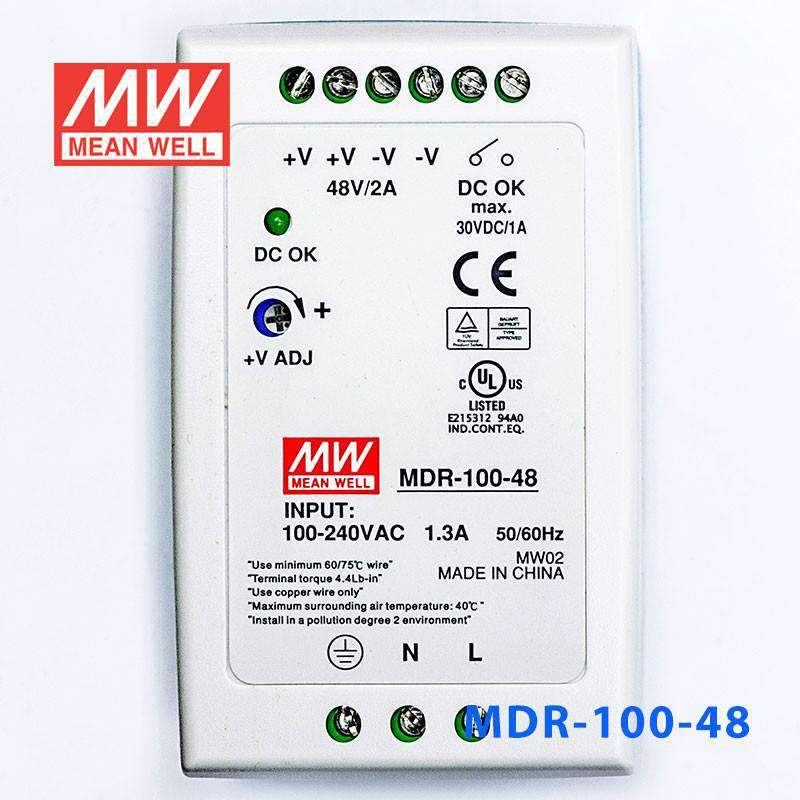

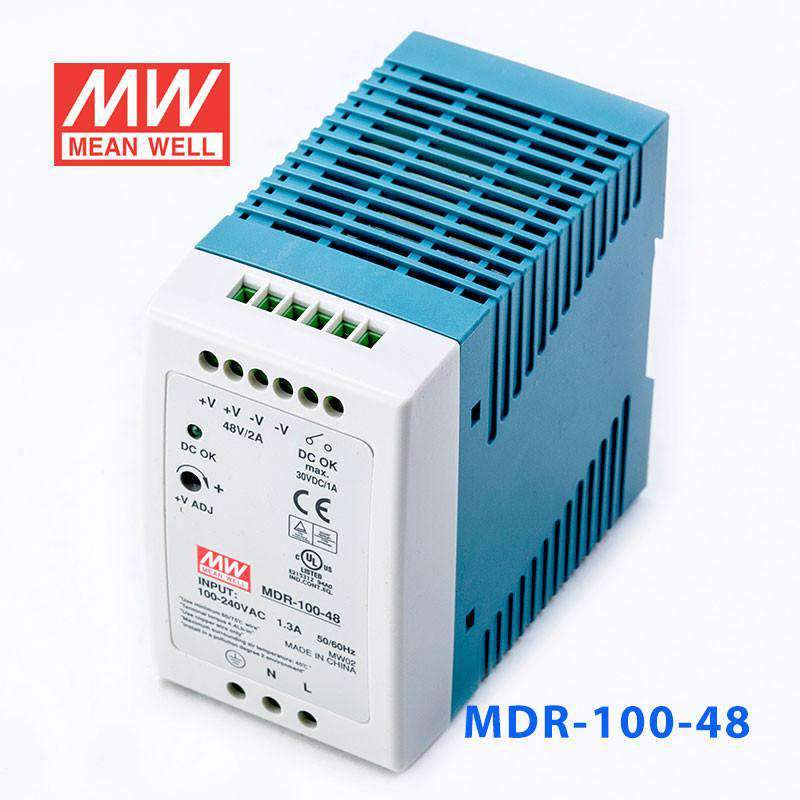

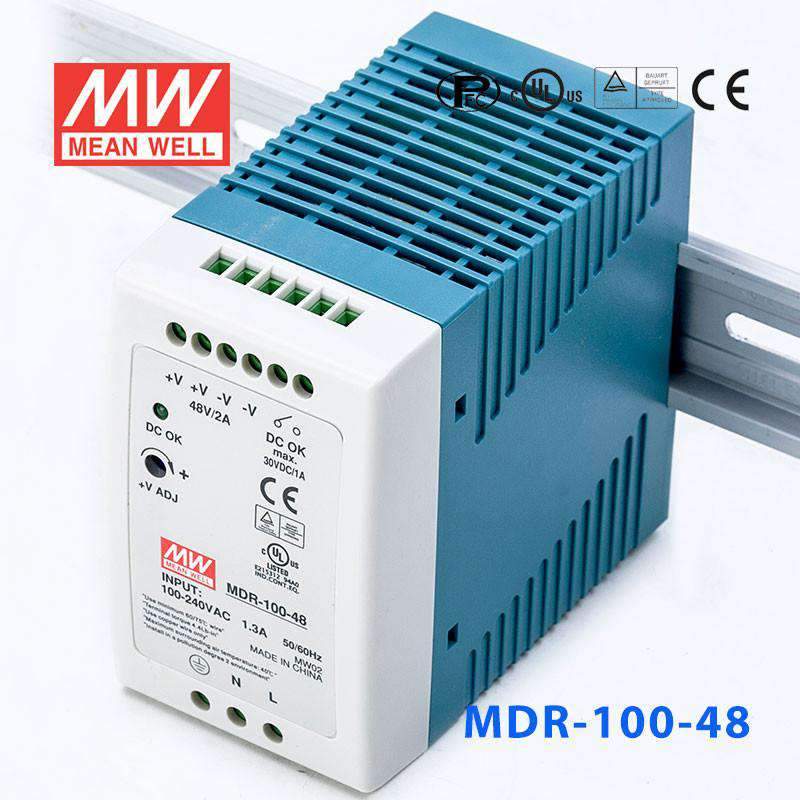

Mean Well MDR-100-48 Single Output Industrial Power Supply 100W 48V 2A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-100-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

MDR-100-48
Available to order
|

Overview

MDR-100-48 is the 48V output model of this series: rated current 2A, rated power 96W, typical efficiency 87%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • ZCS/ZVS technology to reduce power dissipation
  • Cooling by free air convection

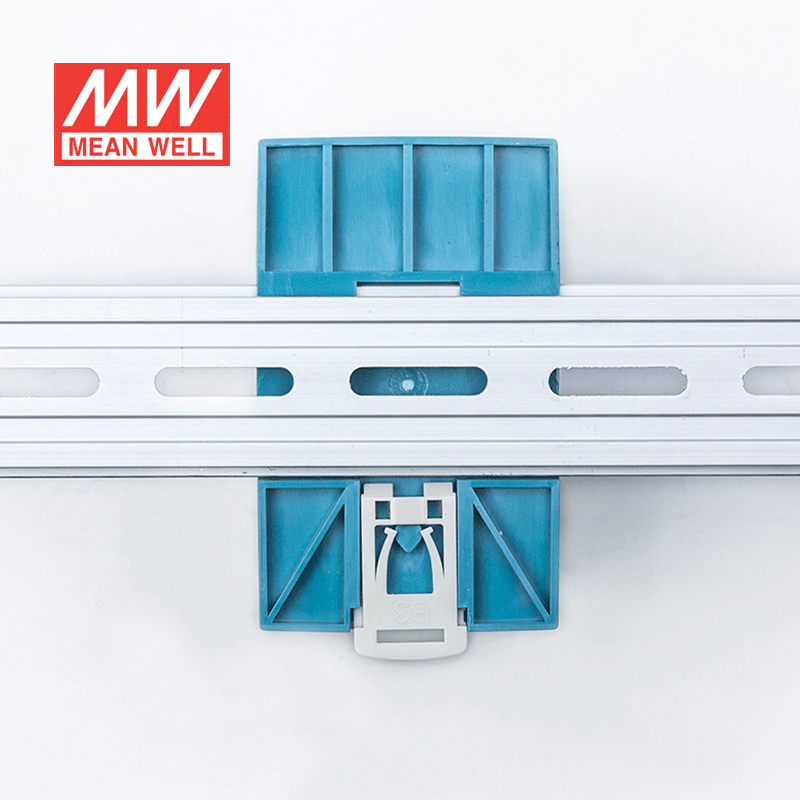

  • Can be installed on DIN rail TS-35/7.5 or 15
  • DC OK relay contact
  • No load power consumption<1W
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-100-48Specifications from the official datasheet (2025-12-12 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
2A
CURRENT RANGE
0 ~ 2A
RATED POWER
96W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
48 ~ 56V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.5
3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.95/230VAC PF≧0.98/115VAC at full load
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
57.6 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery or re-power on to recover

FUNCTION

DC OK SIGNAL
Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS15598-1, AS/NZS 60950.1,BIS IS13252(Part1):2010/IEC 609501:2005 (except for 48) approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32),BS EN/EN61204-3 Class B,BS EN/EN61000-3-2,-3,EAC TP TC 020,CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2217.8K hrs min. Telcordia SR-332 (Bellcore) ; 346.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
55*90*100mm (W*H*D)
PACKING
0.42Kg; 30pcs/13.6Kg/0.82CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. Deating maybe needed under low input voltages, please check the derating curve for more detail.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MDR-100-48 Mechanical Specification
Mechanical Specification
MDR-100-48 Block Diagram
Block Diagram
MDR-100-48 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-100-48 to power 48V devices in an industrial control panel?

Yes, this model is suited to industrial control panels that need a 48V DC supply up to 2A. Its 96W output and DIN rail form factor make it appropriate for centralized 48V power distribution inside automation cabinets.

Is the MDR-100-48 suitable for PLC and industrial automation cabinets that use 48V DC?

It can be a fit where the PLC cabinet or automation assembly requires 48V DC and the connected load stays within 2A. The 55 mm wide DIN rail housing also helps when panel space is limited.

Can this 48V DIN rail power supply be used for building management and control enclosures?

Yes, it is appropriate for building management or control enclosure applications that use 48V DC equipment and need up to 96W. The wide 85-264VAC input is useful where panel power standards vary across sites.

How does the MDR-100-48 compare with other MDR series models?

Within the MDR-100 series, the MDR-100-48 provides 96W at 48V and 2A with 87% typical efficiency, the MDR-100-24 provides 96W at 24V and 4A (86%), and the MDR-100-12 provides 90W at 12V and 7.5A (83%). All three share the 55 x 90 x 100 mm DIN rail housing and 85 ~ 264VAC input.

Is the MDR-100-48 intended for open-air use or for control cabinets?

This DIN rail power supply is best suited to protected indoor control cabinets and enclosures rather than exposed open-air locations. Its operating temperature range is -10°C to +60°C, so the enclosure environment should stay within that range.
