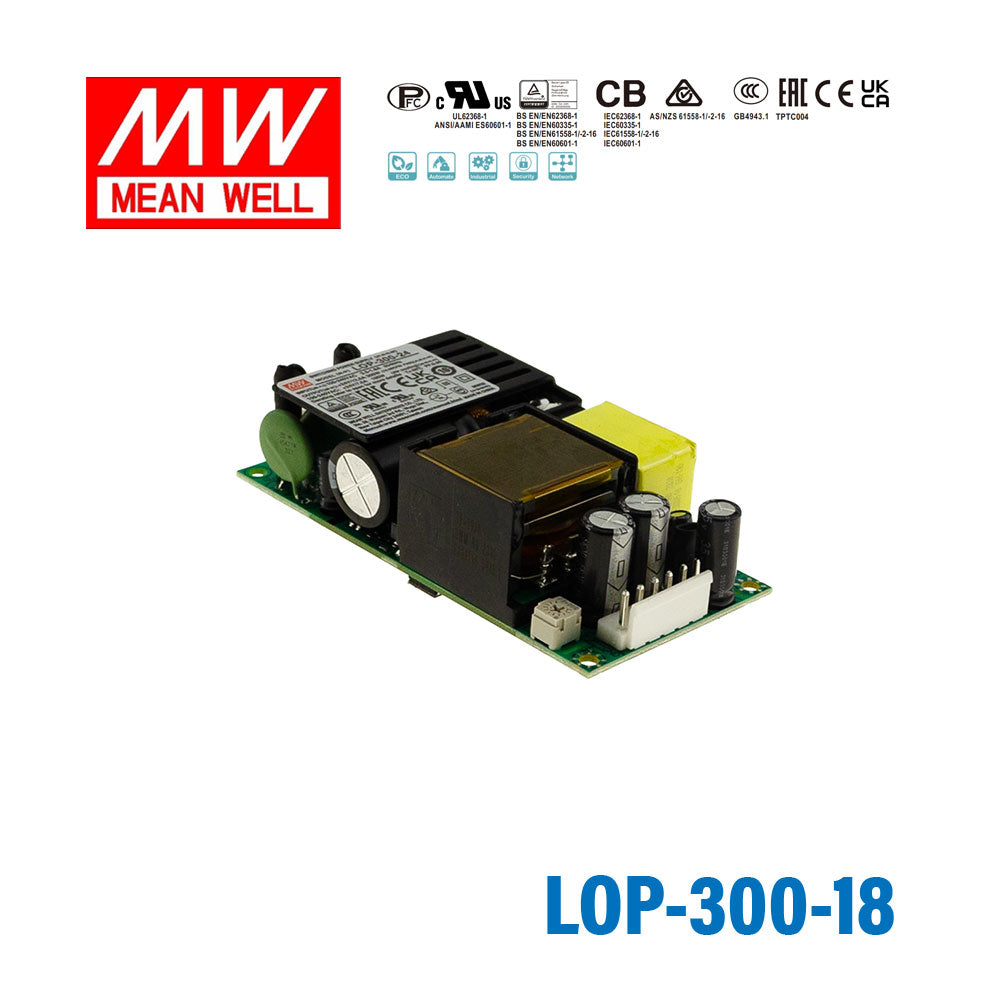

Mean Well LOP-300-18 300W 4"×2" Low Profile Open Frame Power Supply 18V 10A

conventional 180W300W if using fanhigh frequency up to 94%

SKU LOP-300-18

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LOP-300-18 is the 18V output model of this series: typical efficiency 93.5%.

The LOP-300 is a 300W highly reliable, energy-efficient, low-profile open frame type power supply. With a high power density of 37.5W/in³ within the standard size of 4" × 2", it features a universal input voltage range of 80~264VAC, making it suitable for global applications. The series offers a comprehensive selection of standard voltages, including 12V/15V/18V/24V/27V/30V/36V/48V/54V, and comes in a complete range of models. The main features of the LOP-300 include: low standby power (<0.5W), high efficiency (up to 94%), capable providing 180W under natural air cooling and 300W with an additional fan. It has a 150% @ 3 seconds peakload capacity, a wide operating temperature range of -40 to +80℃, compliance with OVCⅢ, suitable for Class Ⅰ (with FG) or Class Ⅱ (without FG) systems. The product has obtained multiple safety certifications, including 62368-1/60601-1/61558-1/60335-1, and is designed to meet 2xMOPP and extremely low touch leakage current <70 μ A, making it suitable for BF class medical devices. With high product safety and excellent EMC performance, it is versatile and applicable in various fields such as ITE, medical, industrial control, home automation and more. It is a cost-effective slim open frame type power supply.

Features

MEAN WELL Patent Number: ZL 202223277512.1
4"×2" compact size with low profile (25.4mm)
80~264Vac input with PFC, No load power consumption<0.5W
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
150%peak load @ 3s
180W convection, 300W with FAN 10.98CFM forced-cooled
Suitable for Class Ⅰ or Class Ⅱ installations
Over voltage category Ⅲ (OVC Ⅲ)
-40 ~ +80℃ wide range operation temperature
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
Operating altitude up to 5000 meters
Built-in 12V/0.5A for external FAN
3 years warranty

Specifications

LOP-300-18Specifications from the official datasheet (2026-09-02 edition)

OUT PUT

DC VOLTAGE: 18V
CURRENT Peak(3sec.): 25A
CURRENT 10.98CFM: 16.7A
CURRENT Convection: 10A
RATED POWER Peak(3sec.): 450W
RATED POWER 10.98CFM: 300.6W
RATED POWER Convection: 180W
RIPPLE & NOISE (max.)^Note.2: 180mVp-p
VOLTAGE ADJ. RANGE (MAIN OUTPUT): 17.1~18.9V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 30ms/230Vac 1500ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.): 16ms@180W load , 8ms@300W load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264Vac 113 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.95/230Vac PF>0.98/115Vac at full load
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 3.5A/115Vac 1.8A/230Vac
INRUSH CURRENT (Typ.): COLD START 40A/115Vac 80A/230Vac
LEAKAGE CURRENT: ClassⅠ: Earth leakage current < 500 μA (rms) @ 264V ac , touch current < 70μA (rms) @ 264V ac ClassⅡ: Touch current < 100 μA (rms) @ 264V ac

PROTECTION

OVERLOAD: 105 ~ 180% rated output power, Protection type : Hiccup after 3 sec, recovers automatically(3 sec) after fault condition is removed
OVER VOLTAGE: 19.8 ~ 23.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down or re-power on to recover

FUNCTION

EXTERNAL FAN SUPPLY: 12V@0.5A for driving a fan (10.98CFM) / 12V@0.1A without fan cooling ; Tolerance -20% ~ +15% at main output 20% rated current

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved.
ISOLATION RESISTANCE: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
OVER VOLTAGE CATEGORY: IEC/EN 61558-1/-2-16(OVC Ⅲ, altitude up to 2000M ) IEC/EN/UL 62368-1 (OVC Ⅱ, altitude up to 5000M ) IEC/EN 60335-1 (OVC Ⅱ, altitude up to 5000M ) IEC/EN 60601-1 (OVC Ⅱ, altitude up to 4000M )
PROTECTIVE EXTRA-LOW VOLTAGE: IEC/EN61558-2-16 (SELV, 12~48V ) IEC/EN/UL 62368-1 (SELV / ES1, 12~48V )
WITHSTAND VOLTAGE: I/P-O/P:4KVac I/P-FG:2KVac O/P-FG:1.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted & Radiated BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) ClassⅠ: Class B , Class Ⅱ: Class A
Conducted & Radiated BS EN/EN55014(CISPR32) ClassⅠ: Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035,BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 100% dip 1 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted & Radiated	BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11)	ClassⅠ: Class B , Class Ⅱ: Class A
Conducted & Radiated	BS EN/EN55014(CISPR32)	ClassⅠ: Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 100% dip 1 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2805.6K hrs min. Telcordia SR-332 (Bellcore) ; 384.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 101.6*50.8* 25.4mm (L*W*H)
PACKING: 0.21Kg; 36pcs/10Kg/0.95CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 μF & 47 μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

Technical drawings

LOP-300-18 LOP-300 series (2) — LOP-300 series (2)

LOP-300-18 Derating Curve — Derating Curve

LOP-300-18 Output Derating VS Input Voltage — Output Derating VS Input Voltage

LOP-300-18 Mechanical Specification — Mechanical Specification

LOP-300-18 Mechanical Specification (2) — Mechanical Specification (2)

LOP-300-18 Installation Manual — Installation Manual

Typical applications

Industrial automation machinery/ control system
Security system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Network equipment
Telecom devices
Power sourcing equipment of PoE
Home automation
Medical devices

Downloads

Datasheet1

LOP-300-18 datasheetLOP-300-SPEC.PDF · 2026-09-02 edition PDF Download

FAQ

What is the output rating of the Mean Well LOP-300-18?

The Mean Well LOP-300-18 provides a regulated 18V DC output rated at 10A (180W) with convection cooling, or 16.7A (300.6W) with a 10.98CFM fan. It is designed as a low profile open frame power supply in a compact 4 x 2 inch format.

What makes the LOP-300-18 suitable for space-constrained equipment?

This model uses a compact 101.6 x 50.8 x 25.4 mm form factor, which corresponds to a 4 x 2 inch footprint with a low 25.4 mm profile. That makes it a practical choice for OEM equipment where internal space is limited.

What input range does the LOP-300-18 support?

The LOP-300-18 accepts a wide input range of 80 to 264VAC and also supports 113 to 370VDC. This broad range helps it fit equipment intended for use across different regional power systems.

Can the Mean Well LOP-300-18 operate in demanding temperature environments?

Yes. This power supply is rated for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide temperature range makes it suitable for demanding industrial and enclosed equipment environments.

What protection features are included in the LOP-300-18?

The LOP-300-18 includes overload, overvoltage, and overtemperature protection. According to the specification, overload protection operates in hiccup mode after 3 seconds, while overvoltage and overtemperature protection shut down output until recovery conditions are met.

Is the LOP-300-18 intended only for industrial equipment, or can it support regulated applications too?

This model is positioned for use across multiple regulated fields because it carries certifications for ITE, medical, household, and industrial safety standards. The specification also lists 2 x MOPP primary-to-secondary isolation and IEC60601-1 / ANSI/AAMI ES60601-1 approvals, which can matter in medical-related equipment design.

How efficient is the Mean Well LOP-300-18?

The LOP-300-18 is specified at 93.5% typical efficiency. It also features power factor correction (PF>0.95 at 230VAC, PF>0.98 at 115VAC at full load), which supports more efficient system design.

Does the LOP-300-18 include any support for external cooling accessories?

Yes. The specification lists a built-in 12V/0.5A output for an external fan. The specification also states 180W convection performance and up to 300W with 10.98CFM forced cooling.
