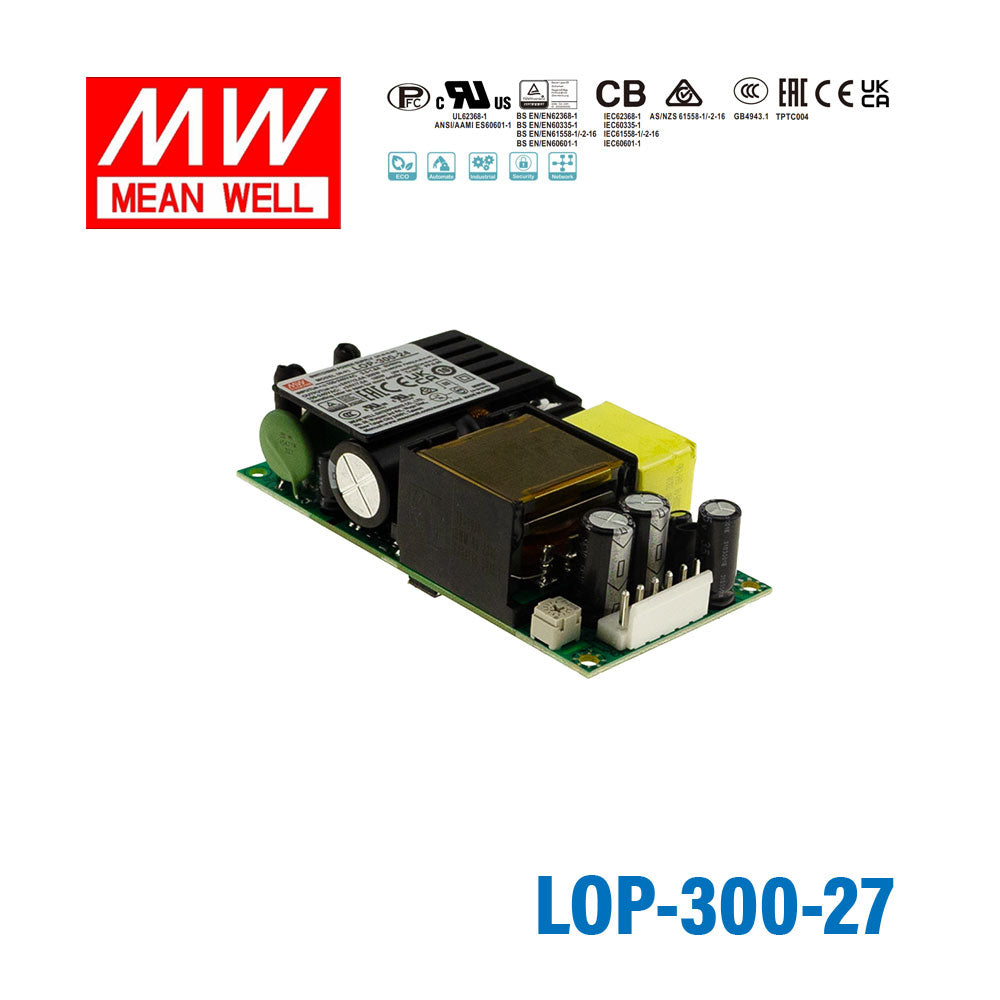

Mean Well LOP-300-27 300W 4"×2" Low Profile Open Frame Po...
Please Login for Pricing
Description
Description
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓180W convection, 300W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating300 Watt
-
Output Voltage27 Volt
-
Rated Current6.7 Ampere
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.54 cm
-
Weight0.21 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the main use case for the Mean Well LOP-300-27?
The LOP-300-27 is a 300W low profile open frame AC-DC power supply designed for embedded OEM equipment and space-constrained systems. Its 27V output and 4 x 2 inch footprint make it a fit for industrial, medical, household, and ITE applications that need a compact internal power solution.
What output does the LOP-300-27 provide?
This model provides a single 27V DC output rated at 6.7A, with a total rated power of 300W. It is part of Mean Well's LOP-300 series and is intended for applications that specifically require a 27V output version.
How compact is the Mean Well LOP-300-27?
The LOP-300-27 measures 101.6 x 50.8 x 25.4 mm, which corresponds to a 4 x 2 inch form factor with a low 25.4 mm profile. This compact size helps when enclosure height and board space are limited.
Can the LOP-300-27 operate in demanding temperature environments?
Yes. This power supply is rated for operation from -40°C to +80°C, subject to the manufacturer's derating conditions. That wide operating range makes it suitable for equipment used in harsh or variable environments.
What certifications and standards does the LOP-300-27 support?
The LOP-300-27 is designed to meet multiple global safety standards across ITE, medical, household, and industrial categories, including IEC/EN/UL 62368-1, IEC/EN 60601-1, and IEC/EN 61558-1/-2-16. It is also described as suitable for BF medical applications with extremely low leakage current and 2 x MOPP.
What input range does the Mean Well LOP-300-27 accept?
This model accepts a wide universal input range of 80 to 264VAC, and it also supports 113 to 370VDC input. It includes active power factor correction, with published full-load power factor values above 0.95 at 230VAC and above 0.98 at 115VAC.
Does the LOP-300-27 include protection and peak load capability?
Yes. The unit includes protection for short circuit, overload, overvoltage, and overtemperature. Mean Well also specifies 150% peak load capability for 3 seconds, which can help with brief power demand spikes in the host equipment.
Is the LOP-300-27 suitable for systems that need higher cooling-assisted output?
Yes. Mean Well rates the LOP-300 series at 180W under convection cooling and up to 300W with 10.98 CFM forced-air cooling. This gives designers flexibility when comparing passive versus fan-assisted thermal designs around the same power platform.
