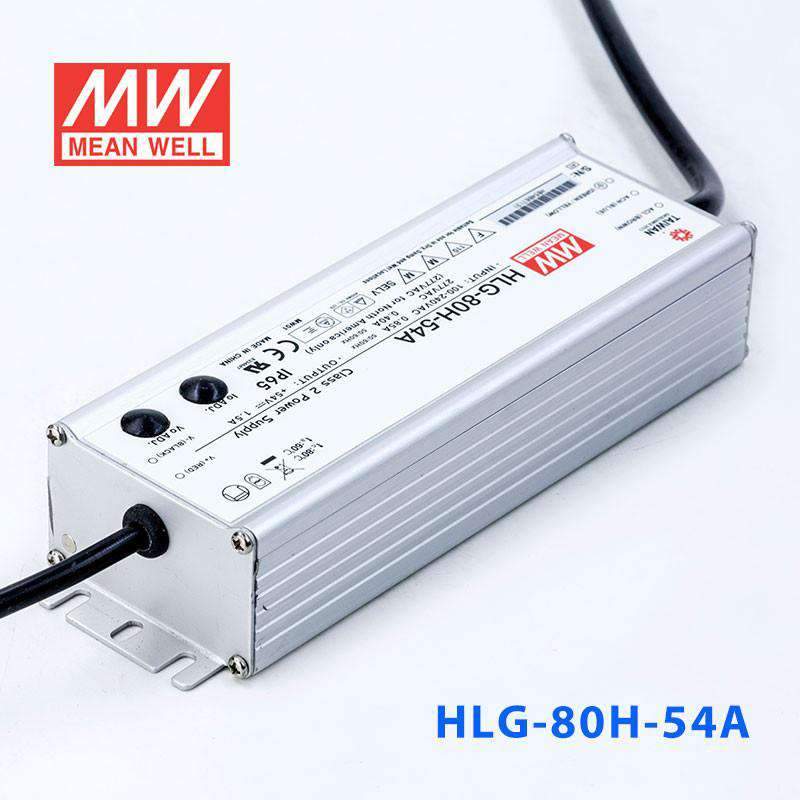

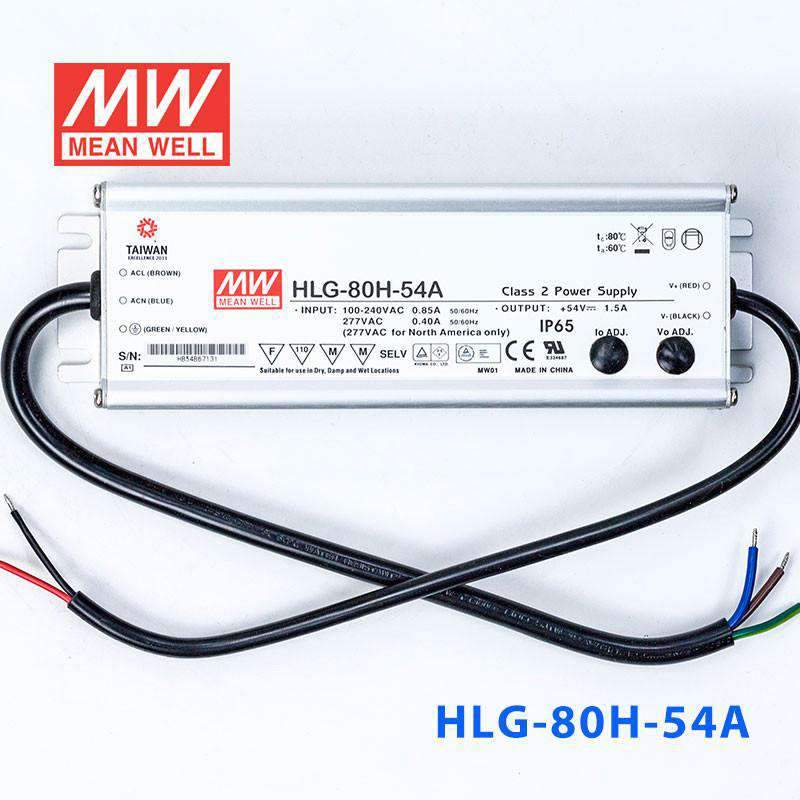

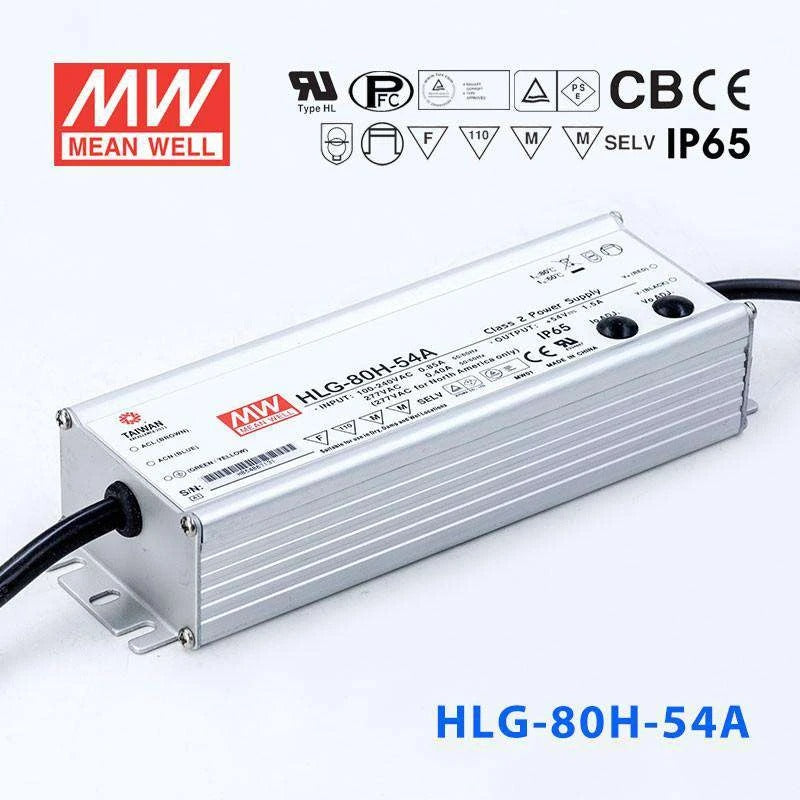

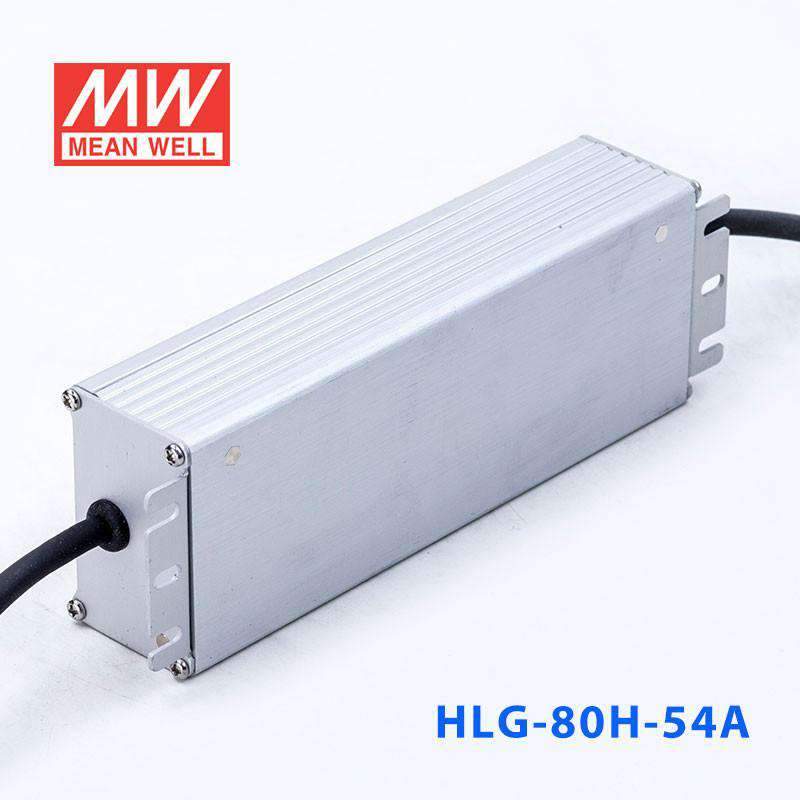

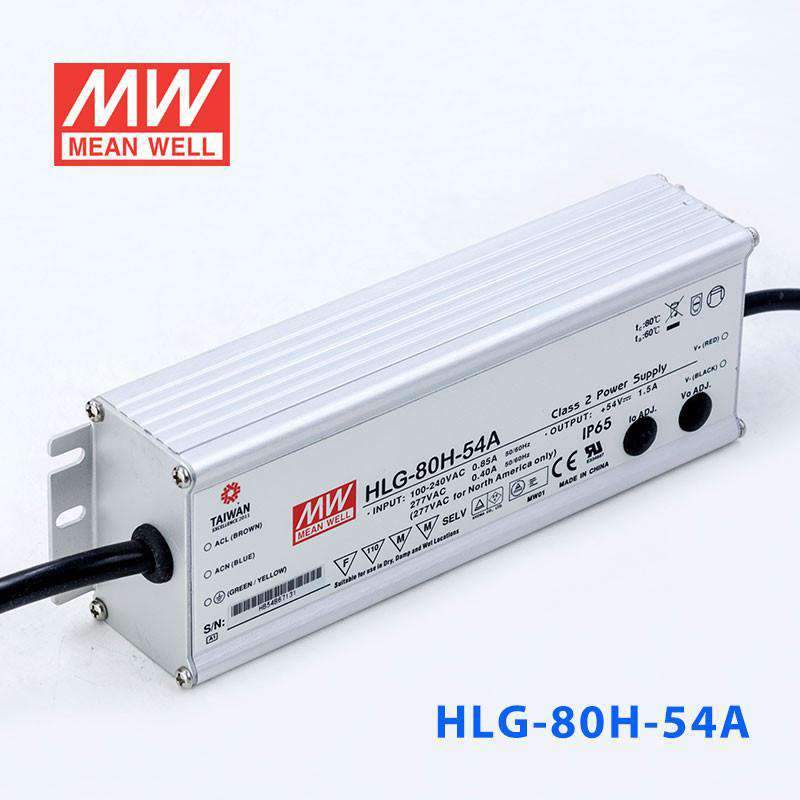

Mean Well HLG-80H-54A Power Supply 80W 54V - Adjustable 1.5A
4.9 (21 reviews)Notify me when it's back in stock
Mean Well HLG-80H-54A Power Supply 80W 54V - Adjustable 1.5A
Log in to see priceThe HLG-80H is a 80W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 54V
- ✓ Rated output current: 1.5A
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage54 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length19.56 cm
-
Width6.15 cm
-
Height3.88 cm
-
Weight0.84 kg
::specification::
Frequently Asked Questions
Can I use the HLG-80H-54A to power 54V LED strips in a covered outdoor area?
Yes. The HLG-80H-54A outputs 80W at 54V and has an IP65 water-resistant rating, which protects against dust and low-pressure water jets. Covered patios, soffits, and canopies are well within its protection level. For fully exposed rain installations, the IP67-rated HLG-80H-54 or -54B is a better fit.
Is the adjustable output on the HLG-80H-54A useful for tuning LED brightness without a dimmer?
Yes. The built-in potentiometer lets you trim the output voltage and current, which is helpful when you want to reduce brightness slightly or match the driver output precisely to an LED load. The CC voltage range of 32-54V gives room to lower the drive level without needing an external dimming controller.
Can the HLG-80H-54A drive 54V LED modules for indoor commercial display lighting?
Yes. At 80W and 54V, it can power 54V LED modules in display cases, retail fixtures, or light boxes. The adjustable output is especially useful for fine-tuning illumination to match merchandise or branding requirements. The wide 90-305VAC input covers most commercial mains supplies.
How many meters of 54V LED strip can the HLG-80H-54A handle?
Divide 80W by your strip's power consumption per meter. For instance, a 54V strip rated at 16W/m would allow up to 5 meters (80W / 16W per meter = 5m). Always check your strip's rated power per meter and keep total load at or below 80W for reliable operation.
Is the HLG-80H-54A suitable for a damp indoor environment like a parking garage?
Yes. IP65 is rated for dust-tight protection and low-pressure water jets from any direction, which is more than adequate for parking garages, wash-down areas, and humid basements. For locations with potential standing water or submersion, the IP67-rated HLG-80H-54 would be more appropriate.
