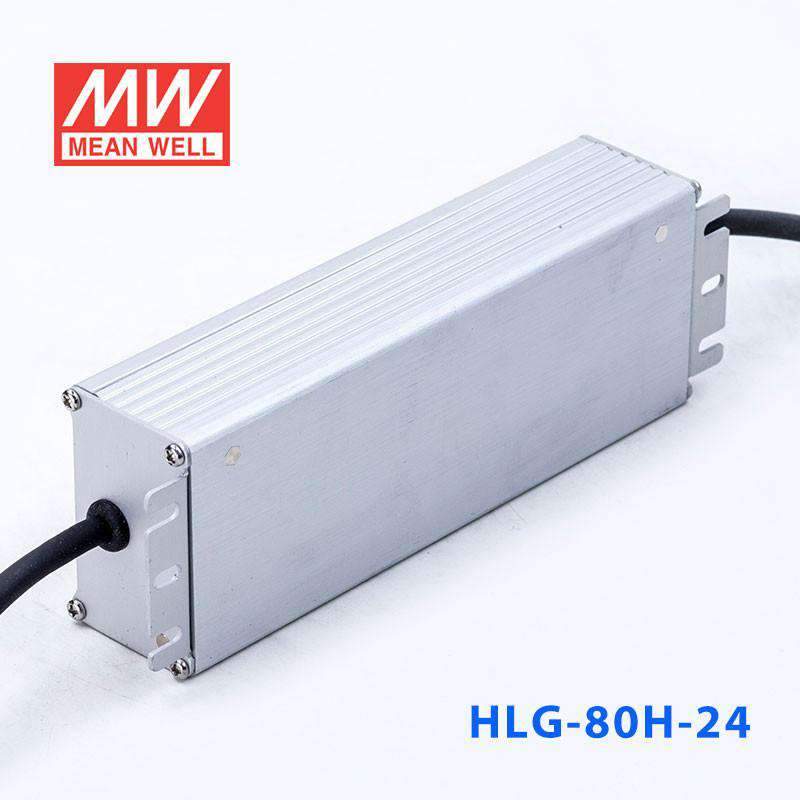

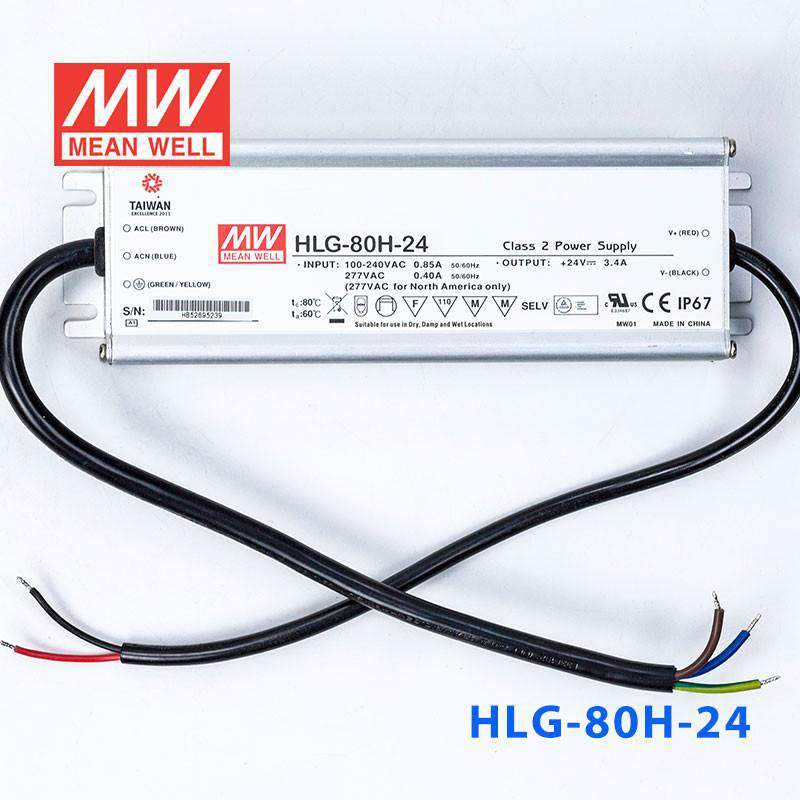

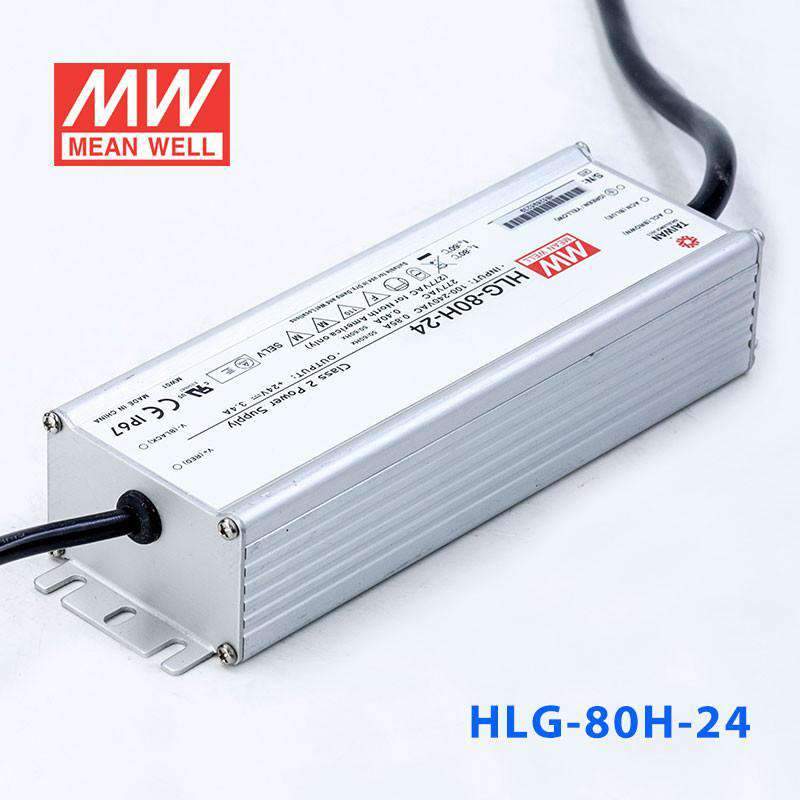

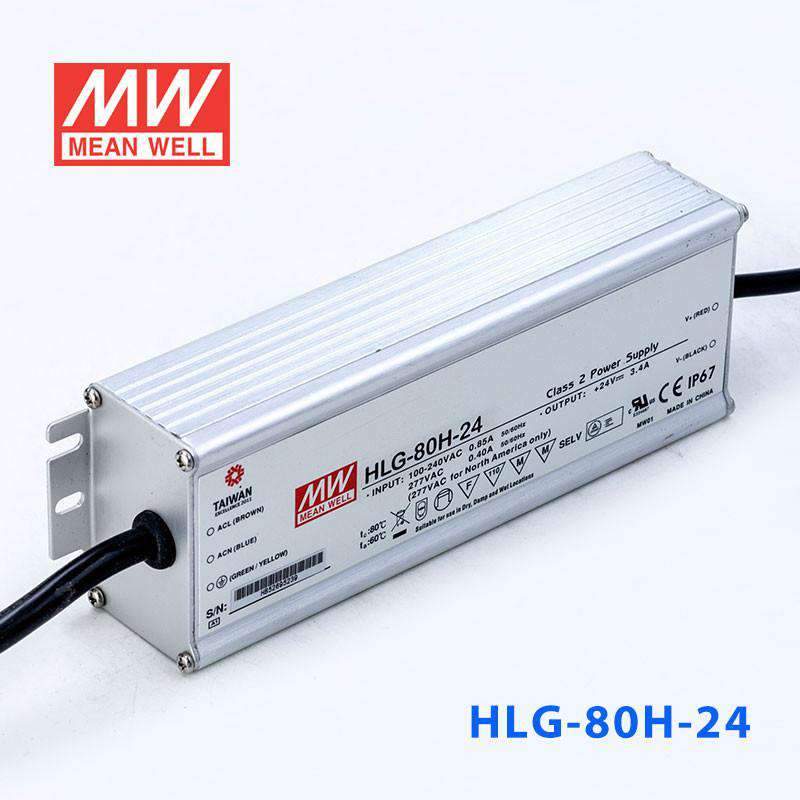

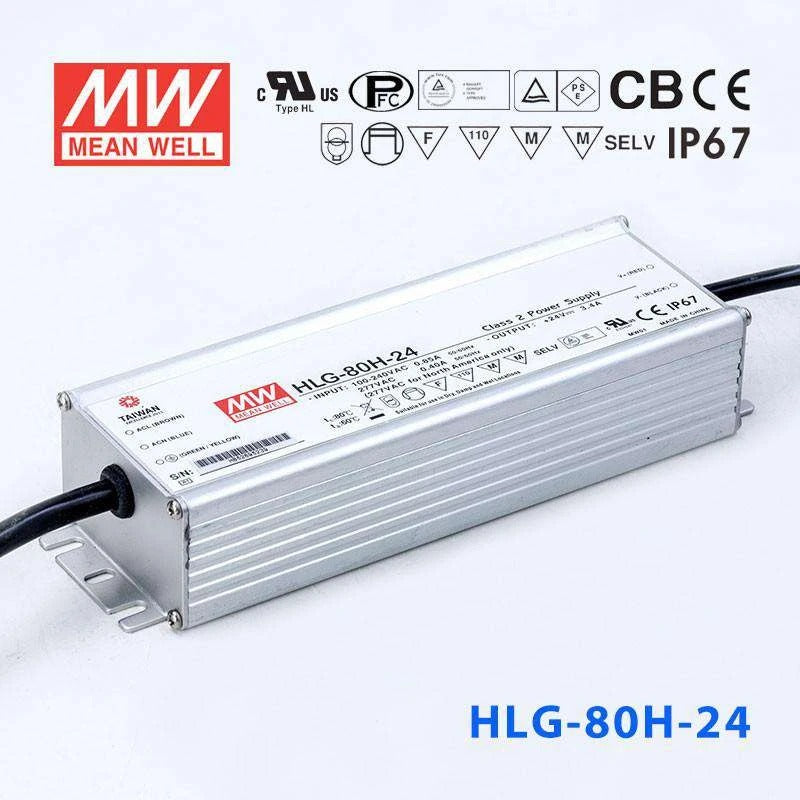

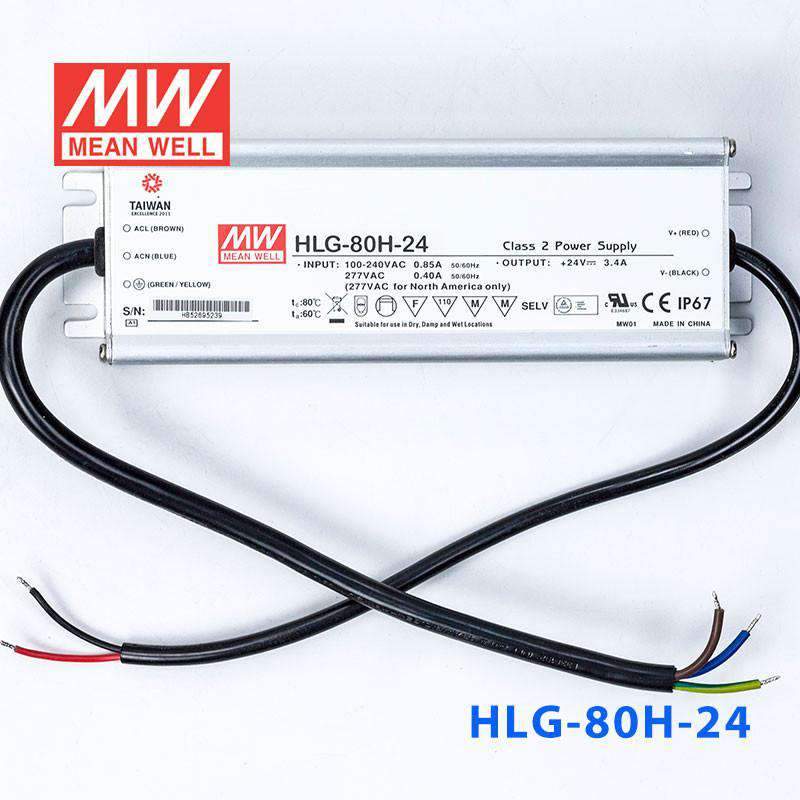

Mean Well HLG-80H-24 Power Supply 80W 24V
Please Login for Pricing
Description
Description
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating80 Watt
-
Output Voltage24 Volt
-
Rated Current3.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length19.56 cm
-
Width6.15 cm
-
Height3.88 cm
-
Weight0.84 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-80H-24 to power 24V LED strip lighting outdoors?
Yes. The HLG-80H-24 outputs 24V at up to 3.4A (80W) and has an IP67 waterproof rating. It can be mounted in fully exposed outdoor locations for 24V LED strip installations without needing an additional weatherproof enclosure.
Is the HLG-80H-24 suitable for driving 24V LED modules in retail signage?
Yes. With 80W at 24V, it can power 24V channel letters, light boxes, or cabinet-style signs. The wide 90-305VAC input handles varying mains supplies in commercial buildings, and the IP67 rating supports both indoor and outdoor sign locations.
Can I run 24V LED under-cabinet or cove lighting from the HLG-80H-24?
Yes. At 80W and 24V, it has enough capacity for typical under-cabinet or cove lighting runs. The constant-current mode with a CC range of 14-24V ensures stable operation even with varying LED forward-voltage drops across the strip length.
How many meters of 24V LED strip can the HLG-80H-24 power?
That depends on the strip's rated power per meter. The HLG-80H-24 supplies up to 80W at 24V. For example, if your strip draws 14.4W/m, you could run about 5.5 meters (80W / 14.4W per meter = 5.5m). Always check your strip's rated power per meter and keep total load at or below 80W.
Can the HLG-80H-24 operate reliably in extreme cold or heat?
Yes. It is rated for an operating temperature range of -40°C to +80°C, covering extreme cold in northern climates and high heat in enclosed rooftop installations. The aluminium casing provides effective heat dissipation in warm environments.
