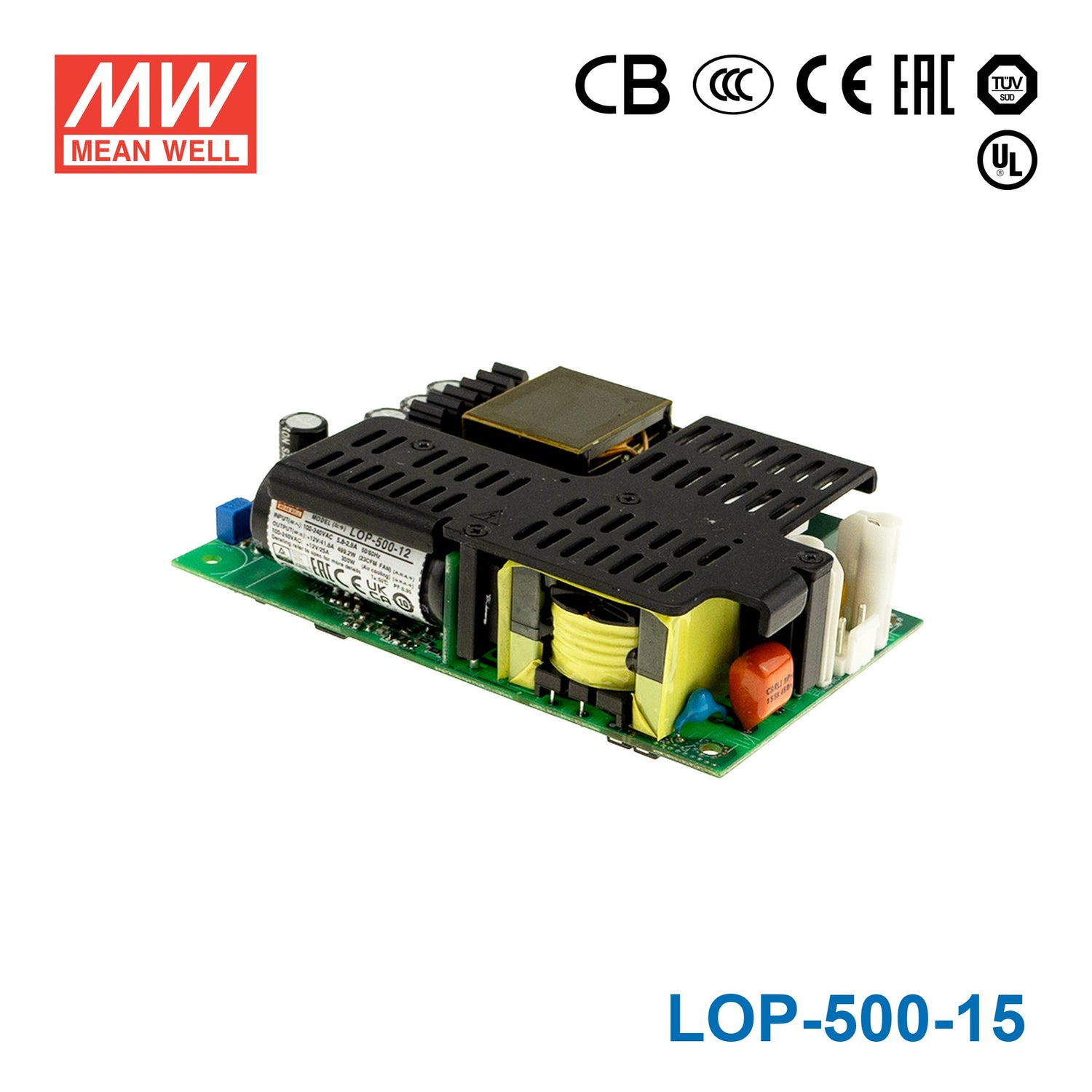

Mean Well LOP-500-15 500W 5"×3" Low Profile Open Frame Power Supply 15V 20A

Q: What is the Mean Well LOP-500-15 designed for?

The Mean Well LOP-500-15 is a 500W low profile open frame AC-DC power supply that provides a 15V DC output at up to 20A. It is intended for embedded equipment and OEM applications where a compact 5 x 3 inch footprint and high power density are important. Its certifications also make it relevant for industrial, household, ITE, and certain medical-related equipment use cases.

Q: What are the key electrical ratings of the LOP-500-15?

This model accepts 80 to 264VAC input and delivers a regulated 15V DC output. It is rated for 500W with forced-air cooling and 320W under convection cooling. The unit provides up to 20A rated current and supports 150% peak load for 3 seconds.

Q: How compact is the Mean Well LOP-500-15?

The LOP-500-15 uses a compact 127 x 76.2 x 30.5mm form factor, which is approximately 5 x 3 inches with a low 30.5mm profile. This makes it suitable for applications where enclosure space is limited. Its listed weight is 0.42kg.

Q: Can the LOP-500-15 be used in demanding temperature conditions?

Yes, this power supply is specified for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide operating range makes it a practical option for equipment exposed to hot or cold environments. Buyers should still confirm the full system thermal design for their application.

Q: What protections are included in the LOP-500-15?

The LOP-500-15 includes short circuit, overload, overvoltage, and overtemperature protection. Its overload protection is specified at 105% to 150% of rated output power, with hiccup-mode recovery after fault removal. Overvoltage and overtemperature protection use shutdown behavior with recovery as described in the product specifications.

Q: Is the Mean Well LOP-500-15 suitable for medical or safety-critical equipment designs?

This model is listed with IEC60601-1 and ANSI/AAMI ES60601-1 safety standards and is described as having extremely low leakage current with 2 x MOPP for BF medical applications. It also carries approvals for IEC62368-1, IEC60335-1, and IEC61558-1/-2-16. Final suitability depends on the complete end-product design and certification requirements.

Q: What makes the LOP-500-15 stand out compared with a general open frame power supply?

This model combines a low-profile 5 x 3 inch package with active PFC, high efficiency up to 95%, and broad multi-sector safety certifications. It also supports both Class I and Class II installations, operates up to 5000 meters altitude, and includes a built-in 12V/0.5A output for an external fan. Those features make it more versatile than many basic open frame supplies in the same power class.

conventional 320W500W if using fanhigh frequency up to 95%

SKU LOP-500-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Key Features

✓MEAN WELL Patent Number: ZL 202223277512.1
✓5"x3" compact size with low profile (30.5mm)
✓80~264Vac input with PFC, No load power consumption <0.5W
✓Global certificates in multi-fields
✓150% peak load @ 3s
✓320W convection, 500W with FAN 23CFM forced-cooled
✓suitable for Class I or Class II installations
✓Overvoltage category III (OVC III)
✓-40 ~+80°C wide range operation temperature
✓High efficiency up to 95%
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
✓Operating altitude up to 5000 meters
✓Built-in 12V/0.5A for external FAN
✓3 years warranty

Frequently Asked Questions

What is the Mean Well LOP-500-15 designed for?

The Mean Well LOP-500-15 is a 500W low profile open frame AC-DC power supply that provides a 15V DC output at up to 20A. It is intended for embedded equipment and OEM applications where a compact 5 x 3 inch footprint and high power density are important. Its certifications also make it relevant for industrial, household, ITE, and certain medical-related equipment use cases.

What are the key electrical ratings of the LOP-500-15?

This model accepts 80 to 264VAC input and delivers a regulated 15V DC output. It is rated for 500W with forced-air cooling and 320W under convection cooling. The unit provides up to 20A rated current and supports 150% peak load for 3 seconds.

How compact is the Mean Well LOP-500-15?

The LOP-500-15 uses a compact 127 x 76.2 x 30.5mm form factor, which is approximately 5 x 3 inches with a low 30.5mm profile. This makes it suitable for applications where enclosure space is limited. Its listed weight is 0.42kg.

Can the LOP-500-15 be used in demanding temperature conditions?

Yes, this power supply is specified for operation from -40°C to +80°C, subject to the manufacturer's derating guidance. That wide operating range makes it a practical option for equipment exposed to hot or cold environments. Buyers should still confirm the full system thermal design for their application.

What protections are included in the LOP-500-15?

The LOP-500-15 includes short circuit, overload, overvoltage, and overtemperature protection. Its overload protection is specified at 105% to 150% of rated output power, with hiccup-mode recovery after fault removal. Overvoltage and overtemperature protection use shutdown behavior with recovery as described in the product specifications.

Is the Mean Well LOP-500-15 suitable for medical or safety-critical equipment designs?

This model is listed with IEC60601-1 and ANSI/AAMI ES60601-1 safety standards and is described as having extremely low leakage current with 2 x MOPP for BF medical applications. It also carries approvals for IEC62368-1, IEC60335-1, and IEC61558-1/-2-16. Final suitability depends on the complete end-product design and certification requirements.

What makes the LOP-500-15 stand out compared with a general open frame power supply?

This model combines a low-profile 5 x 3 inch package with active PFC, high efficiency up to 95%, and broad multi-sector safety certifications. It also supports both Class I and Class II installations, operates up to 5000 meters altitude, and includes a built-in 12V/0.5A output for an external fan. Those features make it more versatile than many basic open frame supplies in the same power class.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well LOP-500-54 500W 5"×3" Low Profile Open Frame Power Supply 54V 6A	500W	54V	6A	View
Mean Well LOP-500-48 500W 5"×3" Low Profile Open Frame Power Supply 48V 6.7A	500W	48V	6.7A	View
Mean Well LOP-500-36 500W 5"×3" Low Profile Open Frame Power Supply 36V 8.9A	500W	36V	8.9A	View
Mean Well LOP-500-27 500W 5"×3" Low Profile Open Frame Power Supply 27V 11.9A	500W	27V	11.9A	View
Mean Well LOP-500-24 500W 5"×3" Low Profile Open Frame Power Supply 24V 13.4A	500W	24V	13.4A	View
Mean Well LOP-500-18 500W 5"×3" Low Profile Open Frame Power Supply 18V 16.7A	500W	18V	16.7A	View
Mean Well LOP-500-12 500W 5"×3" Low Profile Open Frame Power Supply 12V 25A	500W	12V	25A	View
