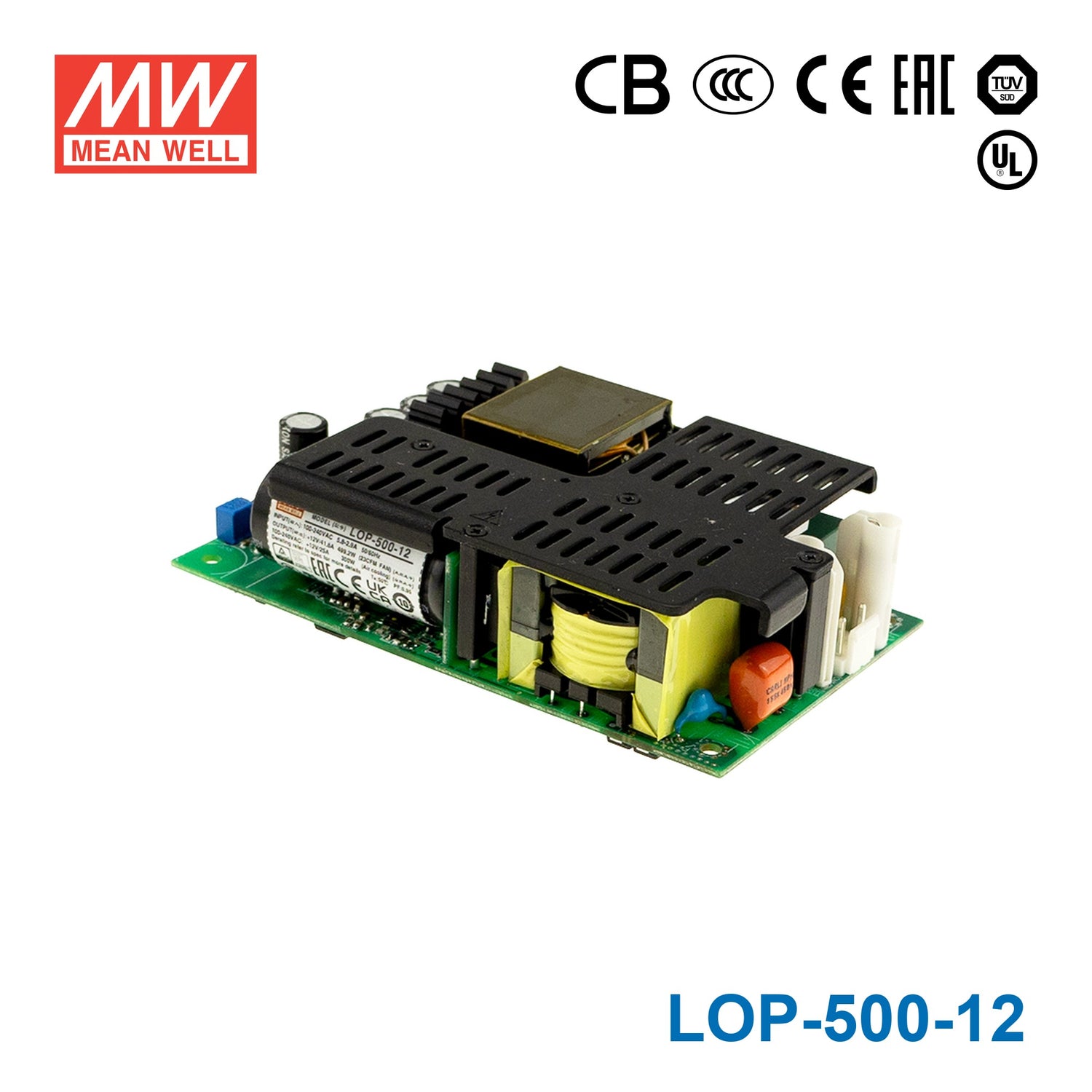

Mean Well LOP-500-12 500W 5"×3" Low Profile Open Frame Power Supply 12V 25A

conventional 320W500W if using fanhigh frequency up to 95%

SKU LOP-500-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

LOP-500-12 is the 12V output model of this series: typical efficiency 93.5%.

The LOP-500 is a 500W highly reliable, energy-efficient, low-profile open frame type power supply. With a high power density of 27.8W/in³ within the standard size of 5" × 3", it features a universal input voltage range of 80~264VAC, making it suitable for global applications. The series offers a comprehensive selection of standard voltages, including 12V/15V/18V/24V/27V/36V/48V/54V, and comes in a complete range of models. The main features of the LOP-500 include: low standby power (<0.5W), high efficiency (up to 95%), capable of providing 320W under natural air cooling and 500W with an additional fan. It has a 150% @ 3 seconds overload capacity, a wide operating temperature range of -40 to +80℃, compliance with OVCⅢ, suitable for Class Ⅰ (with FG) or Class Ⅱ (without FG) systems. The product has obtained multiple safety certifications, including 62368-1/60601-1/61558-1/60335-1, and is designed to meet 2xMOPP and extremely low touch leakage current <70 μ A, making it suitable for BF class medical devices. With high product safety and excellent EMC performance, it is versatile and applicable in various fields such as ITE, medical, industrial control, home automation and more. It is a cost-effective slim open frame type power supply.

Features

MEAN WELL Patent Number: ZL 202223277512.1
5"×3" compact size with low profile (30.5mm)
80~264Vac input with PFC, No load power consumption<0.5W
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
150%peak load @ 3s
320W convection, 500W with fan forced-cooled 23CFM
Suitable for Class Ⅰ or Class Ⅱ installations
Over voltage category Ⅲ (OVC Ⅲ)
-40 ~ +80℃ wide range operation temperature
High efficiency up to 95%
Protections: Short circuit / Overload / Over voltage / Over temperature
Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
Operating altitude up to 5000 meters
Built-in 12V/0.5A for external FAN
Built-in Remote sense
3 years warranty

Specifications

LOP-500-12Specifications from the official datasheet (2026-06-17 edition)

OUT PUT

DC VOLTAGE: 12V
CURRENT Peak(3sec.): 62.5A
CURRENT 23CFM: 41.6A
CURRENT Convection: 25A
RATED POWER Peak(3sec.): 750W
RATED POWER 23CFM: 499.2W
RATED POWER Convection: 300W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE (MAIN OUTPUT): 11.4~12.6V
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1000ms, 30ms/230Vac 1500ms, 30ms/115Vac at full load
HOLD UP TIME (Typ.): 26ms@300W load , 16ms@500W load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264Vac 113 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.95/230Vac PF>0.98/115Vac at full load
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 5.2A/115Vac 2.9A/230Vac
INRUSH CURRENT (Typ.): COLD START 40A/115Vac 80A/230Vac
LEAKAGE CURRENT: ClassⅠ: Earth leakage current < 500 μA (rms) @ 264V ac , touch current < 70μA (rms) @ 264V ac ClassⅡ: Touch current < 100 μA (rms) @ 264V ac

PROTECTION

OVERLOAD: 105 ~ 150% rated output power, Protection type : Hiccup after 3 sec, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.2 ~ 15.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down or re-power on to recover

FUNCTION

EXTERNAL FAN SUPPLY: 12V@0.5A for driving a fan (23CFM) / 12V@0.2A for without fan ; Tolerance -15% ~+15% at main output 20% rated current
REMOTE SENSE: The remote sensing compensates voltage drop on the load wiring up to 0.5V
POWER GOOD / POWER FAIL (optional): 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal goes low at least 1ms before Vo below 90% of rated value; TTL(0 ~ 1V), TTH(2 ~ 5V)

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved.
OVER VOLTAGE CATEGORY: IEC/EN 61558-1/-2-16(OVC Ⅲ, altitude up to 2000M ) IEC/EN/UL 62368-1 (OVC Ⅱ, altitude up to 5000M ) IEC/EN 60335-1 (OVC Ⅱ, altitude up to 5000M ) IEC/EN 60601-1 (OVC Ⅱ, altitude up to 4000M )
PROTECTIVE EXTRA-LOW VOLTAGE: IEC/EN61558-2-16 (SELV, 12~48V ) IEC/EN/UL 62368-1 (SELV / ES1, 12~48V )
WITHSTAND VOLTAGE: I/P-O/P:4KVac I/P-FG:2KVac O/P-FG:1.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted & Radiated BS EN/EN55032(CISPR32) ClassⅠ: Class B , Class Ⅱ: Class A
Conducted & Radiated BS EN/EN55014(CISPR32) ClassⅠ: Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035,BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 100% dip 1 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted & Radiated	BS EN/EN55032(CISPR32)	ClassⅠ: Class B , Class Ⅱ: Class A
Conducted & Radiated	BS EN/EN55014(CISPR32)	ClassⅠ: Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV
Surge	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 3, 10V
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 100% dip 1 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 1695.7K hrs min. Telcordia SR-332 (Bellcore) ; 230.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76.2*30.5mm (L*W*H)
PACKING: 0.42Kg; 24pcs/12Kg/1.02CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5 The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

Technical drawings

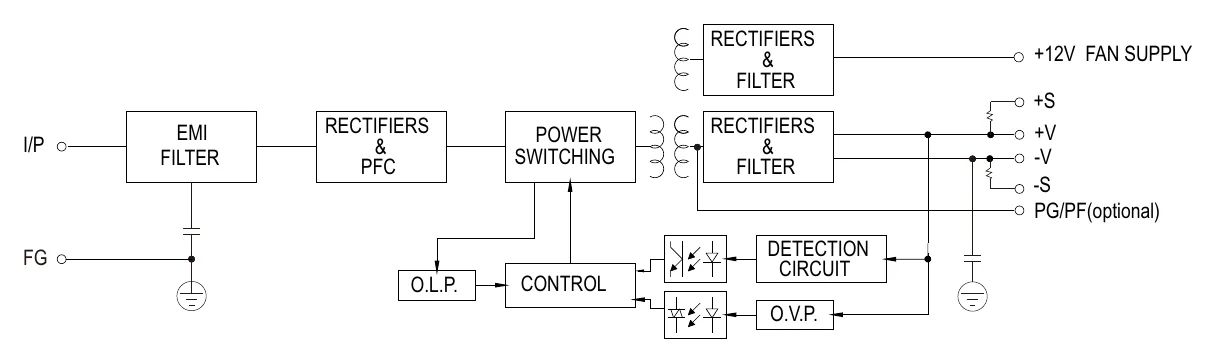

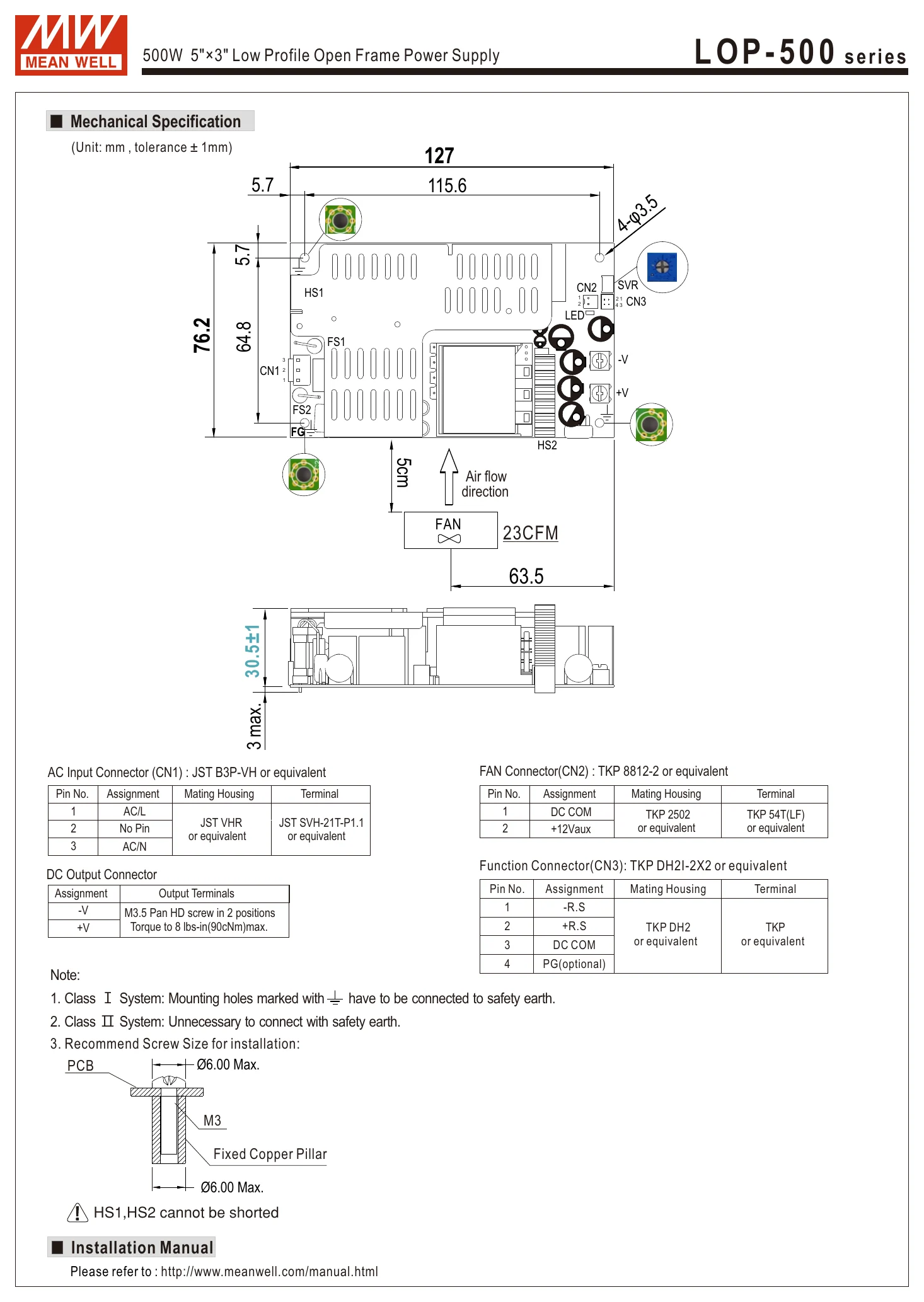

LOP-500-12 L O P - 5 0 0 series — L O P - 5 0 0 series

LOP-500-12 L O P - 5 0 0 series (2) — L O P - 5 0 0 series (2)

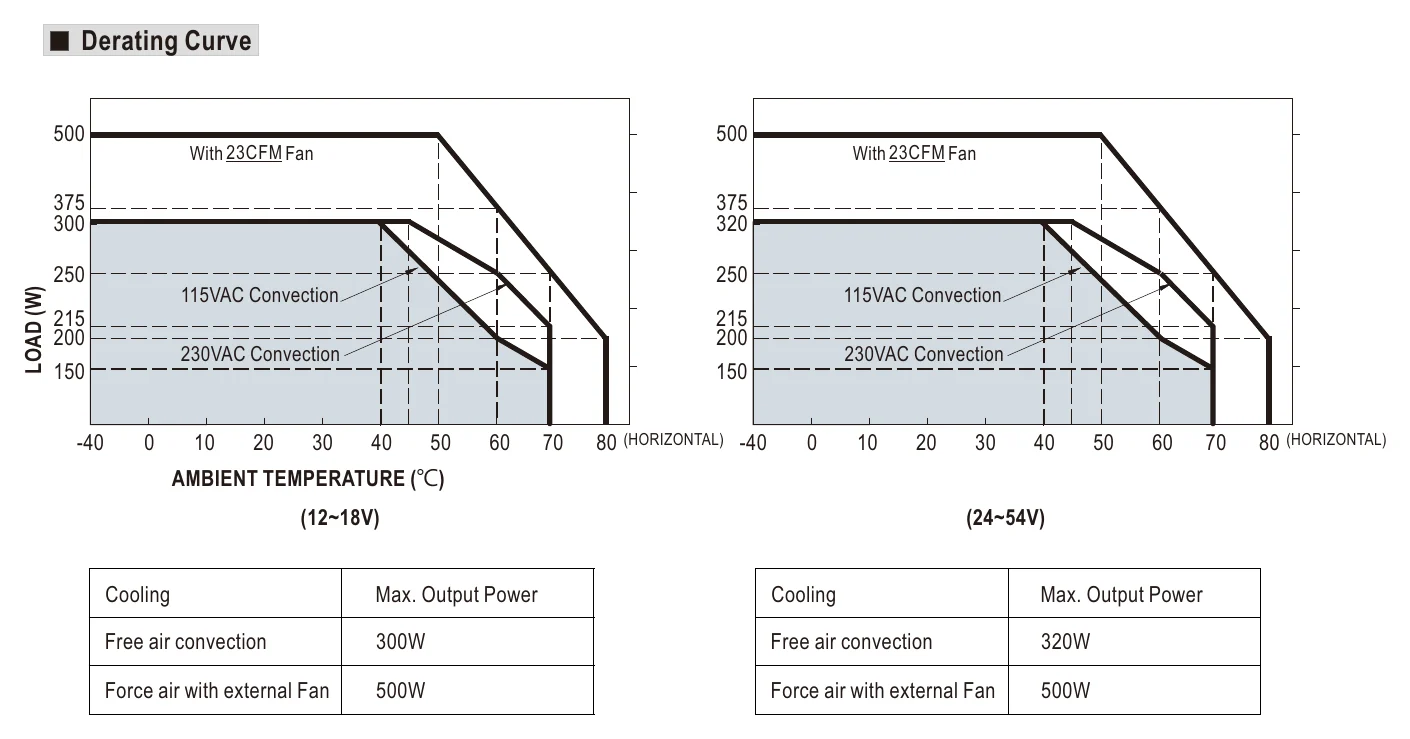

LOP-500-12 Derating Curve — Derating Curve

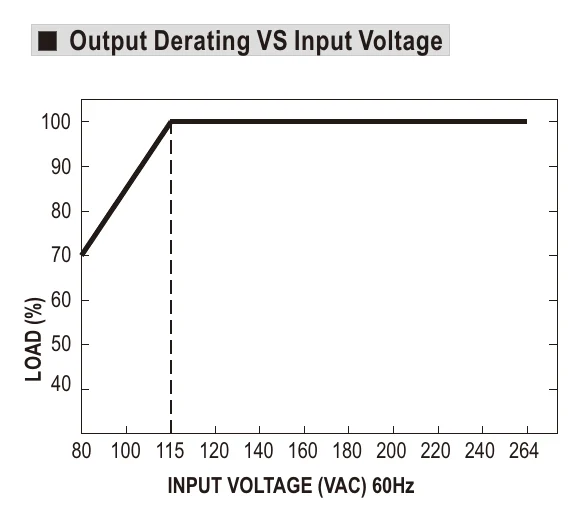

LOP-500-12 Output Derating VS Input Voltage — Output Derating VS Input Voltage

Typical applications

Industrial automation machinery/ control system
Security system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Network equipment
Telecom devices
Power sourcing equipment of PoE
Home automation
Medical devices

Downloads

Datasheet1

LOP-500-12 datasheetLOP_500_spec.pdf · 2026-06-17 edition PDF Download

FAQ

What type of power supply is the Mean Well LOP-500-12?

The LOP-500-12 is a 500W low profile open frame AC/DC power supply with a 12V DC output. It is designed in a compact 5 x 3 inch form factor and delivers up to 41.6A with 23CFM forced-air cooling (25A under convection).

What applications is the LOP-500-12 suited for?

This model is aimed at OEM and industrial equipment that needs a compact 12V, high power open frame supply. Its listed approvals also make it relevant for ITE, medical, household, and industrial applications where the required standards align with the product certifications.

How compact is the Mean Well LOP-500-12 for space-constrained designs?

The unit measures 127 x 76.2 x 30.5 mm, which corresponds to a 5 x 3 inch footprint with a low profile height. That makes it a strong option when a 500W supply is needed in equipment with limited internal space.

What input range does the LOP-500-12 support?

The LOP-500-12 supports a wide input range of 80 to 264VAC and also accepts 113 to 370VDC. It also includes active power factor correction, with power factor values listed above 0.95 at full load.

Can the LOP-500-12 operate in demanding temperature conditions?

Yes, this model is specified for operation from -40°C to +80°C, subject to the derating curve. That wide range makes it suitable for equipment used in both cold and high-ambient environments.

Does the LOP-500-12 include protection features?

Yes, the LOP-500-12 includes overload, over voltage, and over temperature protection. The product description also notes overload capability of 105 to 150% rated output power and 150% peak load for 3 seconds.

Is the Mean Well LOP-500-12 appropriate for medical or safety-focused equipment?

This model includes IEC60601-1 and ANSI/AAMI ES60601-1 medical safety approvals, with Class I earth leakage current specified below 500μA at 264VAC. It also carries multiple safety certifications across ITE, household, and industrial standards.

What cooling and output capability should buyers know about for the LOP-500-12?

The product is rated for 300W under convection cooling and up to 500W with 23CFM forced-air cooling. It also includes a built-in 12V/0.5A output intended for an external fan.
