Can I use the MHB100-24S05 to step a 24V system down to 5V for industrial electronics?

Yes, this converter is designed for an 18-36V input range and provides a constant 5V output. It is rated for 100W and 20A, which suits higher-current 5V industrial electronics within those limits.

Is the MHB100-24S05 suitable for powering 5V embedded computing or control hardware from a nominal 24V source?

It is a fit when the upstream source is within the 18-36V input range and the downstream load needs 5V constant voltage. With 100W and 20A available on the output, it supports heavier 5V loads than lower-power board supplies.

Can this converter run 5V automation peripherals in vehicles, mobile equipment, or battery-backed systems?

It can fit 24V-class systems that stay within the stated 18-36V input range and need a regulated 5V output. The -55C to +105C operating temperature range is broader than many standard enclosed power products.

How does the MHB100-24S05 compare with the other MHB100 versions?

This model is the 18-36V input, 5V output version with 100W and 20A output. The other siblings are MHB100-24S12 at 100W, 12V, 8.3A; MHB100-24S24 at 100W, 24V, 4.17A; MHB100-48S05 at 100W, 5V, 20A; MHB100-48S12 at 100W, 12V, 8.3A; and MHB100-48S24 at 100W, 24V, 4.17A.

Is the MHB100-24S05 appropriate for outdoor or extreme-temperature environments?

Its operating temperature range is -55C to +105C, which makes it suitable for very cold and very hot equipment environments. No IP rating is listed, so outdoor use should be inside a protective enclosure rather than exposed directly.

1 5

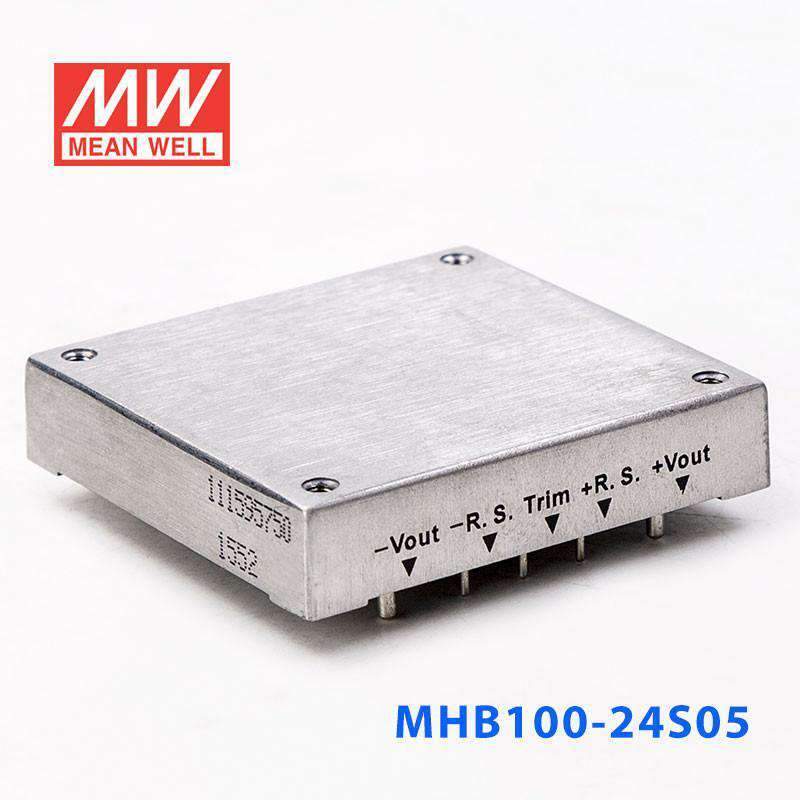

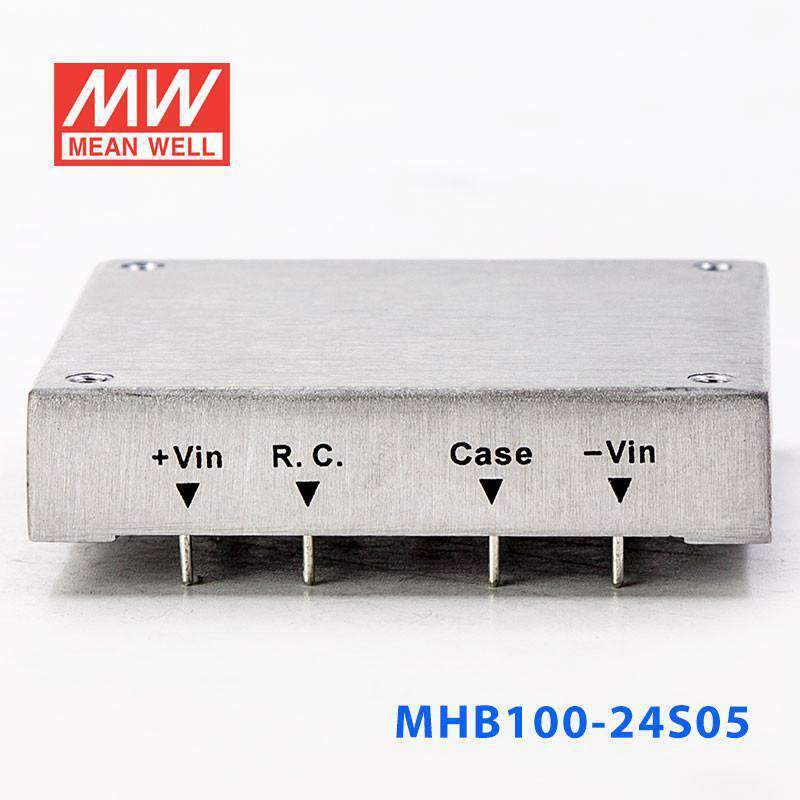

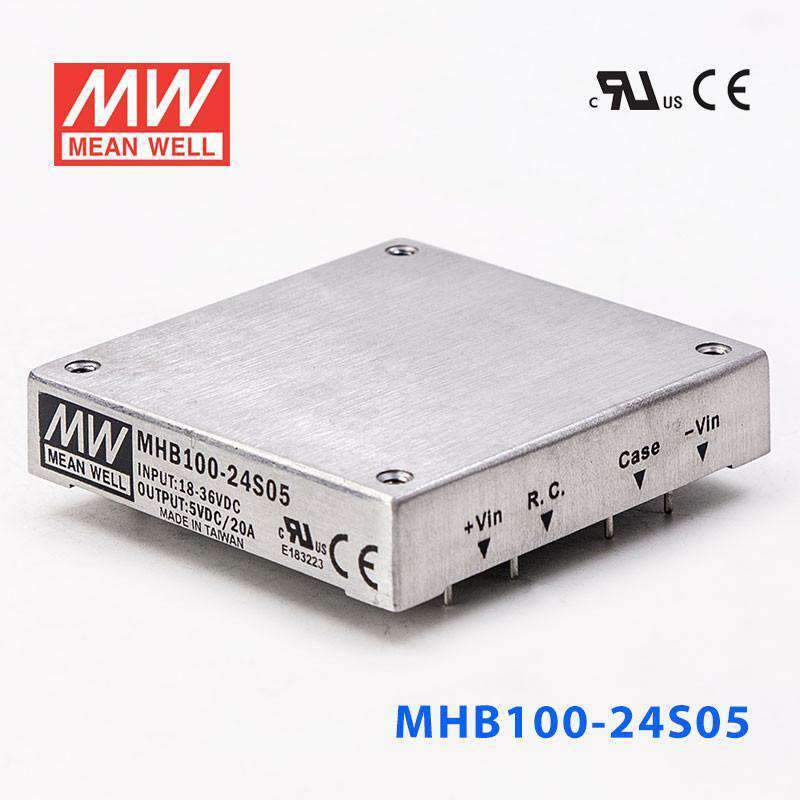

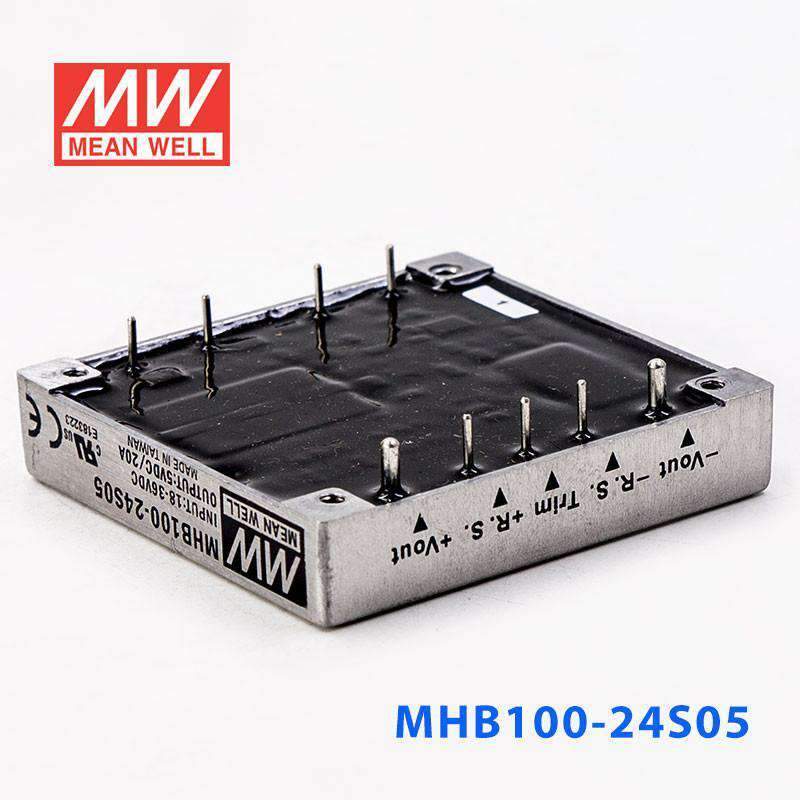

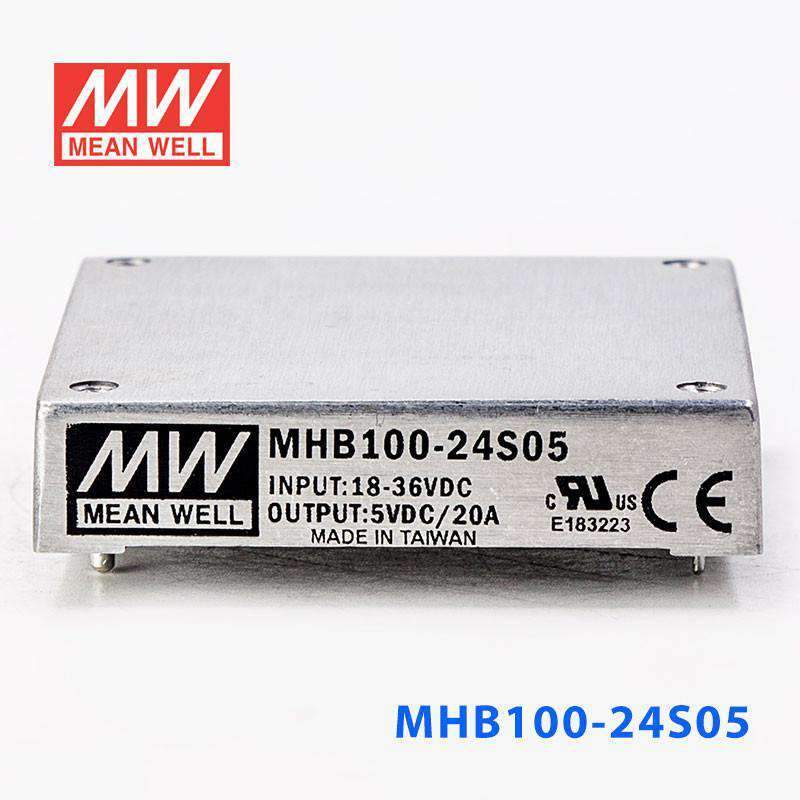

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well MHB100-24S05 DC-DC Converter - 100W - 18~36V in 5V out 20A

SKU:

MHB100-24S05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MHB100 is a 100W Mean Well power converter (input range: 18~36VDC).

Key Features

✓ Input voltage range: 18~36VDC
✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
✓ Remote ON/OFF control
✓ Safety approvals: UL60950-1 EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MHB100-48S24 DC-DC Converter - 100W - 36~75V in 24V out 4.17A	100W	24V	4.17A	Indoor	View
Mean Well MHB100-48S12 DC-DC Converter - 100W - 36~75V in 12V out 8.3A	100W	12V	8.3A	Indoor	View
Mean Well MHB100-48S05 DC-DC Converter - 100W - 36~75V in 5V out 20A	100W	5V	20A	Indoor	View
Mean Well MHB100-24S24 DC-DC Converter - 100W - 18~36V in 24V out 4.17A	100W	24V	4.17A	Indoor	View
Mean Well MHB100-24S12 DC-DC Converter - 100W - 18~36V in 12V out 8.3A	100W	12V	8.3A	Indoor	View
