Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

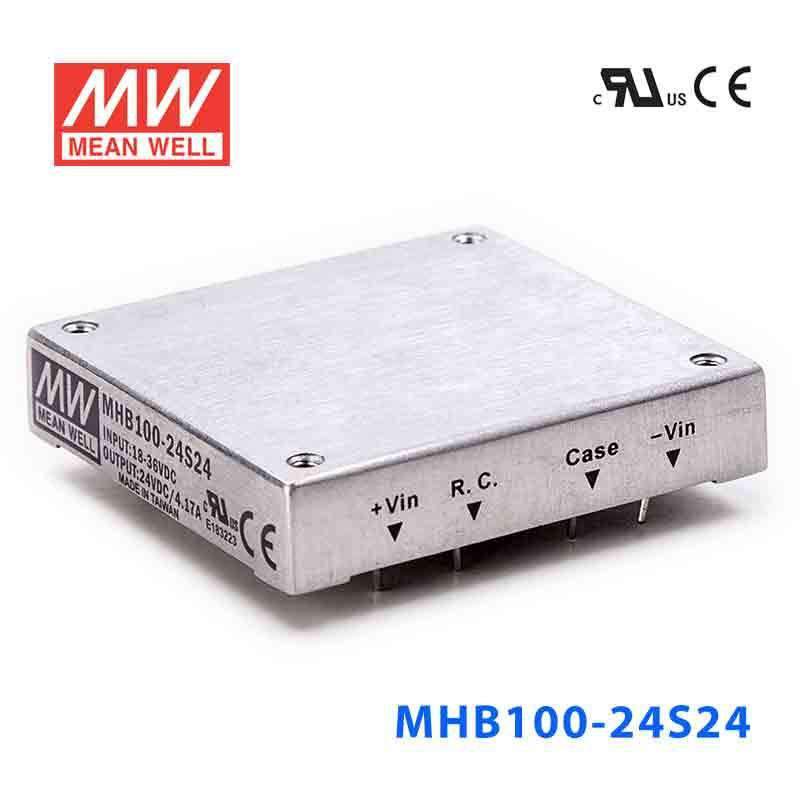

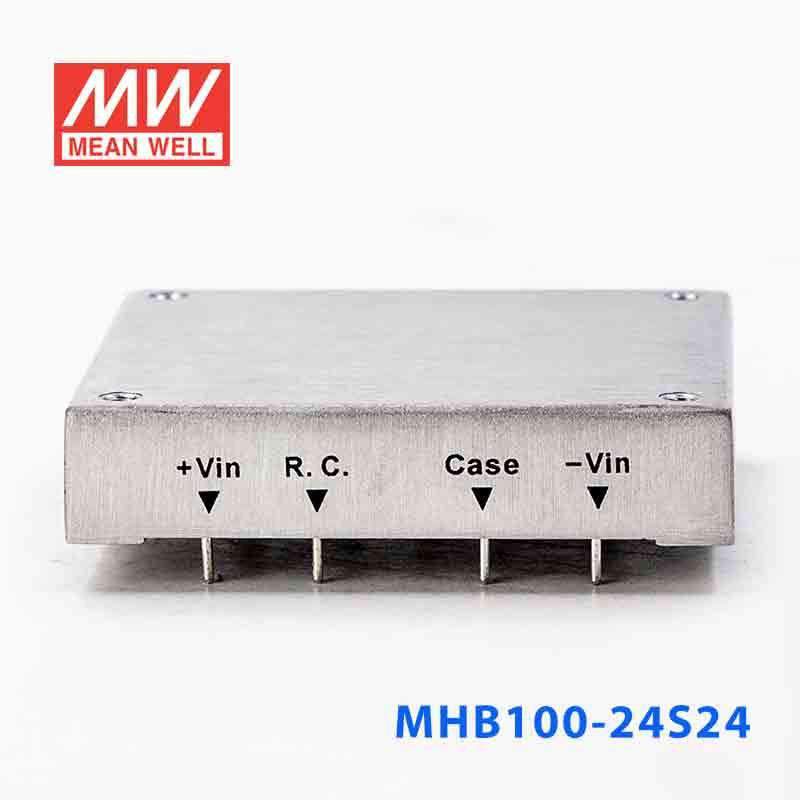

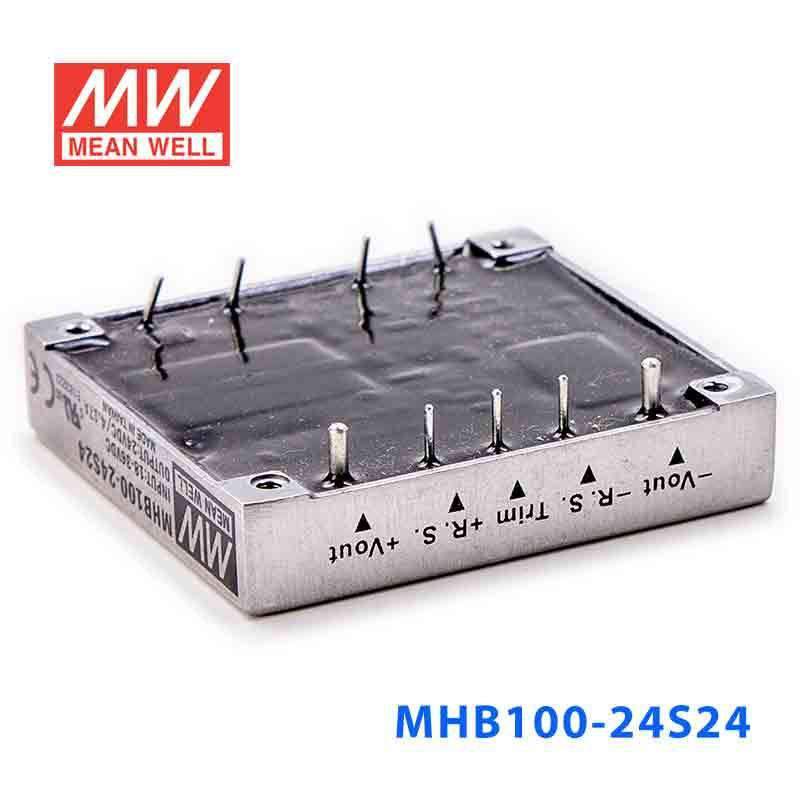

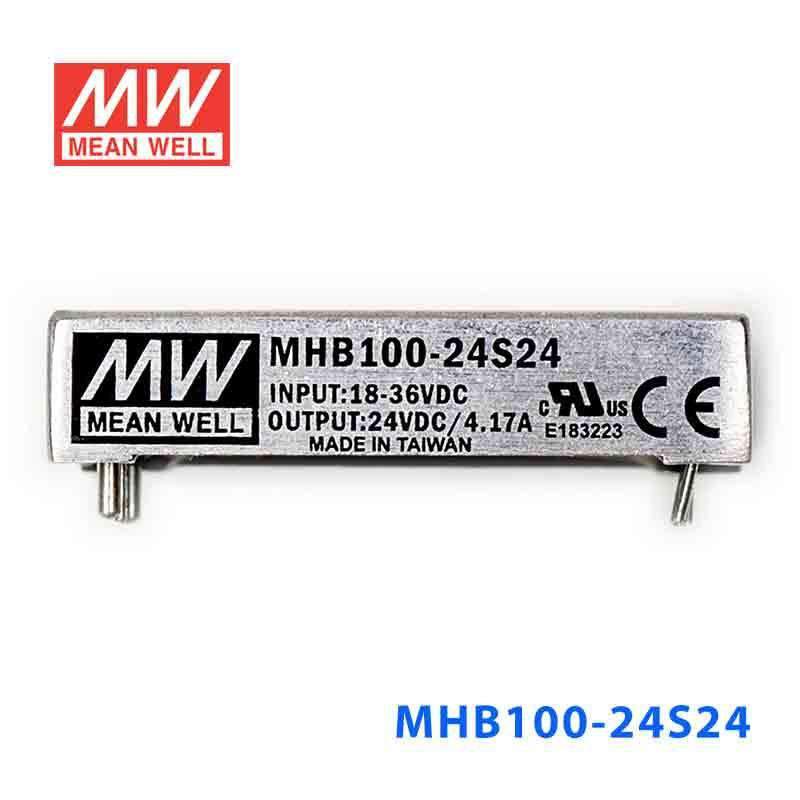

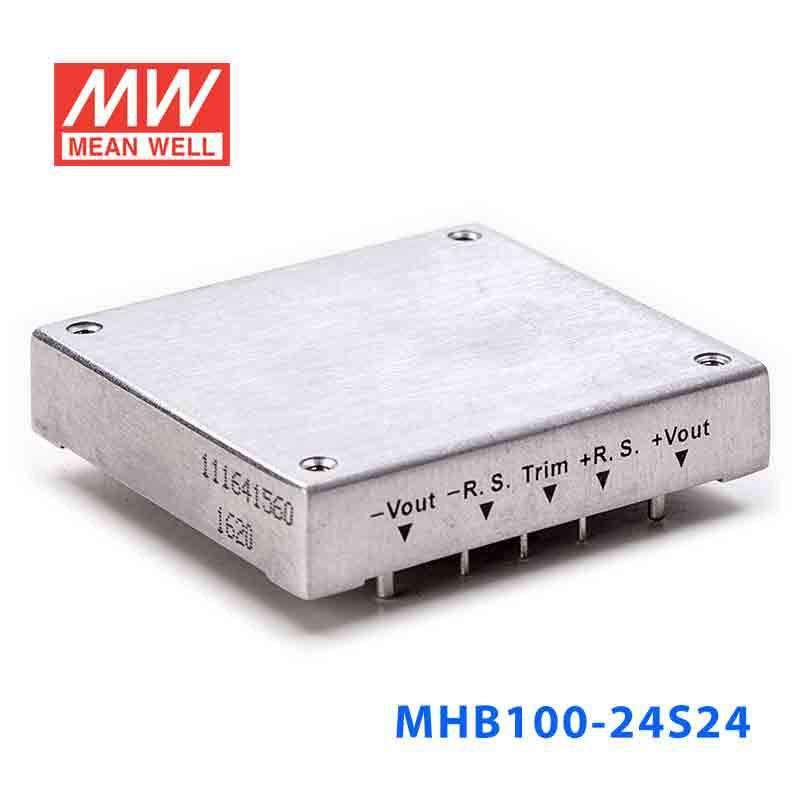

Mean Well MHB100-24S24 DC-DC Converter - 100W - 18~36V in 24V out

SKU:

MHB100-24S24

Please for Pricing

Notify me when it's back in stock

Description

Features

Half-brick size (2.28" 2.4" 0.5") with industry standard pin out

2:1 wide input range

Protections: Short circuit / Over current / Over voltage / Over temperature

High efficiency up to 89%

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in remote sense function

Trimming output ±10%

Five-sided shield metal case

Optional heat sinks for extended operating temperature

Output 2.5V/3.3V/15V available

Approvals: UL / CUL / CE

3 years warranty

General Specification

Over current protection	110%~140% rated output power; Protection type: over current limiting, recovers automatically after fault condition is removed
Over temperature protection	Case temperature 100°C±5°C, Over temperature protection enabled
Over voltage protection	115%~140%; Protection mode: Output Voltage clamping by zener diode
Withstand voltage	I/P-O/P:1500VDC,I/P-Case:1500VDC,O/P-Case:1500VDC
Working temperature	-40~100°C; Thermal shutdown at 100°C±5°C of case temperature(Please refer to Thermal Curve)
Safety standards	UL60950-1 approved
EMC standards	With external components Compliance to EN55022 Class A(Please refer to ¨¹EMC Suggestion Circuit¨¹)
Dimension (LxWxH)(mm)	57.9 x 61 x 12.7 mm

Specifications

Brand

Mean Well
Series

MHB Series
Power Rating

100 Watt
Output Voltage

24 Volt
Rated Current

4.17 Ampere
Input Voltage

18V~36V
Standards Met

CB,CE,EAC,EMC,RCM,TUV
Operation Mode

Constant Voltage
Operating Temperature

-55°C~105°C
Warranty

3 Year
Length

6.1 cm
Width

5.79 cm
Height

1.27 cm
Weight

0.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MHB100-24S24 for 24V industrial control equipment on an 18-36VAC source?

Yes, this converter accepts 18-36VAC input and delivers a constant 24V output. With 100W total power and 4.17A output current, it fits 24V control loads that stay within those ratings.

Is this a good fit for 24V PLC I/O modules or automation interfaces?

It is suitable for 24V automation electronics that require constant voltage and draw no more than 4.17A or 100W. The 24V output matches many industrial control and interface loads better than the 5V or 12V versions in the same series.

Can the MHB100-24S24 power 24V embedded or communications devices inside industrial systems?

Yes, when the device expects a steady 24V supply and its load remains within 4.17A and 100W. Its 61.0 x 57.9 x 12.7 mm form factor and 0.095 kg weight also support compact equipment layouts.

Will this converter handle cold or high-heat environments?

The specified operating temperature range is -55°C to +105°C, which is unusually wide for demanding equipment environments. No IP rating is listed in the provided specs, so temperature capability is stated but direct outdoor exposure is not confirmed here.

What is the difference between the MHB100-24S24 and the other listed MHB100 siblings?

All listed siblings are 100W models, but they differ by input family and output level. The 24S family includes 5V 20A, 12V 8.3A, and 24V 4.17A versions, and the 48S family includes 5V 20A, 12V 8.3A, and 24V 4.17A versions.

Model	Power	Voltage	Current	IP Rating
Mean Well MHB100-48S24 DC-DC Converter - 100W - 36~75V in 24V out	100W	24V	4.17A	Indoor	View
Mean Well MHB100-48S12 DC-DC Converter - 100W - 36~75V in 12V out	100W	12V	8.3A	Indoor	View
Mean Well MHB100-48S05 DC-DC Converter - 100W - 36~75V in 5V out	100W	5V	20A	Indoor	View
Mean Well MHB100-24S12 DC-DC Converter - 100W - 18~36V in 12V out	100W	12V	8.3A	Indoor	View
Mean Well MHB100-24S05 DC-DC Converter - 100W - 18~36V in 5V out	100W	5V	20A	Indoor	View
