Can I use the MHB75-12S12 to power 12V automation devices from a 12V battery or DC source?

This unit accepts 9-18V input and provides a constant 12V output, which fits 12V-class DC systems that need regulated output. It is rated for 75W and can supply up to 6.25A at 12V.

Is this converter a fit for 12V embedded control hardware in industrial or vehicle-mounted equipment?

It is suitable for 12V electronics that operate within a 75W load envelope and need constant-voltage output. The converter provides up to 6.25A at 12V from a 9-18V input range.

Can the MHB75-12S12 be used for 12V instrumentation or monitoring modules in harsh temperature environments?

The stated operating temperature range is -55°C to +105°C, so it is rated for very wide-temperature operation. It also provides constant 12V output with up to 6.25A available.

Would this work for compact 12V subsystems where size and weight matter?

The unit measures 61.0 × 57.9 × 12.7 mm and weighs 0.092 kg, which supports use in compact equipment. Its electrical rating is 75W with constant 12V output up to 6.25A from a 9-18V input.

Can I use this converter in an outdoor or exposed location?

The specs list an operating range of -55°C to +105°C, but they do not include an IP rating. Based on the provided data, temperature capability is specified, while exposed outdoor suitability is not.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

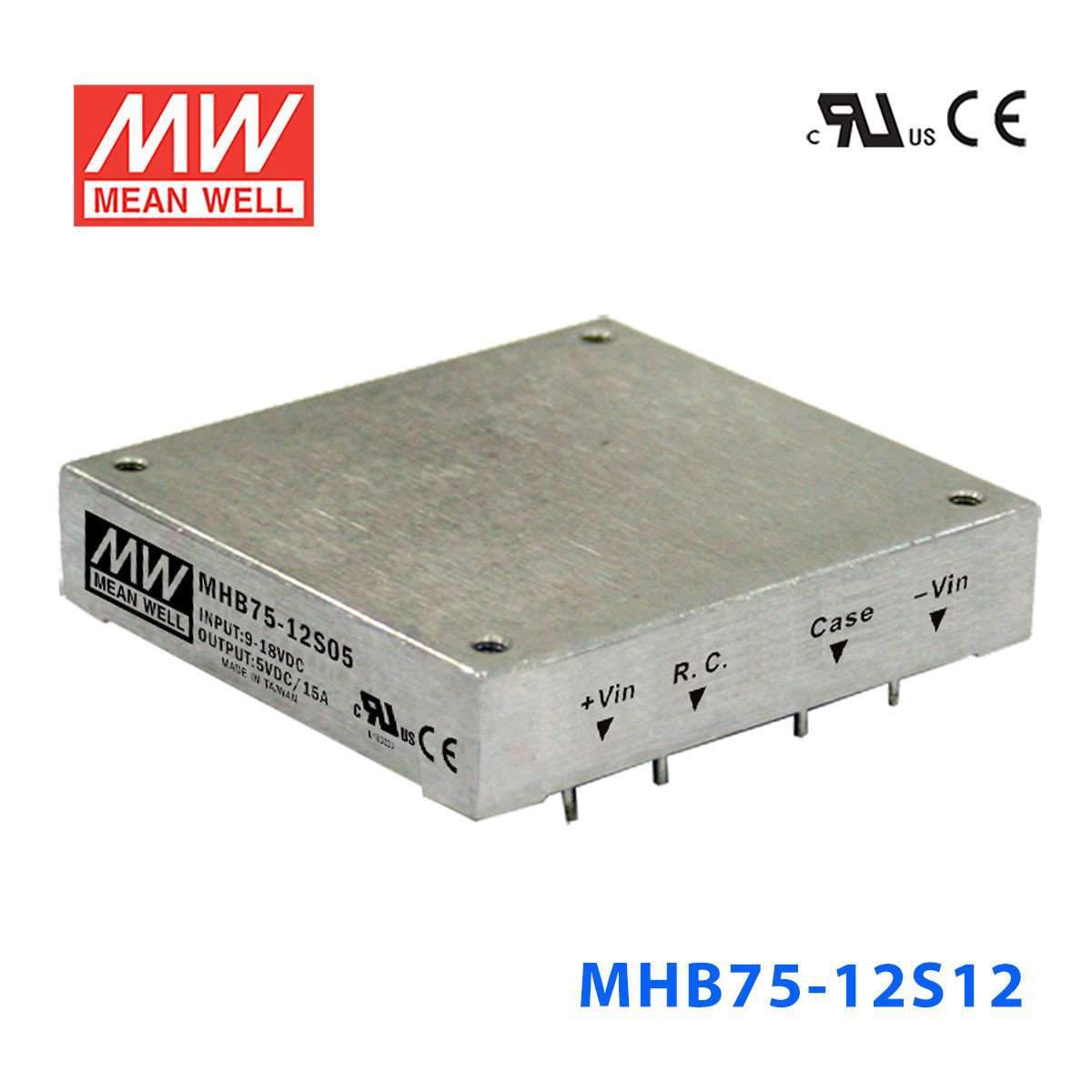

Mean Well MHB75-12S12 DC-DC Converter - 75W - 9~18V in 12V out 6.25A

SKU:

MHB75-12S12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MHB75 is a 75W Mean Well power converter (input range: 9~18VDC).

Key Features

✓ Input voltage range: 9~18VDC
✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
✓ Remote ON/OFF control
✓ Safety approvals: UL60950-1 EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MHB75-48S24 DC-DC Converter - 75W - 36~72V in 24V out 3.13A	75W	24V	3.13A	Indoor	View
Mean Well MHB75-48S12 DC-DC Converter - 75W - 36~72V in 12V out 6.25A	75W	12V	6.25A	Indoor	View
Mean Well MHB75-48S05 DC-DC Converter - 75W - 36~72V in 5V out 15A	75W	5V	15A	Indoor	View
Mean Well MHB75-24S24 DC-DC Converter - 75W - 18~36V in 24V out 3.13A	75W	24V	3.13A	Indoor	View
Mean Well MHB75-24S12 DC-DC Converter - 75W - 18~36V in 12V out 6.25A	75W	12V	6.25A	Indoor	View
Mean Well MHB75-24S05 DC-DC Converter - 75W - 18~36V in 5V out 15A	75W	5V	15A	Indoor	View
Mean Well MHB75-12S24 DC-DC Converter - 75W - 9~18V in 24V out 3.13A	75W	24V	3.13A	Indoor	View
Mean Well MHB75-12S05 DC-DC Converter - 75W - 9~18V in 5V out 15A	75W	5V	15A	Indoor	View
