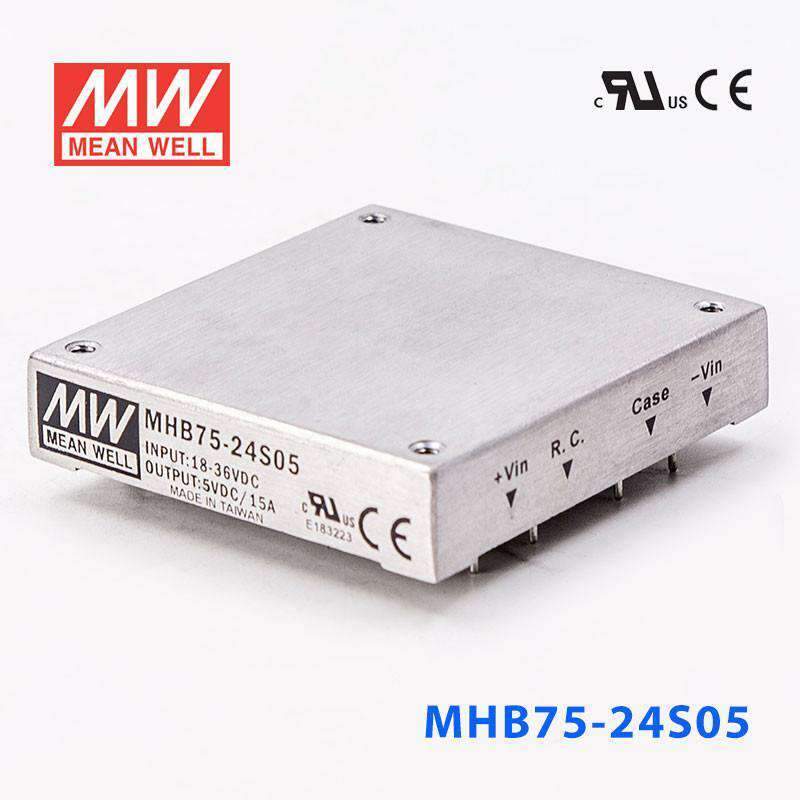

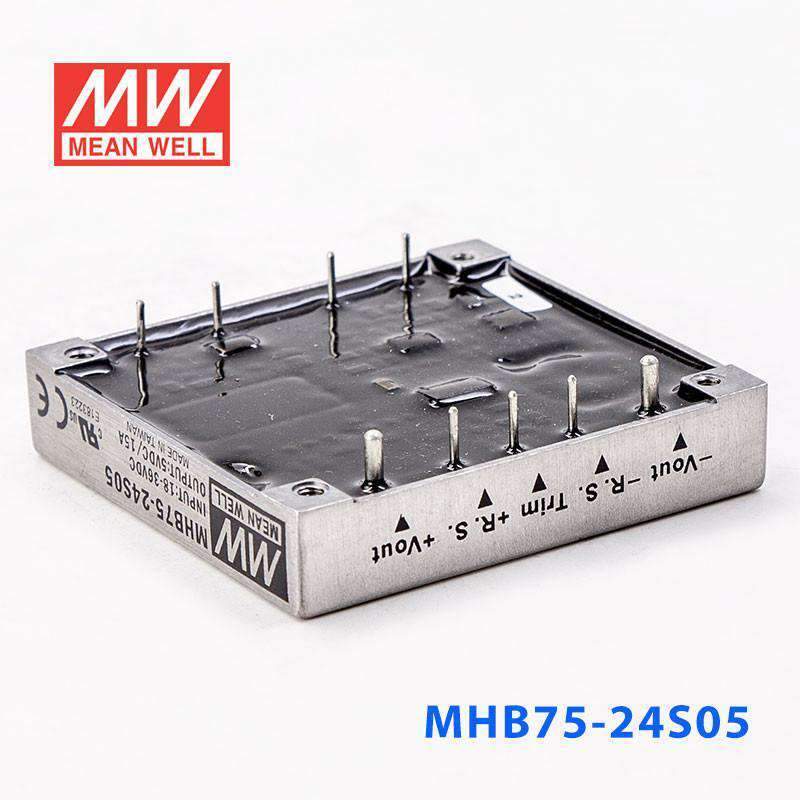

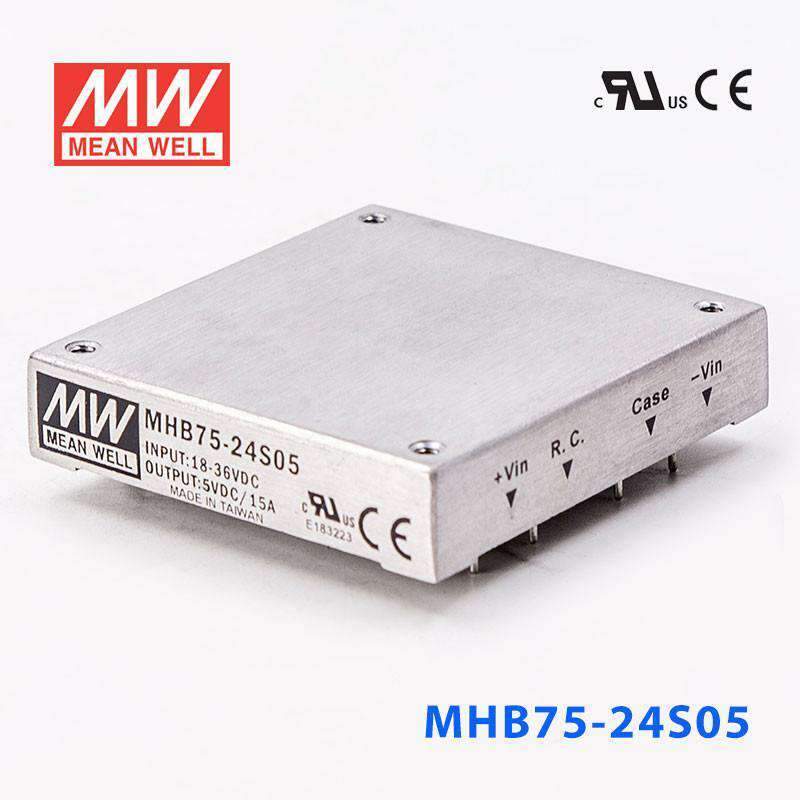

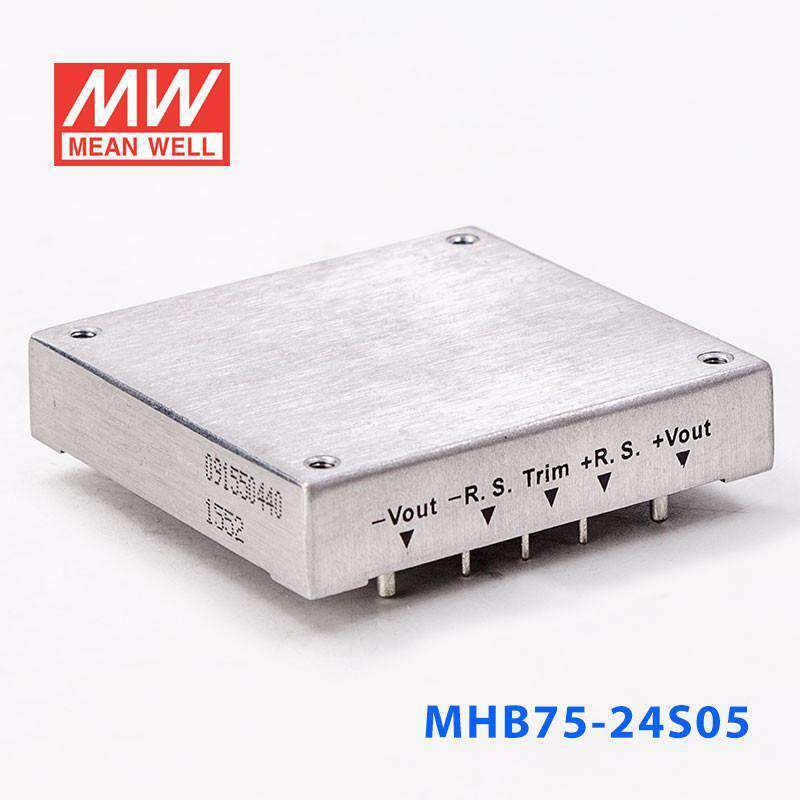

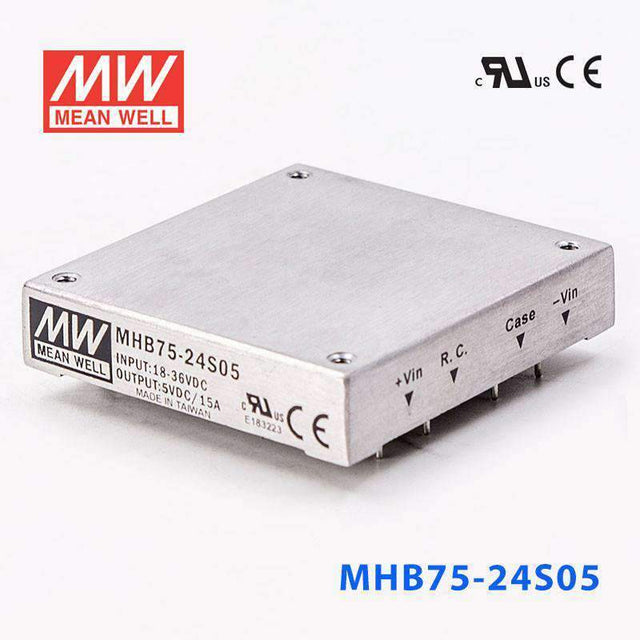

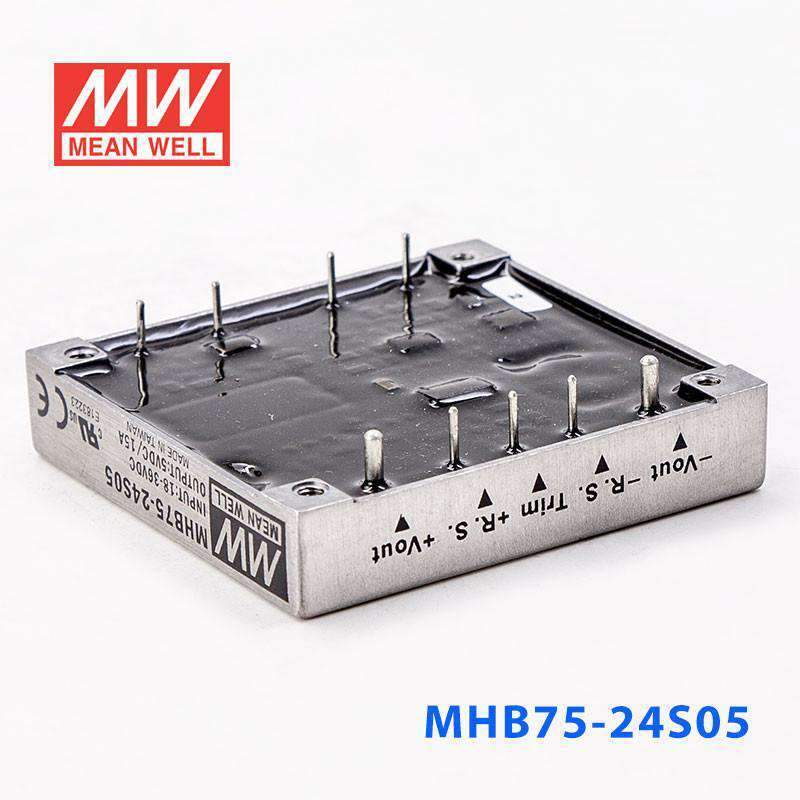

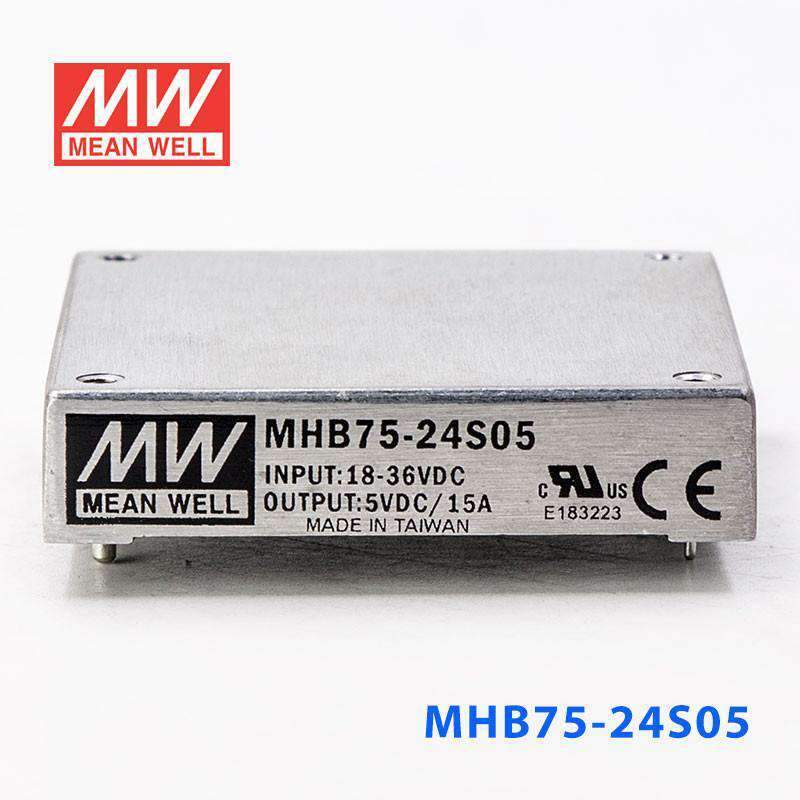

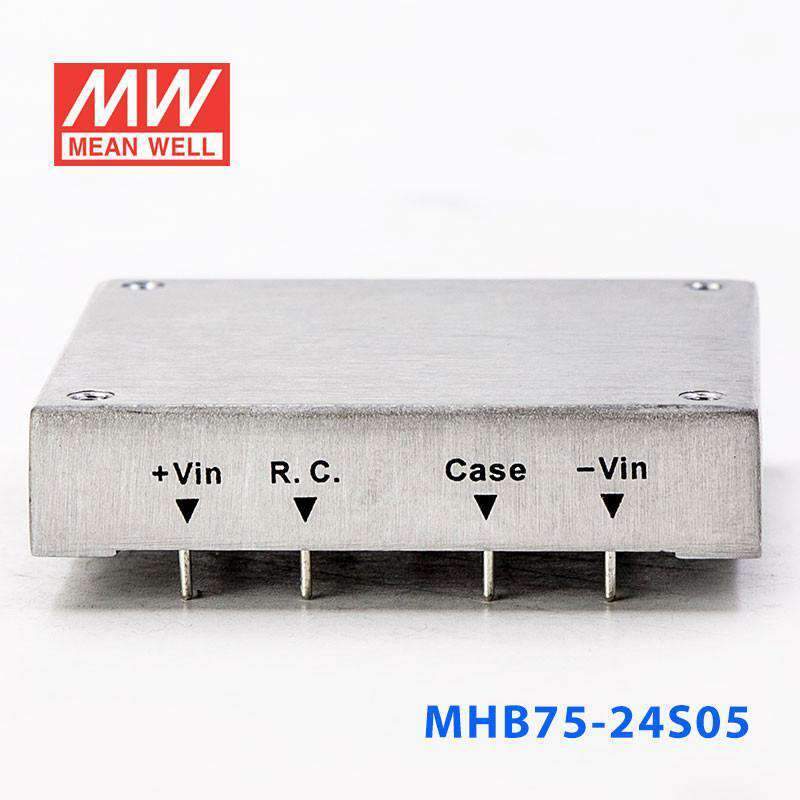

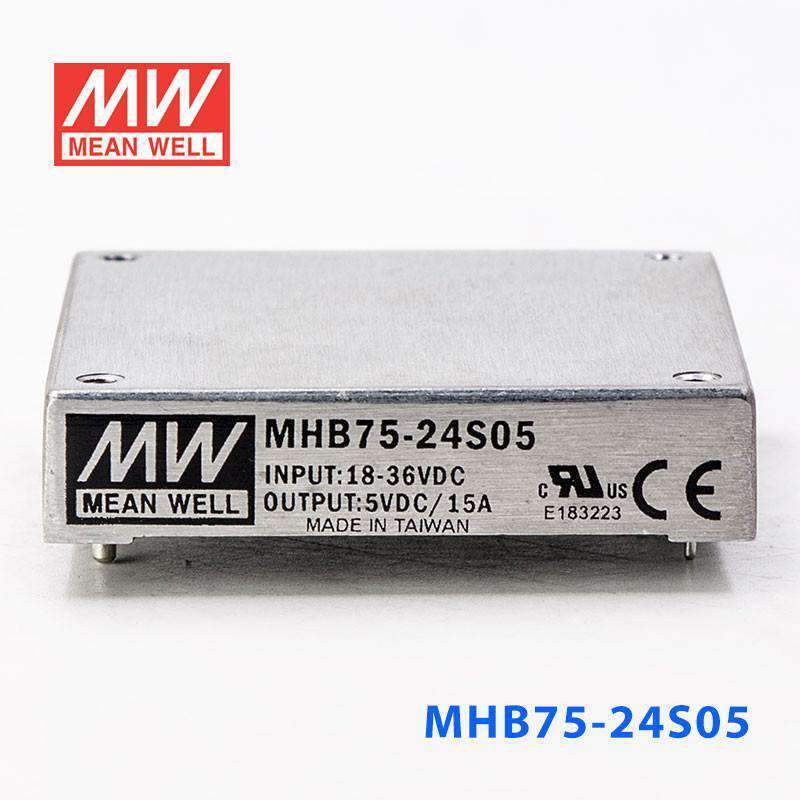

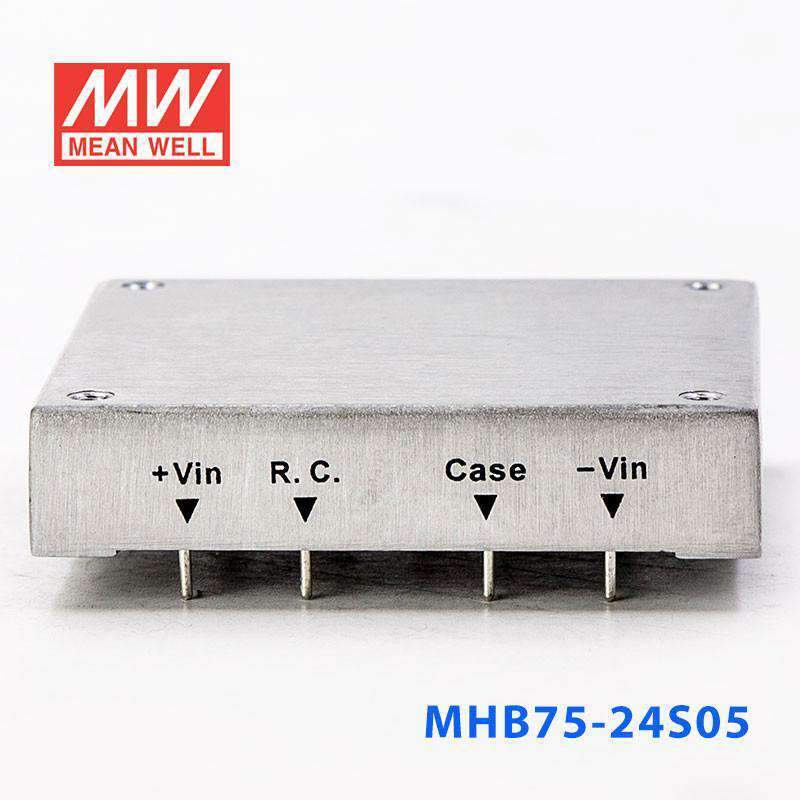

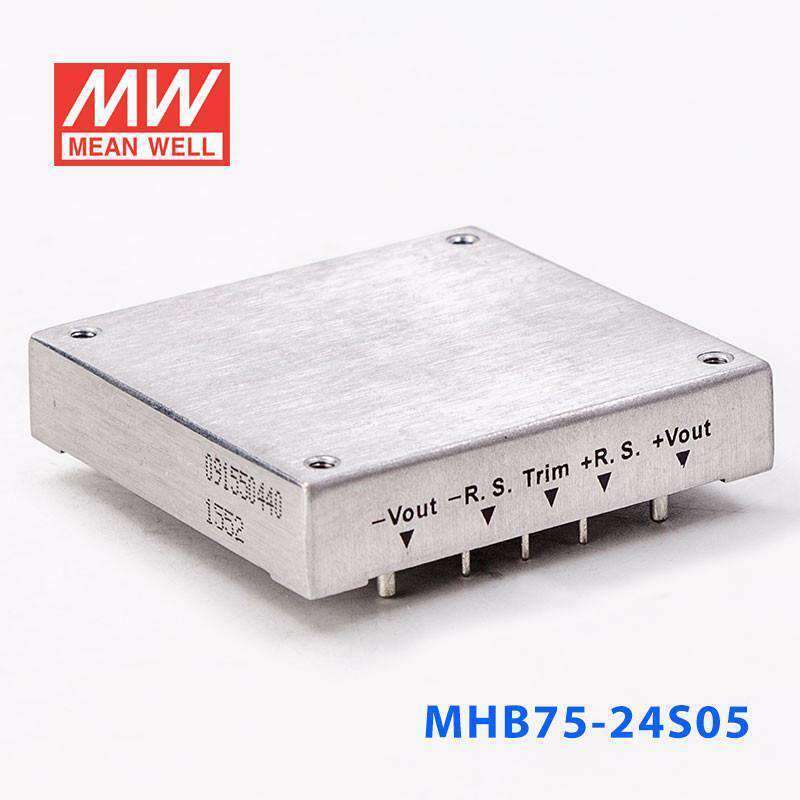

Mean Well MHB75-24S05 DC-DC Converter - 75W - 18~36V in 5V out 15A

SKU MHB75-24S05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

MHB75-24S05 is the 5V output model of this series: rated power 75W, typical efficiency 84%.

Features

  • Half-brick size (2.28"×2.4"×0.5") with industry standard pin out
  • 2:1 wide input range
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • High efficiency up to 89%
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control
  • Built-in remote sense function
  • Trimming output ±10%
  • Five-sided shield metal case
  • Optional heat sinks for extended operating temperature
  • Output 3.3V/15V available
  • Approvals: UL / CUL / EAC / CE / UKCA
  • 3 years warranty

Specifications

MHB75-24S05Specifications from the official datasheet (2024-04-30 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
0 ~ 15A
RATED POWER
75W
RIPPLE & NOISE (max.)Note.2
75mVp-p
VOLTAGE ACCURACYNote.3
±1.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±0.2%
SWITCHING FREQUENCY (Typ.)
400KHz for 12/24Vin, 300KHz for 48Vin
EXTERNAL TRIM ADJ. RANGE (Typ.)
±10%
EXTERNAL CAPACITIVE LOAD (max.)
10000uF

INPUT

RATED DC INPUT
24VDC
VOLTAGE RANGE
18 ~ 36VDC
SURGE VOLTAGE (100ms max.)
50VDC
UNDER VOLTAGE LOCKOUT
Power up: 17VDC, Power down: 16VDC
EFFICIENCY (Typ.)
84%
DC CURRENT FULL LOAD
3780mA
DC CURRENT NO LOAD
50mA
FILTER
Pi-network

PROTECTION

OUTPUT OVER CURRENT
110 ~ 150% rated output power Protection type : Over current limiting, recovers automatically after fault condition is removed
OUTPUT OVER VOLTAGE (Typ.)
115 ~ 140% rated output voltage Protection type : Output voltage clamp by TVS diode
OUTPUT SHORT CIRCUIT
Protection type : Can be continuous, recovers automatically after fault condition is removed
OVER TEMPERATURE
100℃±5℃of case temperature

FUNCTION

REMOTE CONTROL
Please refer to "Remote ON/OFF Control" for details

OPERATING

OUTPUT TRIMMING
±10%, Please refer to "External Output Trimming" for details

ENVIRONMENT

WORKING TEMPERATURE (Typ.)
-40 ~ +100℃ ; Thermal shutdown at 100℃±5℃of case temperature (please refer to "Thermal Curve")
WORKING HUMIDITY
0% ~ 95% RH max.
STORAGE TEMP., HUMIDITY
-55 ~ +105℃, 0 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0~60℃)

SAFETY & EMC

SAFETY STANDARDS
UL60950-1, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
ISOLATION VOLTAGE
I/P-O/P:1500VDC, I/P-Case:1500VDC, O/P-Case:1500VDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8; BS EN/EN55024, light industry level, criteria A, EAC TP TC 020

OTHERS

CASE MATERIAL
Aluminum
MTBF
1000K hrs typ. MIL-HDBK-217F (25℃)
DIMENSION
57.9*61*12.7mm (2.28"*2.40"*0.5") (L*W*H)
PACKING
95g ; 12pcs/EPE, 60pcs/5 per carton
Test conditions and notes4
  1. 1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 1uF ceramic & 10uF tantalum capacitor across output.
  3. 3. The power supply need to connect "+Vout" to "+R.S" and "-Vout" to "-R.S".
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”

Technical drawings

MHB75-24S05 M H B 7 5 series
M H B 7 5 series
MHB75-24S05 Remote ON/OFF Control
Remote ON/OFF Control
MHB75-24S05 +Vin
+Vin
MHB75-24S05 Output
Output
MHB75-24S05 Thermal Curve
Thermal Curve
MHB75-24S05 Case Heat Sink (Optional)
Case Heat Sink (Optional)
MHB75-24S05 Heatsink Assembly
Heatsink Assembly
MHB75-24S05 Packing
Packing

Downloads

FAQ

Can I use the MHB75-24S05 for 5V industrial logic or controller loads?

It is intended for constant-voltage 5V loads and can supply up to 15A with a 75W power rating. That makes it appropriate for industrial logic, controller, or embedded electronics that are built around a 5V DC bus and have an 18-36VDC input source available.

Is this model suitable for powering 5V embedded electronics from a higher-voltage input range?

Yes, this unit is designed for an 18-36VDC input range and converts that to a 5V constant-voltage output. With up to 15A available, it fits 5V embedded systems that need more current than the 12V or 24V output variants provide.

Can the MHB75-24S05 support 5V automation or communication hardware that draws higher current?

For 5V equipment, this is the highest-current option in the listed 24V-input siblings because it delivers up to 15A at 75W. That makes it a practical choice for 5V automation or communication hardware where current demand matters more than a higher output voltage.

Is the MHB75-24S05 appropriate for harsh indoor environments with temperature extremes?

The operating range is -40°C to +100°C case temperature, with thermal shutdown at 100°C ±5°C, and derating or cooling is needed per the thermal curve. The specs do not provide an IP rating, so the temperature range is clear but indoor or outdoor exposure resistance is not defined here.

What is the difference between the MHB75-24S05 and the other 18-36VDC input versions?

Within the 18-36VDC input group, the MHB75-24S05 outputs 5V at 15A, the MHB75-24S12 outputs 12V at 6.25A, and the MHB75-24S24 outputs 24V at 3.13A. All three are 75W models with the same 61.0 × 57.9 × 12.7 mm dimensions, 95 g weight, and -40°C to +100°C operating case temperature range.
