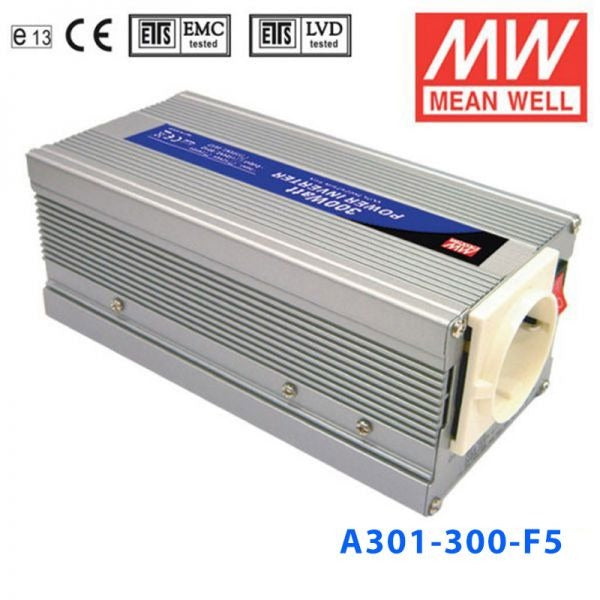

Mean Well A301-300-F5 Modified sine wave 300W 230V - DC-AC Inverter

SKU:

A301-300-F5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The A301-300 is a 300W Mean Well. power converter. and an input range of 10~15VDC.

Key Features

✓ Input voltage range: 10~15VDC
✓ Protections: Over voltage / Over temperature
✓ 3 years warranty

Frequently Asked Questions

What type of inverter is the Mean Well A301-300-F5?

The A301-300-F5 is a DC-AC inverter with a 300W power rating and a modified sine wave output. This model is intended for applications that need AC power from a DC source and includes built-in protection functions for operating safety.

Is this a pure sine wave inverter?

No. The A301-300-F5 uses a modified sine wave output, not a pure sine wave output. That makes waveform type an important compatibility check if your equipment requires a pure sine wave supply.

What kinds of protection features are included on this model?

This inverter includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short. The product data also states output short protection operates by shut-off.

What operating temperature range is specified for the A301-300-F5?

The listed working temperature is 0 to 30°C at 100% load, and up to 40°C at 50% load. The overload temperature is specified as 45±5°C. For best performance, this model should be selected with those ambient limits in mind.

What applications is this 300W inverter typically suited for?

This model is generally suited to lower-power DC-to-AC applications where a 300W inverter and modified sine wave output are acceptable. It is a better fit for straightforward power conversion needs than for loads that are highly waveform-sensitive.

What are the physical size and weight of this inverter?

The listed dimensions are 165 x 88 x 74 mm. The product weight is 1.1 kg, which makes it a relatively compact option within the 300W inverter class.

What approvals and warranty are listed for the A301-300-F5?

The product listing shows E13, EAC, CE, and UKCA approvals. It also includes a 1 year warranty. Those details can be useful for buyers comparing compliance coverage and support terms.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well A301-300-F4 Modified Sine Wave 300W 230V DC-AC Power Inverter	300W	230V	Modifined Sine Wave	50Hz	View
Mean Well A301-300-B2 Modified sine wave 300W 110V - DC-AC Inverter	300W	110V	Modifined Sine Wave	60Hz	View
