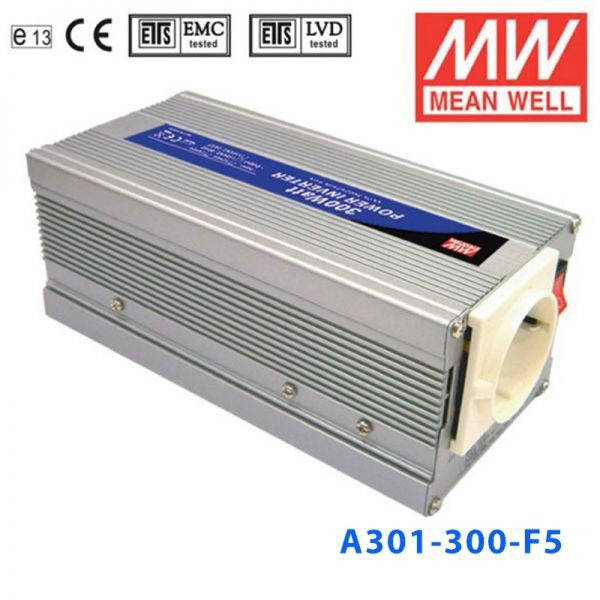

Mean Well A301-300-F5 Modified sine wave 300W 230V - DC-AC Inverter
Log in to see priceOverview
A301-300-F5 is the model of this series: rated power 300W, typical efficiency 82%.
Features
- 12V or 24V DC input
- Power ON-OFF switch
- Input voltage range: -15% ~ +25%
- Output voltage regulation:±10%
- Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/Over temp./Output short/Input polarity reverse/Over load.
- Output waveform: Modified sine wave
- Cooling fan ON-OFF control
- Topology: Microprocessor
- Approvals: E13 / EAC / CE / UKCA
- 1 year warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- A301-300
- AC VOLTAGE
- 230V
- RATED POWER
- 300W
- SURGE POWER
- 600W
- WAVEFORM
- Modified Sine Wave
- FREQUENCY
- 50Hz±1%
- AC REGULATION
- ±10%
- STANDARD RECEPTACLES
- TYPE-5 (Australia)
- LED INDICATOR
- Green LED for power on; Red LED for power failure status
INPUT
- DC CURRENT
- 35A
- NO LOAD CURRENT DRAW
- 0.36A
- DC VOLTAGE
- 12V
- VOLTAGE RANGE
- 10 ~ 15VDC
- EFFICIENCY (Typ.)
- 82%
- DC CONNECTOR
- Cigarette plug*1ea, Battery clip*1ea
- FUSE
- Battery cord 35 A * 1, Cigarette plug 15 A* 1
PROTECTION
- BAT. LOW ALARM
- 10±0.5V
- BAT. LOW SHUTDOWN
- 9.5±0.5V
- OVER VOLTAGE
- 15 ~ 17V
- OVER TEMPERATURE
- 45±5℃/ 113±9oF
- OUTPUT SHORT
- Shut-off
- BAT. POLARITY
- By fuse open
ENVIRONMENT
- WORKING TEMP.
- 0 ~ 30℃@ 100% load, 40℃@ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05% / ℃ (0 ~ 50℃)
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMI RADIATION
- Compliance to BS EN/EN55014-1, EAC TP TC 020
- EMS IMMUNITY
- Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
- LVD
- Compliance to BS EN/EN62368-1
OTHERS
- MTBF
- 200Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 165*88*74mm (L*W*H)
- PACKING
- 1.1kg ; 16pcs / 19kg / CARTON
- COOLING
- >100W or >40℃ (NTC) fan on
- APPLICATIONS
- Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.
Technical drawings
Downloads
FAQ
What type of inverter is the Mean Well A301-300-F5?
The A301-300-F5 is a DC-AC inverter with a 300W power rating and a modified sine wave output. This model is intended for applications that need AC power from a DC source and includes built-in protection functions for operating safety.
Is this a pure sine wave inverter?
No. The A301-300-F5 uses a modified sine wave output, not a pure sine wave output. That makes waveform type an important compatibility check if your equipment requires a pure sine wave supply.
What kinds of protection features are included on this model?
This inverter includes battery low alarm (10±0.5V) and battery low shutdown (9.5±0.5V), over voltage (15–17V), over temperature, output short and battery reverse polarity protection. Output short protection operates by shut-off, and reverse polarity is protected by fuse open.
What operating temperature range is specified for the A301-300-F5?
The listed working temperature is 0 to 30°C at 100% load, and up to 40°C at 50% load. The over temperature protection point is specified as 45±5°C. For best performance, this model should be selected with those ambient limits in mind.
What applications is this 300W inverter typically suited for?
This model is generally suited to lower-power DC-to-AC applications where a 300W inverter and modified sine wave output are acceptable. It is a better fit for straightforward power conversion needs than for loads that are highly waveform-sensitive.
What are the physical size and weight of this inverter?
The listed dimensions are 165 x 88 x 74 mm (L x W x H). The product weight is 1.1 kg, which is useful to know when planning installation space and mounting.
What approvals and warranty are listed for the A301-300-F5?
The spec sheet shows the E13 mark and EAC TP TC 004 approval, with EMC compliance to EN55014-1/-2 and LVD compliance to EN62368-1. The sheet does not state a warranty period, so confirm support terms before purchase.
