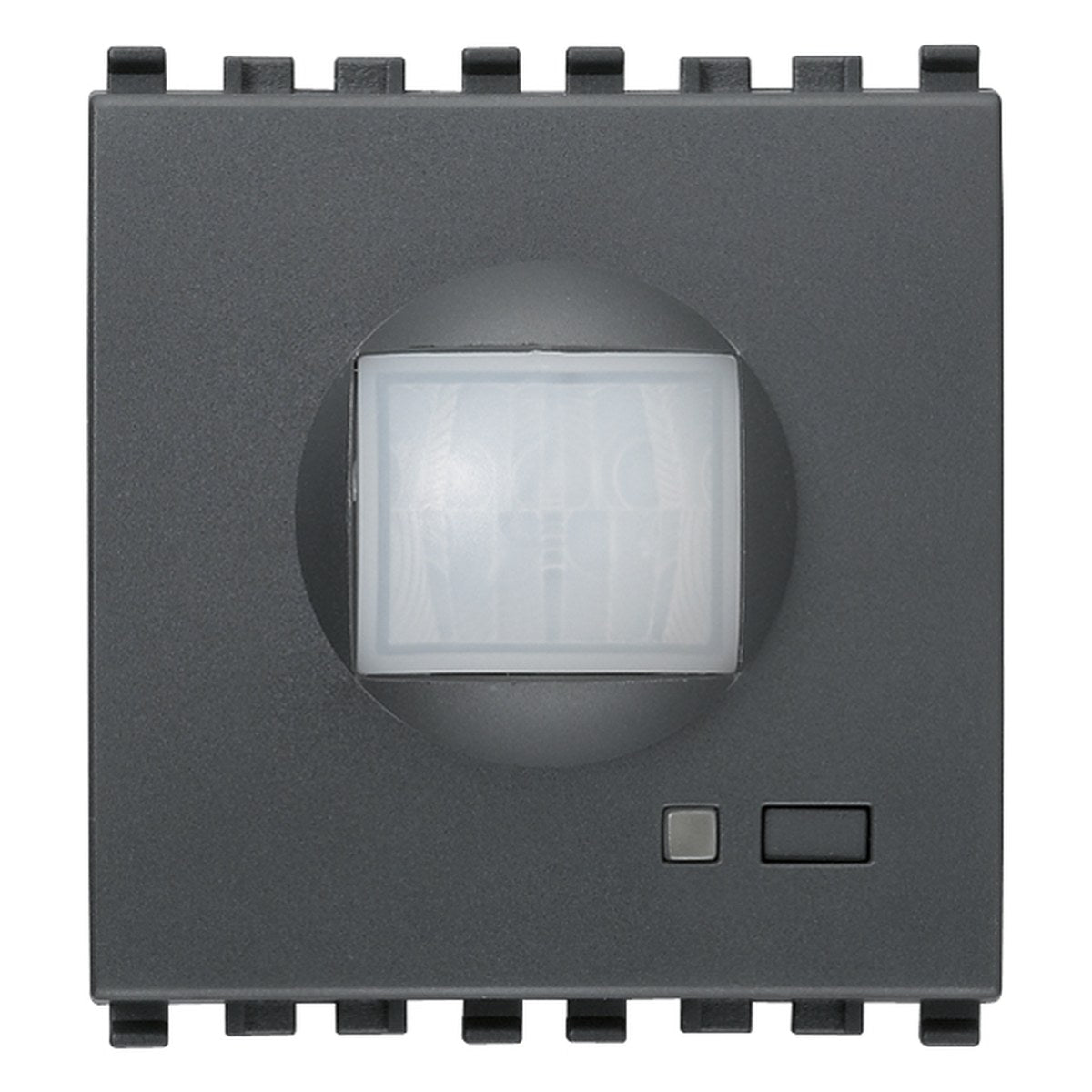

Eikon Passive Infrared Motion Detector Grey

2MMotion DetectorGrey
SKU VM-20485
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

Available to order
|

Overview

VM-20485 is Vimar EIKON 20485, IR presence detector grey.

Passive infrared motion detector, grey - 2 modules

Specifications

VM-20485Specifications from the official datasheet

Technical data

Product type
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1.2 m
Max. reach frontally
10 m
Detection angle vertical
0 - 36
Detection angle horizontal
0 - 112
Number of channels
1
Min. switch-on time
10 s
Max. duty cycle
250 min
Built-in length
26.5 mm
Min. depth of built-in installation box
30 mm

Packaging

EAN
8007352251755
Packed size (cm)
11.2 × 9.6 × 9.8
Packed weight
118.87 g

Certifications

Certifications
CE marking (EU), WEEE Directive, UK PSTI compliance

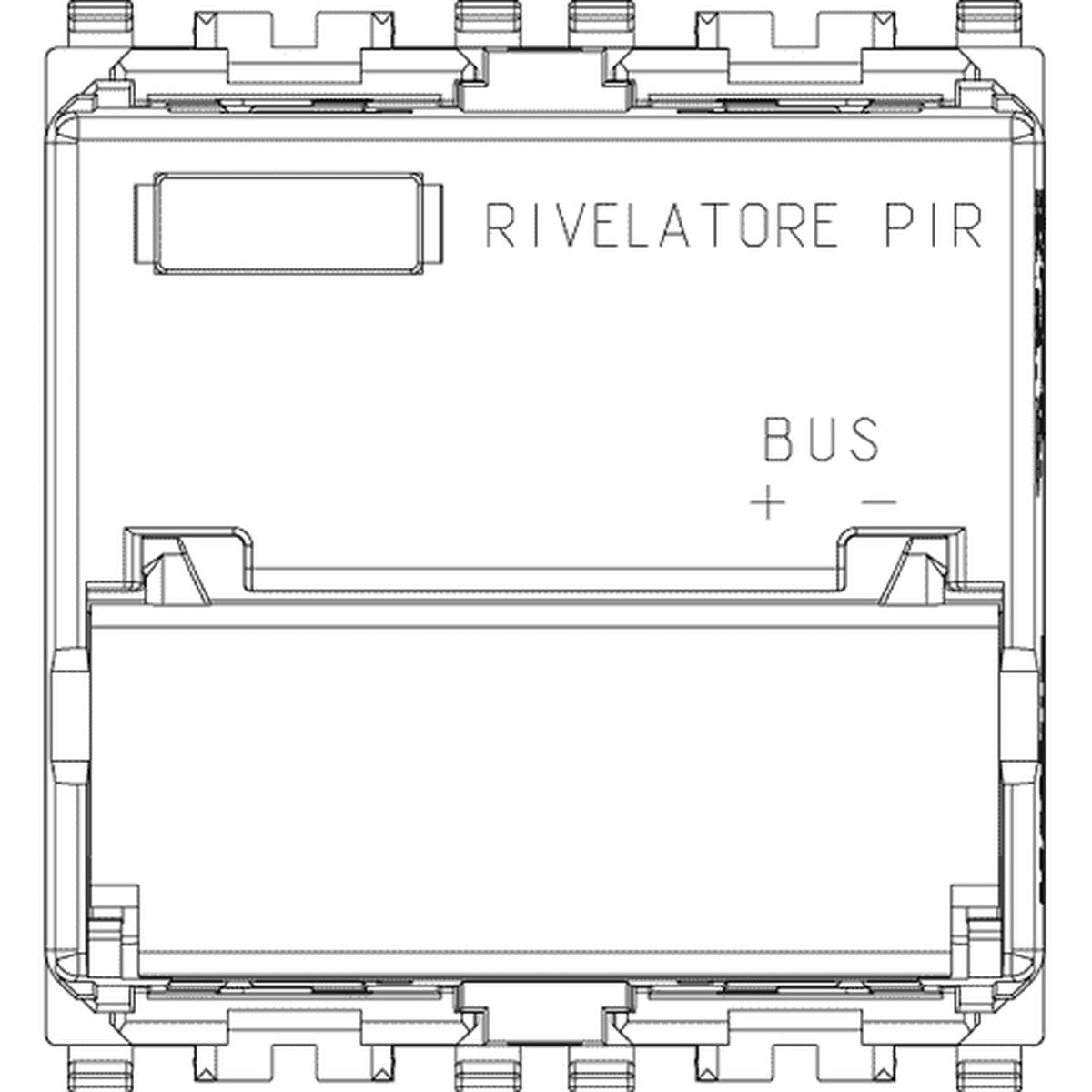

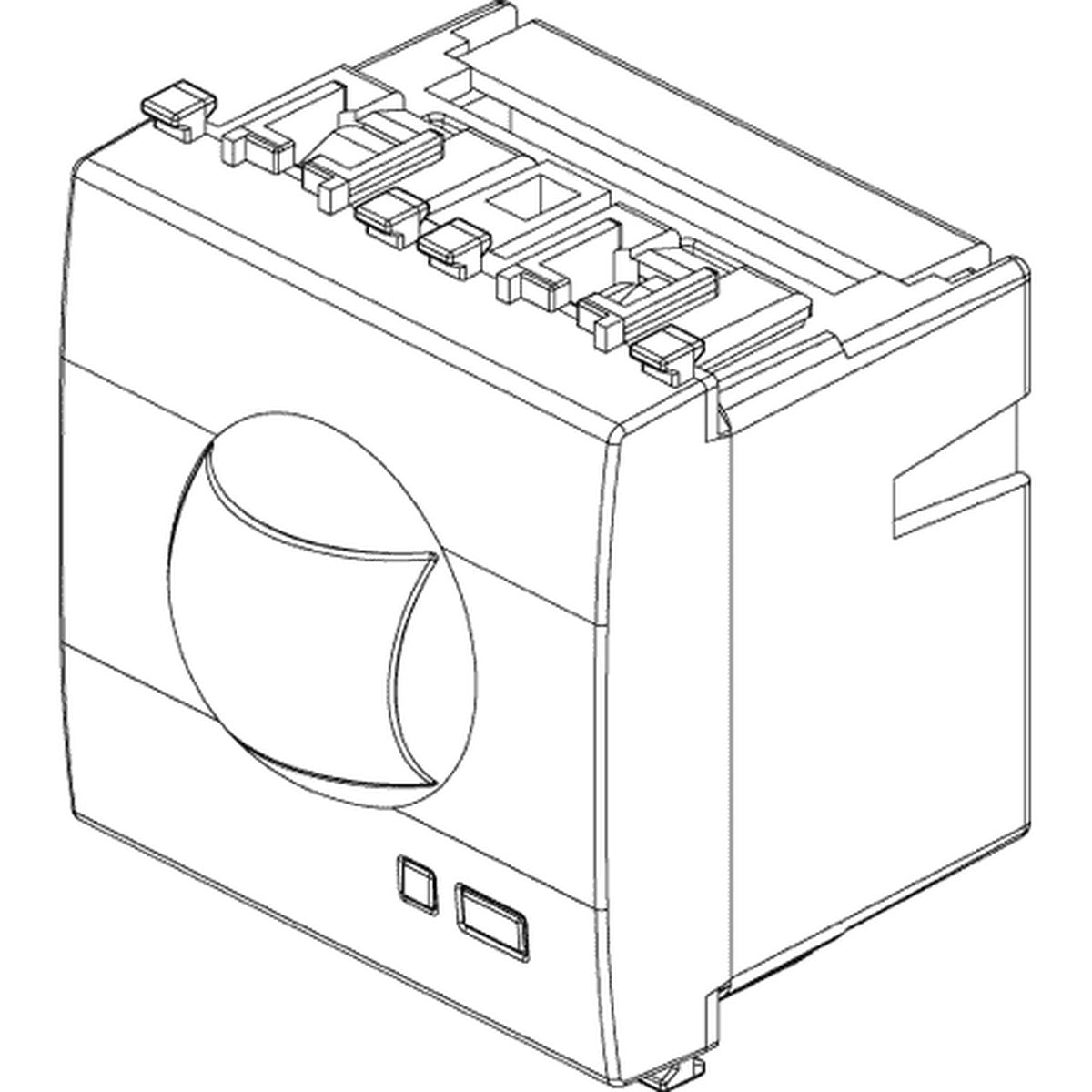

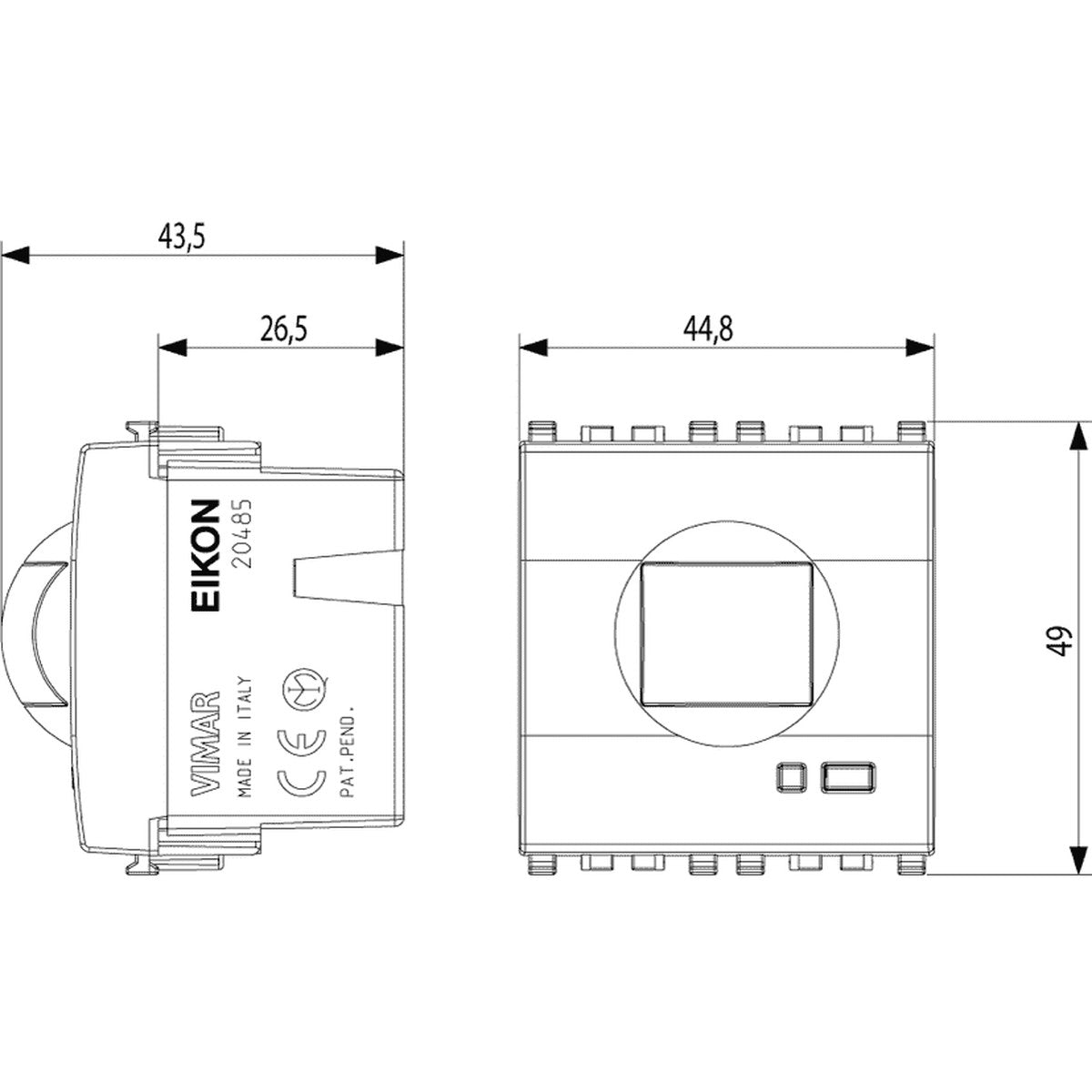

Technical drawings

VM-20485 Drawings
Drawings

Downloads

FAQ

What is the VM-20485 Eikon Passive Infrared Motion Detector used for?

The VM-20485 is a passive infrared motion detector for the Vimar Eikon Exe switch and accessory range. It is suited to product pages where buyers are looking for a motion detection module with a grey finish for compatible Eikon Exe interiors.

Which product range is this motion detector associated with?

This model is listed under Vimar Eikon Exe switch accessory module categories. It is intended for buyers selecting accessories within the Eikon Exe light switch and socket range.

What colour finish does the VM-20485 have?

The VM-20485 has a grey finish. This makes it a suitable choice where the surrounding Eikon Exe styling or cover plate selection calls for a neutral grey appearance.

What temperature range is specified for this motion detector?

The specified operating temperature range is -20.0000 °C to 50.0000 °C. Buyers should check that the intended environment stays within this stated range.

How much does the VM-20485 weigh?

The listed weight for this model is 0.1189 kg. This is useful for procurement, shipping, and product comparison records.

What warranty period is listed for the VM-20485?

The VM-20485 has a listed warranty period of 3.0000 years. This warranty information can help B2B buyers compare it with other switch accessory modules.
