Overview

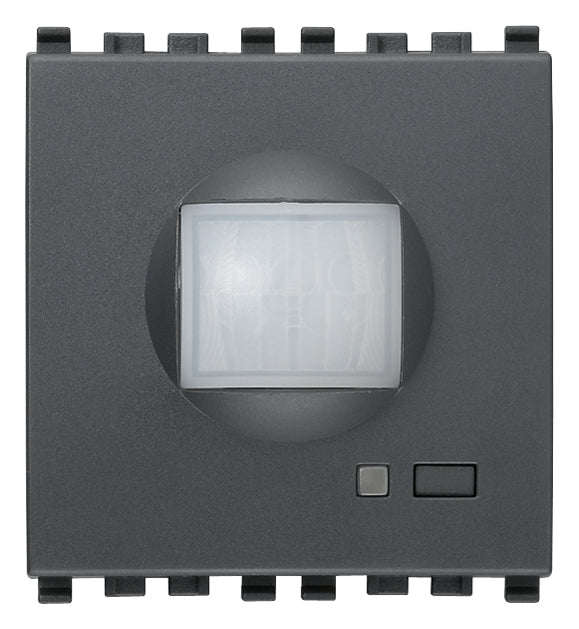

VM-20485 is Vimar EIKON 20485, IR presence detector grey.
Passive infrared motion detector, grey - 2 modules
Specifications
Technical data
- Product type
- Movement sensor for bus system
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Mounting method
- Flush-mounted
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- No
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- DALI-2 certified
- No
- Optimum mounting height
- 1.2 m
- Max. reach frontally
- 10 m
- Detection angle vertical
- 0 - 36
- Detection angle horizontal
- 0 - 112
- Number of channels
- 1
- Min. switch-on time
- 10 s
- Max. duty cycle
- 250 min
- Built-in length
- 26.5 mm
- Min. depth of built-in installation box
- 30 mm
Packaging
- EAN
- 8007352251755
- Packed size (cm)
- 11.2 × 9.6 × 9.8
- Packed weight
- 118.87 g
Certifications
- Certifications
- CE marking (EU), WEEE Directive, UK PSTI compliance

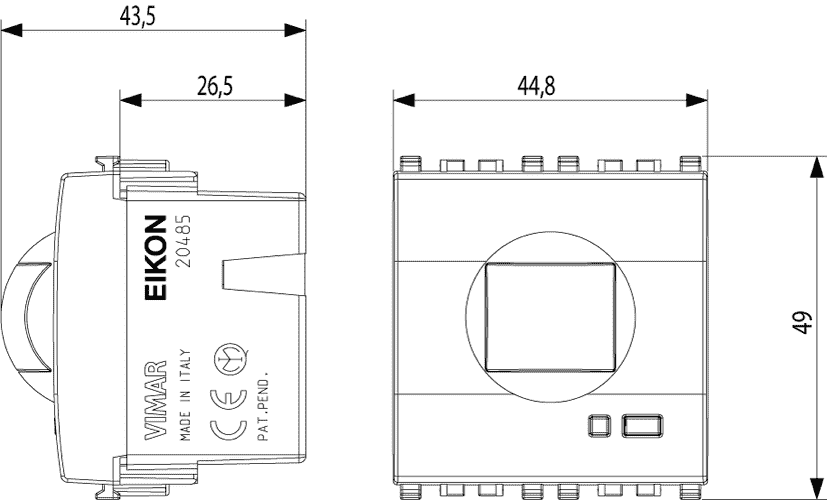

Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues15
FAQ
What is the VM-20485 Eikon Passive Infrared Motion Detector used for?
The VM-20485 is a passive infrared motion detector for the Vimar Eikon Exe switch and accessory range. It is suited to product pages where buyers are looking for a motion detection module with a grey finish for compatible Eikon Exe interiors.
Which product range is this motion detector associated with?
This model is listed under Vimar Eikon Exe switch accessory module categories. It is intended for buyers selecting accessories within the Eikon Exe light switch and socket range.
What colour finish does the VM-20485 have?
The VM-20485 has a grey finish. This makes it a suitable choice where the surrounding Eikon Exe styling or cover plate selection calls for a neutral grey appearance.
What temperature range is specified for this motion detector?
The specified operating temperature range is -20.0000 °C to 50.0000 °C. Buyers should check that the intended environment stays within this stated range.
How much does the VM-20485 weigh?
The listed weight for this model is 0.1189 kg. This is useful for procurement, shipping, and product comparison records.
What warranty period is listed for the VM-20485?
The VM-20485 has a listed warranty period of 3.0000 years. This warranty information can help B2B buyers compare it with other switch accessory modules.
