LED Strip Pro High-Efficiency

70LEDs/m10.8W/m24VCRI>90cuttable length 100mm

SKU 2835-0702400GLE-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

2835-0702400GLE-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

Plus Series using top quality material such as Epistar/San’an chip, Intermatix phosphor powder, ShinEtsu & Dow Corning glue, Heraeus 99.99% pure golden wire, pure copper & fresh plastic stand etc. as standard configuration.
Classical C.V. (Constant Voltage) series is the most classical, popular and cost-effective product in the market.
Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Specifications

LED Strip Pro High-EfficiencySpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Brightness
2835-0702400GLE-CW	Cool White 6000K	1,220 lm
2835-0702400GLE-NW	Natural White 4000K	1,220 lm
2835-0702400GLE-WW	Warm White 3000K	1,159 lm

Specification

Dimension (L*W*H): 5000*10*1mm [197*0.4*0.04in.]
IP Rating: IP20 [dry]

General Specification

Standard Length: 5M [16.4ft] (power fed on one side)
Min. Unit & LED QTY: 100mm [3.94in.] & 7 LEDs
LED Type: SMD2835 white
LED QTY: 70LED/M [21LED/ft.]
PCB Type: 2oz white FPC, OSP
Operating Ambient: Ta: -20~45℃
Warranty: 5 years
Lifespan: 50kh (L70B50@Tc<65℃, Tc is temperature of LED pin)

Photoelectric Specification

Power±10%: 10.8W/M [3.29W/ft.]
Input Voltage & Current: 24VDC
LED Current: 45~55mA/LED
SDCM: ErP & ANSI Norm, 3 Step
CRI: Ra≥90
Beam Angle: 120°
Dimming Method: PWM (dimmable driver like RF, Bluetooth, 0/1-10V, Triac, DALI, DMX, WIFI etc.)

Certifications & ratings

Certification marks: CE, CB, RoHS

Test conditions and notes5

1: Luminous flux for for CCT 3000K is 5% lower, for CCT 6000K is the same, compared with 4000K.
3: Applying with extra heat sink is not necessary with self-cooling capacity.
4: 3M 340LSE yellow adhesive tape attached on backside, is standard configuration of Plus Series.
5: One end of 200mm red/white silicon cable or waterproof connector kit according to specific IP rating, is standard configuration of Plus Series.
6: Transparent reel and silvery ESD bag, are standard configuration of Plus Series.

Technical drawings

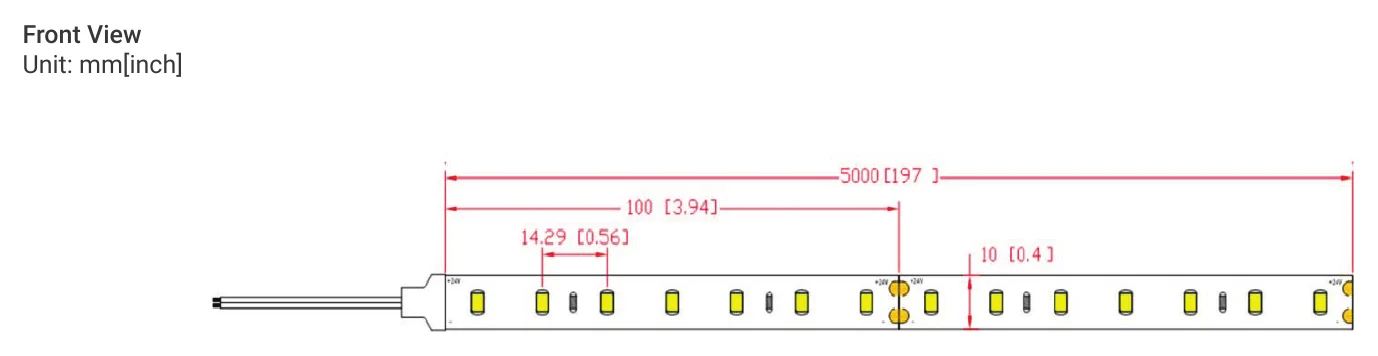

LED Strip Pro High-Efficiency Front View — Front View

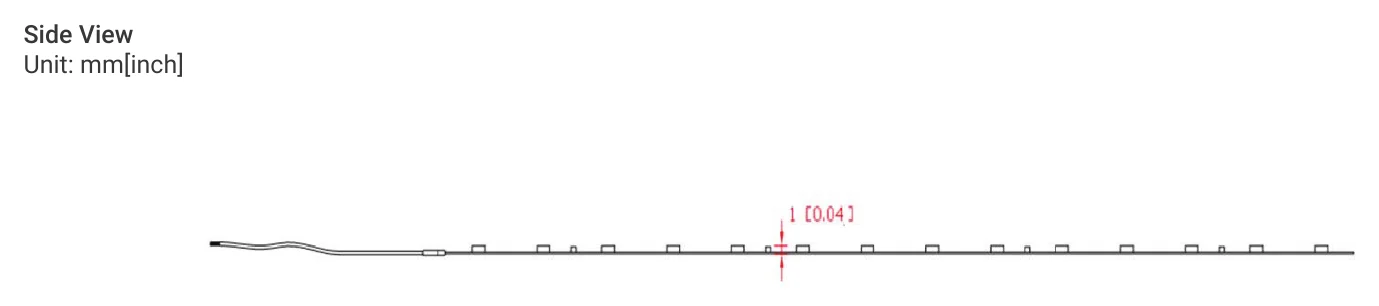

LED Strip Pro High-Efficiency Side View — Side View

Downloads

Datasheet1

LED Strip Pro High-Efficiency datasheet2835_0702400GLE_V605.pdf PDF Download

Catalogues2

LED Strip Selection Guide PDF Download

Related Files- LED Comprison Form PDF Download

FAQ

What are the main specifications of the Archilight LED Strip Pro High-efficiency 70LEDs 10.8W 24V strip?

This LED strip operates at 24VDC and uses 10.8W per metre. It is 10mm wide, 2mm high, has an IP20 rating, and offers CRI 90+ for high color quality. The standard package is a 5 metre (16.4 ft) roll, and the stated unit price is shown per metre.

What color temperature options are available in this product family?

This parent family includes 3000K warm white, 4000K neutral white, and 6000K cool white variants. The 4000K and 6000K versions are listed at 1220 lumens, while the 3000K version is listed at 1159 lumens. This gives buyers a choice between warmer and cooler light while keeping the same 10.8W power rating.

Is a driver included with this LED strip?

No, the driver is not included with this product family. The strip is designed for 24V power input, so a suitable 24V driver must be selected separately. This makes it easier to match the driver to the needs of the project.

Is this LED strip dimmable?

Yes, this product family supports dimming as an optional feature. The product description states that dimming is available via PWM when used with compatible drivers. That means dimming capability depends on the supporting control gear selected for the project.

Where is this LED strip best suited for use?

This strip is intended for interior lighting applications where a high-efficiency linear light source is needed. The description lists uses such as showcases, cabinets, billboards, signage, hotels, and other residential or commercial environments. Its high CRI and flexible format make it suitable for both direct and indirect lighting effects.

Is this LED strip suitable for wet or outdoor locations?

This product is rated IP20, which means it is intended for dry indoor environments rather than exposed wet areas. The supplied information supports use in interior applications and does not indicate waterproof protection. For projects involving moisture, a different protection rating would typically be required.

How durable is this LED strip for long-term commercial use?

The product description states a lifespan of over 50,000 hours and includes a 5-year warranty period. It also highlights construction details such as pure copper, fresh plastic stands, and Heraeus 99.99% pure golden wire. These details position it as a higher-grade option for long-term residential and commercial lighting projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	LED Density	Cuttable	IP Rating
LED Strip Pro High-efficiency Plus	15W	140LEDs/m	50mm	IP20	View
