What applications use a 13.5V supply like the RSP-200-13.5?

The RSP-200-13.5 delivers 13.5V at 14.9A (201.15W) and is suited for 12V lead-acid battery float/absorption charging applications, specialized telecom auxiliary circuits, and industrial control boards specifying a 13.5V nominal rail. At nearly 15A, it can serve higher-current loads than the RSP-100-13.5 or RSP-150-13.5. The 88–264VAC input supports worldwide AC supply.

How does the RSP-200-13.5 compare to the RSP-100-13.5 and RSP-150-13.5?

The RSP-100-13.5 delivers 13.5V at 7.5A (101.25W, 179mm chassis, BSMI/CB/CCC/CE/EAC/TÜV/UL). The RSP-150-13.5 delivers 13.5V at 11.2A (151.2W, 199mm chassis, plus c_rcm). The RSP-200-13.5 delivers 13.5V at 14.9A (201.15W, 215mm chassis, BSMI/CB/CE/EAC/UL). The RSP-200-13.5 provides the highest current but drops CCC and c_rcm certifications compared to the RSP-150-13.5.

Can the RSP-200-13.5 operate across the full -30°C to +70°C industrial range?

Yes. The RSP-200-13.5 is rated for -30°C to +70°C ambient. It has no IP rating and requires an enclosure for protection in dusty or wet environments. The temperature range is identical to other RSP-200 series models.

What certifications does the RSP-200-13.5 hold?

The RSP-200-13.5 carries BSMI, CB, CE, EAC, and UL certifications. Note that CCC (China) and c_rcm (Australia/NZ) are not included in this particular variant, in contrast to the RSP-200-12 which holds both.

Is the RSP-200-13.5 suited for 1U rack mounting?

Yes. At 215.0 × 115.0 × 30.0 mm (30 mm = 1U height) and 0.72 kg, the RSP-200-13.5 is a 1U low-profile unit compatible with 19-inch rack installation.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

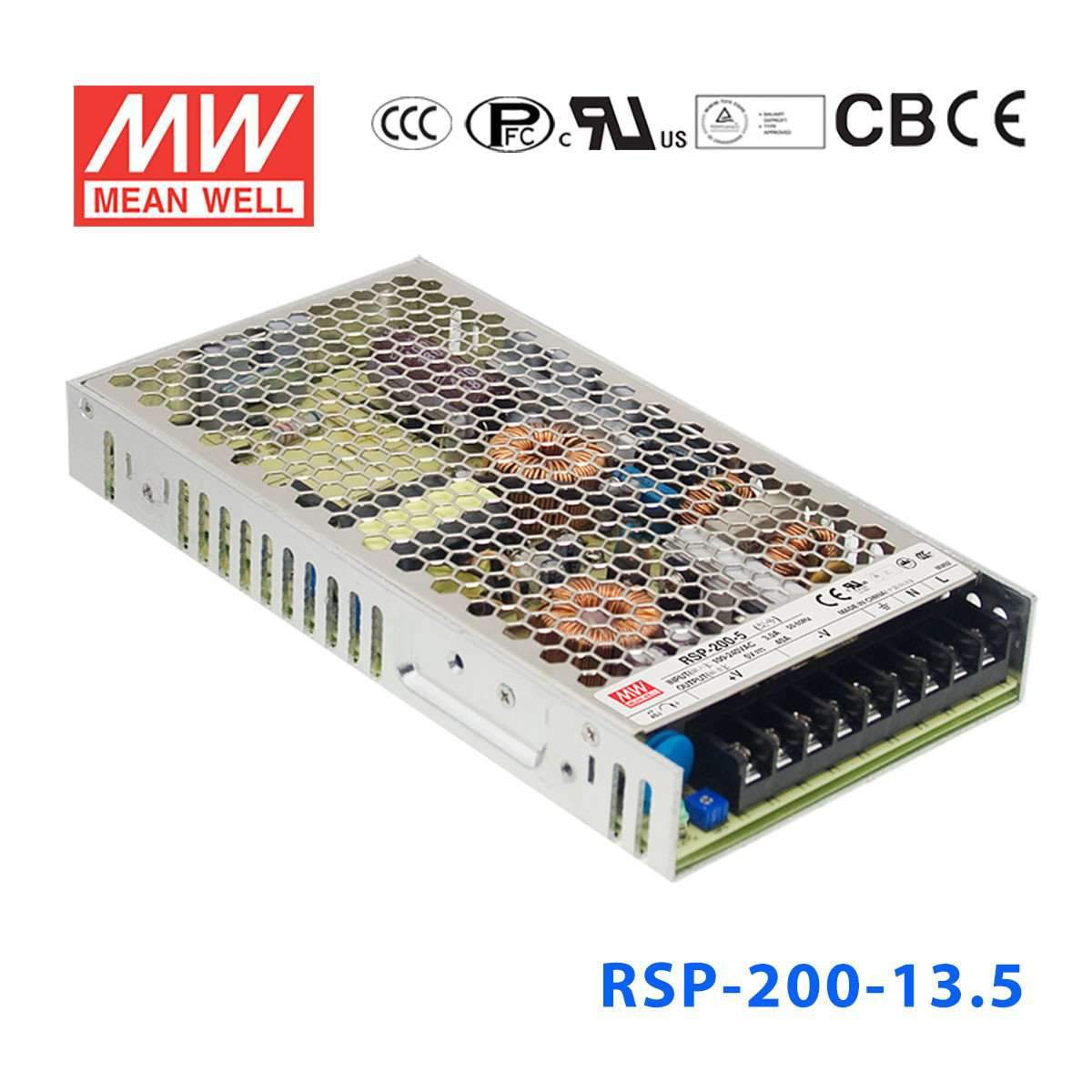

Mean Well RSP-200-13.5 Power Supply 200W 13.5V 14.9A

1U low profile with active PFChigh efficiency

SKU:

RSP-200-13.5

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

RSP-200-13.5

RSP-75-13.5 75W 13.5V Backorder

RSP-100-13.5 100W 13.5V Backorder

RSP-150-13.5 150W 13.5V Low stock

RSP-200-13.5 200W 13.5V Backorder

RSP-320-13.5 320W 13.5V Backorder

Product variants

Notify me when it's back in stock

The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).

Key Features

✓ 215mm width — DIN rail TS-35 compatible
✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty
