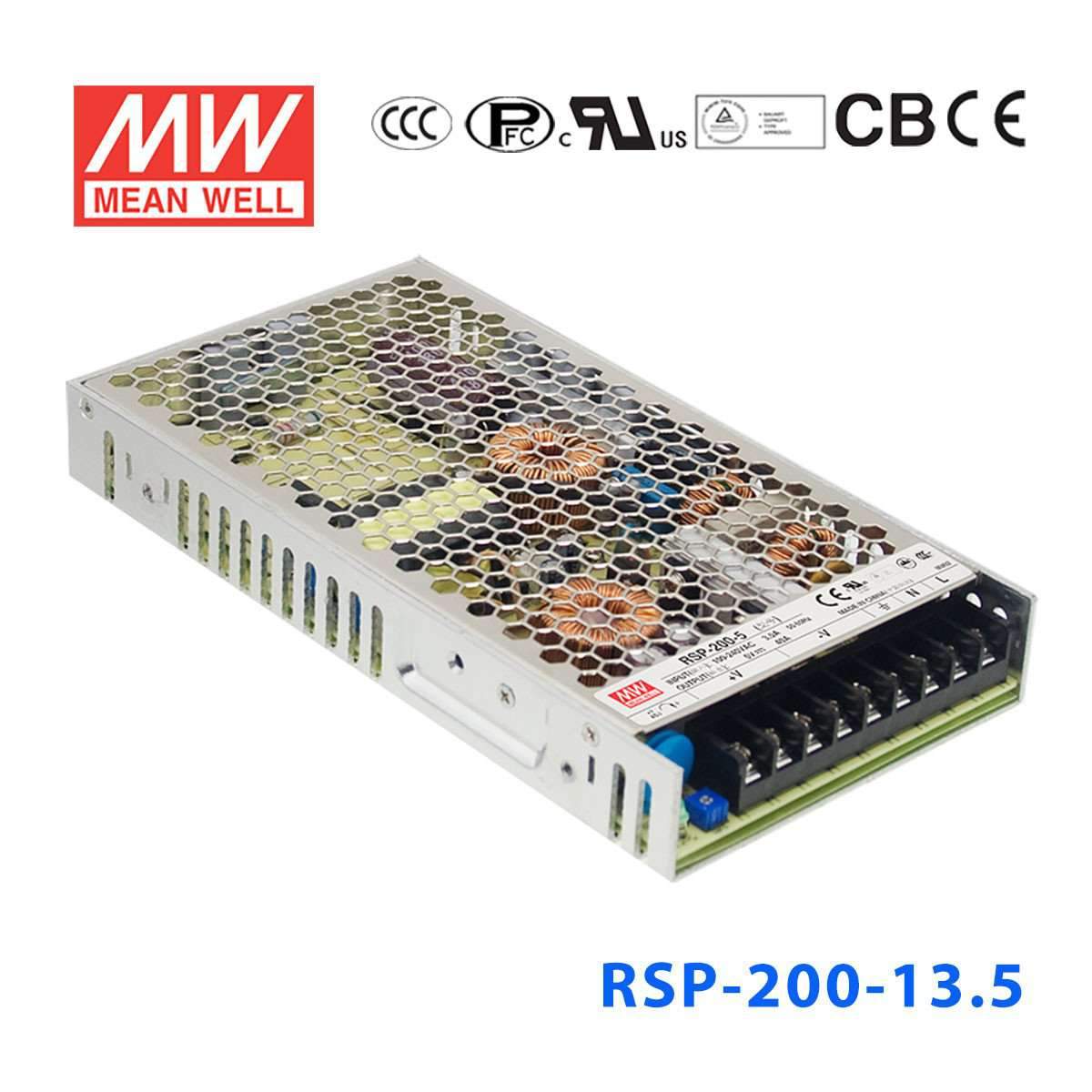

Mean Well RSP-200-13.5 Power Supply 200W 13.5V
Please Login for Pricing
Description
Description
The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).
Key Features
- ✓ 215mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating201.15 Watt
-
Output Voltage13.5 Volt
-
Rated Current14.9 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.72 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications use a 13.5V supply like the RSP-200-13.5?
The RSP-200-13.5 delivers 13.5V at 14.9A (201.15W) and is suited for 12V lead-acid battery float/absorption charging applications, specialized telecom auxiliary circuits, and industrial control boards specifying a 13.5V nominal rail. At nearly 15A, it can serve higher-current loads than the RSP-100-13.5 or RSP-150-13.5. The 88–264VAC input supports worldwide AC supply.
How does the RSP-200-13.5 compare to the RSP-100-13.5 and RSP-150-13.5?
The RSP-100-13.5 delivers 13.5V at 7.5A (101.25W, 179mm chassis, BSMI/CB/CCC/CE/EAC/TÜV/UL). The RSP-150-13.5 delivers 13.5V at 11.2A (151.2W, 199mm chassis, plus c_rcm). The RSP-200-13.5 delivers 13.5V at 14.9A (201.15W, 215mm chassis, BSMI/CB/CE/EAC/UL). The RSP-200-13.5 provides the highest current but drops CCC and c_rcm certifications compared to the RSP-150-13.5.
Can the RSP-200-13.5 operate across the full -30°C to +70°C industrial range?
Yes. The RSP-200-13.5 is rated for -30°C to +70°C ambient. It has no IP rating and requires an enclosure for protection in dusty or wet environments. The temperature range is identical to other RSP-200 series models.
What certifications does the RSP-200-13.5 hold?
The RSP-200-13.5 carries BSMI, CB, CE, EAC, and UL certifications. Note that CCC (China) and c_rcm (Australia/NZ) are not included in this particular variant, in contrast to the RSP-200-12 which holds both.
Is the RSP-200-13.5 suited for 1U rack mounting?
Yes. At 215.0 × 115.0 × 30.0 mm (30 mm = 1U height) and 0.72 kg, the RSP-200-13.5 is a 1U low-profile unit compatible with 19-inch rack installation.
Other RSP-200 Models
2 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RSP-200-15 Power Supply 200W 15V | 201W | 15V | 13.4A | View |
| Mean Well RSP-200-36 Power Supply 200W 36V | 200.16W | 36V | 5.56A | View |
