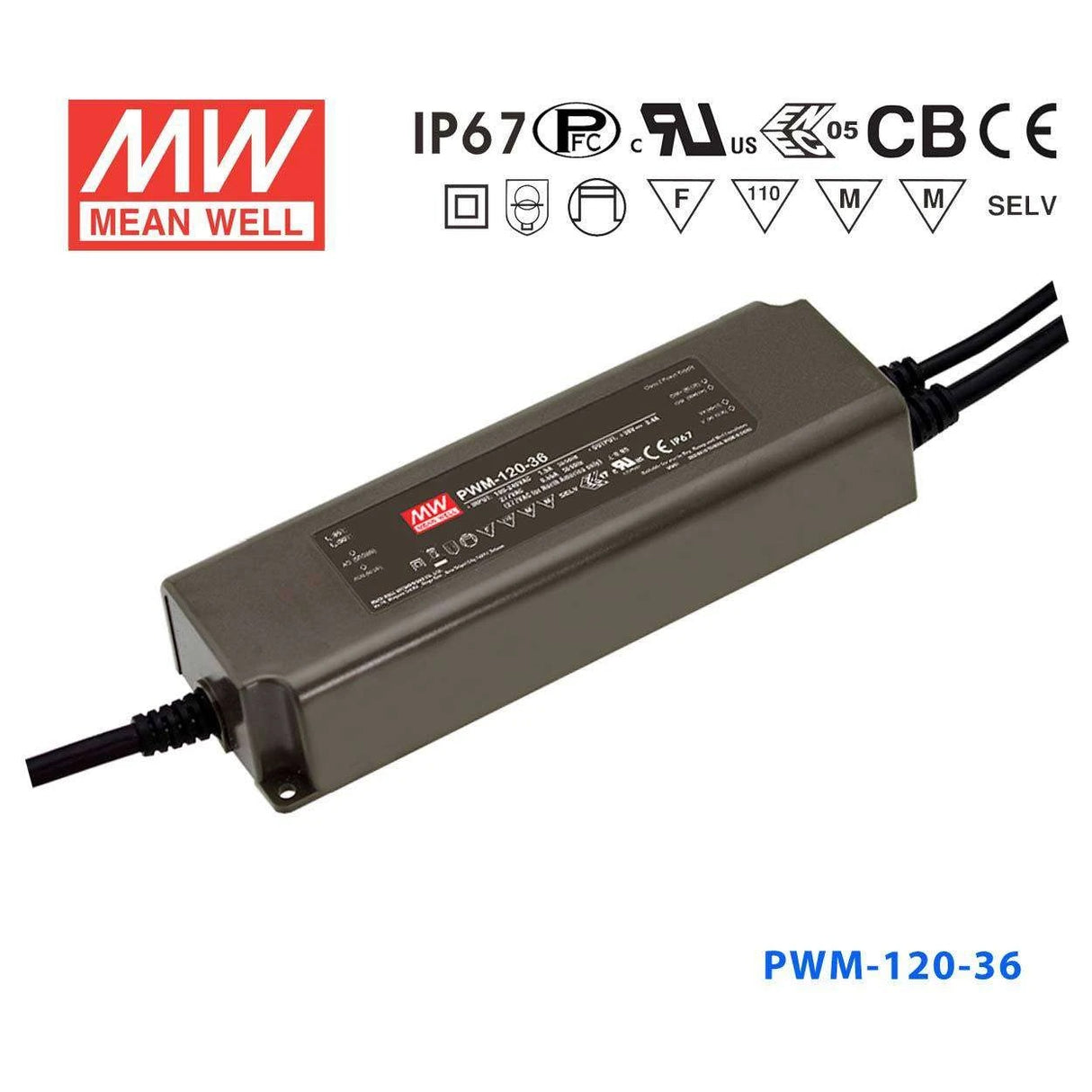

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PWM-120-36 Power Supply 120W 36V - Dimmable 3.4A

PWM style outputfully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU:

PWM-120-36

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PWM-120 is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).

Key Features

✓ 191mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.5 UL8750( type ”HL” )(except for 12DA type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13,EN62384 independent, IP67,BIS IS15885( for PWM-120-12,24 only), EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Frequently Asked Questions

Can I use the PWM-120-36 to drive 36V LED strips outdoors?

Yes. The PWM-120-36 carries an IP67 waterproof rating, meaning it is protected against temporary submersion and can be mounted in exposed outdoor locations. Its operating temperature range of -40°C to +90°C also covers most outdoor climates.

How many meters of 36V LED strip can the PWM-120-36 power?

The PWM-120-36 supplies up to 120W at 36V. Divide 120W by your strip's rated wattage per meter to get the maximum run length — for example, a 14.4 W/m strip allows up to about 8.3 m. Always check your strip's rated power per meter before sizing.

Is the PWM-120-36 suitable for dimmable 36V LED signage applications?

Yes. The PWM-120-36 features built-in 3-in-1 dimming, accepting PWM, 0–10V, and resistance control signals. At 120W and 36V it is well-matched to medium-format illuminated signage that uses 36V LED modules or strips.

Can I use the PWM-120-36 for architectural lighting channels that require smooth dimming?

Yes. The PWM-style output of this driver produces smooth, flicker-reduced dimming suitable for architectural lighting channels and cove lighting using 36V LED strips. The 3-in-1 interface lets you connect it to standard dimming controllers.

Is the PWM-120-36 a good fit for landscape lighting fixtures rated at 36V?

Yes. The IP67 rating protects the unit against rain and moisture, and the -40°C cold-start capability makes it reliable in outdoor landscape installations. At 3.4A output current it can support multiple 36V landscape fixtures up to a combined 120W.

What dimming interfaces does the PWM-120-36 support?

The PWM-120-36 supports three dimming methods via its built-in 3-in-1 dimming circuit: PWM signal, 0–10V analog control, and resistance (potentiometer) control. You do not need an external dimming module to use these interfaces.

How does the PWM-120-36 compare to other wattage options in the PWM series at 36V?

The PWM series offers three 36V options at different power levels: PWM-40-36 (40W, 1.12A), PWM-60-36 (60W, 1.67A), PWM-90-36 (90W, 2.5A), and PWM-120-36 (120W, 3.4A). A 200W 36V option also exists (PWM-200-36, 5.55A) for larger installations. Choose based on your total load wattage.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PWM-120-24DA2 Power Supply 120W 24V DALI2 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-24DA Power Supply 120W 24V - DALI 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-12DA2 Power Supply 120W 12V DALI2 10A	12W	12V	10A	IP67	View
Mean Well PWM-120-48DA Power Supply 120W 48V - DALI 2.5A	120W	48V	2.5A	IP67	View
Mean Well PWM-120-48 Power Supply 120W 48V - Dimmable 2.5A	120W	48V	2.5A	IP67	View
Mean Well PWM-120-36DA Power Supply 120W 36V - DALI 3.4A	120W	36V	3.4A	IP67	View
Mean Well PWM-120-24KN AC-DC Single output LED driver Constant Voltage (CV) 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-24BLE AC-DC Single output LED driver Constant Voltage (CV)	120W	24V	5A	—	View
Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-12KN AC-DC Single output LED driver Constant Voltage (CV) 10A	120W	12V	10A	IP67	View
