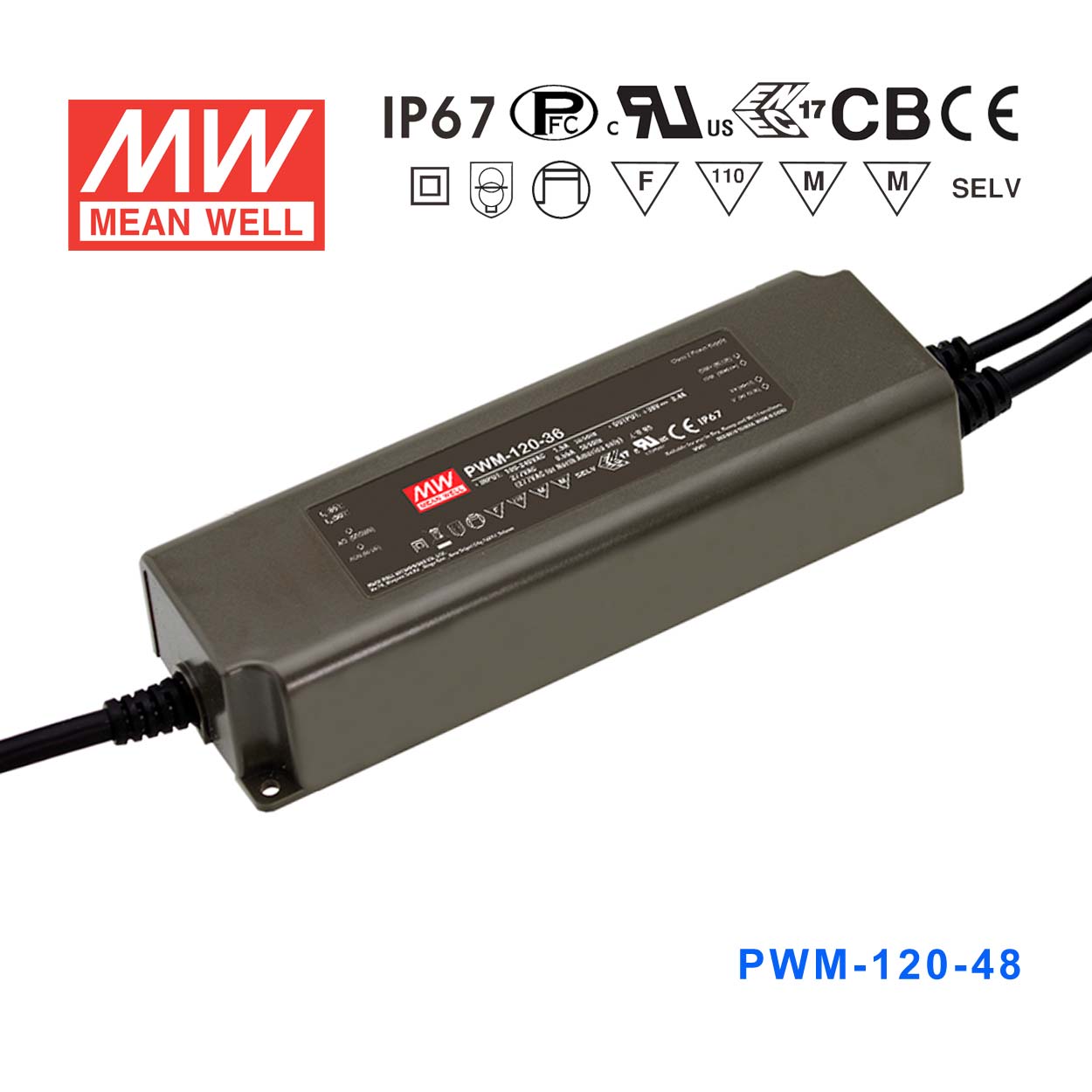

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PWM-120-48DA Power Supply 120W 48V - DALI 2.5A

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI

SKU:

PWM-120-48DA

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The PWM-120 is a 120W Mean Well DIN rail power converter with a 191mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).

Key Features

✓ 191mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.5 UL8750( type ”HL” )(except for 12DA type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13,EN62384 independent, IP67,BIS IS15885( for PWM-120-12,24 only), EAC TP TC 004,GB19510.1,GB19510.14
✓ 3 years warranty

Frequently Asked Questions

Can the PWM-120-48DA be controlled by a DALI building automation system?

Yes. The PWM-120-48DA has a DALI interface that allows it to be individually addressed and dimmed by any IEC 62386-compliant DALI controller or building management system. This makes it a standard choice for commercial 48V LED installations requiring centralised control.

Is the PWM-120-48DA waterproof enough for outdoor use?

Yes. The IP67 rating certifies protection against dust and temporary submersion up to 1 metre, making it suitable for outdoor signage cabinets, building facade lighting, and covered wet-area installations. Operating temperature range is -40°C to +90°C.

How many meters of 48V LED strip can the PWM-120-48DA power?

The driver supplies up to 120W at 48V and 2.5A. To find the maximum strip length, divide 120W by the strip's rated watt-per-meter figure — a 15 W/m strip, for example, allows up to 8 m. Confirm your strip's rated power per meter before planning the run.

Is the PWM-120-48DA suitable for DALI-controlled museum or gallery display lighting at 48V?

Yes. Museum and gallery lighting often requires precise, programmable dimming scenes, which DALI supports natively. The PWM-120-48DA's DALI interface integrates into such systems, and the PWM-style output produces smooth, artifact-free dimming on 48V LED strips.

Can I use the PWM-120-48DA in a DALI Zone controlling multiple fixtures?

Yes. DALI allows up to 64 individually addressed devices per bus, and the PWM-120-48DA is DALI-addressable. Multiple drivers can operate in the same DALI zone while responding to individual addressing or group commands from the controller.

What is the key difference between the PWM-120-48DA and PWM-120-48?

Both are 120W, 48V, 2.5A drivers with IP67 rating and identical physical dimensions. The PWM-120-48 uses built-in 3-in-1 dimming (PWM signal, 0–10V, resistance); the PWM-120-48DA replaces that with a DALI interface for addressable DALI network integration.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PWM-120-24DA2 Power Supply 120W 24V DALI2 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-24DA Power Supply 120W 24V - DALI 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-12DA2 Power Supply 120W 12V DALI2 10A	12W	12V	10A	IP67	View
Mean Well PWM-120-48 Power Supply 120W 48V - Dimmable 2.5A	120W	48V	2.5A	IP67	View
Mean Well PWM-120-36DA Power Supply 120W 36V - DALI 3.4A	120W	36V	3.4A	IP67	View
Mean Well PWM-120-36 Power Supply 120W 36V - Dimmable 3.4A	120W	36V	3.4A	IP67	View
Mean Well PWM-120-24KN AC-DC Single output LED driver Constant Voltage (CV) 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-24BLE AC-DC Single output LED driver Constant Voltage (CV)	120W	24V	5A	—	View
Mean Well PWM-120-24 Power Supply 120W 24V - Dimmable 5A	120W	24V	5A	IP67	View
Mean Well PWM-120-12KN AC-DC Single output LED driver Constant Voltage (CV) 10A	120W	12V	10A	IP67	View
