Archilight Lattice 10 Ac Dimmable Downlight 20W
Log in to see priceSpecifications

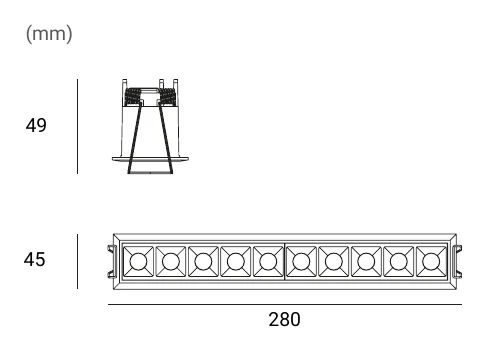

Archilight Lattice 10 Ac Dimmable Downlight 20WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour | Brightness | Finish Colour |
|---|---|---|---|
| KC-010180A10-45D-2700K-B-TDM | Warm White 2700K | 1,700 lm | Black |
| KC-010180A10-45D-2700K-W-TDM | Warm White 2700K | 1,700 lm | White |
| KC-010180A10-45D-3000K-B-TDM | Warm White 3000K | 1,700 lm | Black |
| KC-010180A10-45D-3000K-W-TDM | Warm White 3000K | 1,700 lm | White |
| KC-010180A10-45D-3000K-WW-TDM | Warm White 3000K | 3,000 lm | White and White |
| KC-010180A10-45D-4000K-B-TDM | Natural White 4000K | 1,700 lm | Black |
| KC-010180A10-45D-4000K-W-TDM | Natural White 4000K | 1,700 lm | White |
| KC-010180A10-45D-5000K-B-TDM | Cool White 5000K | 1,700 lm | Black |
| KC-010180A10-45D-5000K-W-TDM | Cool White 5000K | 1,700 lm | White |
Specifications
- Input
- 230VAC
- Power rating
- 20W
- Beam angle
- 15° / 30° / 45°
- Efficacy
- ≥61 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What type of lighting application is the Archilight Lattice 10 AC Dimmable Downlight 20W designed for?
This product family is designed for modern interior recessed lighting where a compact, low-visibility linear downlight is preferred. Its low-glare design and CRI above 90 make it well suited to commercial and architectural spaces that need strong visual comfort and accurate colour presentation.
What variant options are available in this Lattice 10 family?
Across the family, buyers can choose from 15 degree, 30 degree, and 45 degree beam angles. Listed colour temperature options include 2700K, 3000K, 4000K, and 5000K, and the range is available in black and white finishes.
How do I choose between the different beam angles in this range?
The 15 degree option is the narrowest beam and is better suited to tighter accent lighting. The 30 degree and 45 degree options spread light more broadly, making them more suitable where wider illumination coverage is needed across the space.
Is the Archilight Lattice 10 downlight dimmable, and does it include a driver?
Yes. The parent model is dimmable, and the listed variants in this family include the driver.
What are the main performance specifications of this downlight family?
This is a 20W recessed downlight family with CRI 90, a rated lifetime of 50,000 hours, and a 5 year warranty. The parent model is specified for 230V power input and is designed to combine power efficiency with low glare visual comfort.
What are the physical size and cut-out details for this product family?
The parent product dimensions are 280 mm long, 45 mm wide, and 49 mm high, with a listed weight of 0.7 kg. The child variants show a cut-out range of 37 mm to 273 mm across the family.
Is this downlight suitable for spaces where glare control and colour quality matter?
Yes. The product description states the Lattice series is designed with a low UGR below 19 for reduced glare and a CRI above 90 for strong colour rendering. That makes it a good fit for interiors where occupant comfort and accurate appearance of materials are important.
