Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

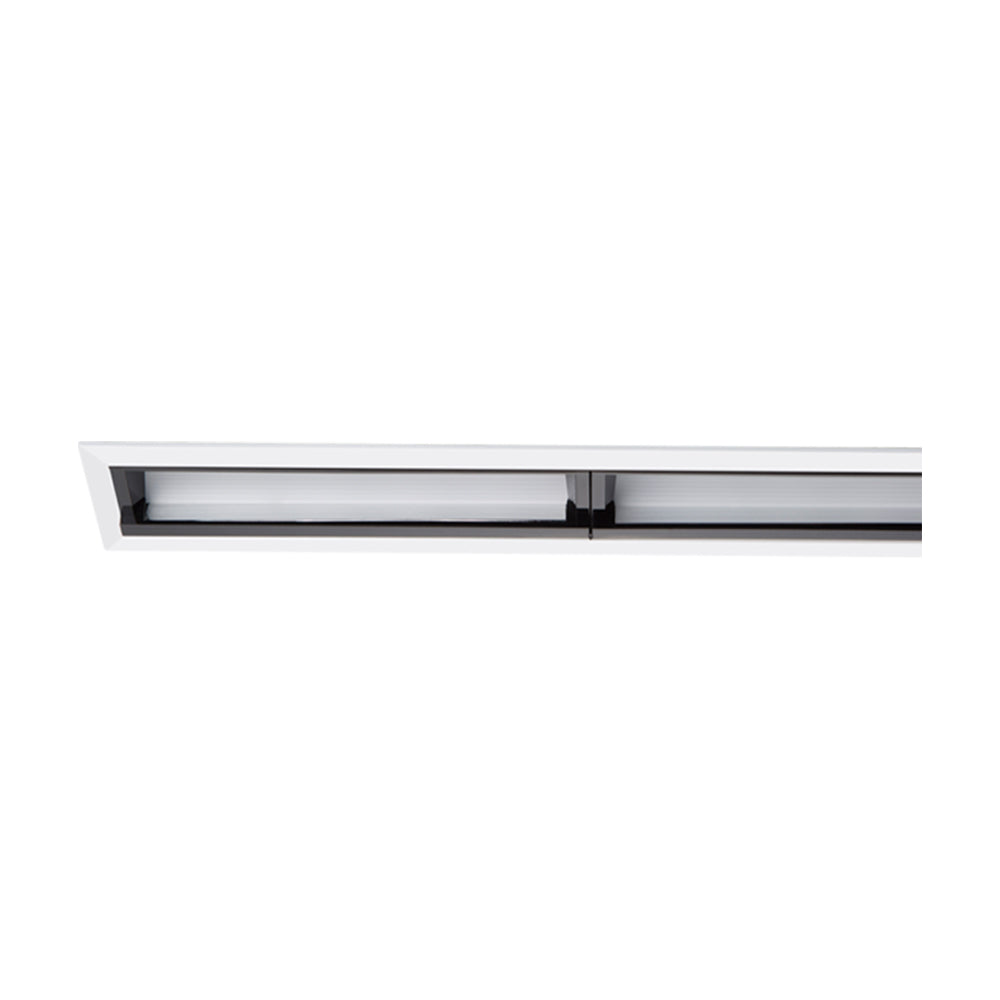

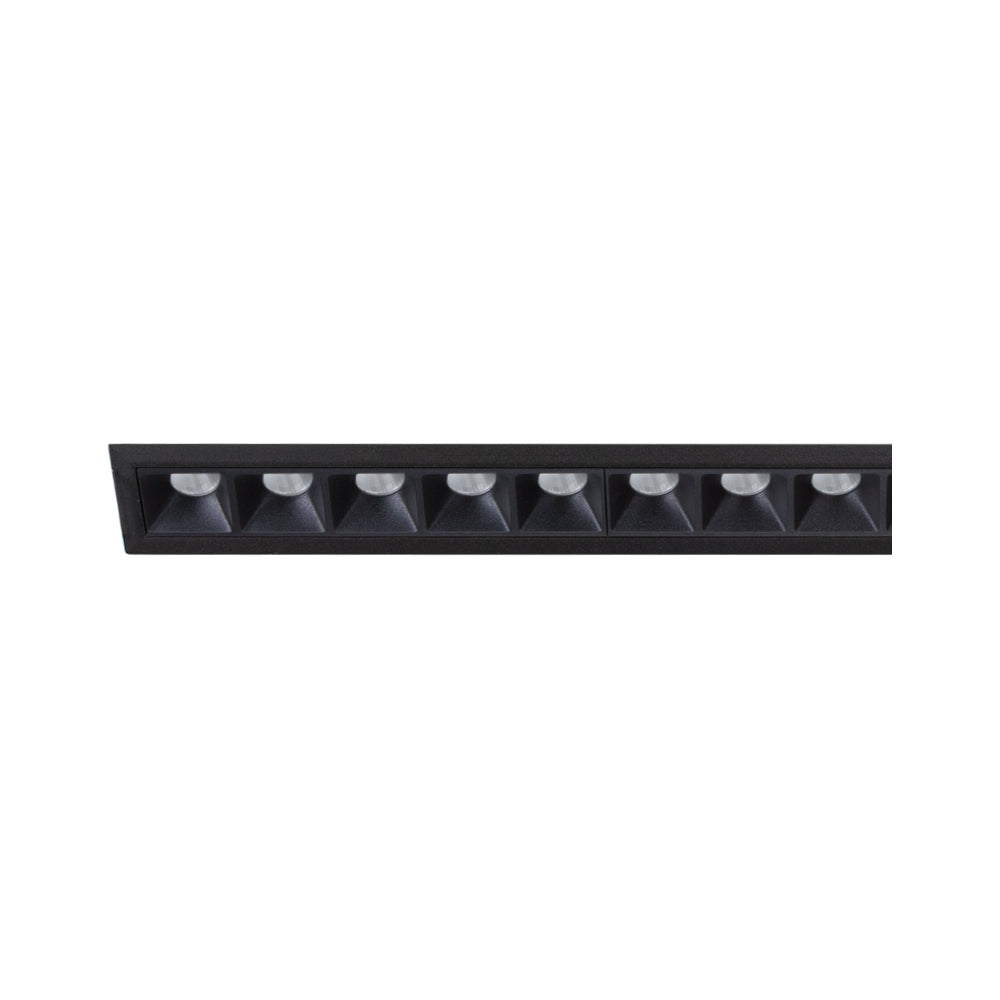

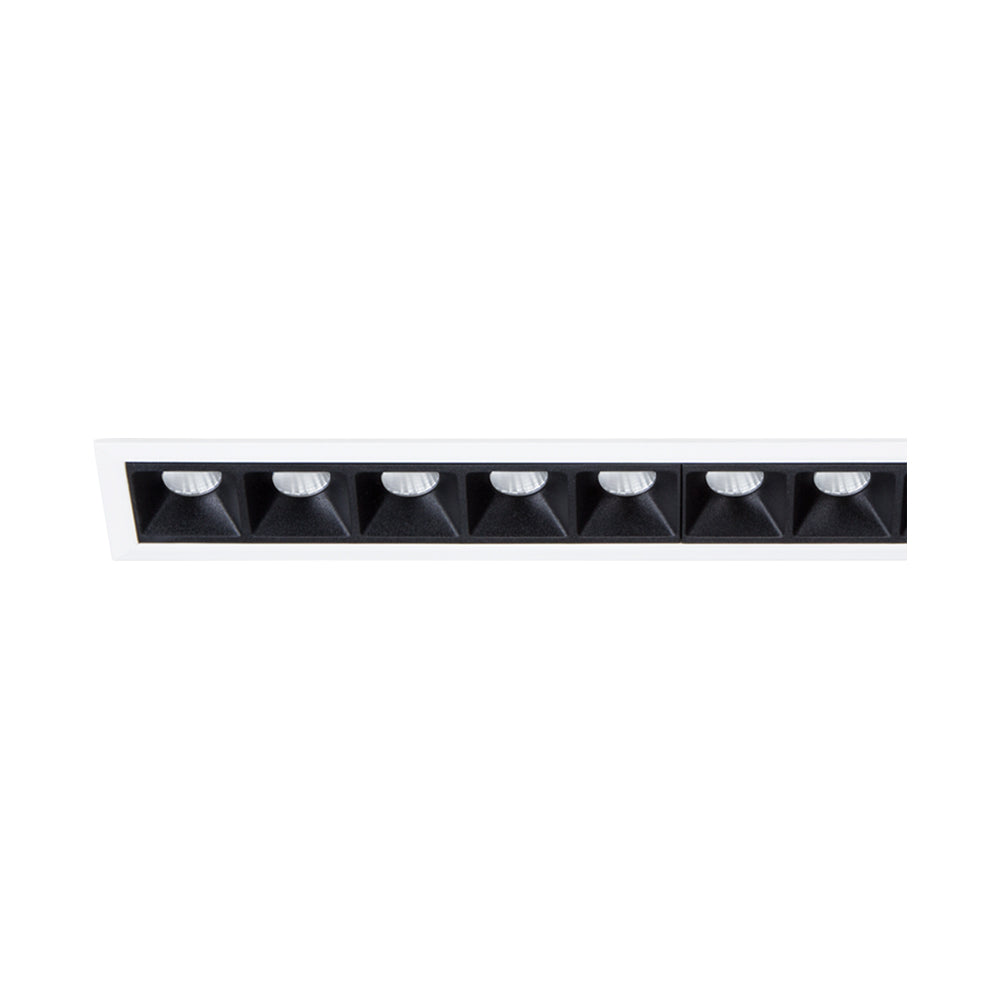

Archilight Lattice 10 Ac Dimmable Downlight 20W
13% off
49% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
SKU:
KC-010180A10-15D-2700K-B-TDM
|
Notify me when it's back in stock
Archilight Lattice 10 Ac Dimmable Downlight 20W
Please Login for Pricing
Description
Description
The Lattice series is a stylish, compact, and near-invisible linear downlight series. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a unique look, the Lattice series is for the modern interior that wants to add that subtle wow factor, without being too extravagant.
Specifications
Specifications
-
BrandArchilight
-
SeriesArchilight Lattice 10 AC Dimmable Series
-
Power Rating20 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length28 cm
-
Width4.5 cm
-
Height4.9 cm
-
Weight0.7 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of lighting application is the Archilight Lattice 10 AC Dimmable Downlight 20W designed for?
This product family is designed for modern interior recessed lighting where a compact, low-visibility linear downlight is preferred. Its low-glare design and CRI above 90 make it well suited to commercial and architectural spaces that need strong visual comfort and accurate colour presentation.
What variant options are available in this Lattice 10 family?
Across the family, buyers can choose from 15 degree, 30 degree, and 45 degree beam angles. Listed colour temperature options include 2700K, 3000K, 4000K, and 5000K, and the range is available in black and white finishes.
How do I choose between the different beam angles in this range?
The 15 degree option is the narrowest beam and is better suited to tighter accent lighting. The 30 degree and 45 degree options spread light more broadly, making them more suitable where wider illumination coverage is needed across the space.
Is the Archilight Lattice 10 downlight dimmable, and does it include a driver?
Yes. The parent model is dimmable, and the listed variants in this family include the driver.
What are the main performance specifications of this downlight family?
This is a 20W recessed downlight family with CRI 90, a rated lifetime of 50,000 hours, and a 5 year warranty. The parent model is specified for 230V power input and is designed to combine power efficiency with low glare visual comfort.
What are the physical size and cut-out details for this product family?
The parent product dimensions are 280 mm long, 45 mm wide, and 49 mm high, with a listed weight of 0.7 kg. The child variants show a cut-out range of 37 mm to 273 mm across the family.
Is this downlight suitable for spaces where glare control and colour quality matter?
Yes. The product description states the Lattice series is designed with a low UGR below 19 for reduced glare and a CRI above 90 for strong colour rendering. That makes it a good fit for interiors where occupant comfort and accurate appearance of materials are important.
{
