Archilight Pictor Double Recessed Downlight

SKU TI-LBE-9545A-3K-30D-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 2 variants

TI-LBE-9545A-3K-30D-B

Finish Colour

2 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

Light has always fascinated people. For us it has become inspiration and passion. Being a synonym and symbol of life Light always directs our thought. Desires and work in such a way as to be able to live, breath-exist in our luminaries, appropriate lighting illuminates shapes and colors getting them out of darkness and investing reality with new significance. The bright side of the world is, therefore, within your arm's reach.

The products of Archilight lighting are normally made with aluminum, especially in die casting and extruding, and in order to achieve optimum corrosion resistance property, the aluminum components contain very less copper and they have been chromatized before coated with UV-stablized polyester powder and baked at 210 degree, that is why our fitting can stand and last longer in the extreme environment.

Frequently Asked Questions

What are the main specifications of the Archilight Pictor Double Recessed Downlight family?

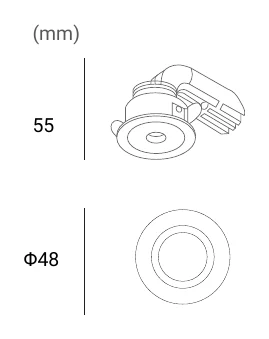

This recessed downlight family uses 8.4 W LED modules with CRI 90 color rendering and a 30 degree beam angle. The fixture body is compact at 48 x 48 x 55 mm and weighs about 0.5 kg. It is rated for a 230 V power input, includes a driver, and is backed by a 5 year warranty.

What color temperature options are available in this product family?

The Pictor Double Recessed Downlight family is available in 2700K, 3000K, 4000K, and 5000K variants. That gives buyers a range from warmer light tones to cooler, crisper light output. The available color temperatures apply across the same parent model and beam configuration.

Does the light output vary between the available variants?

Yes. The 2700K and 3000K variants are listed at 651 lumens, while the 4000K and 5000K variants are listed at 703 lumens. All variants keep the same 8.4 W power rating, so the main output difference within the family is tied to color temperature.

Is the Archilight Pictor Double Recessed Downlight dimmable?

Yes, this family is specified as dimmable optional. It also includes a driver as part of the product configuration. For buyers comparing models in the range, dimming is a family-level capability rather than a feature limited to one finish or one color temperature.

What finishes are offered for this recessed downlight?

This product family is offered in black and white finishes. The finish choice does not change the core specifications such as beam angle, CRI, driver inclusion, or rated lifetime. Buyers can choose the finish that best suits the project aesthetic while staying within the same product series.

What ceiling cut-out does this downlight family require?

The listed cut-out size for the child variants in this family is 44 mm minimum and 44 mm maximum, so the target cut-out is 44 mm. That consistency across the variants makes selection easier when comparing finish or color temperature options. It is a useful compatibility check for recessed lighting projects that need a compact fitting.

How long is this downlight designed to last?

The Pictor Double Recessed Downlight family is rated for a 50,000 hour lifetime. It also carries a 5 year warranty, which supports use in longer-term commercial or architectural lighting plans. Those figures are consistent across the variants shown for this parent model.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	Cut-out
Archilight Pictor Deep Black Downlight - Adjustable	7.2W	90	Optional	36 Millimeter	View
