Archilight Pictor Deep Black Downlight - Adjustable
Please Login for Pricing
Description
Description
Light has always fascinated people. For us it has become inspiration and passion. Being a synonym and symbol of life Light always directs our thought. Desires and work in such a way as to be able to live, breath-exist in our luminaries, appropriate lighting illuminates shapes and colors getting them out of darkness and investing reality with new significance. The bright side of the world is, therefore, within your arm's reach.
The products of Archilight lighting are normally made with aluminum, especially in die casting and extruding, and in order to achieve optimum corrosion resistance property, the aluminum components contain very less copper and they have been chromatized before coated with UV-stablized polyester powder and baked at 210 degree, that is why our fitting can stand and last longer in the extreme environment.
Specifications
Specifications
-
BrandArchilight
-
SeriesArchilight Pictor Series
-
Power Rating7.2 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length4.2 cm
-
Width4.2 cm
-
Height5.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of downlight is the Archilight Pictor Deep Black Adjustable?
This is a recessed LED downlight family with an adjustable light head and a deep black finish. It is designed for interior lighting applications where a compact fixture and controlled beam are important. Across the family, the products share the same 7.2 W power rating, CRI 90, and 50,000-hour rated lifetime.
What are the main differences between the variants in this product family?
The main differences across the variants are colour temperature and lumen output. The family is offered in 2700K, 3000K, 4000K, and 5000K versions. The 2700K and 3000K options are rated at 580 lm, while the 4000K and 5000K options are rated at 626 lm.
What beam angle does this downlight use?
All listed variants in this family use a 30 degree beam angle. This makes the range suitable for more focused illumination rather than very wide light distribution. The adjustable design also helps direct the beam where it is needed.
Is the Archilight Pictor Deep Black Adjustable dimmable?
Yes, this product family is listed as dimmable optional. That means dimming is supported when used with an appropriate optional driver. The driver is not included with the product family.
Does this downlight include a driver?
No, the driver is not included with this product family. Buyers should account for a separate driver when specifying the fitting. This is consistent across all variants shown for the parent model.
What are the key physical and performance specifications of this downlight family?

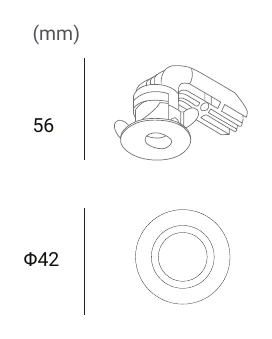

The parent model is compact, with dimensions of 42 mm by 42 mm and a height of 55 mm, and it weighs 0.5 kg. It operates at 230V input, has a CRI of 90, and is rated for 50,000 hours of life. The family also carries a 5-year warranty.
What ceiling cut-out size is used across the variants?
All listed child variants show a 36 mm cut-out size, with both the minimum and maximum cut-out values given as 36 mm. That means the family uses a consistent cut-out requirement across the available colour temperatures. This consistency can simplify specification across projects using multiple CCT options.
Other Archilight Pictor Series Models
1 other model| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight Pictor Double Recessed Downlight | 8.4W | 90 | Optional | 44 Millimeter | View |
