Can I use the RPD-60A for a compact embedded system that needs 5V and 12V rails?

Yes, this model is positioned for compact dual-output designs and is named as a 5V 12V supply. Its listed electrical rating is 49W total with a 5V output at 5A, and the compact 101.6 × 50.8 × 29.0 mm size suits embedded assemblies.

Is the RPD-60A suitable for industrial control boards and HMI electronics?

It can fit industrial control boards, HMI assemblies, and other low-power automation electronics that match a constant voltage supply and stay within 49W total power. The 90-264VAC input range also helps for equipment used across different AC input conditions.

Can the RPD-60A work in medical or lab equipment power sections?

It can be considered where the product requirement calls for medical safety approved construction and extremely low leakage current, since both are listed features. Electrically, the supplied specs show 49W total power, a 5V output at 5A, and operation from -20°C to +65°C.

Is the RPD-60A meant for outdoor use?

The provided specs give an operating temperature range of -20°C to +65°C, but no IP rating is listed. Based on the supplied data, environmental sealing for exposed outdoor use is not specified.

How does the RPD-60A compare with other RPD models in the same family?

In the supplied sibling list, RPD-60B is 53.5W 5V 3.5A, RPD-65C is 60W 12V 4.5A, RPD-65C-C is listed at 60W, RPD-65D is 60W 24V 2.25A, and RPD-65D-C is listed at 60W. Higher-power siblings shown are RPD-75A at 71W 5V 7A and RPD-75B at 73W 5V 5A, while RPD-160B is listed as a sibling but no additional output specs were provided here.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

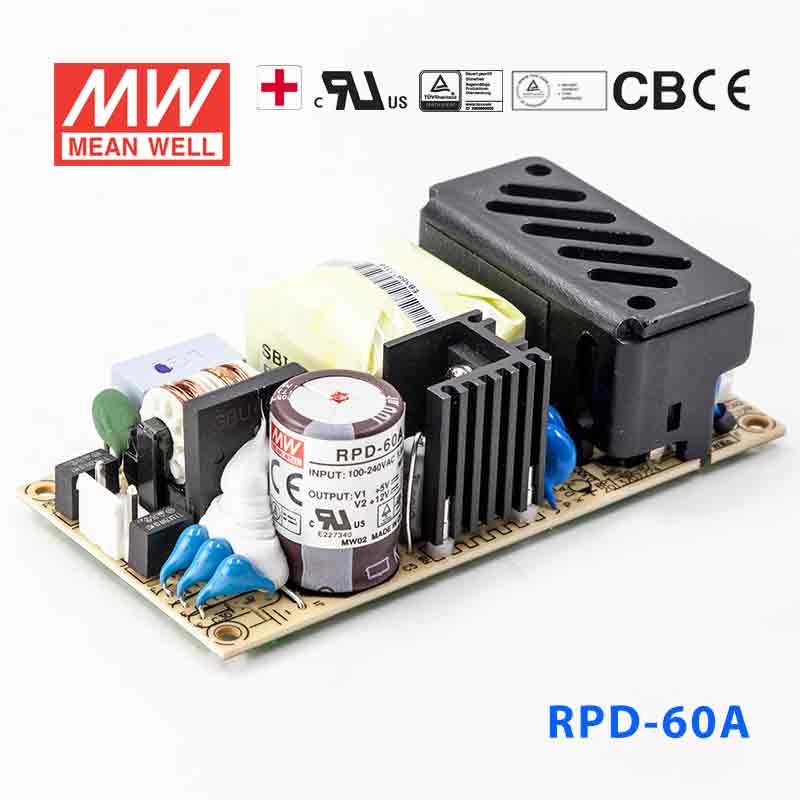

Mean Well RPD-60A Power Supply 60W 5V 12V 5A

4" x 2" compact sizemedical safety approvedextremely low leakage currentdual output

SKU:

RPD-60A

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

<150 μA/264VAC

Key Features

✓4"x2" compact size
✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
✓Suitable for BF application with appropriate system consideration
✓Cooling by free air convection
✓EMI Class B for class I configuration
✓Extremely low leakage current
✓Protections: Short circuit/ Overload/ Over voltage
✓3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RPD-75B Power Supply 75W 5V 24V 5A	73W	5V	5A	View
Mean Well RPD-75A Power Supply 75W 5V 12V 7A	71W	5V	7A	View
Mean Well RPD-65D Power Supply 65W 5V 24V 2.25A	60W	24V	2.25A	View
Mean Well RPD-65C Power Supply 65W 5V 12V 4.5A	60W	12V	4.5A	View
Mean Well RPD-60B Power Supply 60W 5V 24V 3.5A	53.5W	5V	3.5A	View
