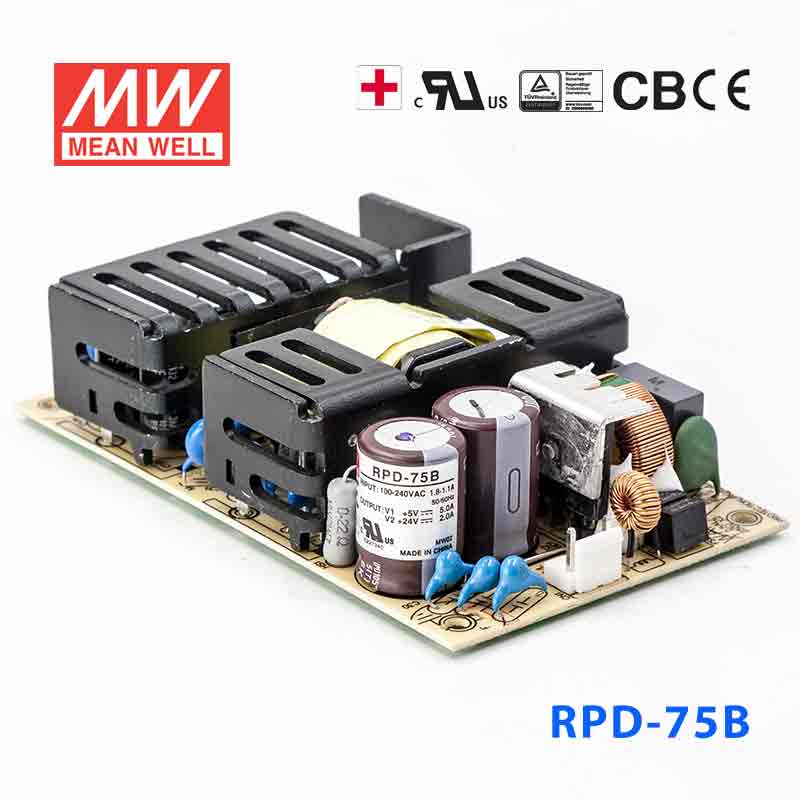

Mean Well RPD-75B Power Supply 75W 5V 24V

5" x 3" compact size, medical safety approved, extremely low leakage current, dual output

|

Description

Features

5"x3" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
Free air convection for rated power and 23.5CFM forced air convection for peak load
EMI Class B for class I configuration
Extremely low leakage current
Protections: Short circuit/ Overload/ Over voltage
Lifetime > 140K hours
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 25A/115VAC
Leakage current

<150 μA/264VAC

Overload protection  140 ~ 180% rated output power
Over-voltage protection 114%~136% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 90ms
Withstand voltage I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Working temperature -20~+70°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved, TUV BS EN/EN60601-1 approved
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection I/P: 3 Pin JST VHR, O/P: 6 Pin JST SVH-21T-P1.1
Dimension (LxWxH) 127x76.2x31
Packing 63pcs / 17.3kg

Specifications

  • Brand
    Mean Well
  • Series
    RPD Series
  • Power Rating
    73 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    12.7 cm
  • Width
    7.62 cm
  • Height
    3.1 cm
  • Weight
    0.25 kg
