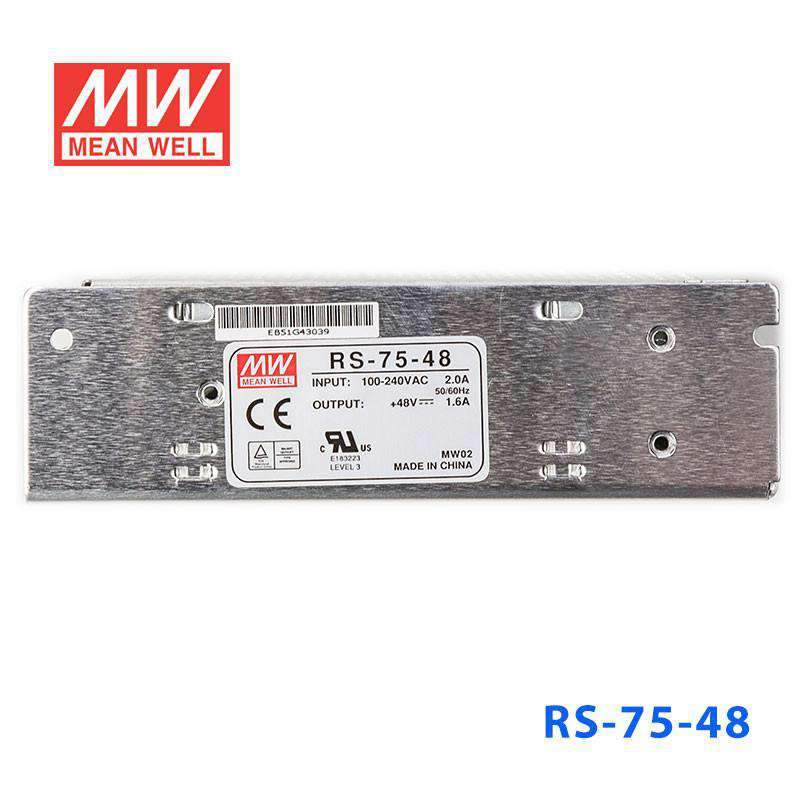

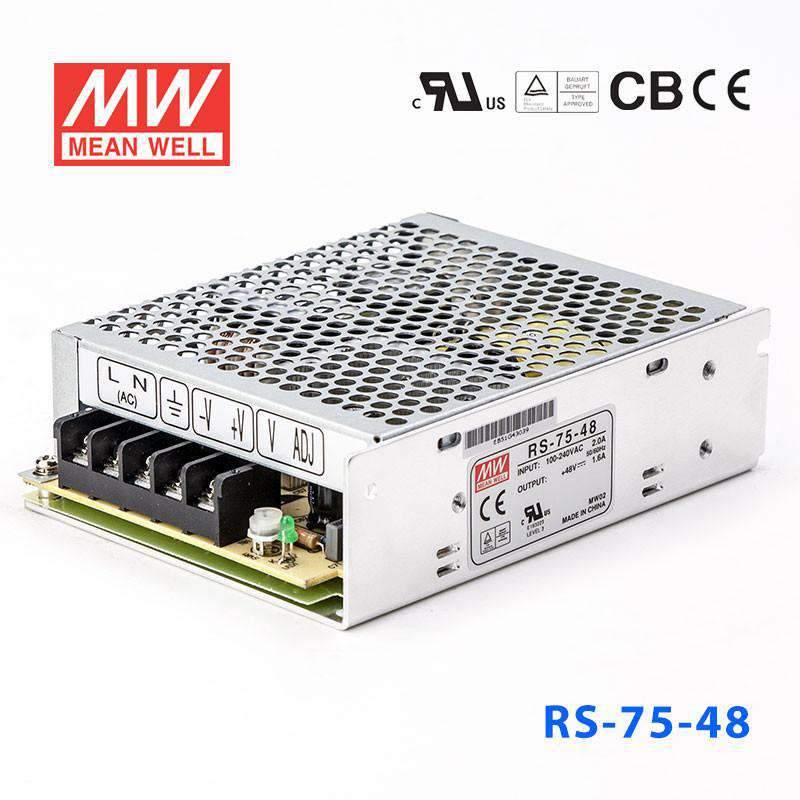

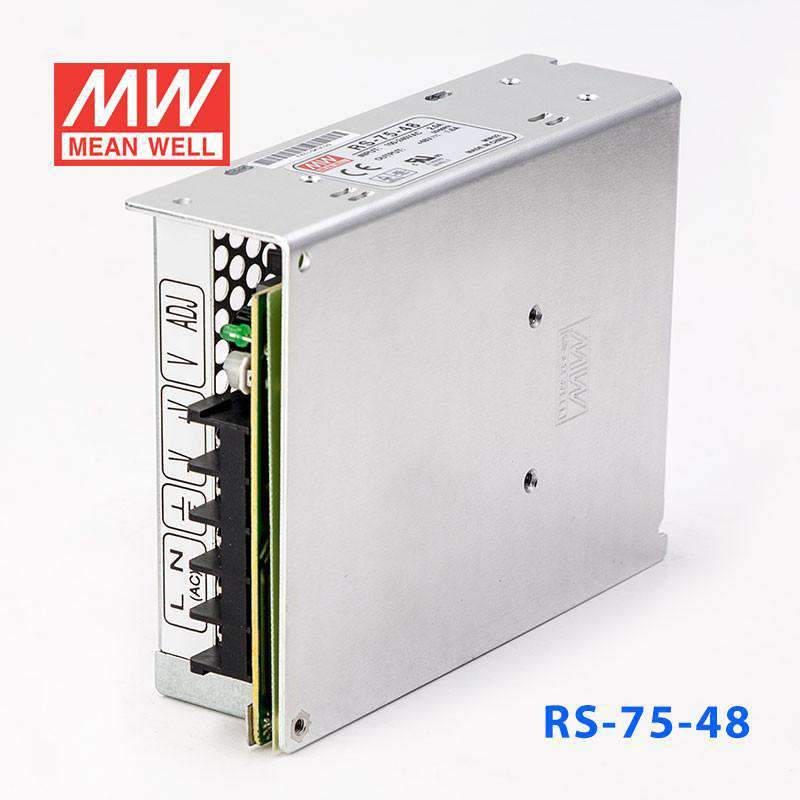

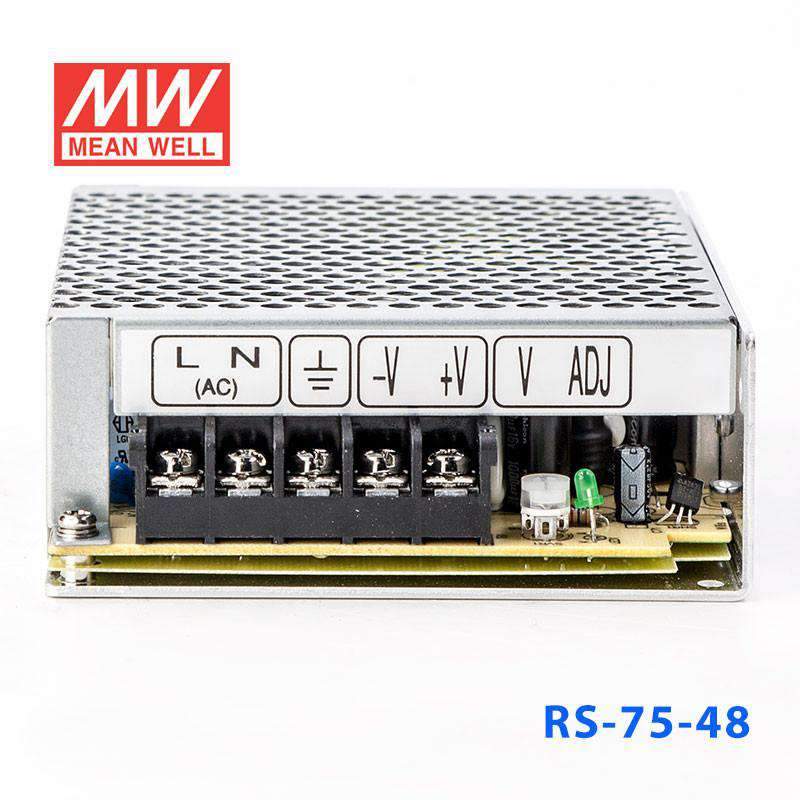

Mean Well RS-75-48 Power Supply 75W 48V 1.6A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-75-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-75-48
In stock
|

Overview

RS-75-48 is the 48V output model of this series: rated current 1.6A, rated power 76.8W, typical efficiency 89.5%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • No load power consumption<0.5W
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-75-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
1.6A
CURRENT RANGE
0 ~ 1.6A
RATED POWER
76.8W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
42 ~ 54V
VOLTAGE TOLERANCENote.3
Β±1.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±0.5%
SETUP, RISE TIME
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
89.5%
AC CURRENT (Typ.)
2A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
55.2 ~ 64.8V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
2918.8K hrs min. Telcordia SR-332 (Bellcore) ; 569.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
129*98*38mm (L*W*H)
PACKING
0.41Kg; 30pcs/13.3Kg/0.86CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

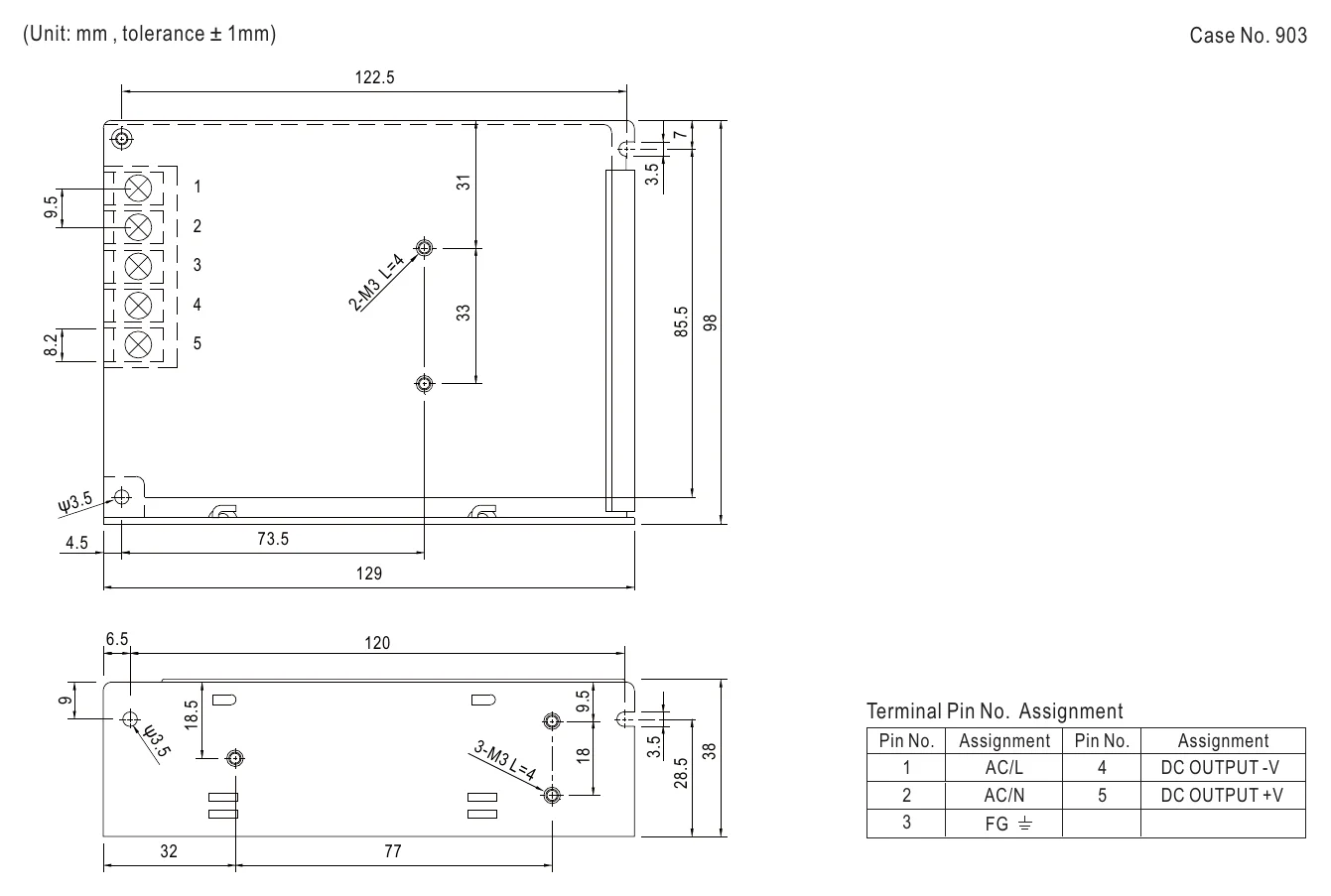

RS-75-48 Mechanical Specification
Mechanical Specification

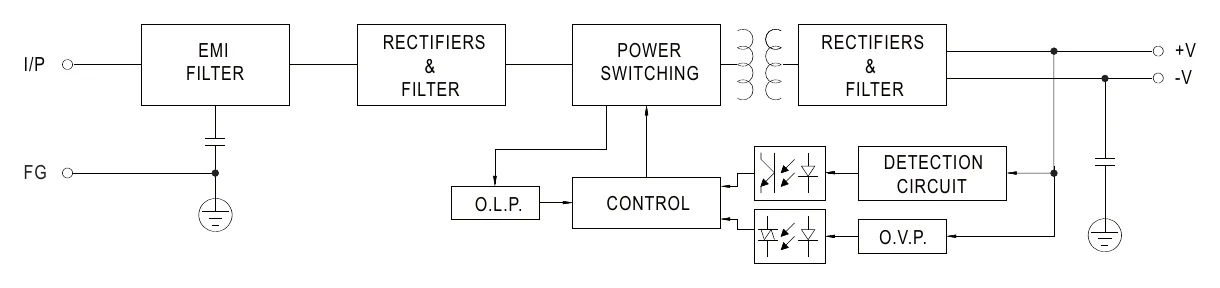

RS-75-48 Block Diagram
Block Diagram

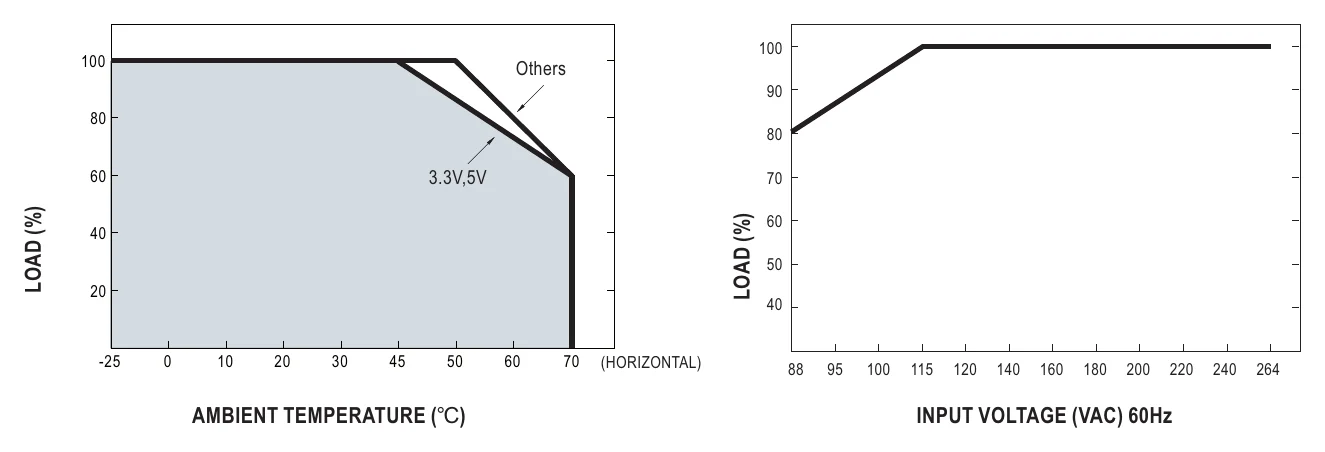

RS-75-48 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-75-48 for 48V telecom or communications equipment?

It is suitable for equipment that specifically requires a constant 48V DC input and draws no more than 1.6A or 76.8W. That makes it relevant for lower-power telecom and communications hardware designed around a 48V DC bus.

Is the RS-75-48 a good fit for 48V industrial networking or control devices?

Yes, if the device requires 48V DC and the load remains within the unit's 1.6A maximum output current and 76.8W rating. As a constant-voltage model, it is intended for equipment that expects a regulated 48V supply rather than a constant-current source.

Can this power supply be used for compact 48V automation subsystems inside a machine or panel?

It can fit enclosed automation assemblies that need a 48V rail and have moderate power demand up to 76.8W. The 129.0 x 98.0 x 38.0 mm form factor is also useful where panel space is limited.

Would the RS-75-48 work for a 48V test station or lab fixture?

For fixed 48V DC fixtures, it can be appropriate as long as the connected equipment stays within 1.6A and 76.8W. The 88-264VAC input range also supports use in facilities with different AC input standards.

Can the RS-75-48 be used outdoors or in dusty areas?

No IP rating is listed for this model, so it should be used in a protected enclosure rather than directly exposed outdoor, wet, or dusty locations. Its environmental rating covers temperature from -25C to +70C, but that does not indicate sealed ingress protection.

What are the differences between the RS-75-48 and the other RS-75 models?

The RS-75 family includes RS-75-3.3 at 49.5W, 3.3V, 15A; RS-75-5 at 60W, 5V, 12A; RS-75-12 at 72W, 12V, 6A; RS-75-15 at 75W, 15V, 5A; RS-75-24 at 76.8W, 24V, 3.2A; and RS-75-48 at 76.8W, 48V, 1.6A. The output voltage changes across the series, and the available current changes with it.
