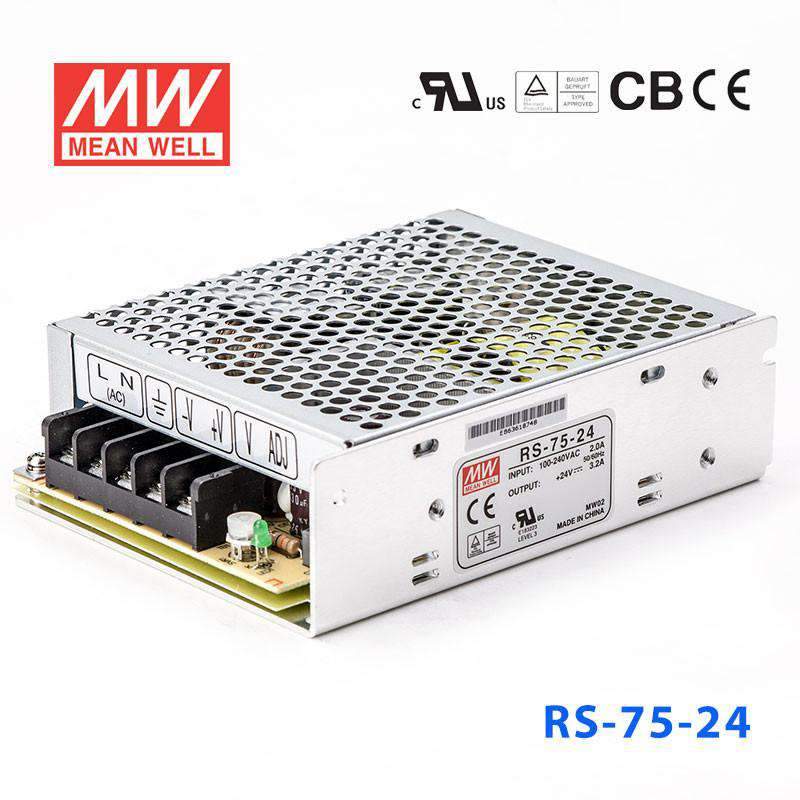

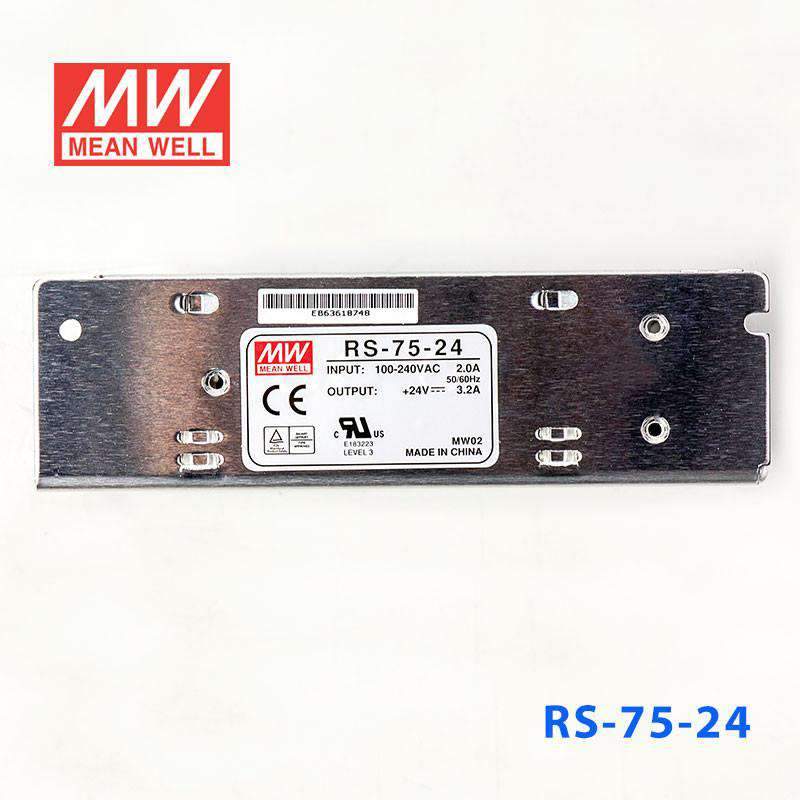

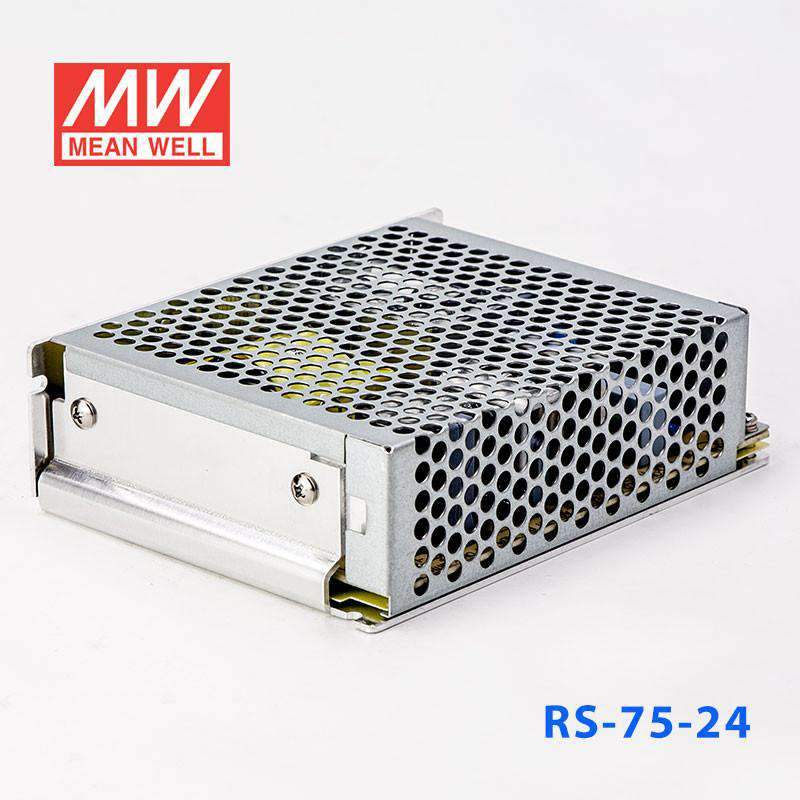

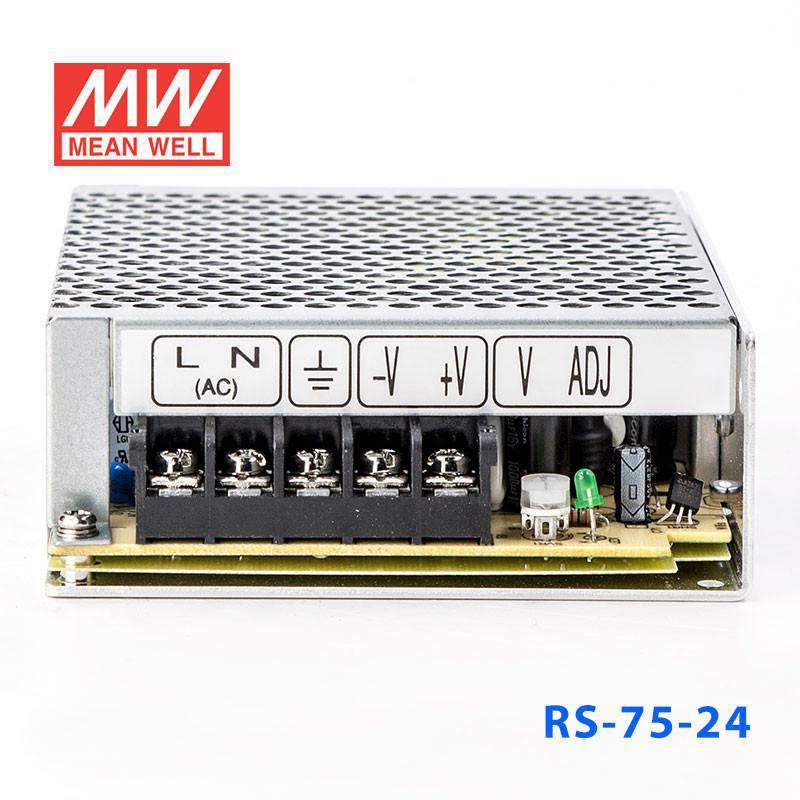

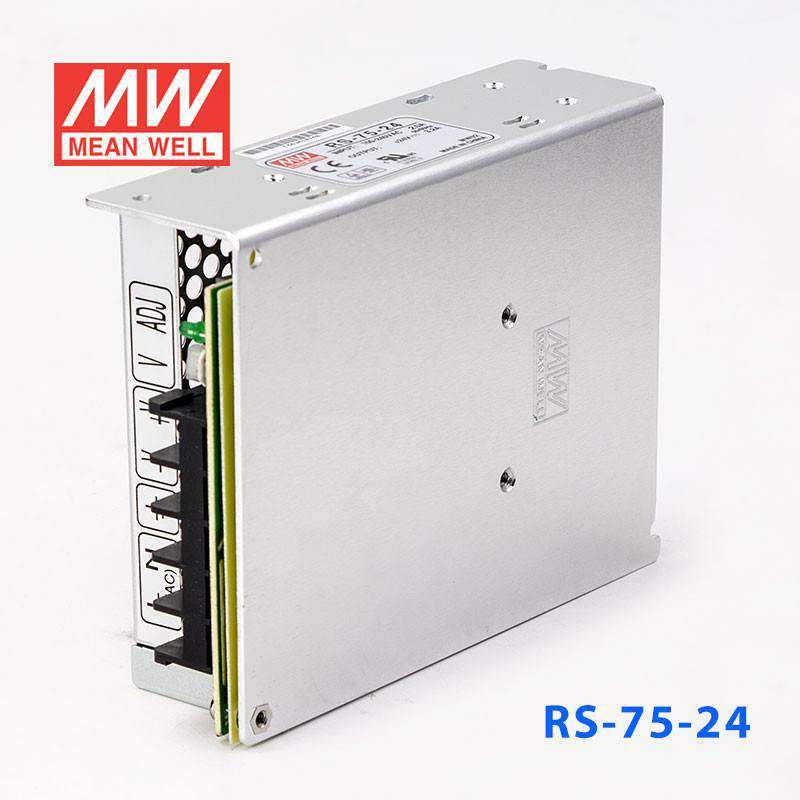

Mean Well RS-75-24 Power Supply 75W 24V
Please Login for Pricing
Description
Description
The RS-75 is a 75W Mean Well DIN rail power converter with a 29mm profile (input range: 125~373VDC, operating temperature: -25~+70°C).
Key Features
- ✓ 29mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 125~373VDC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -25~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating76.8 Watt
-
Output Voltage24 Volt
-
Rated Current3.2 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length12.9 cm
-
Width9.8 cm
-
Height3.8 cm
-
Weight0.41 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the RS-75-24 for a 24V PLC accessory or industrial automation load?
Yes, this supply provides 24V constant voltage with up to 3.2A and 76.8W available. It is suitable for 24V automation equipment that falls within those limits.
Is the RS-75-24 a good fit for 24V sensors, relays, or control peripherals in one panel?
It can be, as long as the combined 24V load does not exceed 3.2A or 76.8W. That makes it useful for grouped 24V control peripherals rather than heavier 24V power loads.
Would this model work for a compact 24V industrial cabinet or embedded system?
Yes, if the system is designed for 24V constant-voltage input and stays inside the 76.8W, 3.2A output rating. Its 129.0 x 98.0 x 38.0 mm dimensions are also relevant where enclosure space matters.
Can the RS-75-24 be used on equipment exposed to machine vibration?
The features list states 5G vibration resistance, which supports use in industrial machine environments. The application still needs to be a 24V load within the supply's 3.2A and 76.8W capacity.
Is the RS-75-24 suitable for outdoor locations or wide ambient temperature swings?
It is rated for operation from -25C to +70C, so the temperature specification is broad. No IP rating is included in the provided data, so outdoor suitability cannot be confirmed from these specs alone.
Other RS-75 Models
5 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well RS-75-5 Power Supply 75W 5V | 60W | 5V | 12A | View |
| Mean Well RS-75-48 Power Supply 75W 48V | 76.8W | 48V | 1.6A | View |
| Mean Well RS-75-3.3 Power Supply 75W 3.3V | 49.5W | 3.3V | 15A | View |
| Mean Well RS-75-15 Power Supply 75W 15V | 75W | 15V | 5A | View |
| Mean Well RS-75-12 Power Supply 75W 12V | 72W | 12V | 6A | View |
