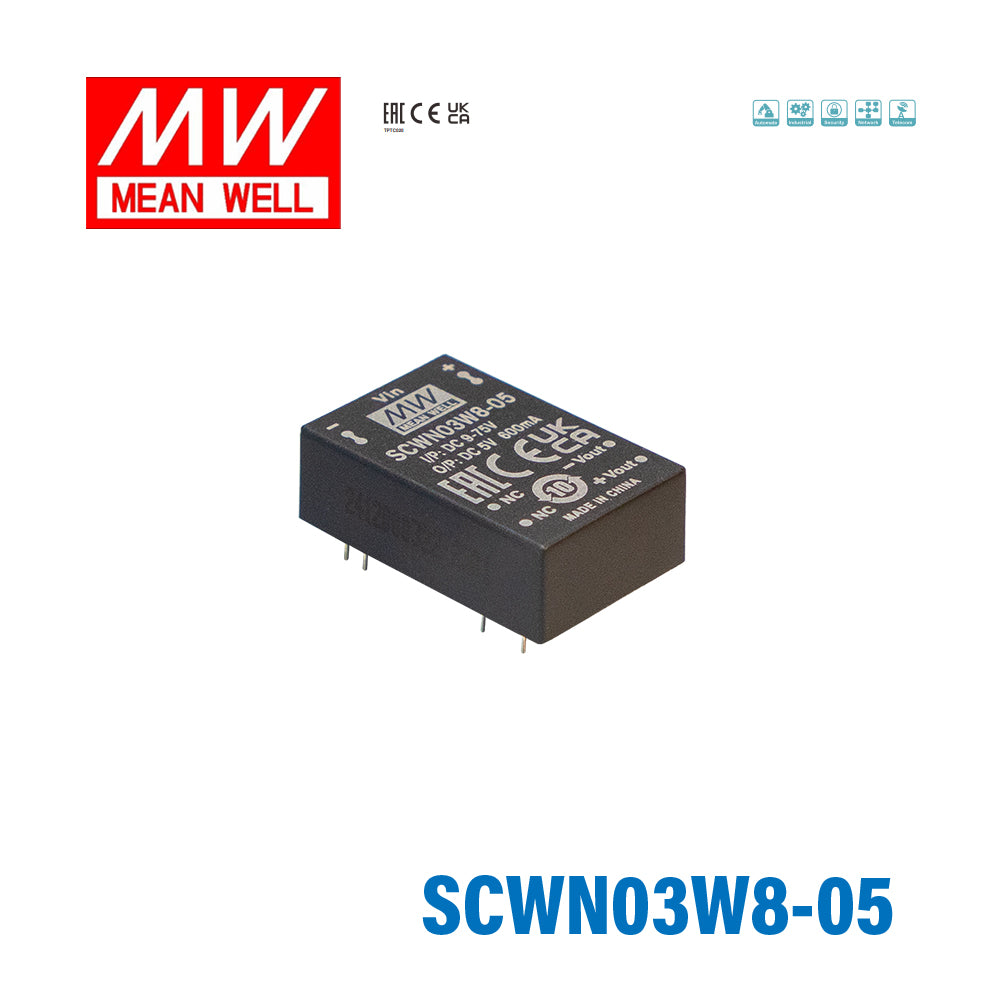

Mean Well SCWN03W8-05 DC-DC Converter - 3W 9~75V DC in 5V out 5mA
Log in to see priceThe Mean Well SCWN03W8-05 is a 3W isolated and regulated DC-DC converter in a DIP-24 package, supplying 5V DC. Its ultra-wide 9~75VDC input spans a broad range in a single part number, simplifying designs that must tolerate an unstable or widely-varying DC supply.
Rated from -40°C to 95°C with free-air convection cooling, it includes short circuit, overload and over-voltage protection and carries CE and EAC approvals. Backed by a 3-year warranty.
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9~75Vdc) ultra-wide input range
- ✓Operating temperature range -40 ~ +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓High efficiency up to 84%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
