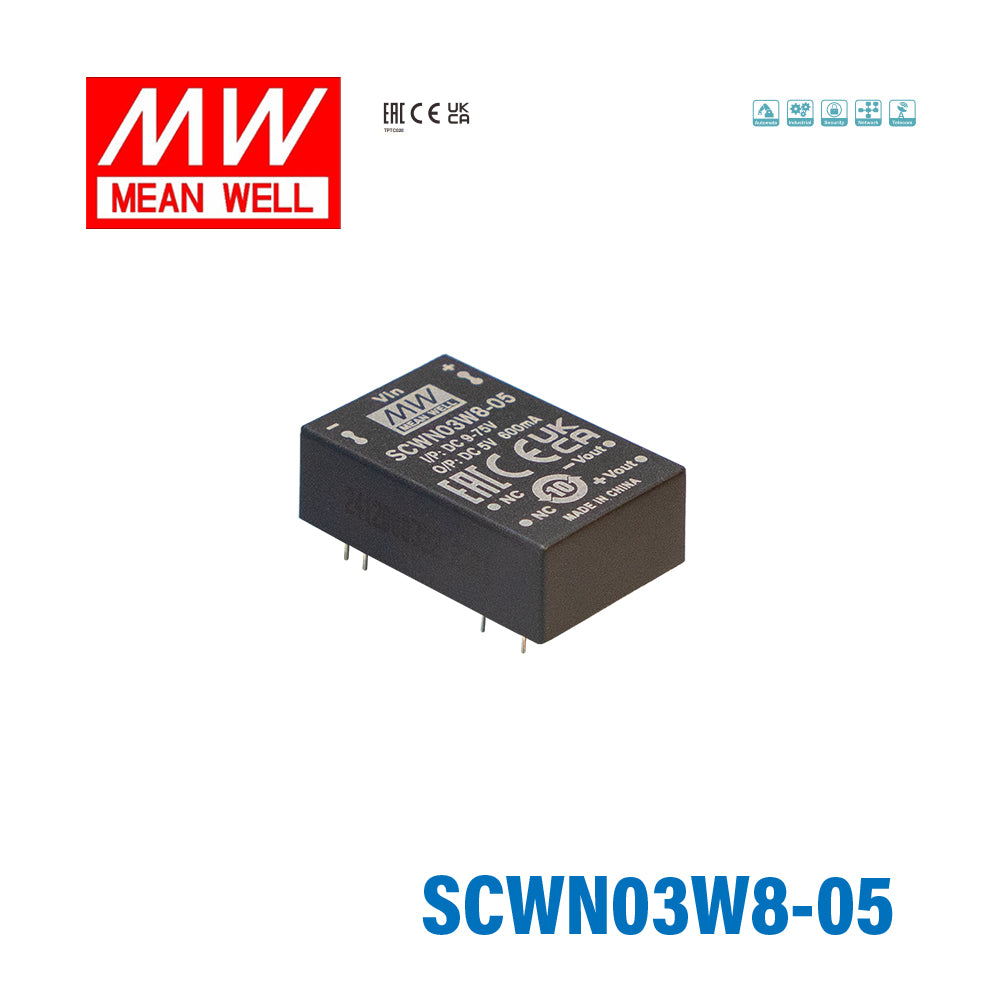

Mean Well SCWN03W8-05 DC-DC Converter - 3W 9~75V DC in 5V out
Please Login for Pricing
Description
Description
Features:
- DIP24 package with industry standard pinout
- 8:1(9~75Vdc) ultra-wide input range
- Operating temperature range -40 ~ +95℃
- No minimum load required
- Comply to BS EN/EN55032 radiated Class B without additional components
- High efficiency up to 84%
- Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- Remote ON/OFF control (Optional)
- 3KVdc I/O isolation
- 3 years warranty
General Specification:
Input Voltage
Nominal 12V, 24V,36V,48V,72V (9 - 75V)
Protection
1A Fast-Acting Type
Over Load Protection
110 - 230% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Short Circuit Protection
Protection type : Continuous, automatic recovery
Over Voltage Protection
Protection type : Clamp by zener diode
Under Voltage Lockout
Start-up voltage: 8.8Vdc
Shutdown voltage: 8Vdc
Withstand Voltage
I/P-O/P:3KVdc
Operating Temperature
-40 - +95℃ (Refer to "Derating Curve")
Safety Standard
EAC TP TC 020/2011 approved
Dimension (LxWxH)
31.8 x 20.3 x 10.2mm
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
