Can I use the SKM30B-12 for 12V automation and industrial panel electronics?

Yes, it delivers constant 12V output at up to 2.5A, with a total 30W rating. It is suited to 12V panel and automation electronics when the available input is within 18-36VAC.

Is the SKM30B-12 appropriate for embedded 12V subsystems in industrial equipment?

It can be used for embedded 12V subsystems that require constant-voltage output and stay within 2.5A. The compact 50.8 × 25.4 × 11.2 mm form factor can also be useful where installation space is limited.

Can this converter support 12V sensing, display, or control devices?

This model is intended for 12V loads with a combined demand up to 30W. It is relevant for 12V sensing, display, or control devices powered from an 18-36VAC source.

Will the SKM30B-12 handle cold and hot operating conditions?

The stated operating temperature is -40°C to +75°C, so it is specified for a wide temperature span. No IP rating is provided, so environmental sealing and outdoor suitability are not defined by the listed specs.

Which SKM30B model should I choose if I am comparing output options only?

The main difference inside the SKM30B family is output rating, while all models use 18-36VAC input and are rated at 30W. SKM30B-05 outputs 5V at 6A, SKM30B-12 outputs 12V at 2.5A, and SKM30B-15 outputs 15V at 2A.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

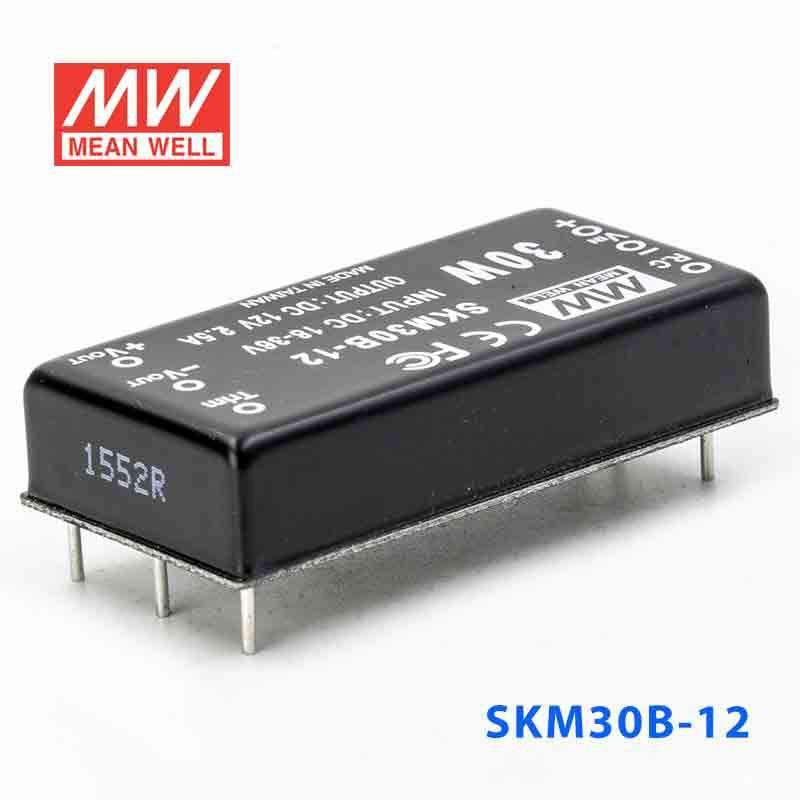

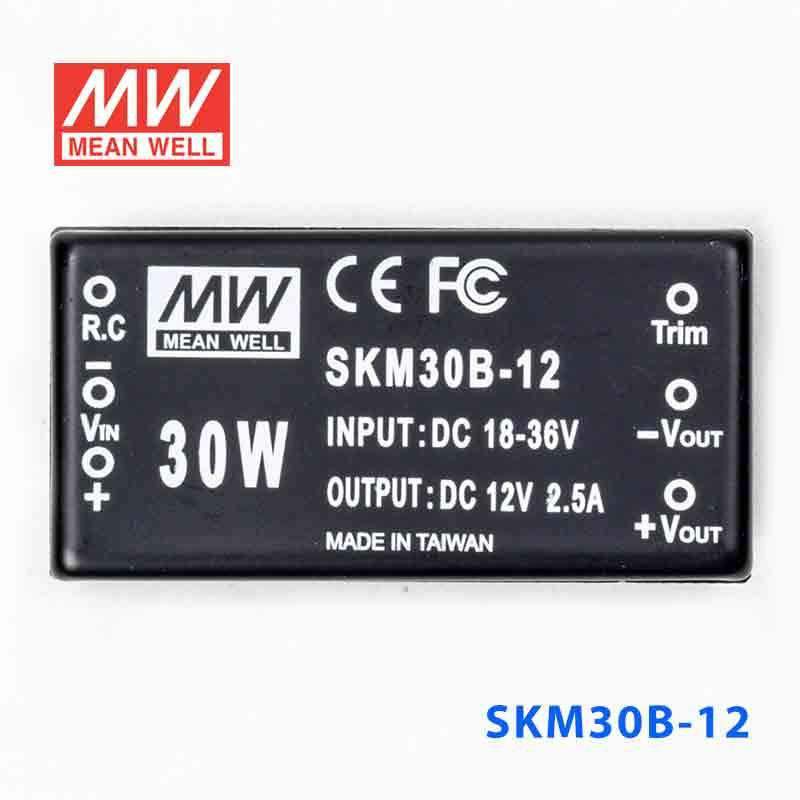

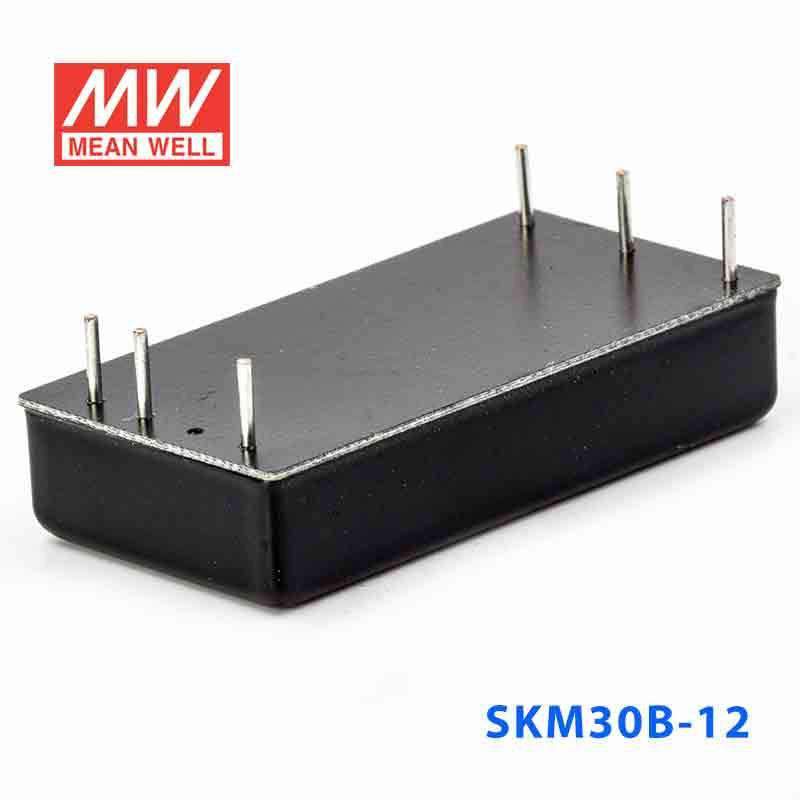

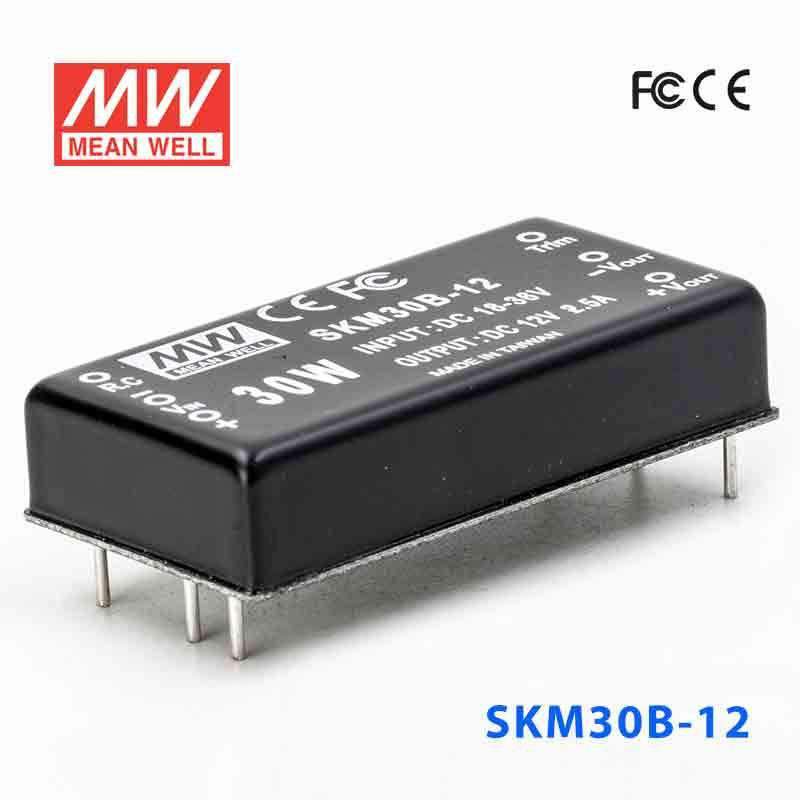

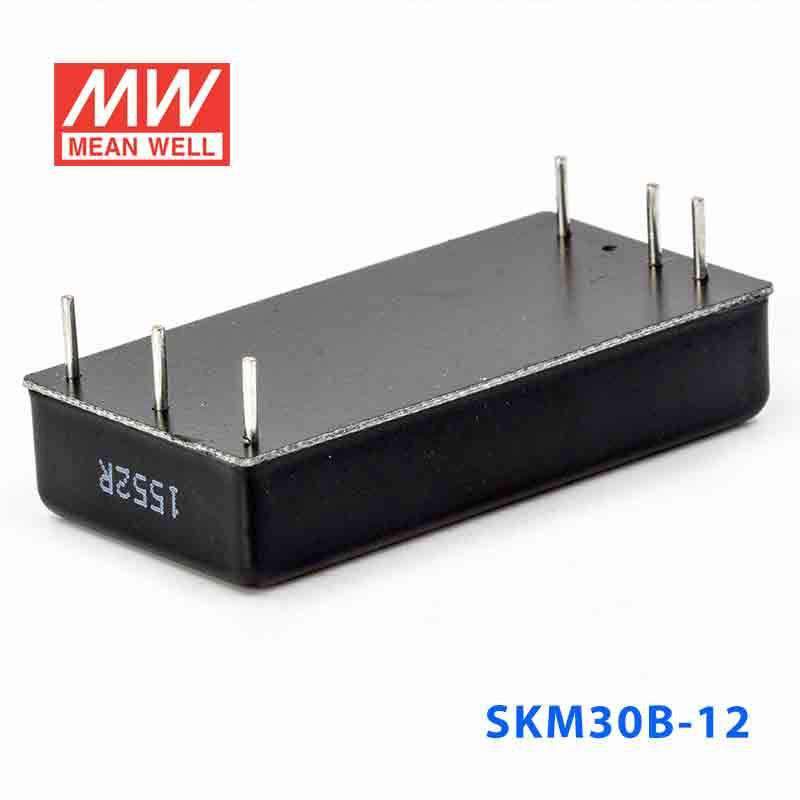

Mean Well SKM30B-12 DC-DC Converter - 30W - 18~36V in 12V out 2.5A

SKU:

SKM30B-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SKM30B is a 30W Mean Well power converter (operating temperature: -40~+75℃).

Key Features

✓ 1.5KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+75℃
✓ Protections: Short circuit / Over voltage / Under voltage
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SKM30W8-24 30W DC-DC Converter 24VDC 1.25A	—	—	—	Indoor	View
Mean Well SKM30W8-15 30W DC-DC Converter 15VDC 2A	—	—	—	Indoor	View
Mean Well SKM30W8-12 30W DC-DC Converter 12VDC 2.5A	—	—	—	Indoor	View
Mean Well SKM30W8-05 30W DC-DC Converter 5VDC 6A	—	—	—	Indoor	View
Mean Well SKM30W8-03 30W DC-DC Converter 3.3VDC 9.09A	—	—	—	Indoor	View
Mean Well SKM30C-15 DC-DC Converter - 30W - 36~75V in 15V out 2A	30W	15V	2A	Indoor	View
Mean Well SKM30C-12 DC-DC Converter - 30W - 36~75V in 12V out 2.5A	30W	12V	2.5A	Indoor	View
Mean Well SKM30C-05 DC-DC Converter - 30W - 36~75V in 5V out 6A	30W	5V	6A	Indoor	View
Mean Well SKM30B-15 DC-DC Converter - 30W - 18~36V in 15V out 2A	30W	15V	2A	Indoor	View
Mean Well SKM30B-05 DC-DC Converter - 30W - 18~36V in 5V out 6A	30W	5V	6A	Indoor	View
Mean Well SKM30A-15 DC-DC Converter - 30W - 9~18V in 15V out 2A	30W	15V	2A	Indoor	View
Mean Well SKM30A-12 DC-DC Converter - 30W - 9~18V in 12V out 2.5A	30W	12V	2.5A	Indoor	View
Mean Well SKM30A-05 DC-DC Converter - 30W - 9~18V in 5V out 6A	30W	5V	6A	Indoor	View
