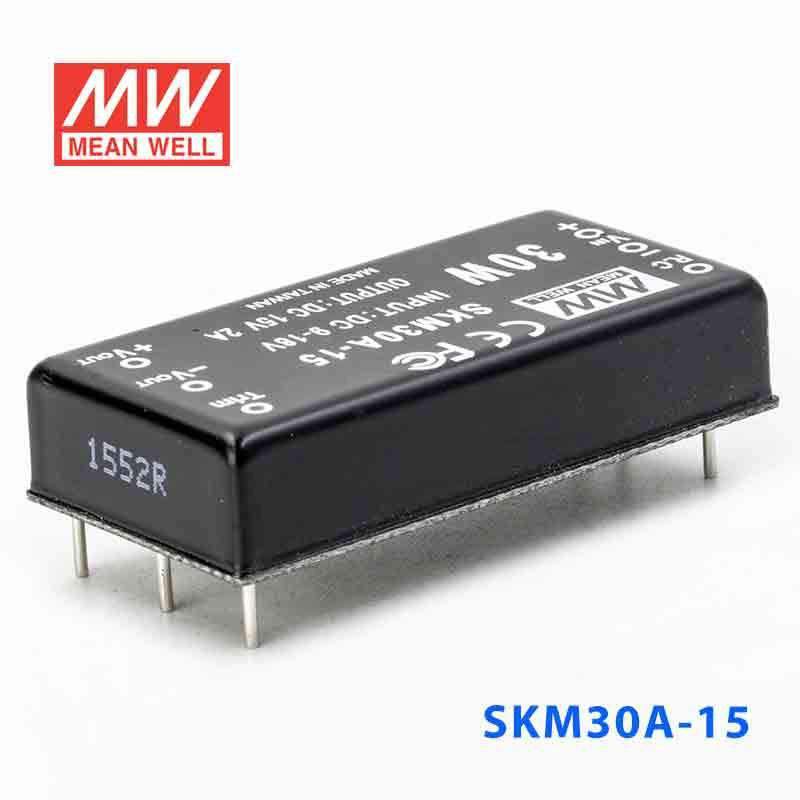

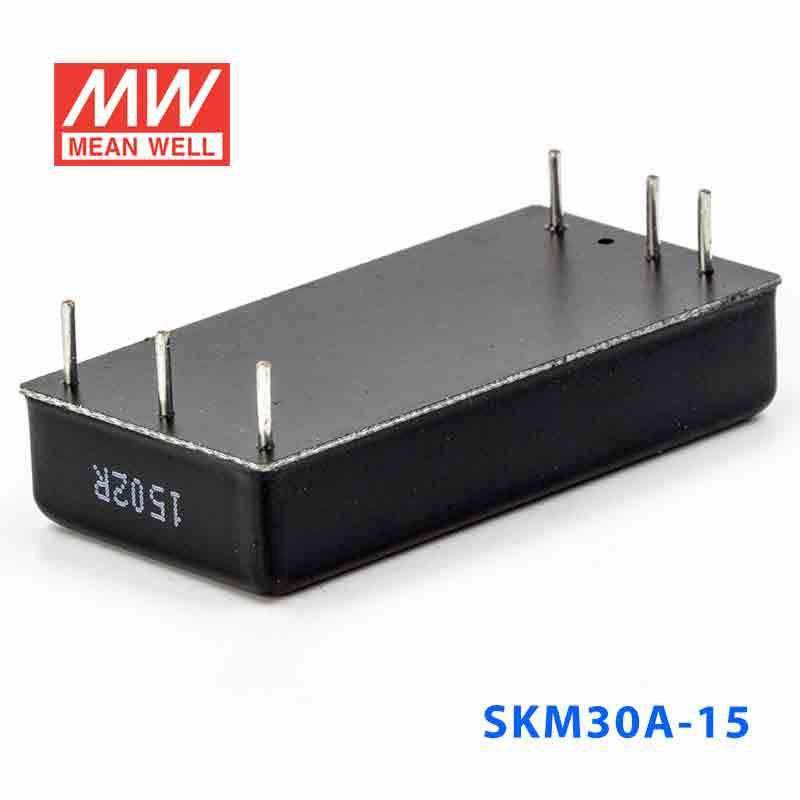

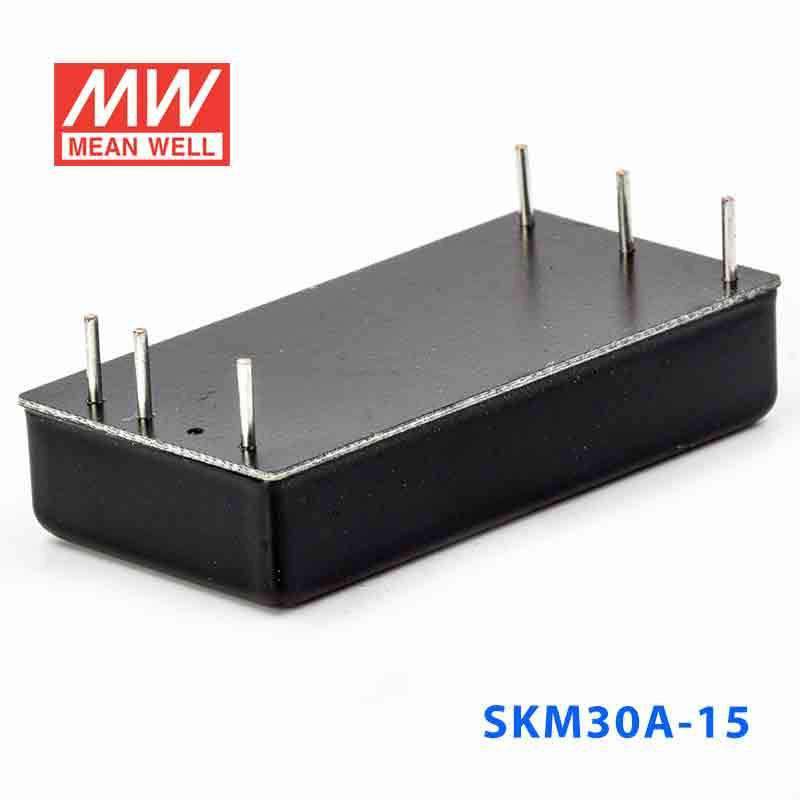

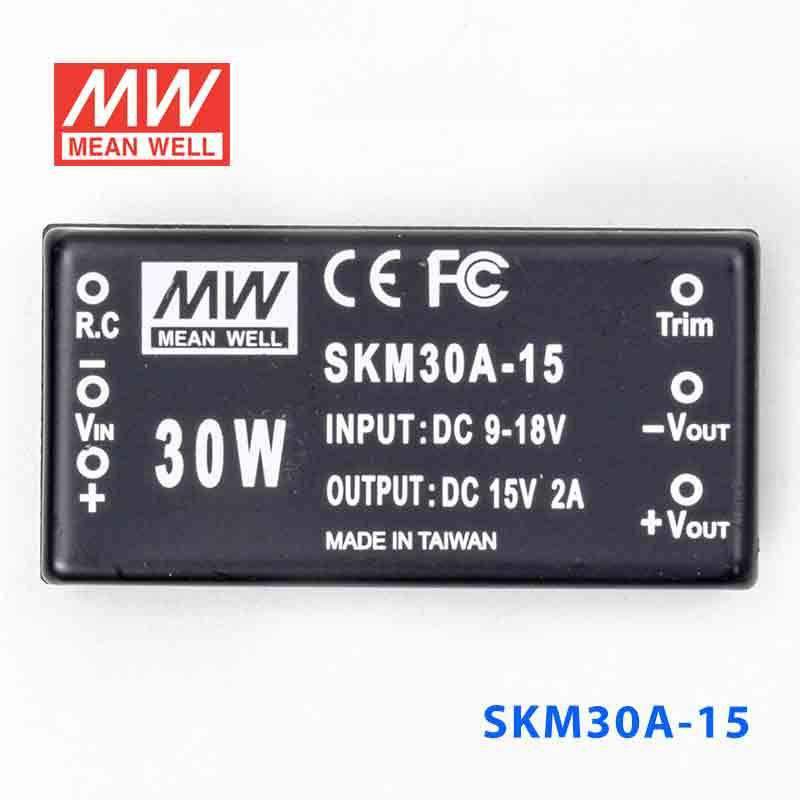

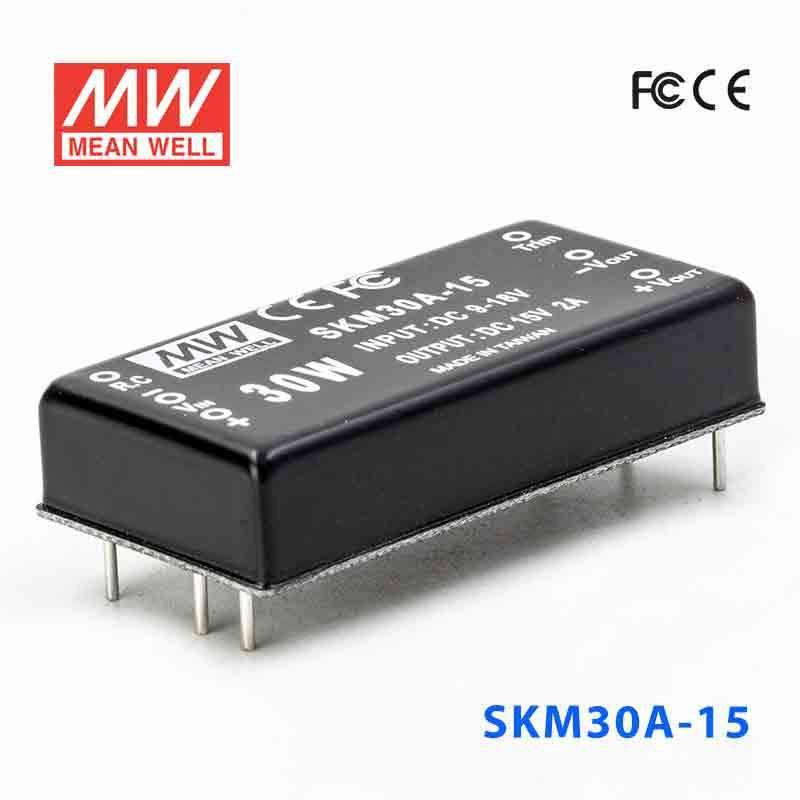

Mean Well SKM30A-15 DC-DC Converter - 30W - 9~18V in 15V out
Please Login for Pricing
Description
Description
The SKM30A is a 30W Mean Well power converter (operating temperature: -40~+75℃).
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+75℃
- ✓ Protections: Short circuit / Over voltage / Under voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~75°C
-
Warranty2 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.12 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKM30A-15 for 15V industrial instrumentation or control circuits?
Yes, it provides a constant 15V output at up to 2A with a 30W rating. It is appropriate for 15V industrial instrumentation or control circuits when the available input is within 9-18VAC.
Is this converter a fit for embedded systems that require regulated 15V power?
It can be used where an embedded system needs constant 15V output and the load stays within 2A. The module is also compact at 50.8 × 25.4 × 11.2 mm, which can help in space-constrained equipment.
Can the SKM30A-15 support 15V automation interfaces or signal-conditioning devices?
This model is intended for 15V constant-voltage loads up to 30W total. That makes it suitable for 15V automation interfaces or signal-conditioning devices operating from a 9-18VAC input source.
Can I use the SKM30A-15 in cold or high-heat indoor equipment?
Its specified operating range is -40°C to +75°C, which covers a wide range of equipment environments. No IP rating is provided, so while the temperature range is stated, resistance to water or dust ingress is not.
What is the difference between the SKM30A-15 and the other SKM30A converters?
The SKM30A family shares the same 30W rating and 9-18VAC input range. The output options are SKM30A-05 at 5V and 6A, SKM30A-12 at 12V and 2.5A, and SKM30A-15 at 15V and 2A.
