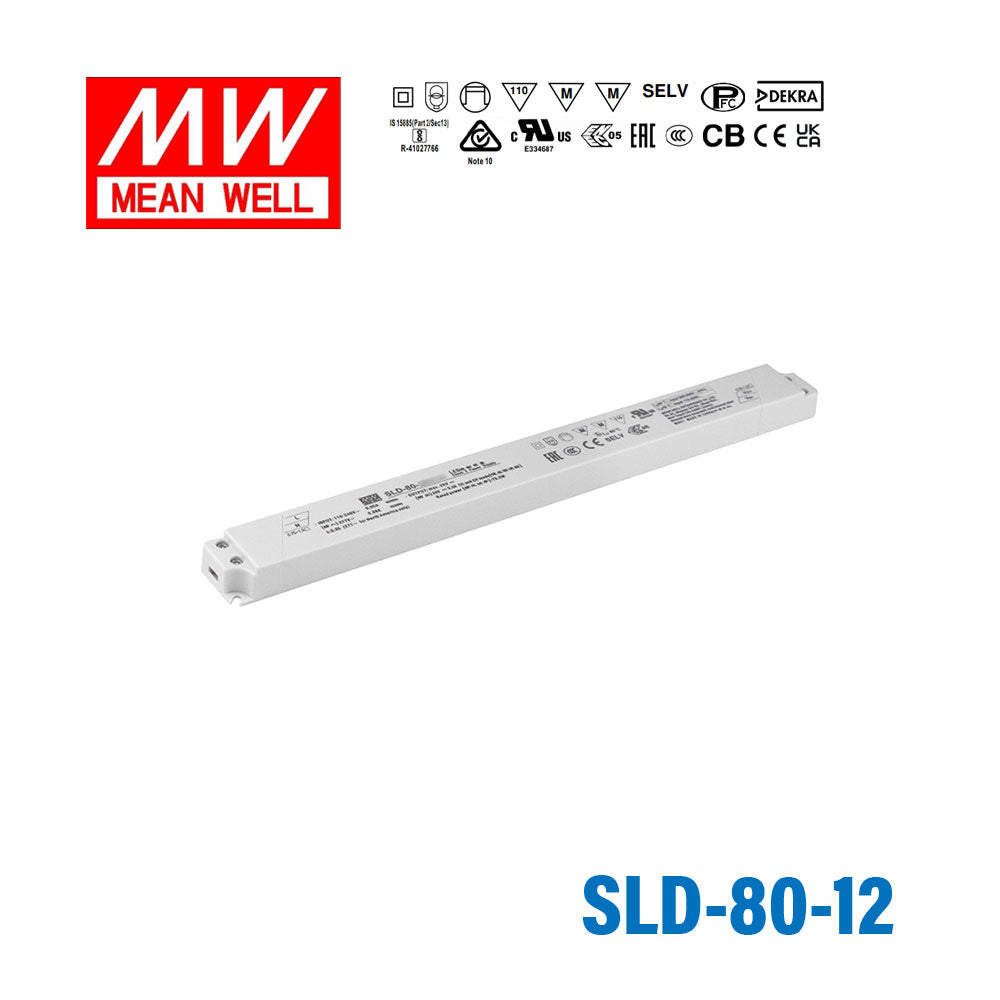

Mean Well SLD-80-12 Linear LED Driver 80W 12V 6600mA - Slim

ultra slim design30mm widthefficiency up to 90%Class II and SELV

SKU SLD-80-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

SLD-80-12

SLD-50-12 50W 12V 4200mA Backorder

SLD-150-12 144W 12V Backorder

SLD-80-12 80W 12V 6600mA Low stock

Product variants

In stock

Overview

SLD-80-12 is the 12V output model of this series: rated current 6.6A, rated power 79.2W, typical efficiency 90.5%.

SLD-80 series is a 80W AC/DC LED driver featuring the dual modes constant voltage and constant current output. SLD-80 operates from 110~305VAC and offers models with different rated voltage ranging between 12V and 56V. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -20℃ ~ +90℃ case temperature under free air convection. SLD-80 design with low profile and linear housing which is good for signage and linear luminaire applications.

Features

Constant Voltage + Constant Current mode output
Wide input range 110-305VAC with PFC function
Compliance with BS EN/EN61347 regulation
Class 2/Ⅱ power unit (Except for 12V)
Slim and Linear housing Design
No load power consumption <0.5W
3 years warranty

Specifications

SLD-80-12Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.2: 8.4~12V
RATED CURRENT: 6.6A
RATED POWER^Note.5: 79.2W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.6: 500ms, 80ms 115VAC / 230VAC
HOLD UP TIME (Typ.): 10ms/230VAC 10ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 110~ 305VAC 155~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90.5%
AC CURRENT: 0.9A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 8 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 17V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP.: -40 ~ +80℃
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750,CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, GB/T19510.1,GB/T19510.213, IS15885(Part2/Sec13) , EN60335-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743, EN IEC 55014-1(CISPR 14-1)
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743, EN IEC 55014-1(CISPR 14-1)
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥60%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547 , EN IEC 55014-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual volatge for 10 periods , 0% residual volatge for 0.5 periods , 40% residual volatge for 10 periods , 70% residual volatge for 25 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743, EN IEC 55014-1(CISPR 14-1)
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743, EN IEC 55014-1(CISPR 14-1)
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥60%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual volatge for 10 periods , 0% residual volatge for 0.5 periods , 40% residual volatge for 10 periods , 70% residual volatge for 25 periods

OTHERS

MTBF: 2666.8K hrs min. Telcordia SR-332 (Bellcore) ; 260.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 320*30*16.8mm (L*W*H)
PACKING: 0.206 Kg; 64pcs / 14.184Kg / 0.75CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of 30000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations but recommend to be used for commercial decoration/sign board/Luminaire lighting purpose.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SLD-80-12 DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

SLD-80-12 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

SLD-80-12 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

SLD-80-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

SLD-80-12 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates5

UL Certificate (SLD-80)(EN) ASPX Download

ENEC Certificate (SLD-80)(EN) ASPX Download

CCC Certificate (SLD-80)(CN) ASPX Download

CB Certificate (SLD-80)(EN) ASPX Download

EMC Certificate (SLD-80)(EN) ASPX Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What type of LED driver is the Mean Well SLD-80-12?

The SLD-80-12 is an 80W linear LED driver rated for 12V output. This model is described as a constant voltage plus constant current design, which makes it part of Mean Well's slim-form SLD series.

What are the main electrical ratings of the SLD-80-12?

This model is rated for 79.2W total power with a 12V output. The product data lists a rated current of 6.6A, and the description also highlights a wide 110-305VAC input range with PFC function.

Is the SLD-80-12 a dimmable LED driver?

No. The product data for this specific model lists dimming control as none, so it is not presented as a dimmable version in this listing.

What kinds of applications is the SLD-80-12 best suited for?

This model is positioned as a 12V LED driver/power supply for LED lighting applications that need an 80W slim-form unit. Its narrow linear housing can make it a practical option where space is limited and a low-profile driver is preferred.

What environmental and operating range information is available for this model?

The product data lists a temperature range from -20°C to 90°C for this model. Buyers should use that published range when checking fit for the intended environment, especially for projects exposed to higher or lower ambient conditions.

How does the SLD-80-12 differ from a standard bulkier LED power supply?

The main differentiator called out for this model is its slim, linear housing design. Compared with more conventional larger-form power supplies, the SLD-80-12 is intended for applications where a narrower LED driver format is an advantage.

What warranty is offered for the Mean Well SLD-80-12?

The product data lists a 3-year warranty for this series. That gives buyers a defined coverage period for this specific Mean Well LED driver.
