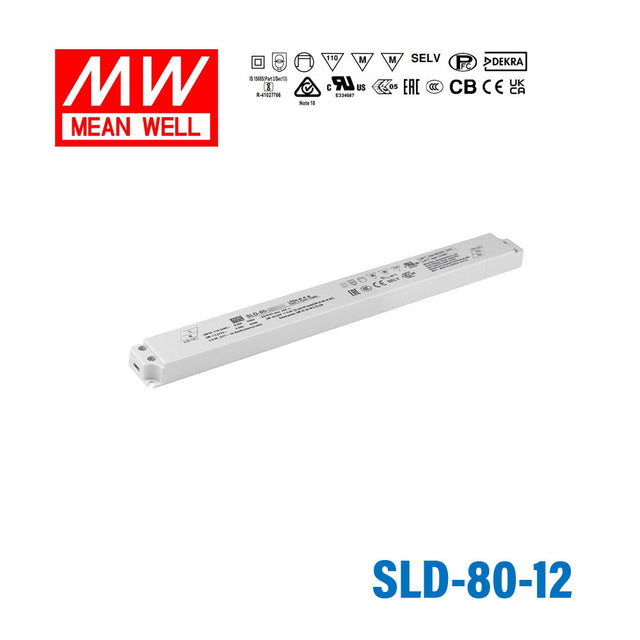

Mean Well SLD-80-12 Linear LED Driver 80W 12V 6600mA - Slim

ultra slim design, 30mm width, efficiency up to 90%, Class II and SELV
SKU:
SLD-80-12

Model
|

Description

Features

Constant Voltage + Constant Current mode output
Wide input range 110-305VAC with PFC function
Compliance with EN6 1347 regulation
Class 2/ Ⅱ power unit (Except for 12V)
Slim and Liner housing Design
No load power consumption < 0.5W
3 years warranty

General Specification

AC input voltage range 110~305VAC 155~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
AC inrush current COLD START 50A (width=270 μs measured at 50% peak) at 230VAC  ; Per NEMA 410
DC Voltage 12V
Over current protection 95 ~ 108% Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection 14 ~ 17V Shut down and latch off o/p voltage, re-power on to recover
Short circuit protection Hiccup mode, recovers automatically after fault condition is removed
Over temperature protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms 115VAC / 230VAC
Withstand voltage I/P-O/P:3.75KVAC
Working temperature case=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards UL8750 (type ”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384,
EAC TP TC 004 , GB19510.1,GB19510.14
EMC standards EN55015(CISPR15) ,GB/T17743, EN61000-3-2 ,GB/T17625.1,EN61000-3-3;EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 320x30x16.8mm
Packing 64pcs / 14.184kg

Specifications

  • Brand
    Mean Well
  • Series
    SLD Series
  • Power Rating
    80 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    110V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -20°C~90°C
  • Warranty
    3 Year
  • Length
    32 cm
  • Width
    3 cm
  • Height
    1.68 cm
  • Weight
    0.21 kg
