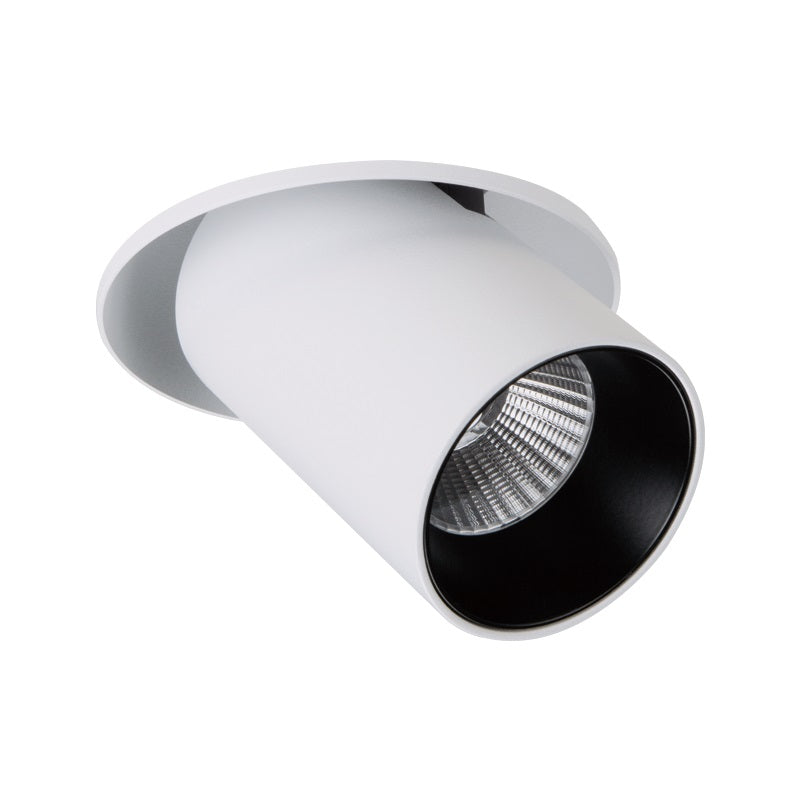

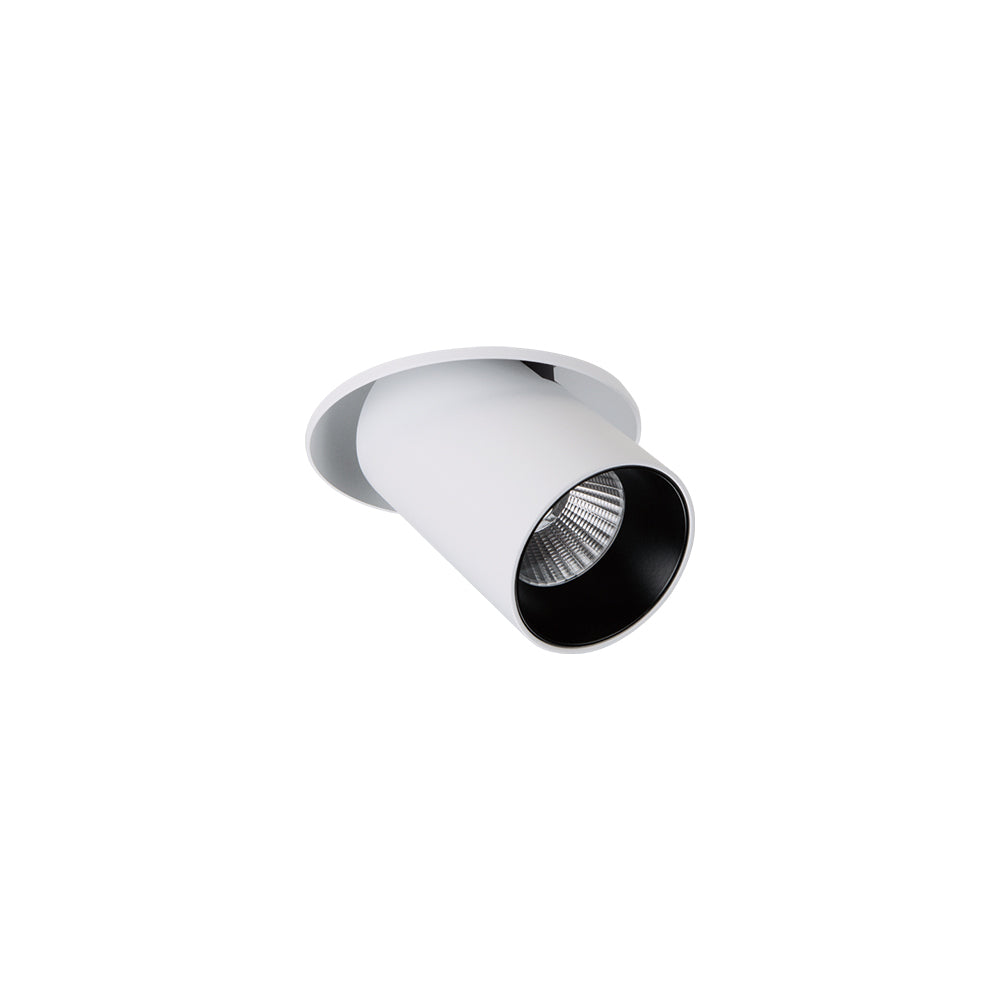

Archilight SmartR 1T25 Downlight 30W
Log in to see priceLED light source, using the first-line brand high index finger chip, Ra≥90, no red UV radiation, very little heat dissipation.
-
BrandArchilight
-
SeriesArchilight Smart S1 Series
-
Power Rating25 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length11.2 cm
-
Width9.9 cm
-
Height9.9 cm
-
Weight1.1 kg
::specification::
Frequently Asked Questions
What are the main specifications of the Archilight SmartR 1T25 Downlight 30W family?
This downlight family is rated at 25W and delivers 2550 lumens across the listed variants. It uses a high-CRI LED light source with CRI 90, has a 50,000-hour lifetime, includes a driver, and comes with a 5-year warranty. The body dimensions are 112 mm long, 99 mm wide, and 99 mm high, with a product weight of 1.1 kg.
What beam angle options are available in this product family?
The Archilight SmartR 1T25 Downlight 30W family is available with 23 degree, 36 degree, and 60 degree beam angles. This gives buyers the option to choose a narrower, medium, or wider light distribution depending on the application. Beam angle availability is shown at the variant level within the family.
What colour temperature options are offered for this downlight?
This family is available in 2700K, 3000K, 4000K, and 5000K variants. That range covers warmer lighting through to cooler, more neutral or crisp white light preferences. The available colour temperatures apply across the family alongside the different beam angle choices.
Is the Archilight SmartR 1T25 Downlight 30W dimmable?
The product family is listed as dimmable optional. That means dimming is available depending on the selected configuration or control compatibility, rather than being standard across every use case by default. Buyers should confirm the exact dimming option needed when selecting the variant.
What type of applications is this downlight suitable for?
This is an interior LED downlight family intended for architectural and commercial lighting applications where consistent output and high colour rendering are important. With 2550 lumens, CRI 90, and multiple beam angle and colour temperature choices, it is suited to spaces that need both performance and flexibility. The family is positioned for professional B2B lighting use rather than basic decorative lighting.
Does this downlight family use a driver, and is it included?
Yes, the listed variants in this family include a driver. That means the product is supplied as a driver-included downlight family rather than requiring a separate driver to be specified from the child data provided here. This is consistent across all variants shown.
What cut-out size does this product family use?
All listed child variants in this family show a 90 mm cut-out, with both minimum and maximum cut-out values at 90 mm. That indicates a consistent cut-out requirement across the available beam angle and colour temperature options. This helps simplify specification across the family.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Smart S1 Series Models
4 other models| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight SmartS 1 Downlight TDM 12W | 12W | 90 | Optional | 90 Millimeter | View |
| Archilight SmartS 1 Downlight 12W | 12W | 90 | Optional | 90 Millimeter | View |
| Archilight SmartS 1T Downlight 12W | 12W | 90 | Optional | 100 Millimeter | View |
| Archilight SmartR 125 Downlight 30W | 25W | 90 | Optional | 90 Millimeter | View |
