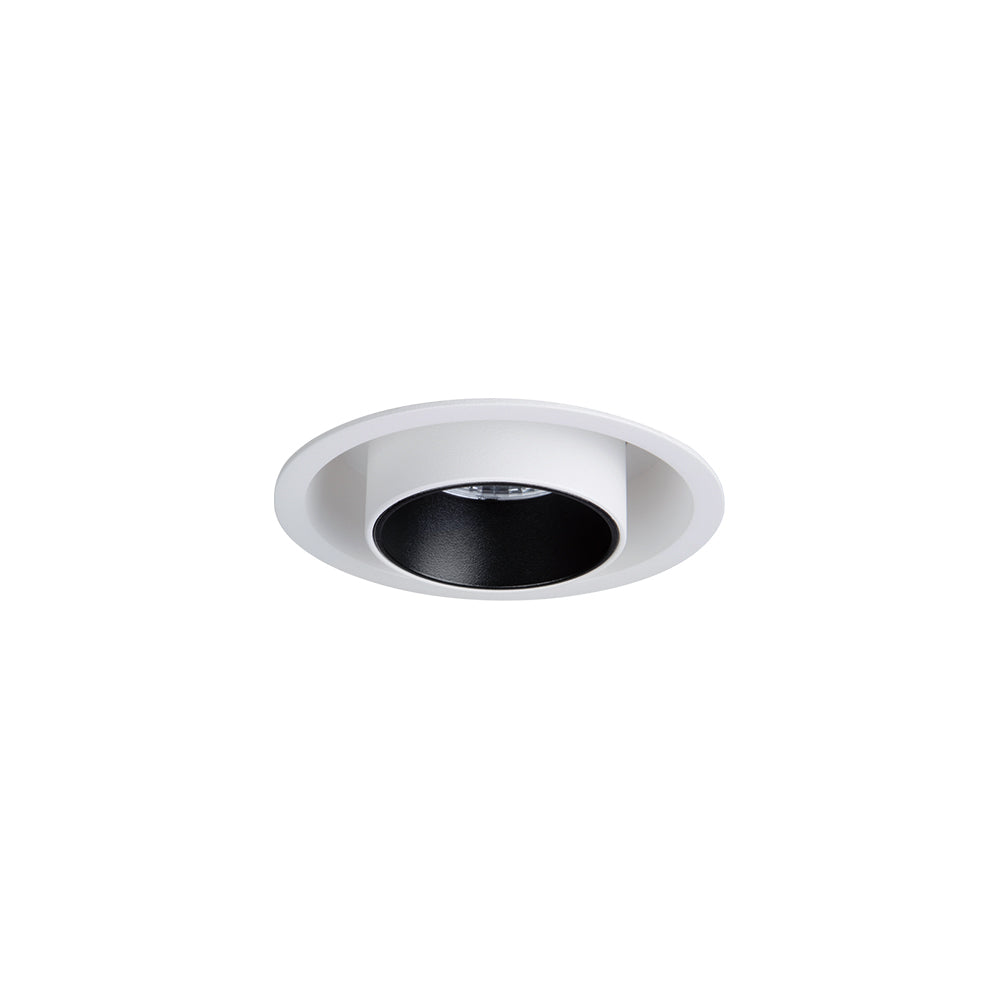

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

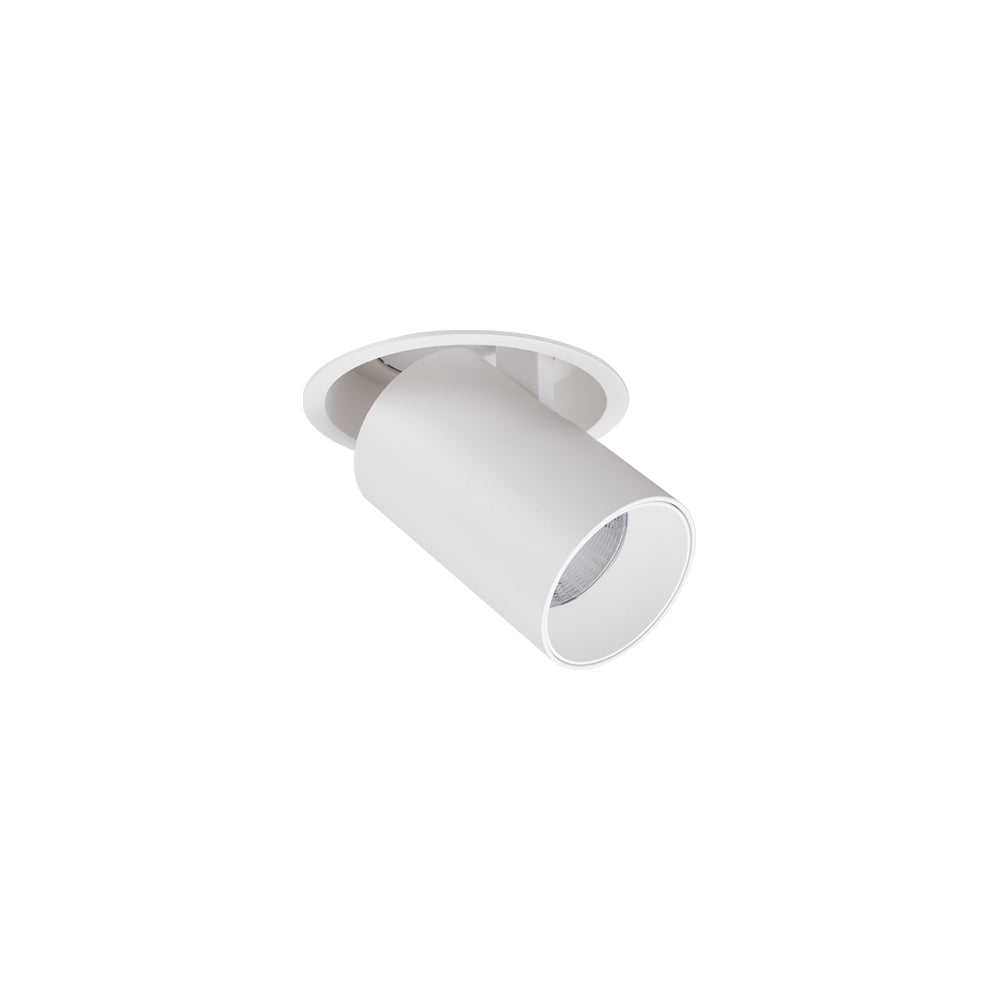

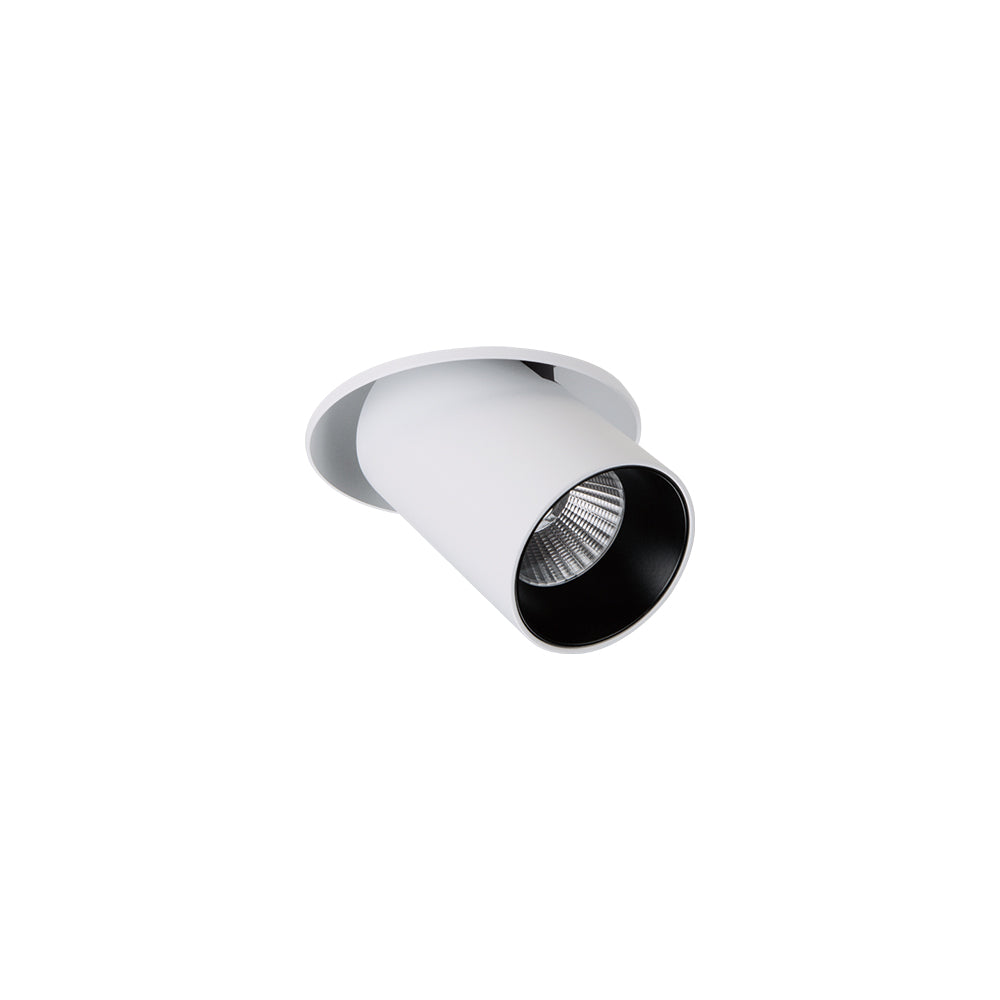

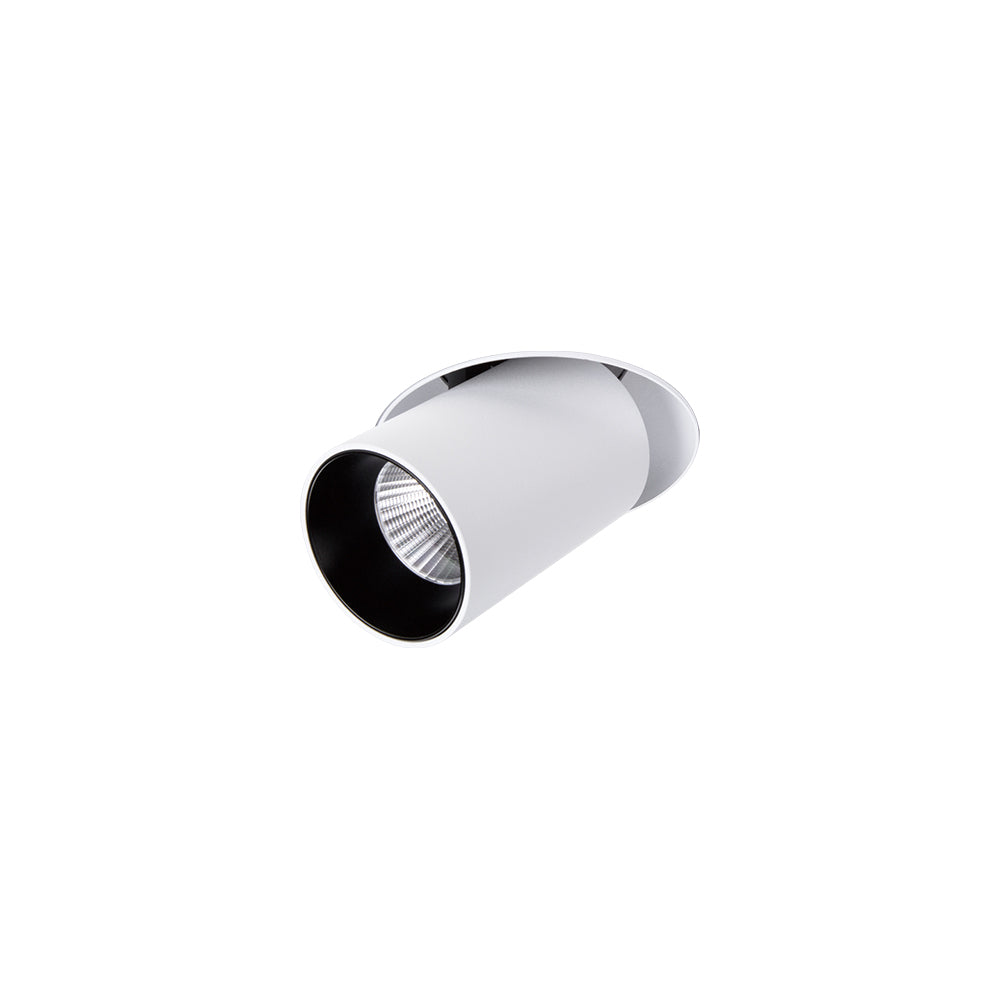

Archilight SmartS 1T Downlight 12W

SKU KC-010172B01-23D-2700K-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-010172B01-23D-2700K-W

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight SmartS 1T Downlight 12WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour
KC-010172B01-23D-2700K-W	Warm White 2700K
KC-010172B01-23D-3000K-W	Warm White 3000K
KC-010172B01-23D-4000K-W	Natural White 4000K

Specifications

Input: 230V AC
Power rating: 12 W
Beam angle: 23° / 38° / 50°
Brightness: 792 lm
Efficacy: ≥66 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Dimmable Optional
Tiltable: Adjustable
Mounting: Recessed
Driver: Driver Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, Class II

Technical drawings

Archilight SmartS 1T Downlight 12W Dimensions (mm) — Dimensions (mm)

Archilight SmartS 1T Downlight 12W Finish colour — Finish colour

Downloads

Datasheet1

Archilight SmartS 1T Downlight 12W datasheetSmart_S_1T.pdf PDF Download

FAQ

What type of lighting applications is the Archilight SmartS 1T Downlight 12W designed for?

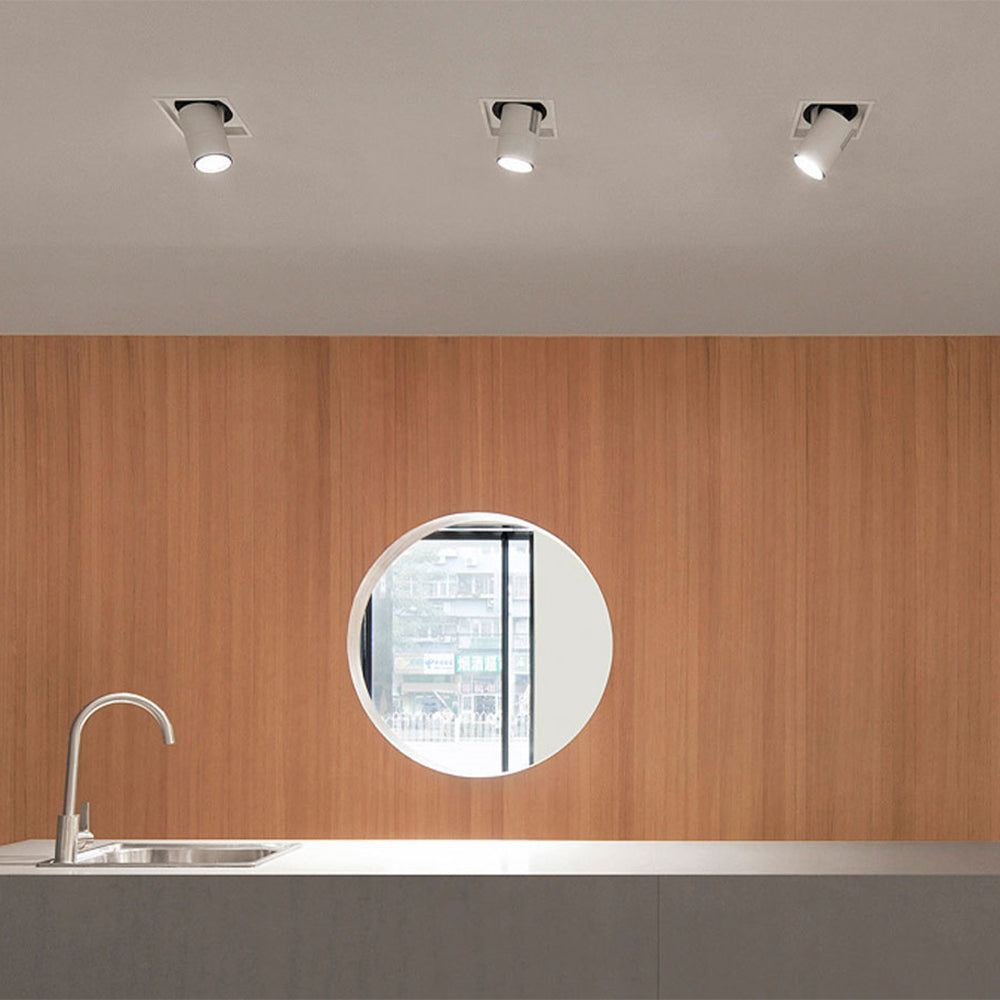

The SmartS 1T is a recessed gimbal spotlight intended for both commercial and residential interior projects. Its adjustable design, CRI above 90, and low glare performance make it suitable for spaces where visual comfort and accurate colour appearance matter.

What beam angles are available across the SmartS 1T Downlight 12W family?

This parent family is available in 23 degree, 36 degree, and 60 degree beam options. That gives buyers a choice between narrower and wider light distribution while staying within the same 12W product platform.

What colour temperature options are offered for this downlight family?

The SmartS 1T Downlight 12W family is offered in 2700K, 3000K, 4000K, and 5000K variants. These options let buyers select a warmer or cooler light appearance depending on the project environment.

What are the core performance specifications of the Archilight SmartS 1T Downlight 12W?

This downlight has a 12W power rating, CRI 90, and a rated lifetime of 50,000 hours. Child variants in this family are listed at 1080 lumens, and the product is designed for 230V power input.

Is the driver included, and is this downlight dimmable?

The family data shows the driver is included with the product. It is also listed as dimmable optional, so dimming capability depends on the compatible dimming setup used for the project.

What cut-out size does the SmartS 1T Downlight 12W family require?

All listed child variants in this parent family show a 100 mm cut-out size, with both minimum and maximum cut-out values at 100 mm. That consistency makes selection easier when comparing beam angle and colour temperature options within the range.

Is this downlight suitable for projects where glare control and colour quality are important?

Yes. The product description states the Smart series combines CRI above 90 with a low UGR below 19, which supports accurate colour rendering and reduced glare. That makes it a strong fit for interiors where comfort and presentation quality are priorities.

What physical size and finish does the Archilight SmartS 1T Downlight 12W come in?

The parent model dimensions are 96 mm long, 96 mm wide, and 111 mm high, with a listed weight of 1.3 kg. The child variants shown for this family are finished in white.
