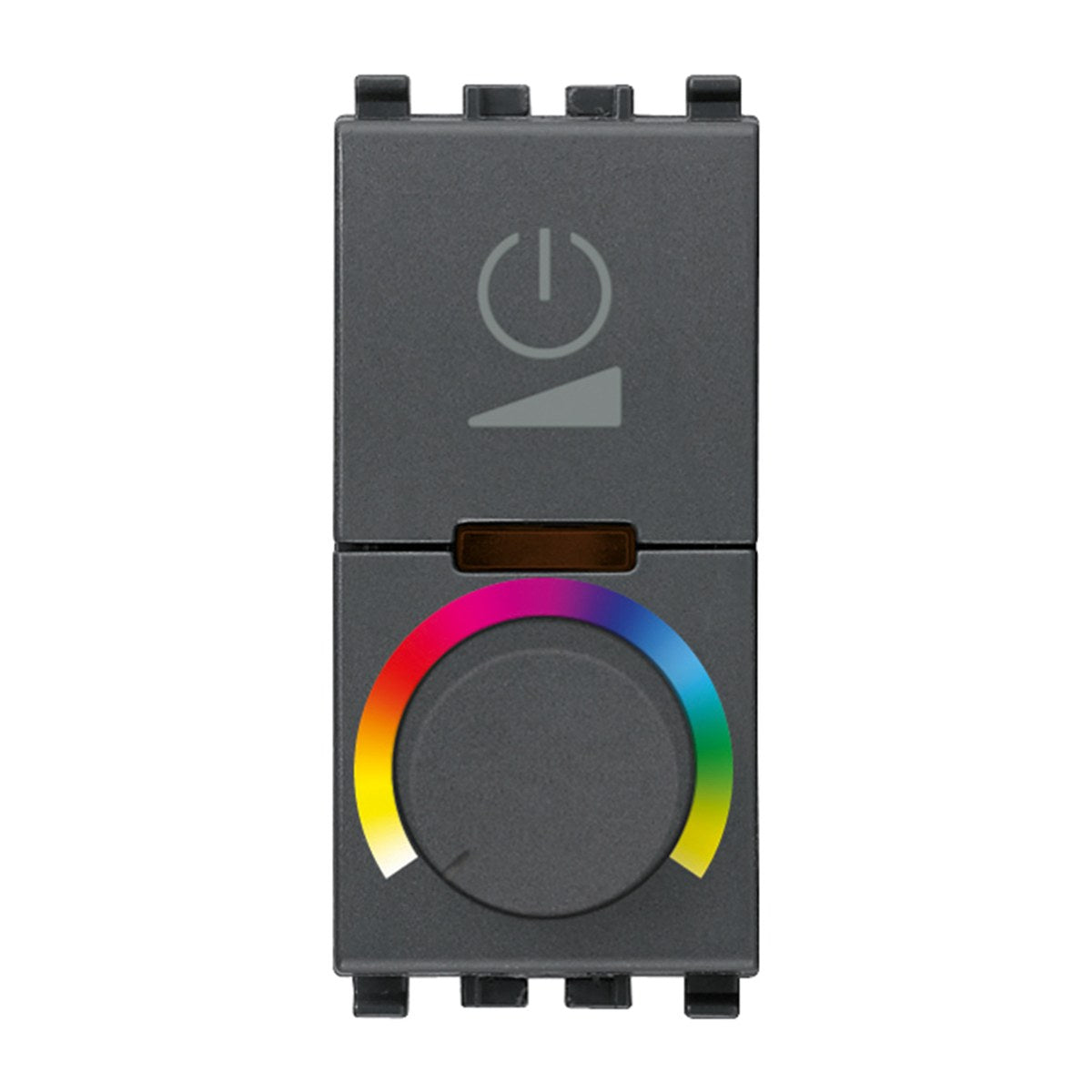

Vimar Eikon RGB Rotary Dimmer 230V Grey

230V Grey
SKU VM-20138
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

In stock
|

Overview

VM-20138 is Vimar EIKON 20138, RGB dimmer 230V grey.

RGB dimmer 230 V~ 50 Hz for: RGB LED lamps, RGB LED electronic transfomers (01876), ON/OFF and brightness control with built-in push button or from peripheral NO push buttons, colour control via rotary potentiometer, visible in darkness, grey. Not for Isoset enclosures

Specifications

VM-20138Specifications from the official datasheet

Technical data

Product type
Dimmer
Operating method
Turn button
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Click in mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230 - 230.01 V
Frequency
50 - 50.01 HZ
Control voltage
230 - 230.01 V
Device width
22.3 mm
Device height
49 mm
Device depth
61 mm

Packaging

EAN
8007352469020
Packed size (cm)
5.2 × 3.9 × 6.2
Packed weight
59.9 g
Pieces per box
5

Certifications

Certifications
CE marking (EU), TISI (Thailand), WEEE Directive

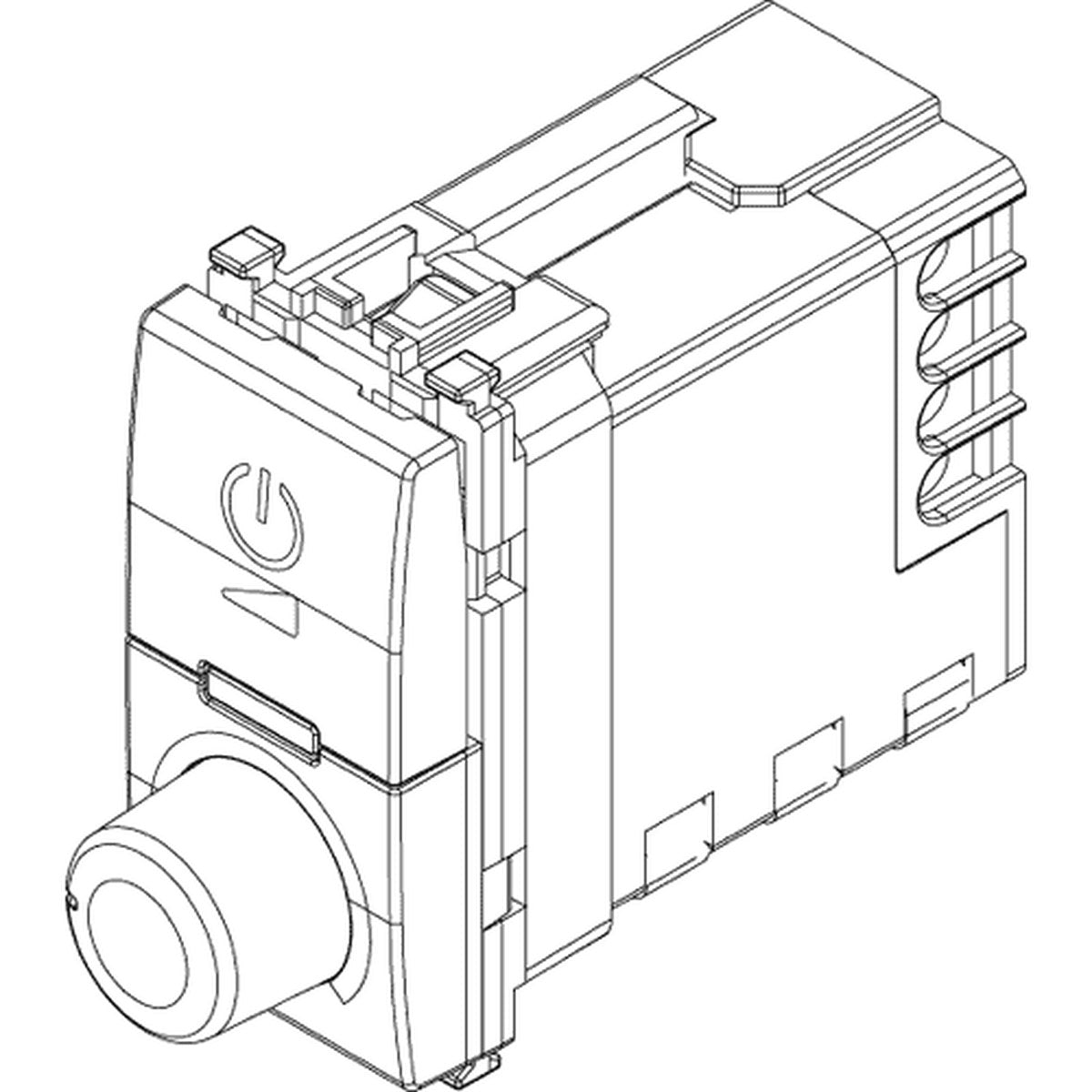

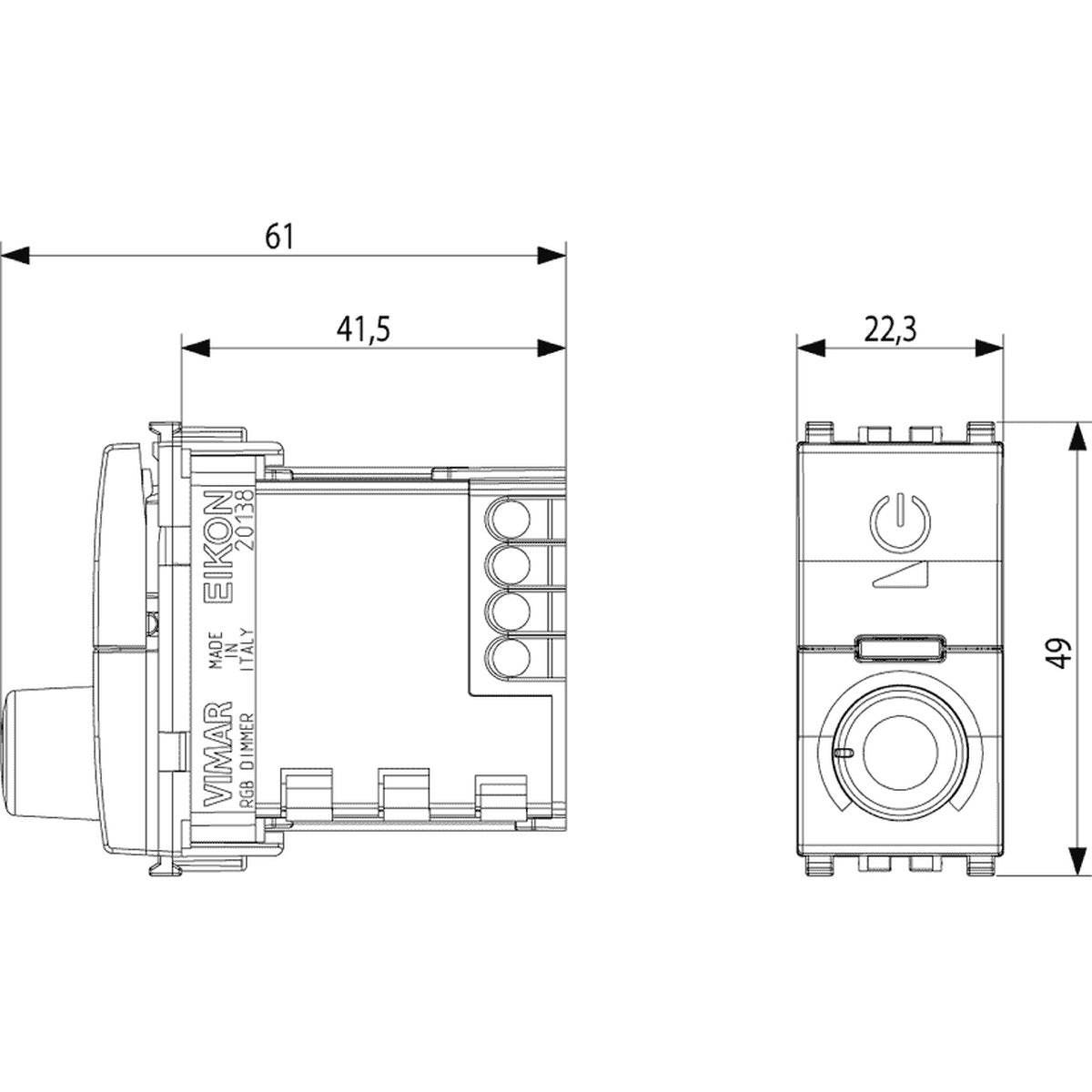

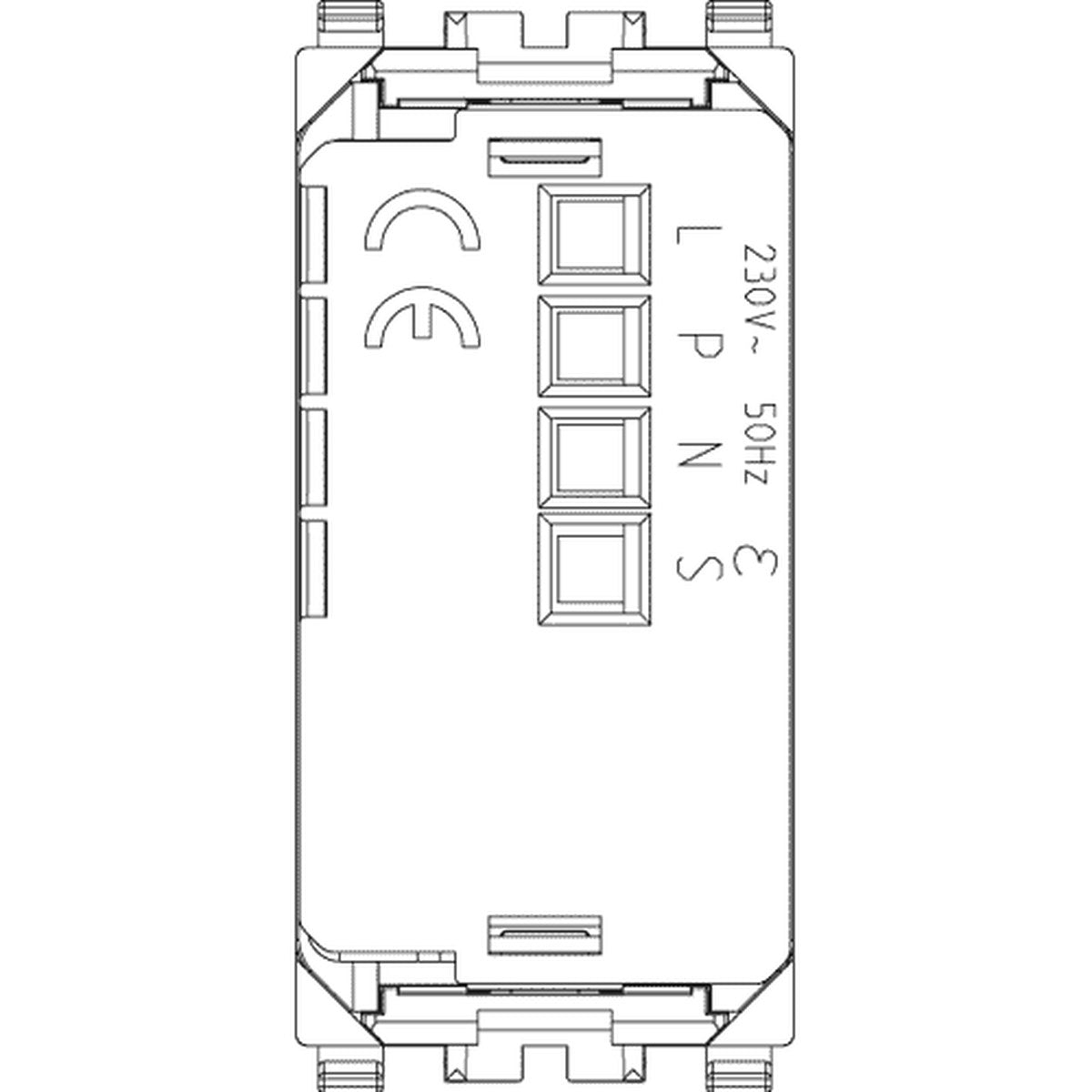

Technical drawings

VM-20138 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-20138 used for?

The Vimar VM-20138 is an Eikon RGB rotary dimmer module for product pages or projects that require a grey dimmer control in the Vimar Eikon Exé range. It is suited to B2B switch and dimmer specifications where the design finish and series match are important.

What voltage is listed for the Vimar Eikon RGB Rotary Dimmer VM-20138?

This model is identified as a 230V RGB rotary dimmer. The product data provided does not include additional electrical ratings beyond the 230V designation in the product name.

Which Vimar series does VM-20138 belong to?

VM-20138 is listed under the Vimar Eikon Exé switch and dimmer categories. Its grey finish and Eikon Exé styling make it relevant for projects using that Vimar design series.

What operating temperature range is specified for this dimmer?

The specified temperature range for VM-20138 is -20 °C to 50 °C. This is useful for checking whether the product fits the environmental requirements of a planned commercial or residential specification.

What finish and weight does the VM-20138 have?

The VM-20138 is supplied in a grey finish. Its listed weight is 0.0599 kg, making it a lightweight switch and dimmer module within the Eikon Exé range.

What warranty period is listed for the Vimar VM-20138?

The listed warranty period for this product is 3 years. Buyers should use this model-specific warranty value when comparing it with other switch and dimmer modules.
