Overview

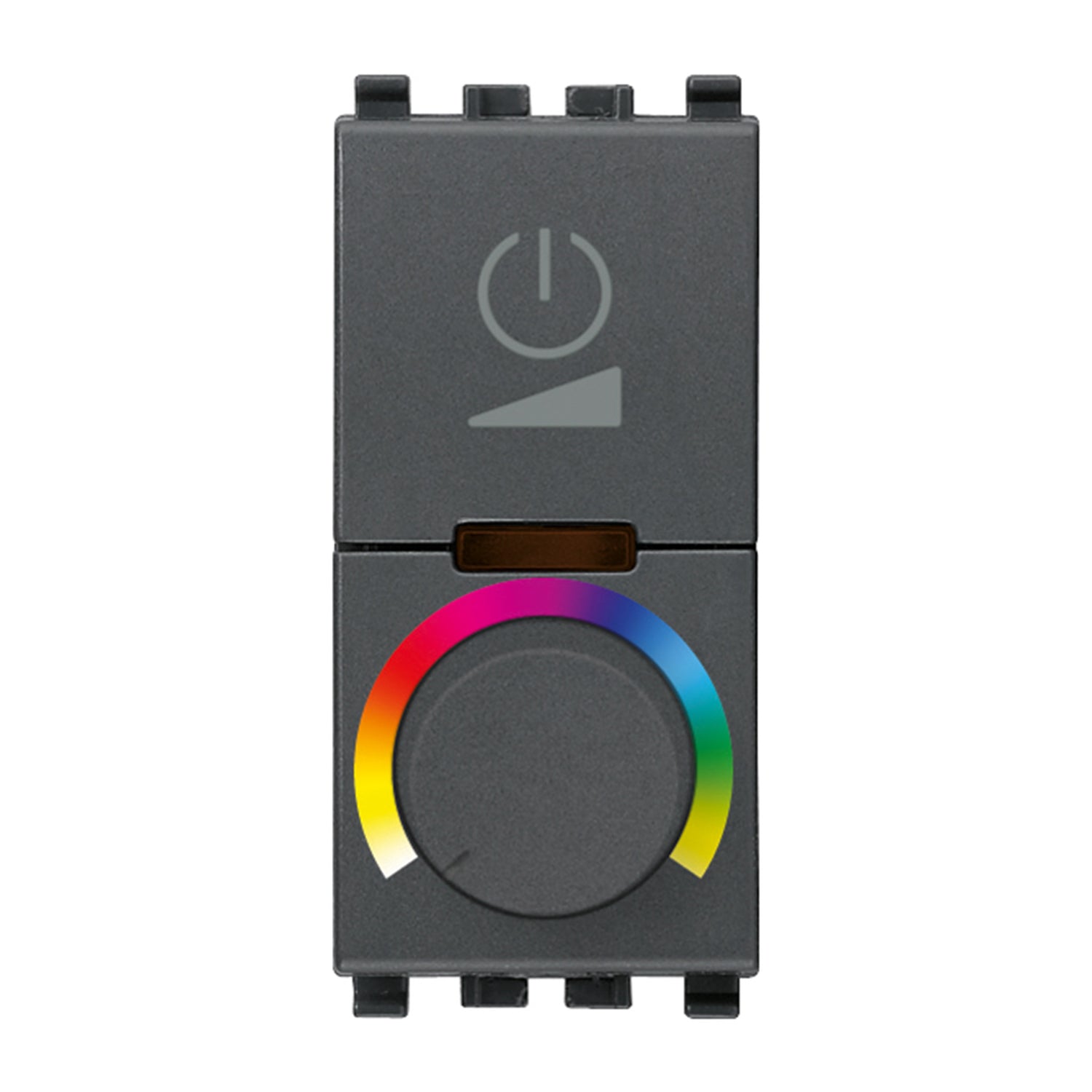

VM-20138 is Vimar EIKON 20138, RGB dimmer 230V grey.
RGB dimmer 230 V~ 50 Hz for: RGB LED lamps, RGB LED electronic transfomers (01876), ON/OFF and brightness control with built-in push button or from peripheral NO push buttons, colour control via rotary potentiometer, visible in darkness, grey. Not for Isoset enclosures
Specifications
Technical data
- Product type
- Dimmer
- Operating method
- Turn button
- Applicable with button
- Yes
- Applicable with movement sensor
- No
- Applicable with presence indicator
- No
- Applicable with time switch/timer
- No
- Applicable with transmission button
- No
- Applicable with infrared button
- No
- Mounting method
- Flush-mounted
- Type of fastening
- Click in mounting
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- Colour
- Grey
- RAL-number (similar)
- 7024
- Transparent
- No
- Suitable for degree of protection (IP)
- IP40
- Nominal voltage
- 230 - 230.01 V
- Frequency
- 50 - 50.01 HZ
- Control voltage
- 230 - 230.01 V
- Device width
- 22.3 mm
- Device height
- 49 mm
- Device depth
- 61 mm
Packaging
- EAN
- 8007352469020
- Packed size (cm)
- 5.2 × 3.9 × 6.2
- Packed weight
- 59.9 g
- Pieces per box
- 5
Certifications
- Certifications
- CE marking (EU), TISI (Thailand), WEEE Directive

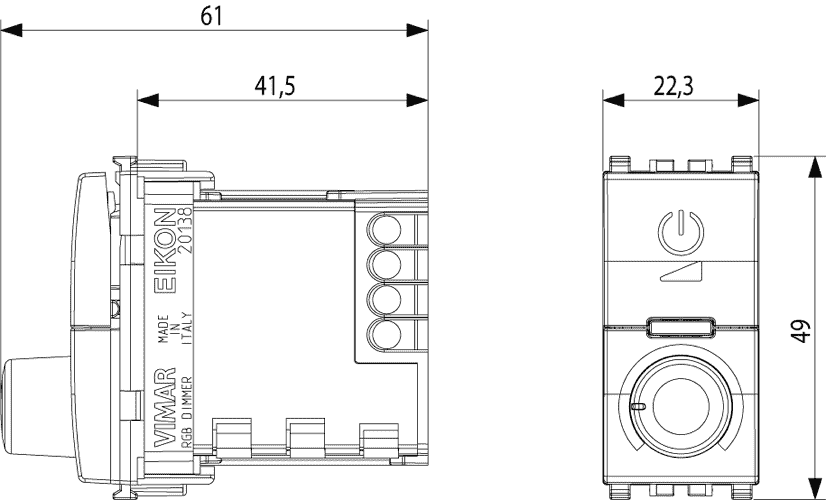

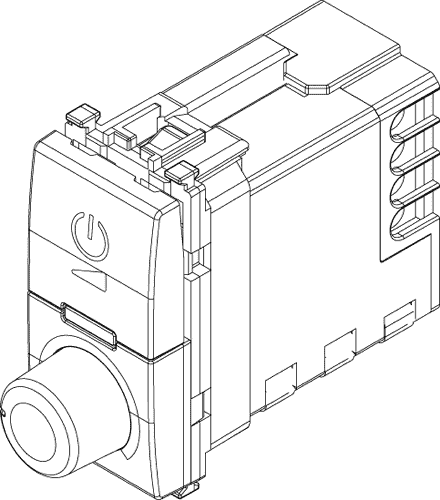

Technical drawings
Downloads
Datasheet1
Certificates6
Catalogues15
FAQ
What is the Vimar VM-20138 used for?
The Vimar VM-20138 is an Eikon RGB rotary dimmer module for product pages or projects that require a grey dimmer control in the Vimar Eikon Exé range. It is suited to B2B switch and dimmer specifications where the design finish and series match are important.
What voltage is listed for the Vimar Eikon RGB Rotary Dimmer VM-20138?
This model is identified as a 230V RGB rotary dimmer. The product data provided does not include additional electrical ratings beyond the 230V designation in the product name.
Which Vimar series does VM-20138 belong to?
VM-20138 is listed under the Vimar Eikon Exé switch and dimmer categories. Its grey finish and Eikon Exé styling make it relevant for projects using that Vimar design series.
What operating temperature range is specified for this dimmer?
The specified temperature range for VM-20138 is -20 °C to 50 °C. This is useful for checking whether the product fits the environmental requirements of a planned commercial or residential specification.
What finish and weight does the VM-20138 have?
The VM-20138 is supplied in a grey finish. Its listed weight is 0.0599 kg, making it a lightweight switch and dimmer module within the Eikon Exé range.
What warranty period is listed for the Vimar VM-20138?
The listed warranty period for this product is 3 years. Buyers should use this model-specific warranty value when comparing it with other switch and dimmer modules.
