Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

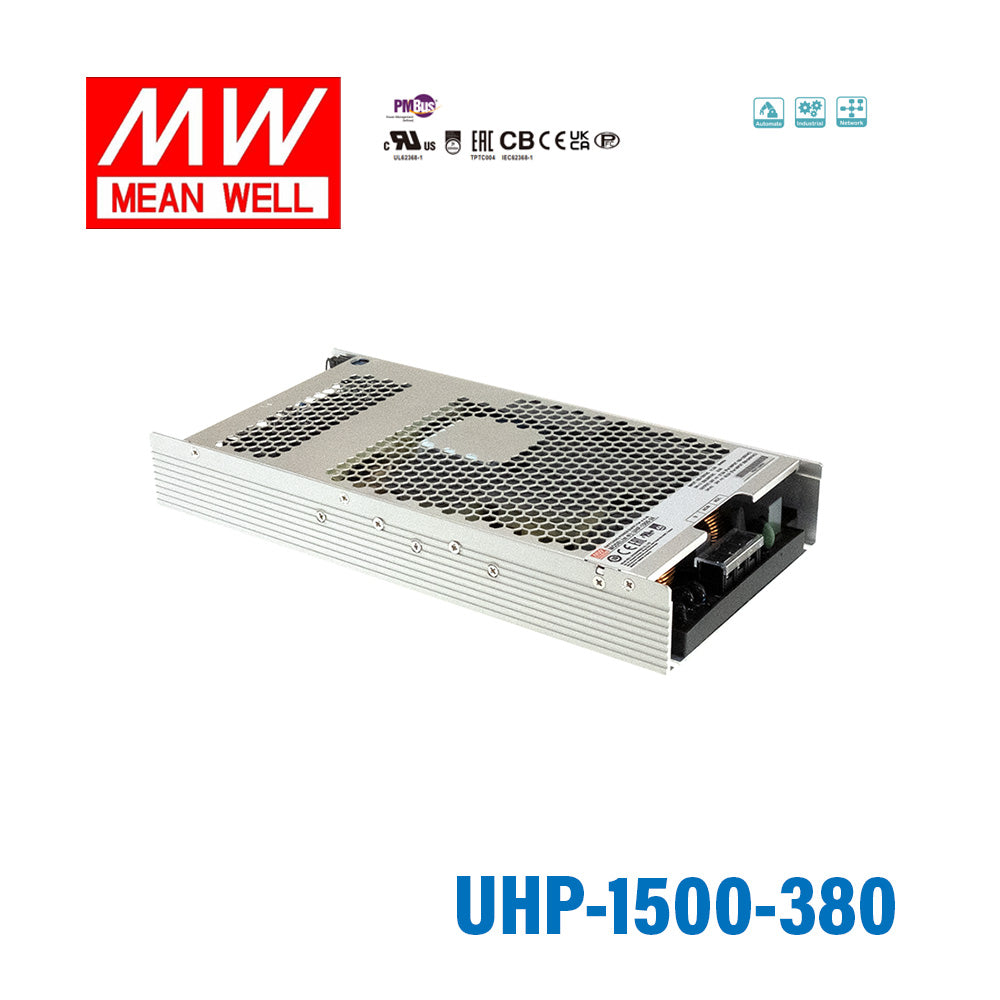

Mean Well UHP-1500-380 Power Supply 1500W 380V 4.5A

fanless and conduction-cooledslim and 1U(41mm)output voltage and current level programmable

SKU:

UHP-1500-380

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features:⦁ High voltage output (115/230/380V)⦁ Fanless and conduction-cooled design⦁ Slim and 1U Low profile (41mm)⦁ Built-in active PFC function⦁ DC 12V/0.4A auxiliary power⦁ Output voltage and constant current level programmable (PV/PC)⦁ Protections: Short circuit / Over load / Over voltage / Over temperature⦁ Built-in remote ON-OFF control and DC OK signal⦁ Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)⦁ LED indicator for power on⦁ Optional PMBus or CANBus protocol⦁ 5 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 250 - 370VDCAC Inrush Current (max.)Cold start 60A/230VACOverload Protection105-125% rated output powerProtection type: Constant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Short CircuitConstant current limiting, unit will shutdown after 2-5 sec, re-power on to recover.Over-voltage Protection(428 - 460V)Protection type:vShut down O/P voltage,re-power on to recoverOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after temperature goes downWithstand VoltageOVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDCWorking Temperature-30 - +70℃ (Refer to “Derating Curve")Safety StandardsUL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approvedDimension (LxWxH)290x140x41mm

Frequently Asked Questions

What are the main output specifications of the Mean Well UHP-1500-380?

The UHP-1500-380 is a 1500W enclosed AC-DC power supply with a 380V output. Its rated output current is 4.5A, making it a high-voltage option for applications that need substantial DC power from a slim form factor.

What makes the UHP-1500-380 different from standard enclosed power supplies?

This model stands out for its 380V high-voltage output, fanless conduction-cooled design, and slim 1U low-profile 41mm height. It is aimed at buyers who need high power density without adding fan noise or extra cooling maintenance.

Is the UHP-1500-380 a good choice for space-constrained equipment?

Yes. The unit uses a slim 1U low-profile design at 41mm, which helps in applications where vertical space is limited. That makes it easier to specify for compact industrial or enclosure-based systems that still need 1500W output capacity.

Can this power supply be used in noise-sensitive or dust-sensitive environments?

Its fanless, conduction-cooled design makes it well suited for environments where reduced acoustic noise and lower airflow-related dust intake are important. This design can be preferable in enclosed equipment or applications where fan maintenance is a concern.

What protection and control features are included on the UHP-1500-380?

This model includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides remote ON-OFF control, a DC OK signal, and programmable output voltage and constant current level through PV/PC functionality.

What operating environment and warranty should buyers expect for this model?

The UHP-1500-380 is rated for operation from -30°C to 70°C and for altitude up to 2000 meters under the listed conditions. Mean Well also specifies a 5-year warranty for this model, which is useful for long-life commercial and industrial purchasing decisions.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well UHP-1500-380E Power Supply 1500W 380V Economic Model 3.95A	1501W	380V	3.95A	View
Mean Well UHP-1500-230 Power Supply 1500W 230V 6.95A	1500W	230V	6.95A	View
Mean Well UHP-1500-115 Power Supply 1500W 115V 13.05A	1500.75W	115V	13.05A	View
