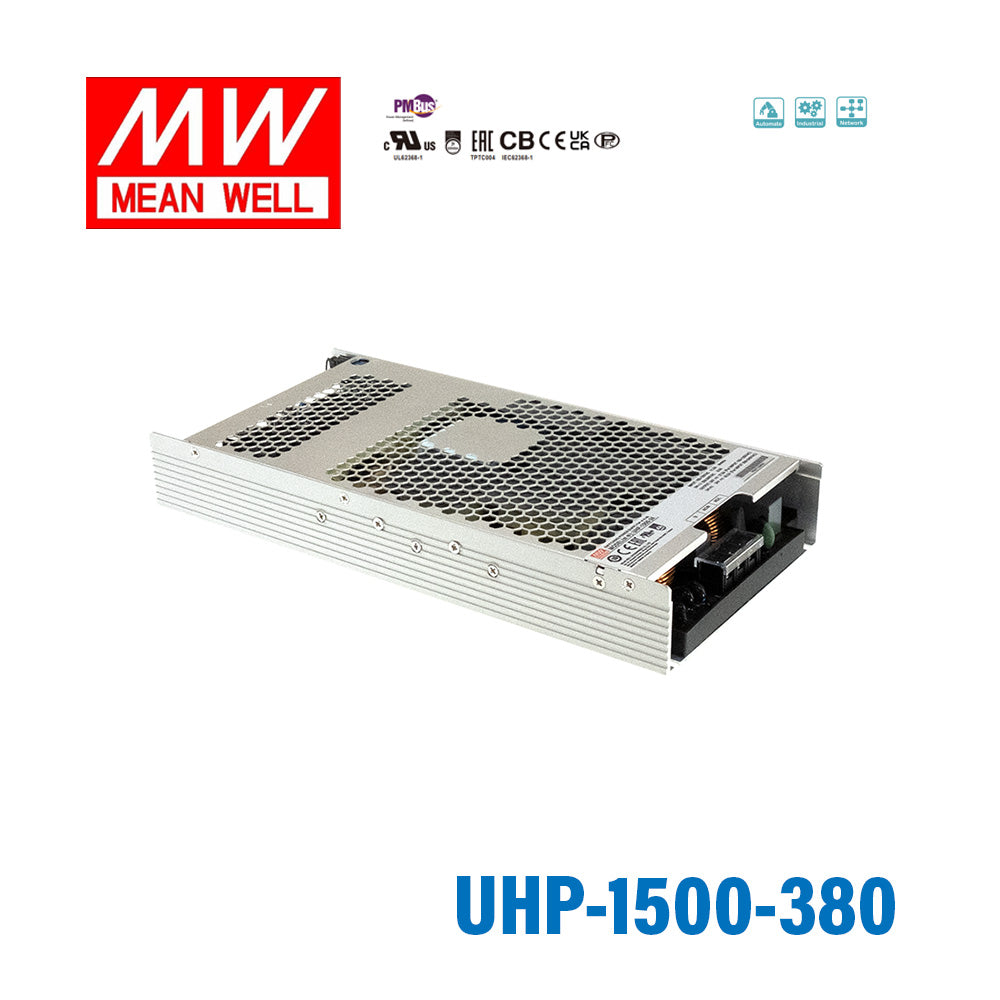

Mean Well UHP-1500-380 Power Supply 1500W 380V 4.5A

fanless and conduction-cooledslim and 1U(41mm)output voltage and current level programmable

SKU UHP-1500-380

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

UHP-1500-380 is the model of this series: typical efficiency 95.5%.

UHP-1500 series is a 1500W single-output slim type power supply with 1U 41mm of low profile design. Adopting the full range 90~264Vac input, the entire series provides an output voltage line of 115, 230 and 380Vdc. In addition to the high efficiency up to 95.5%, that the whole series operates from -30℃ ~ 70℃ under air convection without fan. UHP-1500 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1. UHP-1500 series serves as a high performance power supply solution for various industrial and DC centralized bus applications.

Features

High voltage output (115/230/380Vdc)
Fanless and conduction-cooled design
Slim and 1U Low profile (41mm)
Built-in active PFC function
DC 12V/0.4A auxiliary power
Output voltage 50~120% and constant current 20~100% programmable(PV/PC)
Protections: Short circuit / Over load / Over voltage / Over temperature
Built-in remote ON-OFF control and DC OK signal
Operating altitude up to 2000 meter (E type Note.6, Blank/PM type Note.7)
LED indicator for power on
Built-in PMBus or CANBus protocol
5 years warranty

Specifications

UHP-1500-380Specifications from the official datasheet (2025-12-15 edition)

OUTPUT

DC VOLTAGE(DEFAULT): 380V
CURRENT (FACTORY DEFAULT): 3.95A
RATED CURRENT (Max.): 4.5A
POWER (FACTORY DEFAULT): 1500W
RATED POWER (Max.)^Note.9: 1503W
RIPPLE & NOISE (Max.)^Note.2: 3800mVp-p
FULL POWER VOLTAGE RANGE: 334~400V
VOLTAGE ADJ. RANGE: By built-in potentiometer, SVR 260~400V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.95/230VAC at full load
EFFICIENCY (Typ.): 95.5%
AC CURRENT (Typ.): 8A/230VAC
INRUSH CURRENT (Typ.): Cold start 60A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER LOAD: 105~125% rated output power Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover.
SHORT CIRCUIT: Constant current limiting, unit will shutdown after 5 sec, re-power on to recover.
OVER VOLTAGE: 420 ~ 460V Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE: Protection type :Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5}: Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 5}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
REMOTE ON/OFF CONTROL: Power ON : Short circuit Power OFF : Open circuit
AUXILIARY POWER: 12V @ 0.4A tolerance ±10%, ripple=150mVp-p
DC-OK SIGNAL: The TTL signal out, PSU turn on = 4.4 ~ 5.5V ; PSU turn off = -0.5 ~ 0.5V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^{Note 8}: OVC Ⅲ I/P-O/P:6KVDC I/P-FG:4KVDC O/P-FG:4KVDC
ISOLATION RESISTANCE^{Note 8}: I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-6-2 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-6-2	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 597.3K hrs min. Telcordia SR-332 (Bellcore) ; 63.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 290*140*41mm (L*W*H)
PACKING: 2.51kg ; 6pcs/16.06kg/0.91CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance :includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. PV/PC functions when users do not use SVR.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Refer to derating curve.

Technical drawings

UHP-1500-380 BLOCK DIAGRAM — BLOCK DIAGRAM

UHP-1500-380 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

UHP-1500-380 DERATING CURVE — DERATING CURVE

UHP-1500-380 UHP-1500-HV series — UHP-1500-HV series

UHP-1500-380 2.Remote ON-OFF Control — 2.Remote ON-OFF Control

UHP-1500-380 FUNCTION MANUAL (Blank/PM type) — FUNCTION MANUAL (Blank/PM type)

UHP-1500-380 3.Remote ON-OFF Control — 3.Remote ON-OFF Control

UHP-1500-380 4.DC-OK Signal — 4.DC-OK Signal

UHP-1500-380 MECHANICAL SPECIFICATION (For — MECHANICAL SPECIFICATION (For

UHP-1500-380 MECHANICAL SPECIFICATION (Blank/PM — MECHANICAL SPECIFICATION (Blank/PM

UHP-1500-380 INSTALLATION — INSTALLATION

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
Test and measurement instrument
Laser related machine
Charging related equipment
DC centralized bus(Lighting)

Downloads

Certificates4

UL Certificate (UHP-1500)(EN) PDF Download

CB Certificate (UHP-1500)(EN) PDF Download

EMC Certificate (UHP-1500)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

Other files1

Testing Report (UHP-1500-380)(EN) PDF Download

FAQ

What are the main output specifications of the Mean Well UHP-1500-380?

The UHP-1500-380 is a 1500W enclosed AC-DC power supply with a 380V output. Its rated output current is 4.5A, making it a high-voltage option for applications that need substantial DC power from a slim form factor.

What makes the UHP-1500-380 different from standard enclosed power supplies?

This model stands out for its 380V high-voltage output, fanless conduction-cooled design, and slim 1U low-profile 41mm height. It is aimed at buyers who need high power density without adding fan noise or extra cooling maintenance.

Is the UHP-1500-380 a good choice for space-constrained equipment?

Yes. The unit uses a slim 1U low-profile design at 41mm, which helps in applications where vertical space is limited. That makes it easier to specify for compact industrial or enclosure-based systems that still need 1500W output capacity.

Can this power supply be used in noise-sensitive or dust-sensitive environments?

Its fanless, conduction-cooled design makes it well suited for environments where reduced acoustic noise and lower airflow-related dust intake are important. This design can be preferable in enclosed equipment or applications where fan maintenance is a concern.

What protection and control features are included on the UHP-1500-380?

This model includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides remote ON-OFF control, a DC OK signal, and programmable output voltage and constant current level through PV/PC functionality.

What operating environment and warranty should buyers expect for this model?

The UHP-1500-380 is rated for operation from -30°C to 70°C. Mean Well specifies a 5-year warranty for this model, which is useful for long-life commercial and industrial purchasing decisions.
