Vimar Flush Mounting Box 3M Light Blue
Log in to see priceOverview
VM-V71303 is Vimar V71303, flush mounting box 3M light blue.
3-module flush mounting box, (Glow Wire 650 Β°C), for masonry walls, light blue
Features
- Plenty of space of internal wiring
- Wide range of accessories available: anti-mortar covers, coupling joints to create multiple series of boxes
- Knockouts designed for the insertion of pipes with various cross-sections
- Rack for fixing the dividing screen (patented)
- Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing
Specifications
VM-V71303Specifications from the official datasheet
Technical data
- Product type
- Box/housing for built-in mounting in the wall/ceiling
- Mounting method
- Flush-mounted
- Shape
- Rectangular
- Construction type
- Device connection box (round/square)
- Provided with revolving ring
- No
- Couplable
- Yes
- Length
- 59 mm
- Width
- 96 mm
- Depth
- 0 - 49.8 mm
- Inner depth
- 50 mm
- For number of device inserts
- 3
- Mounting switching equipment
- Screwing
- With screws
- No
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- For tube diameter
- 20/25 mm
- Pipe locking
- No
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 12
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Blue
- Degree of protection (IP)
- IP00
- Transparent cover
- No
- Cover attachment
- Screwed
- Sealable
- No
- With screening
- No
- Airtight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
Packaging
- EAN
- 8007352079342
- Packed size (cm)
- 10.6 Γ 7.4 Γ 5
- Packed weight
- 32.27 g
- Pieces per box
- 15
Certifications
- Certifications
- CE marking (EU), Product Environm. Profile, IMQ (Italy)

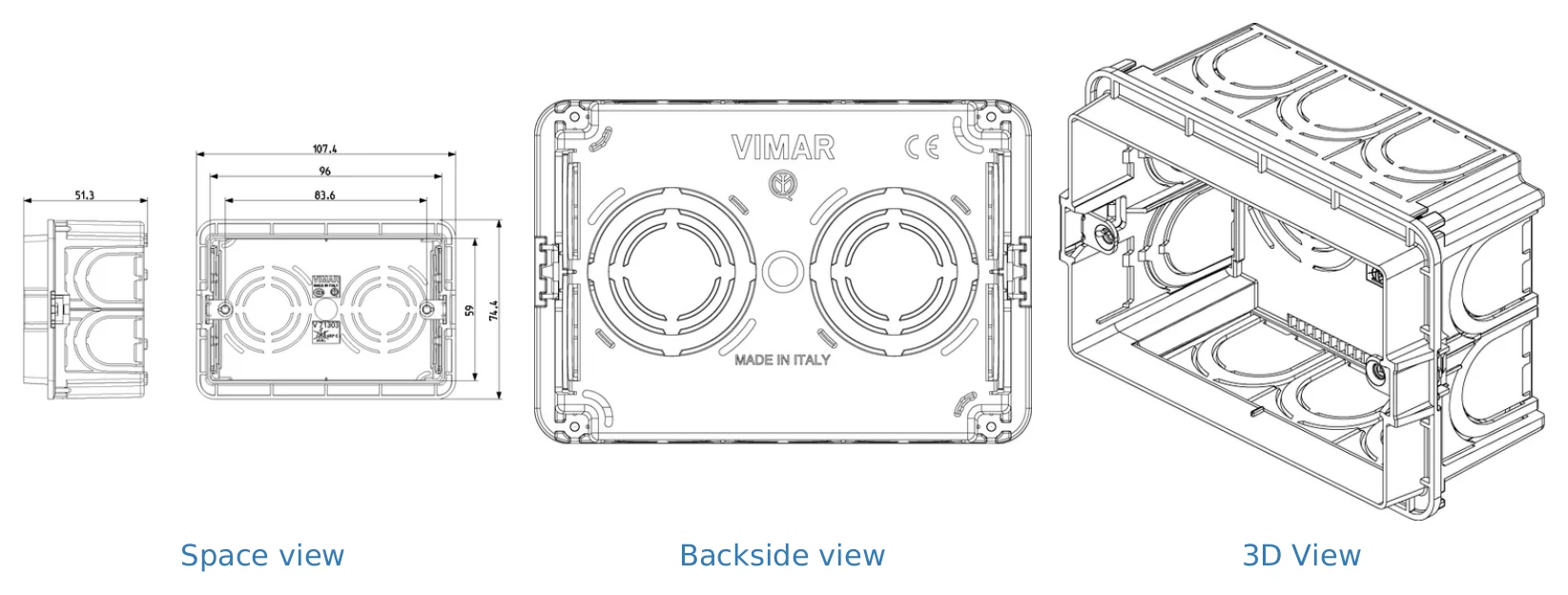

Technical drawings
