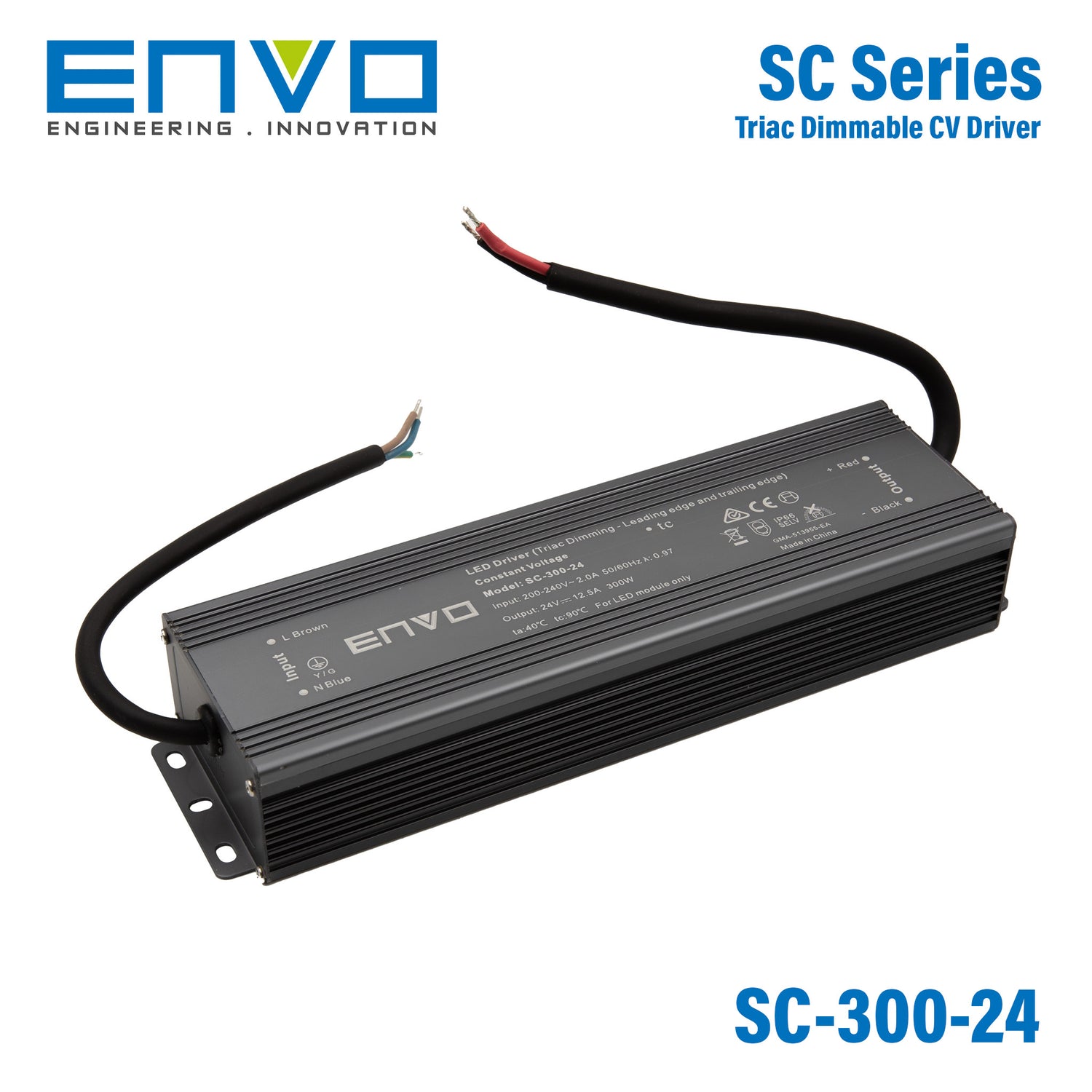

AC Triac Dimmable driver 200-240Vac 300W 24V No Load Requirement 12.5A
Please Login for Pricing
Description
Description
- Output constant voltage
- Range AC input: 200-240VA
- Built-in active PFC function
- Efficiency :up to 89%
- Protections:short circuit/over loading/over temperature
- Full protection aluminum housing easy installation
- IP66 design for outdoor installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility
- flicker-free dimming
- Suitable for LED lighting and moving sign applications
Specifications
Specifications
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating300 Watt
-
Output Voltage24 Volt
-
Rated Current12.5 Ampere
-
Input Voltage200V~240V
-
Standards MetCE,RCM,SAA,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty5 Year
-
Length27.6 cm
-
Width7.8 cm
-
Height4.7 cm
-
Weight1.67 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Envo SC-300-24 designed for?
The Envo SC-300-24 is a 300W constant-voltage power supply designed for 24V LED lighting and moving sign applications. It is intended for buyers who need a high-output 24V unit with TRIAC dimming support.
What are the main electrical specifications of the SC-300-24?
This model provides a constant 24V output with a 300W power rating and 12.5A rated current. Its AC input range is 200-240V, and the listed efficiency is up to 89%.
Is the Envo SC-300-24 dimmable?
Yes, the SC-300-24 supports AC phase-cut dimming and is described as working with leading-edge and trailing-edge TRIAC dimmers. It is also specified as offering strong compatibility and flicker-free dimming performance.
Can this power supply be used outdoors or in exposed environments?
The SC-300-24 has an IP66-rated design, which makes it suitable for outdoor installation. Its full aluminum housing also supports durability in demanding environments.
What operating temperature range does the SC-300-24 support?
This model is rated for operation from -40°C to 60°C. That range makes it suitable for both cold and hot installation environments where a standard indoor-only unit may not be appropriate.
How does the SC-300-24 compare with lower-power 24V LED power supplies?
The main difference is output capacity: the SC-300-24 is a 300W, 24V unit rated at 12.5A for higher-load applications. It also combines TRIAC dimming support, active PFC, and IP66 protection in a single model for projects needing more power and environmental resilience.
What protection and support features are included with this model?
The product description lists protection against short circuit, overloading, and over temperature. It also includes a 5-year warranty, which is useful for commercial buyers looking for longer service coverage.
