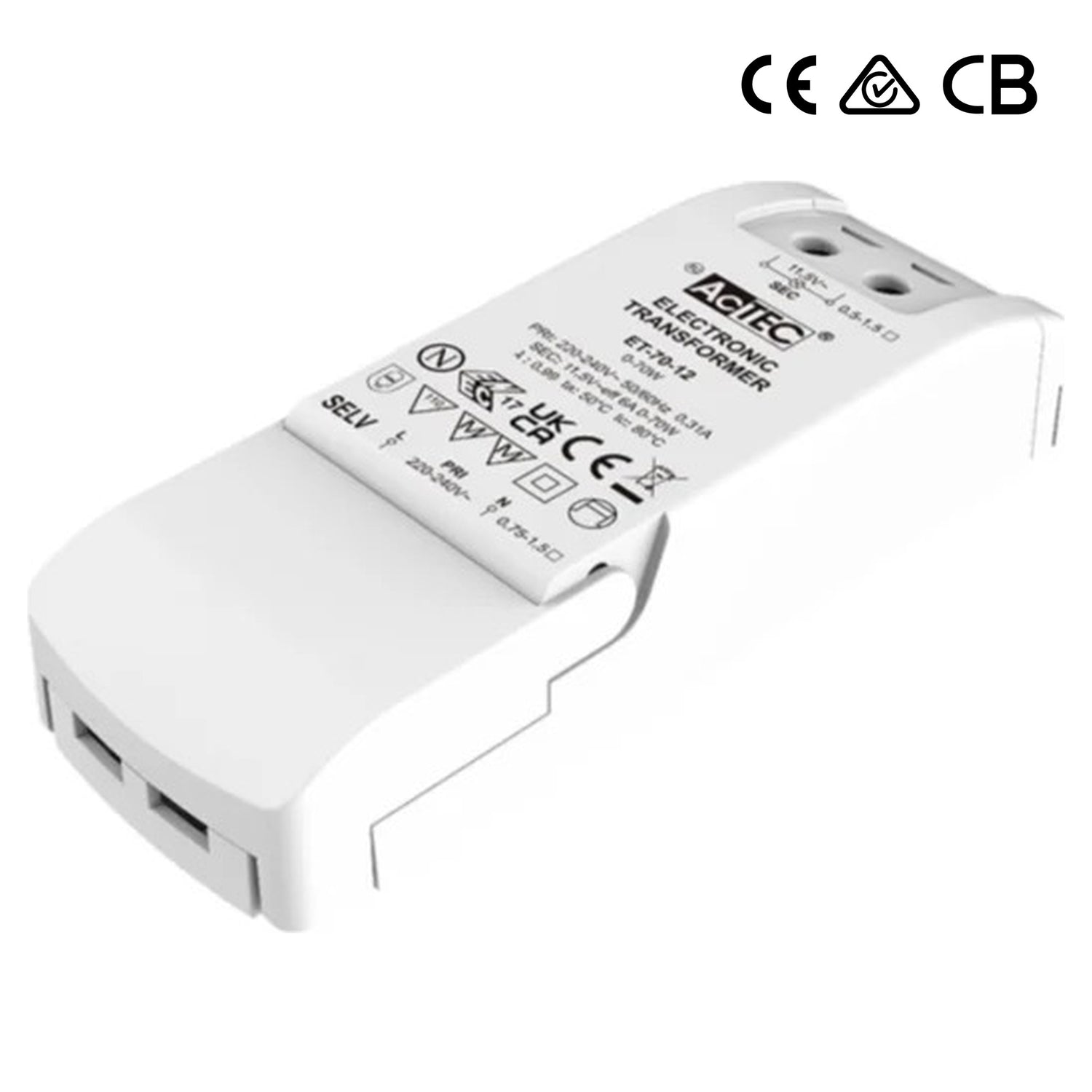

AcTec ET-70-12 Electronic Transformer — 70W 12VAC 6A Triac Dimmable

constant voltage ACCE/RCM/CB certified198–264VAC inputtriac dimmable5-year warranty

SKU ET-70-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The AcTec ET-70-12 is a 70W dimmable electronic transformer delivering a stable 12VAC output, designed for halogen lamps, LED lamps, and other low-voltage AC devices including electric towel rails. Supporting both leading-edge and trailing-edge (triac) dimming, it delivers smooth flicker-free control at up to 6A with 95% full-load efficiency, carrying CE, RCM, and CB certifications.

Accepting 198–264VAC input at 50/60Hz, the ET-70-12 is fully compatible with NZ/AU supply conditions. It features galvanic isolation, built-in short-circuit, overload, and over-temperature protection with auto-recovery, and a minimum load of 0W for broad LED lamp compatibility. The independent screwless enclosure with captured terminal screws simplifies installation.

Key Features

✓Dimmable: leading-edge and trailing-edge (triac) compatible
✓12VAC output at up to 6A (70W max)
✓High efficiency: up to 95% at full load
✓AC input: 198–264VAC, 50/60Hz
✓Built-in protections: short-circuit, overload, over-temperature (auto-recover)
✓Galvanic isolation between primary and secondary
✓Zero minimum load — suitable for LED lamp installations
✓Compact independent enclosure: 120 × 45 × 28mm, 108g
