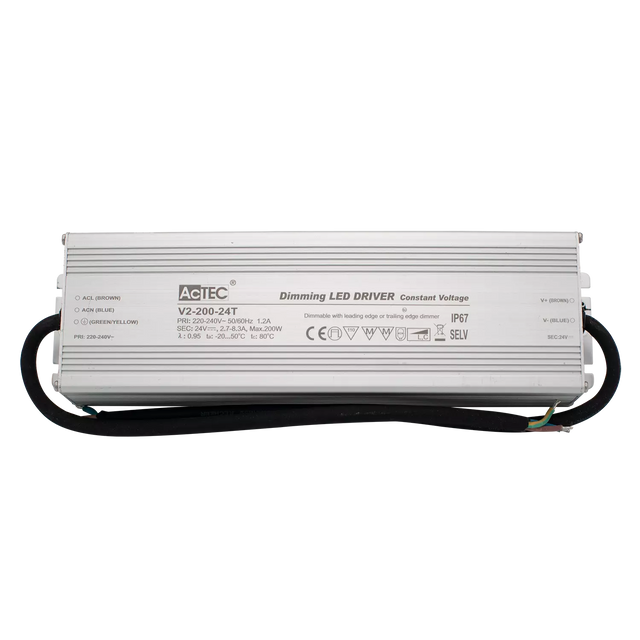

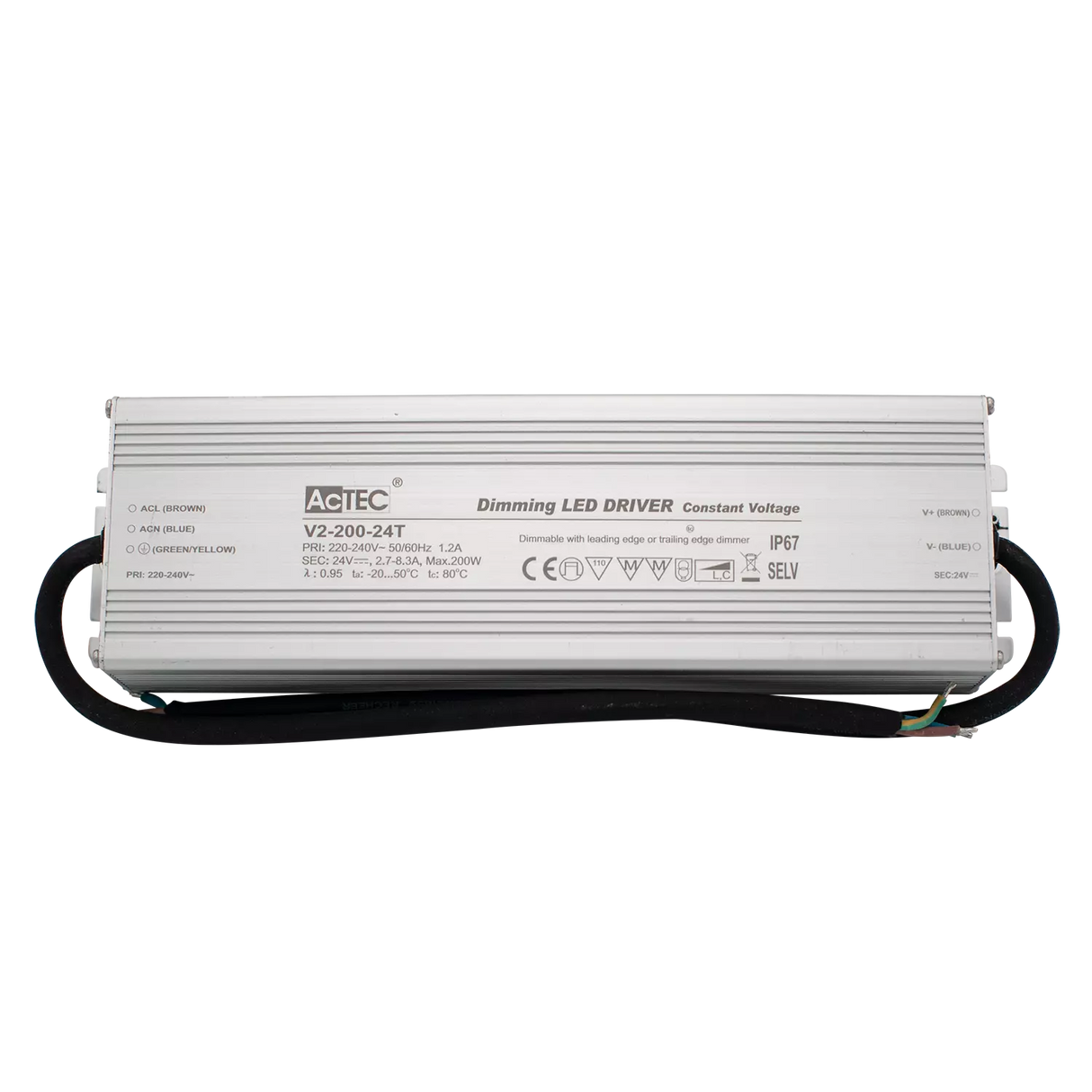

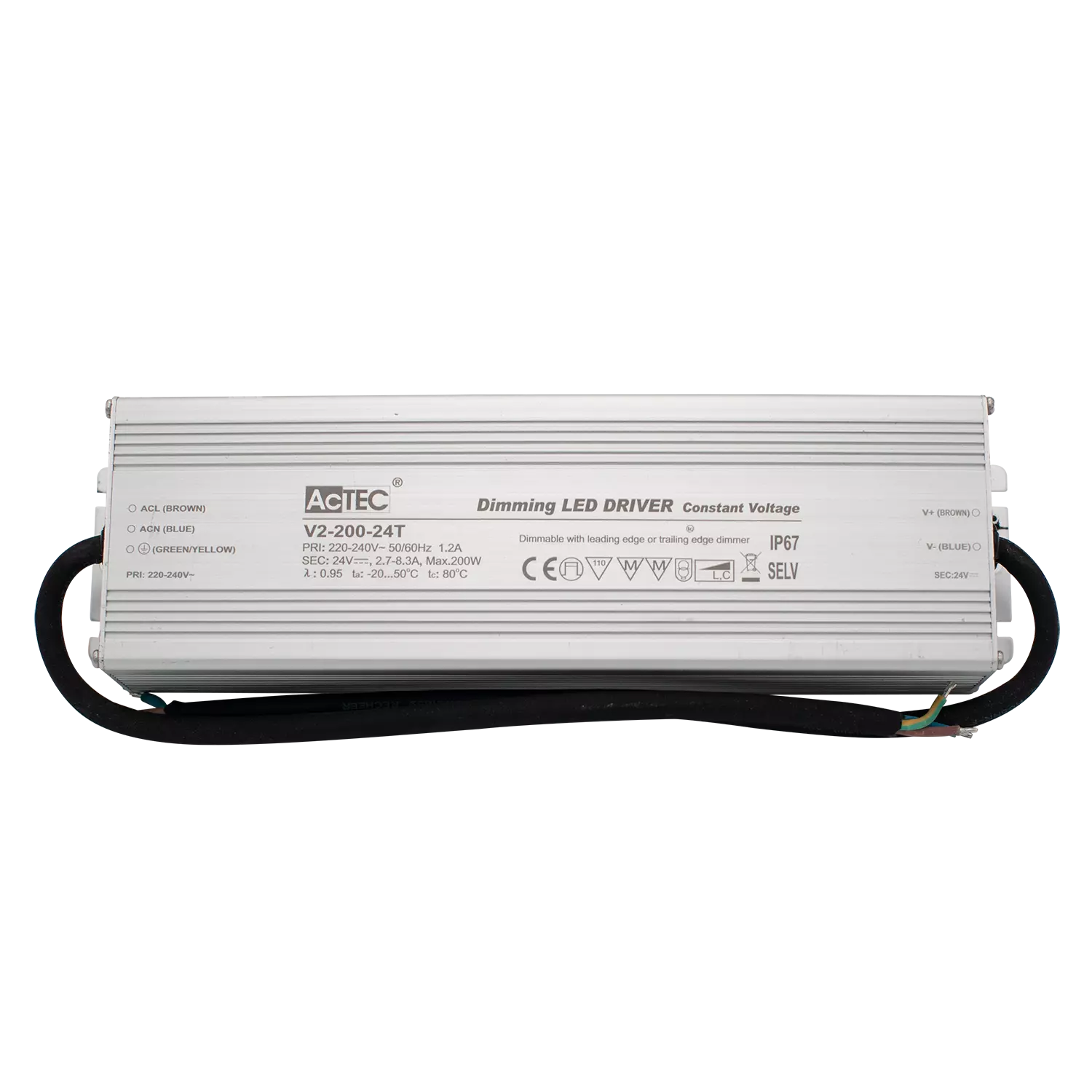

AcTEC V2-200-24T Triac Dimmable Driver 200W 24V IP67 1.2A
Please Login for Pricing
Description
Description
Features:
- Independent design
- Dimmable constant voltage driver
- Analogue flicker-free
- Dimming with leading edge or trailing edge dimmer
- Smooth dimming compatible with most dimmer
- Dimming range 1…100%
- Primary and secondary sides come with leads
- Differential mode 4kV and common mode 6kV surge immunity
- Protections: opencircuit, shortcircuit, overload, over temperature
- SELV equivalent
- Protection class I
- IP67 design
General Specification
AC input voltage range
198 – 264 V
AC inrush current (max.)
75 (th = 300 μs)
Surge transient protection
2 | 4 (L/N | LN/PE acc to. EN 61547 Clause 5.7)
Over temperature
Yes
Over load
Yes
No load
Yes
Short-circuit
Yes
Ambient temperature range ta
-20 …+50°C
Safety standards
EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020
Dimension (LxWxH)
249 x 72 x 40 mm (L*W*H)
Specifications
Specifications
-
BrandAcTEC
-
SeriesAcTEC V Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current1.2 Ampere
-
Input Voltage220V~240V
-
Standards MetEN,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature80°C~-20°C
-
Warranty5 Year
-
Length24.9 cm
-
Width7.2 cm
-
Height4 cm
-
Weight0.07 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the AcTEC V2-200-24T designed for?
The AcTEC V2-200-24T is a dimmable constant voltage driver for 24V LED applications. It is built for projects that need up to 200W output with smooth dimming performance and an IP67-rated enclosure. This makes it a practical option for commercial and architectural LED lighting systems that require a sealed driver.
What dimming methods does this 24V LED driver support?
This model supports TRIAC dimming with both leading edge and trailing edge dimmers. It is described as analogue flicker-free and offers a 1 to 100 percent dimming range. That makes it suitable where stable low-level dimming and broad dimmer compatibility are important.
What are the key electrical specifications of the V2-200-24T?
This driver is rated at 200W with a 24V constant voltage output. Its AC input voltage range is 198 to 264V. These specifications make it suitable for 24V lighting systems that need a higher-power dimmable driver.
Is the AcTEC V2-200-24T suitable for demanding environments?
Yes, this model has an IP67 design, which helps protect it in challenging environments where dust and water resistance matter. It also includes differential mode 4kV and common mode 6kV surge immunity. Those features make it better suited to tougher commercial lighting conditions than a basic indoor-only driver.
What protection features are included in this driver?
The V2-200-24T includes protection against open circuit, short circuit, overload, and over temperature conditions. It is also described as SELV equivalent and Protection Class I. These protection features help support reliability in professional LED power applications.
Why would a buyer choose this model over a non-dimmable 24V power supply?
This model is intended for applications where 24V output and dimming control are both required in a single driver. Unlike a non-dimmable power supply, it is specifically built for smooth TRIAC dimming with leading or trailing edge dimmers. It also adds IP67 construction and surge immunity, which can matter in more demanding projects.
