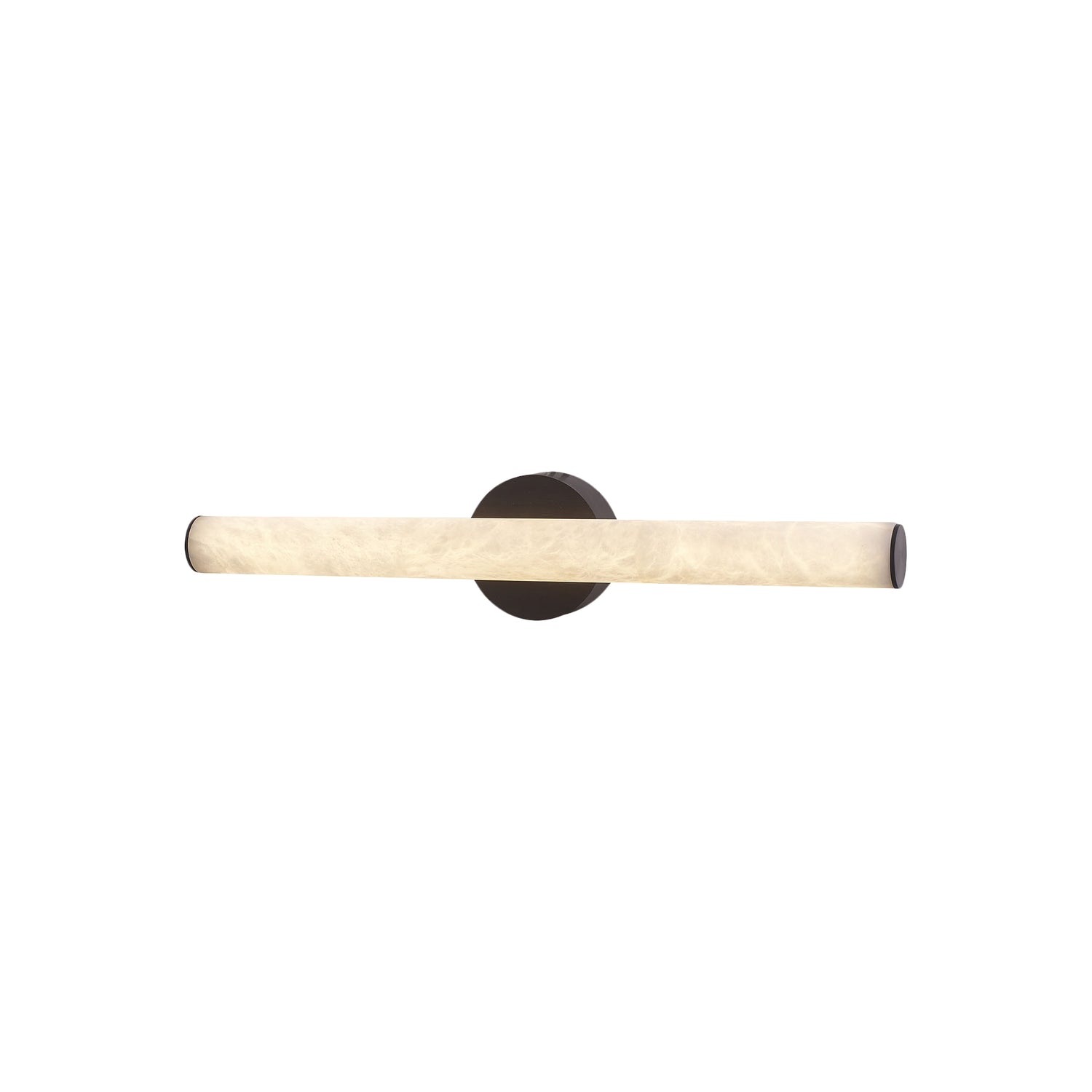

Archilight Alabaster-Stone Spindle Wall Light 690

aluminium end capfitting can be mounted vertically
SKU ALA-71221-690-HA
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Specifications

ALA-71221-690-HASpecifications from the official datasheetDownload datasheet PDF

Specifications

Voltage
230VAC
Power Consumption
16W
Color Temperature
3000K (Warm White)
Dimmable
No
LED Lifetime
50,000 hours
Material
Alabaster Stone
Secondary Material
Aluminium
Colour
Stone White
Dimensions
Ø42 x 690mm
Weight
2.06kg
IP Rating
IP20 (Indoor Use)
Light Source
Integrated LED Module
Warranty
3 years

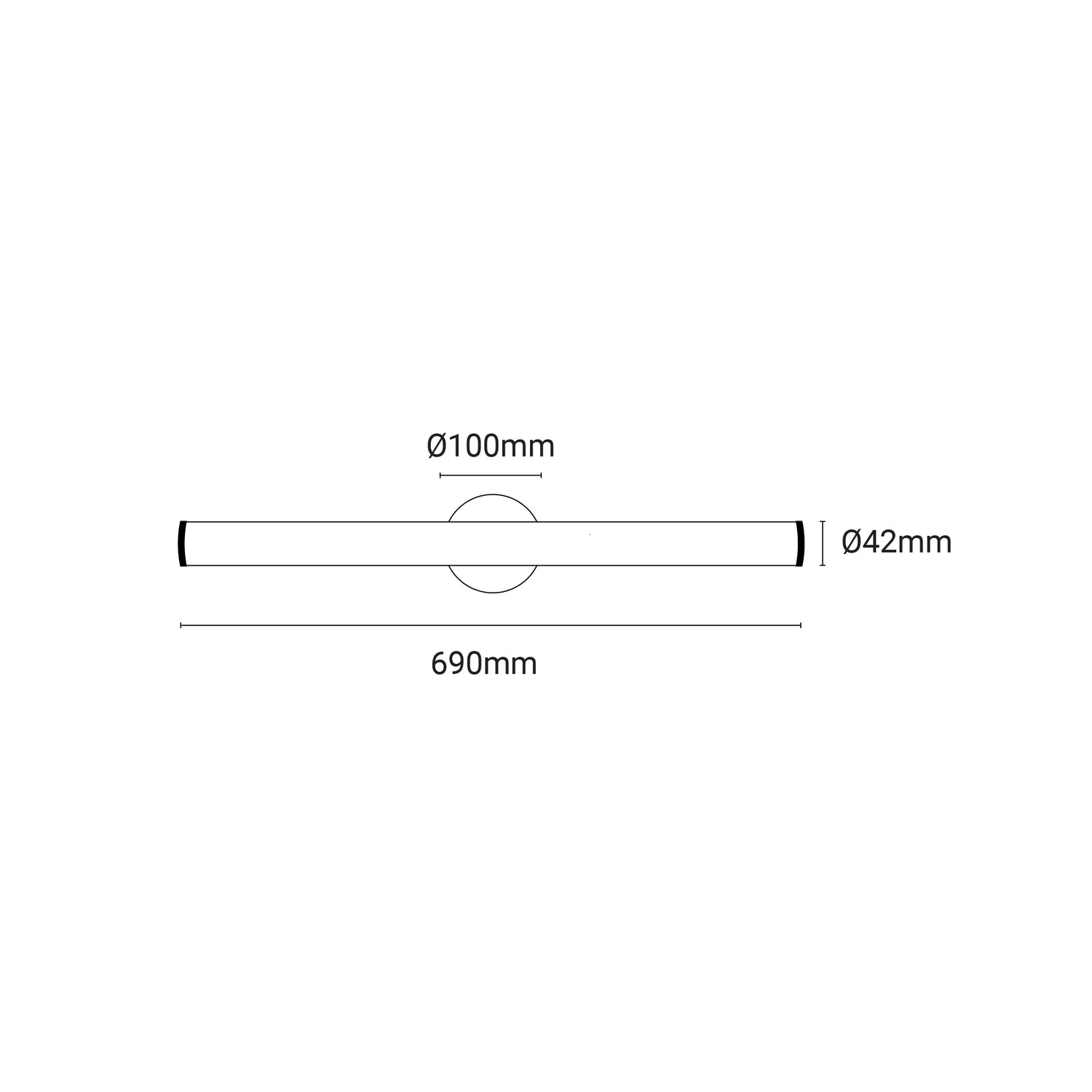

Technical drawings

ALA-71221-690-HA ALABASTER-STONE SPINDLE WALL LIGHT - 690MM
ALABASTER-STONE SPINDLE WALL LIGHT - 690MM

Downloads

FAQ

What type of spaces is the Archilight Alabaster-Stone Spindle Wall Light 690 best suited for?

This model is designed for indoor decorative lighting in spaces where appearance matters as much as illumination. Its alabaster stone body and warm 3000K output make it well suited to hospitality, residential, reception, corridor, and other interior wall-lighting applications. The IP20 rating confirms it is intended for dry indoor environments.

What makes this wall light different from standard painted or metal wall lights?

This model uses natural alabaster stone as its main material, so each fitting has unique veining and pattern variation. That gives it a more premium, natural appearance than uniform painted or all-metal decorative wall lights. The aluminium secondary material adds structural support while keeping the visual focus on the stone finish.

What are the key technical specifications of this wall light?

The Archilight Alabaster-Stone Spindle Wall Light 690 runs on 230VAC and consumes 16W. It has an integrated LED module with 3000K warm white light and a rated LED lifetime of 50,000 hours. The fixture measures Ø42 x 690mm and weighs 2.06kg.

Is this wall light dimmable?

No, this model is non-dimmable. It is designed to provide a fixed warm white output at 3000K. If a project requires adjustable light levels, that should be checked against a different fitting specification.

Is this product suitable for bathrooms, exterior walls, or damp locations?

No, this model is rated IP20, which means it is for indoor use only in dry areas. It is not specified for wet, exposed outdoor, or high-moisture environments. For those applications, a fitting with a higher IP rating would be more appropriate.

How long is the expected service life and warranty for this model?

This wall light has a rated LED lifetime of 50,000 hours, which supports long-term use in commercial and residential interiors. It also includes a 3-year warranty. Those figures make it a practical option for projects looking for decorative lighting with reduced replacement frequency.
